Description :

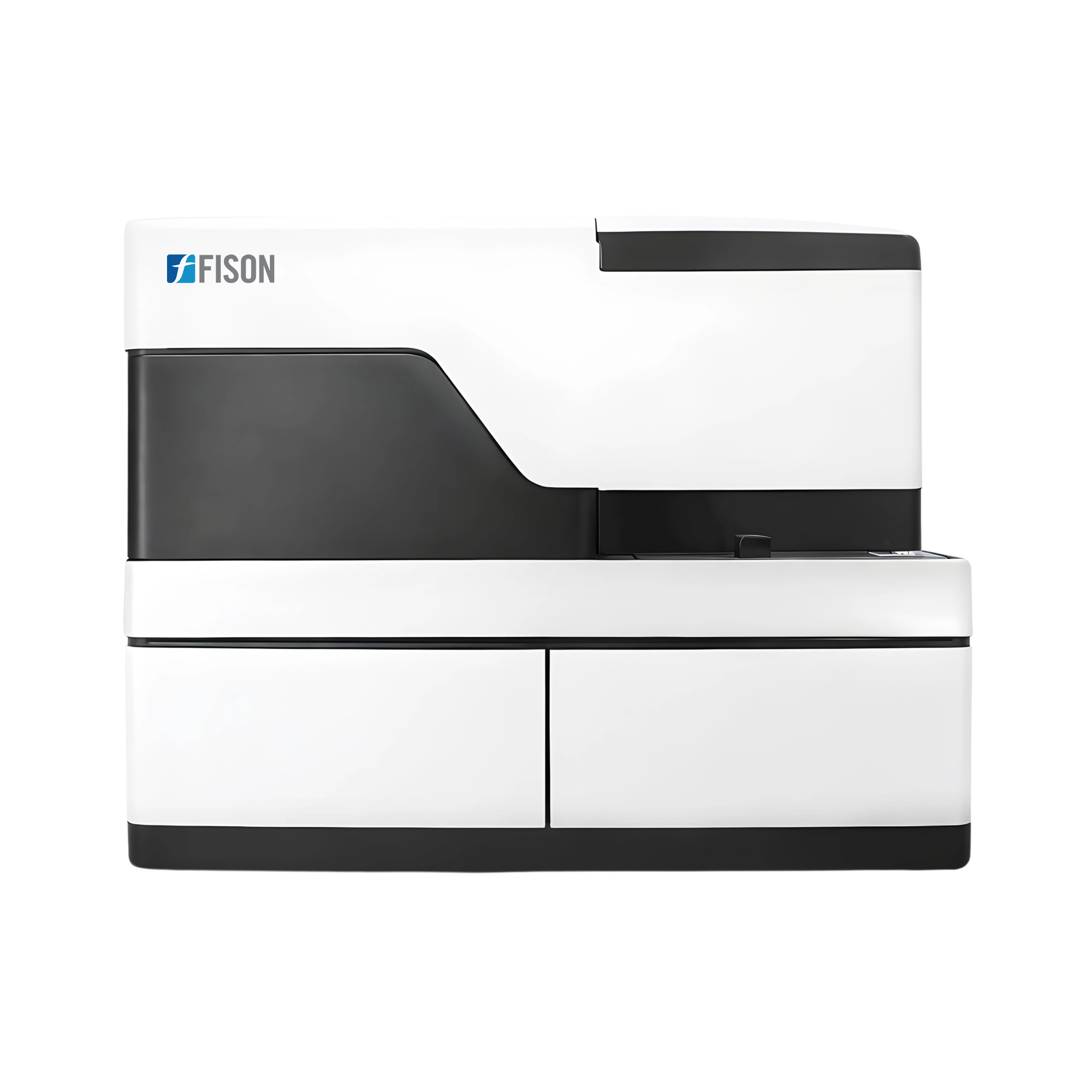

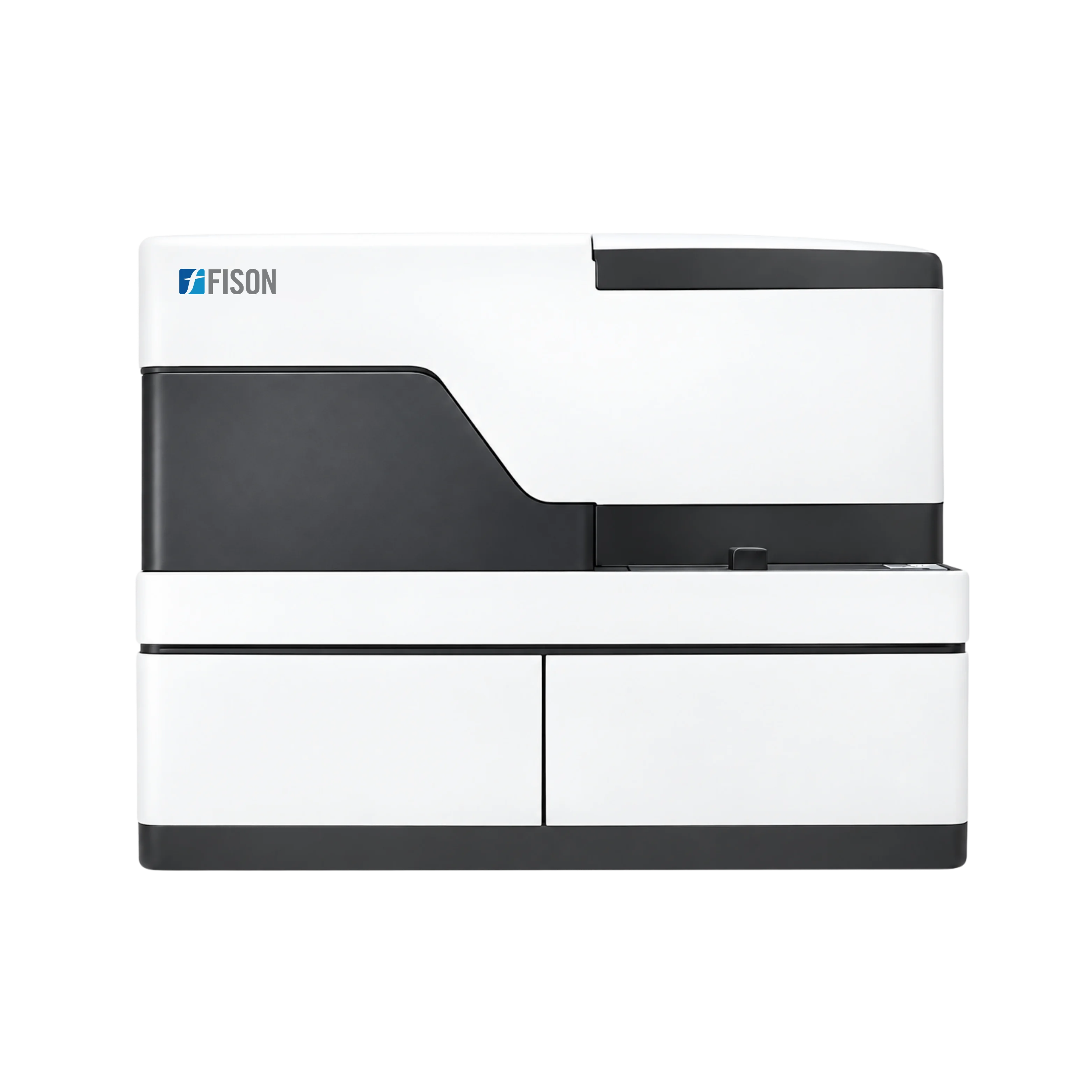

Chemiluminescent Immunoassay Analyzer FM-CLA-A100 offers a maximum throughput of 180 tests per hour and processes samples from 10 to 200 μL. It employs magnetic particle separation technology for effective isolation and separation of components. It provides real-time updates, allowing users to continuously monitor test progress. Equipped with safety alarms to ensure smooth operation.


Features:

  • Compact and easy to operate
  • Wizard visual interface
  • Triple magnetic separation cleaning technology
  • Forced air cooling reagent tray
  • Maintains sample integrity
  • Reaction vessels can be added by pouring

Specifications:


Throughput 180 T/H
Sample Volume 10 to 200 μL
Principle Magnetic particle enzymatic chemiluminescence
1st Result Time 18 minutes
Operation Modes Random, Batch and STAT
Separation Method Magnetic separation technology
Sample Positions 60 (Each position could be used as an emergency position)
Reagent Positions 25 pcs (2-8 ℃ refrigeration)
Incubation Positions 58
Detection Precision CV ≤ 5 %
Carry-Over Rate ≤ 10-5
Correlation Coefficient r ≥ 0.99
Calibration Stability 28 Days
Calibration Type 6 / 7-point calibration
Software Windows 7/8/10, 32 or 64 bit, Bi-direction, support HL7 protocol, Intuitive User Interface, Intelligent Data Management
Interface TCP/IP Network interface
Functions Liquid level detection, Anti-collision function, Sample barcode scanning, Reagent radio frequency identification, Intelligent alarm prompt.
Power Supply AC 110/220 V, 50/60 Hz
Dimensions (W × D × H) 768 × 771 × 568 mm
Packaging Dimension (W × D × H) 1303 × 873 × 854 mm
Net Weight 94 Kg
Gross Weight 163 Kg

Applications:

Chemiluminescent Immunoassay Analyzer is used for clinical diagnostics, cancer screening, hormone testing, and drug monitoring. It also supports research, prenatal screening, and veterinary diagnostics.
