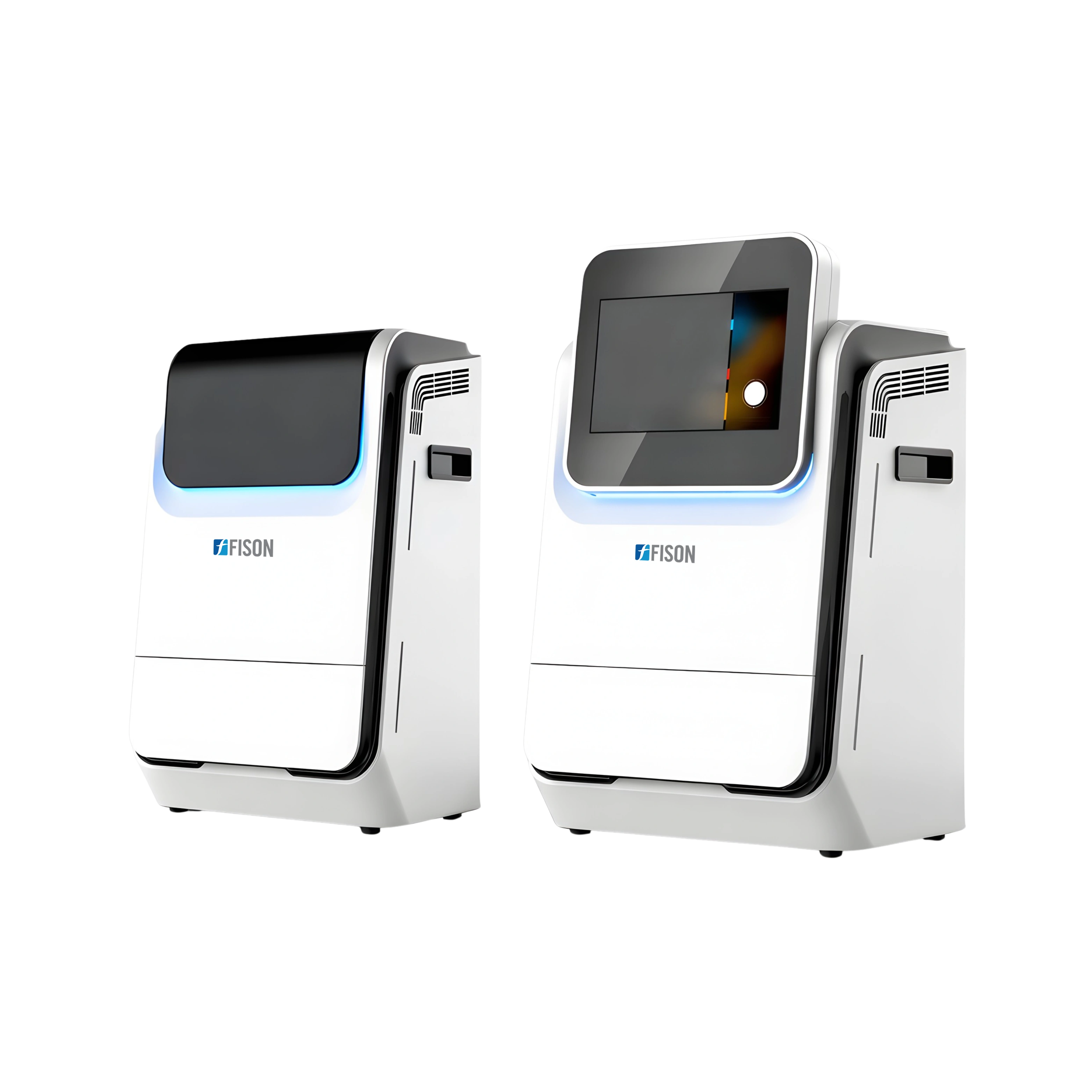

Chemiluminescence Imager FM-CI-A100 Catalog

Description :

Chemiluminescence Imager FM-CI-A100 is a 9.0-megapixel high-resolution system optimized for precise imaging of samples in protein, DNA, and RNA analysis. Its cooled digital camera reduces thermal noise to enhance image clarity, in low-light conditions. This features an electronic lifting platform, providing a viewing area for various sample sizes. Our imager has user-friendly software that simplifies chemiluminescent signal capture and analysis.

Features:

---

Specifications:

---

Resolution	9.0 Megapixels
Sensor	Back illuminated Cooled CMOS sensor
Dynamic Range	4.8 OD
Temperature	-30°C regulated (-65°C below ambient)
Pixel Size	3.76 × 3.76 μm
Pixel Density	16-bit (65,536 Grey scales)
Lens	F0.95 as standard
Chemi Imaging	Single Layer sample tray
Dimensions(L×W×H)	420 × 430 × 740 mm
Weight	17kg

Applications: Chemiluminescence Imager FM-CI-A100 is utilized in molecular biology and biochemistry for detecting chemiluminescent signals in applications like Western blotting and DNA/RNA analysis. Its high sensitivity makes it ideal for research laboratories and diagnostics.

Accessories Optional: Industrial computer Fluorescent module Replacement of F0.8 lens
