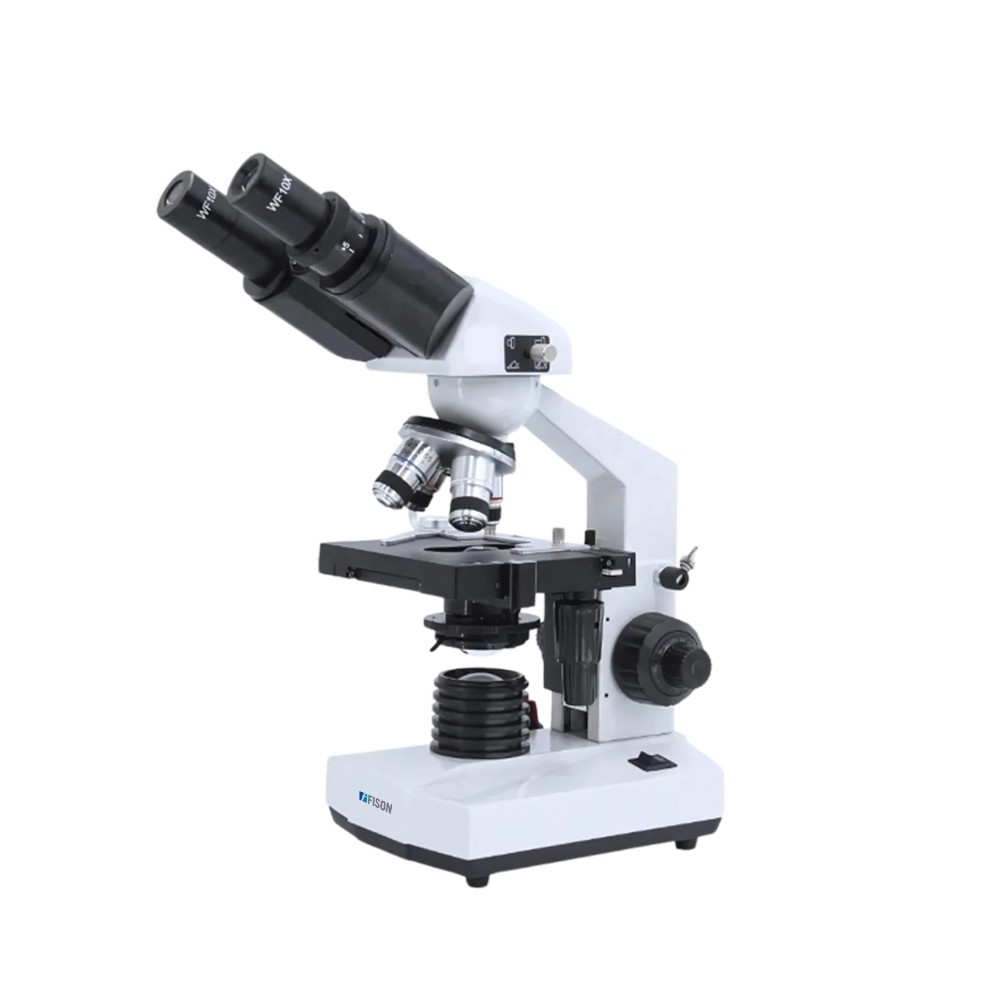

Biological Microscope FM-BM-C105 Catalog
.png "Biological Microscope FM-BM-C105")
Overview
Biological Microscope FM-BM-C105 is a high-performance microscope that contains high-point oculars with 10× magnification for comfortable, extended viewing. It is equipped with a Koehler light source, providing uniform illumination for clear and accurate observations. This features a precise mechanical stage for smooth and accurate sample movement. Our Microscope has flexible rubber knobs for a comfortable, reducing fatigue during extended use.
Specifications :
| High Point Ocular | WF10× / 20mm (23.2) |
| Infinity Plan Objectives | 4× / 0.10 (Working Distance = 12.10mm), 10× / 0.25 (Working Distance = 4.64mm), 20× / 0.40(S) (Working Distance = 2.41mm), 40× / 0.66(S) (Working Distance = 0.65mm), 100× / 1.25(S, Oil) (Working Distance = 0.12mm) |
| Binocular Head | Inclination Angle 30°, Rotation Angle 360°, Interpupillary Distance: 48mm to 75mm |
| Nosepiece | Quintuple |
| Mechanical Stage | Size: 185×145mm, Traveling Range: 78mm×55mm, Coaxial Coarse, Fine Focus, Two-Slide Holders |
| Abbe Condenser | N.A. 1.25, iris diaphragm |
| Microscope Filters | Blue |
| Power Supply | 100V to 240V, 12V/20W Halogen Light, 6V/30W Halogen Light, 3W-LED Light System |
| Dimensions (L×W×H) | 542 × 265 × 355mm |
| Weight | 11kgs |
Features :
- Clearfield adjustable condenser
- Independent phase contrast device
- Multi-purpose camera attachment
- Advanced illumination system
- Customizable objective turret
Applications :
Biological Microscope FM-BM-C105 is used for studying cells, bacteria, and tissues in labs, medical diagnostics, education, and industrial testing.
Accessories Optional :
- 0
- 5X/0
- 35X/0
- 75X C-mount
- Polarizing unit
- Quintuple turret phase contrast unit including 10X/20X/40X/100X(oil) phase contrast objective
