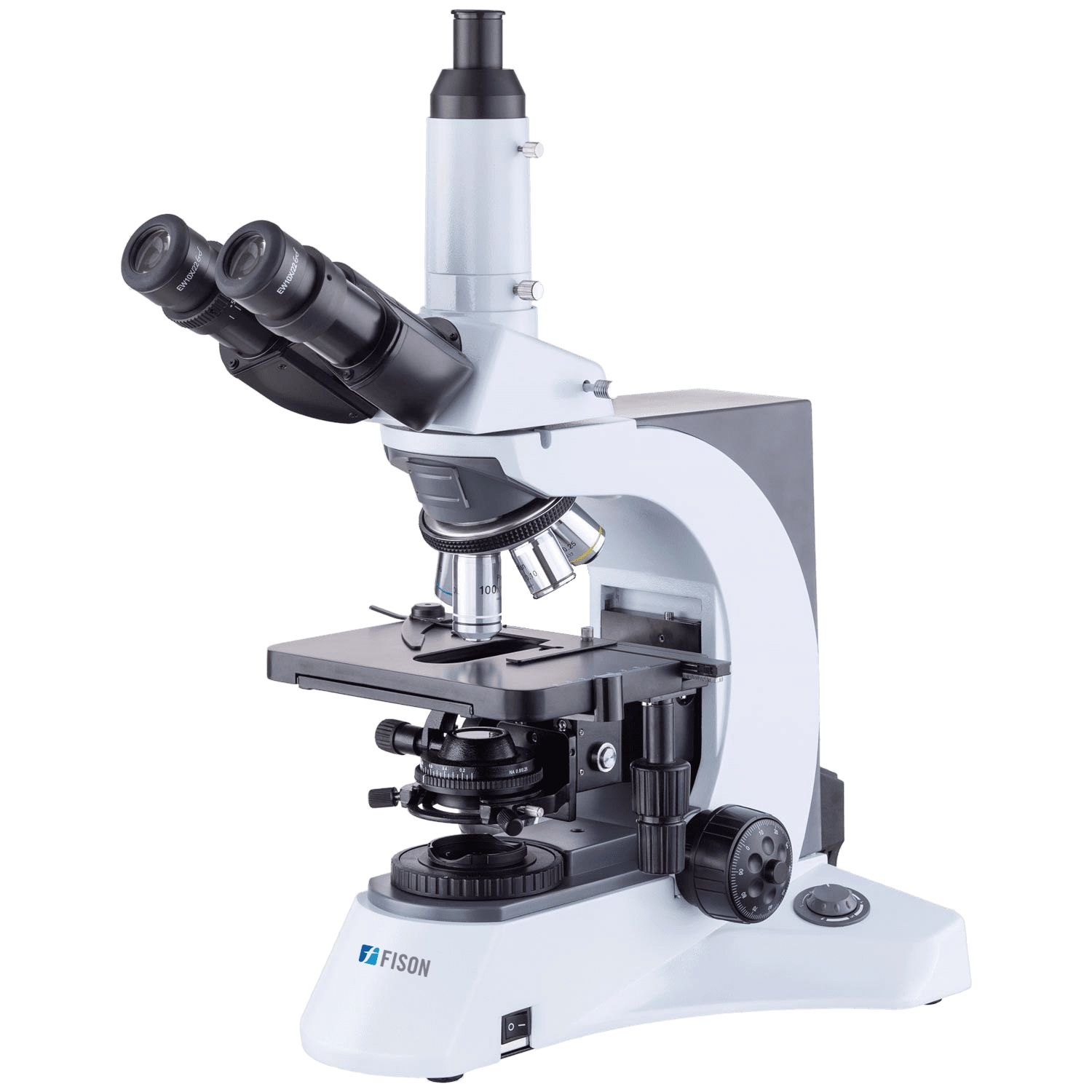

Biological Microscope FM-BM-A105 Catalog
Overview
Biological Microscope FM-BM-A105 offers infinite optical system, features Trinocular viewing head which is 30° inclined, offers 360° rotation, and Interpupillary distance range of 48 to 75 mm, with dioptre adjustment ± 5, video adapter C munt 1X for Digital camera. Designed with Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil) and Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm to offer better observation.
Specifications :
| Optical System | Infinite Optical System |
| Viewing Head | Trinocular viewing head, 30° inclined, 360° rotation, Interpupillary distance 48 to 75 mm, dioptre adjustment ± 5, Video adapter C munt 1X for Digital camera |
| Eyepiece | Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm |
| Objectives | Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil) |
| Nosepiece | Backward Sextuple Nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob Fine division 0.001 mm, coarse stroke 37.7 mm per rotation Fine stroke 0.1 mm per rotation, moving range 24 mm |
| Stage | Double layer mechanical stage size: 185 × 142 mm, range: 75 × 55 mm |
| Condenser | Swing-out Achromatic Abbe Condenser N.A. 0.9 iris diaphragm |
| Illumination | Transmitted kohler illumination, aspherical collector, halogen lamp 6V/30 W house |
| Filter | Blue filter, Green filter |
| Power supply | 220 to 240 V, 50 Hz |
| Dimension (L×W×H) | 358×280×460 mm |
| Weight | Approx. 15 kg |
Features :
- Coaxial coarse and fine focusing knob with fine division and stroke per rotation
- Double layer mechanical stage 185 × 142 mm, range: 75 × 55 mm
- Swing-out Achromatic Abbe Condenser N.A. 0.9 iris diaphragm
- Equipped with Blue Filter and Green Filter
- Transmitted Kohler illumination, aspherical collector, halogen lamp 6V/30 W house
- Ergonomic design, user-friendly operation
Applications :
It finds application in microbiology, biotechnology, pathology, cell research, forensic medicine, etc. Biological microscopes are used to study organisms and their vital processes through different types of staining.
Accessories :
- Immersion Oil
- Dust Cover
Accessories Optional :
- Eyepiece WF20X/12 mm
- Eyepiece WF15X/16 mm
- 3W LED Illumination
- 5W LED Illumination
- Turret Phase Contrast Kit
