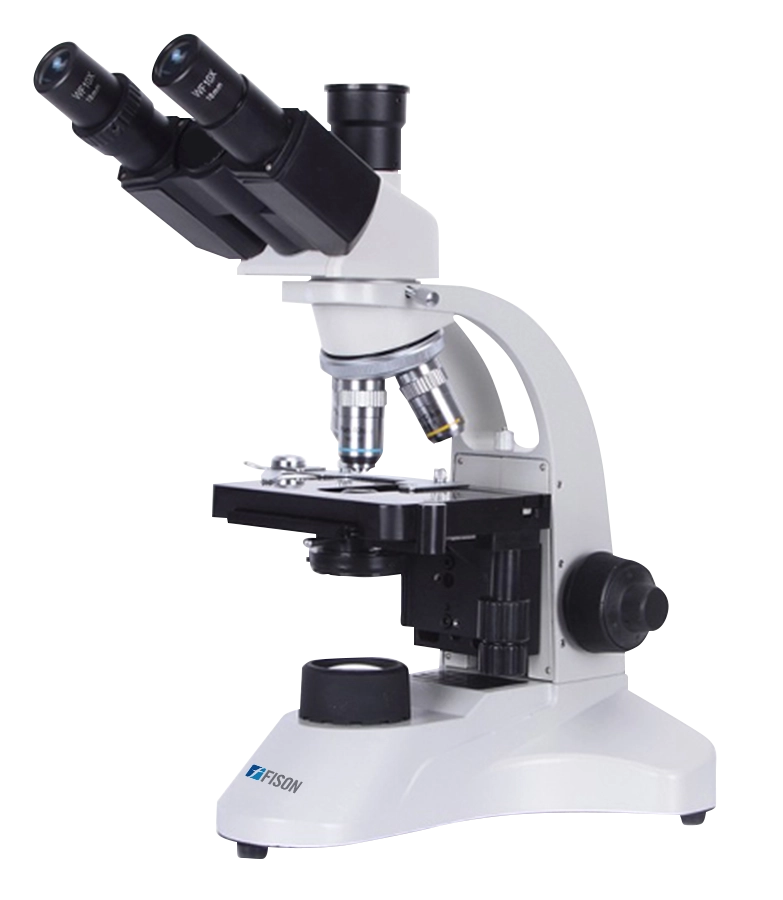

Biological Microscope FM-BM-A103 Catalog

Description :

Biological Microscope FM-BM-A103 comes with trinocular 30° inclined viewing head, 40 to 1600X zoom magnification range, with camera attachment for microscopic observation. With ergonomic design, high quality plan achromatic objectives are used to reduce strain on eyes during observation.

Features:

---

Specifications:

---

Optical System	Finite Optical System
Viewing Head	Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
Magnification	40X to 1600X
Objectives	Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Eyepiece	Wide field WF10X/18mm and Wide field WF16X/15mm
Nosepiece	Inward, Quadruple revolving nosepiece
Focusing system	Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm
Stage	Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm
Condenser	Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob
Illumination	3W LED lamp, brightness adjustable
Power	External power supply (adapter), AC 100V-240V, DC 5V/2A
Voltage	220 V, 50 Hz
Weight	14 kg

Applications: Used for microscopic examination across medical, tissue culture industries, gemology, metallurgy, as well as inspection of electrical board, and others.

Accessories Optional: Accessories no. Name 1 Upper light source  2 Digital Eyepiece 2 MP 3 Digital Eyepiece 3 MP 4 Phone Adapter 5 Digital Camera 3 MP for Trinocular 6 Digital Camera 5 MP for Trinocular
