Benchtop PH Meter FM-BPM-A101 Catalog

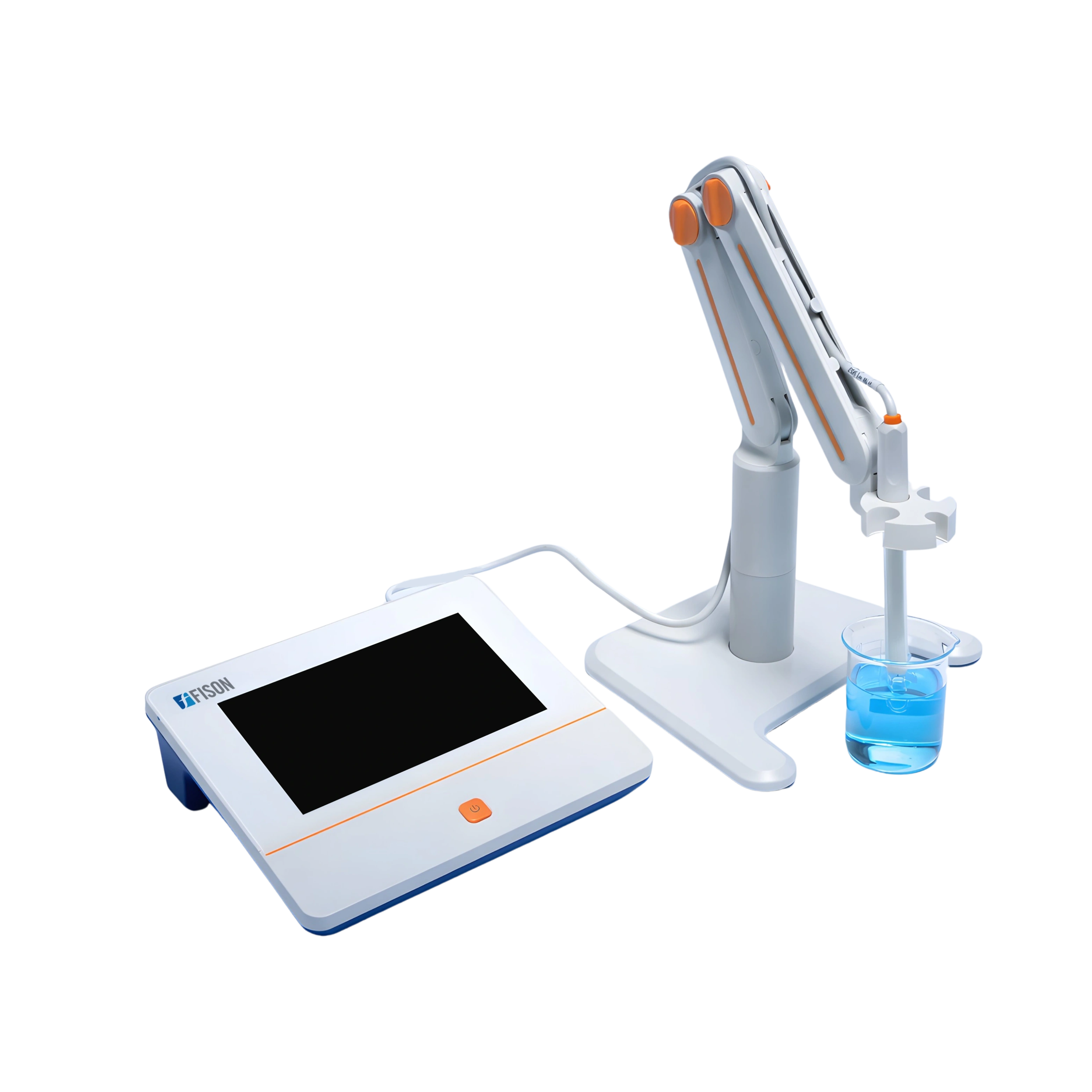

Benchtop PH Meter FM-BPM-A101

Benchtop PH Meter FM-BPM-A101

www.fison.com | info@fison.com

Overview

Benchtop pH Meter FM-BPM-A101 is a multiple reading mode comprised unit comes with automatic and manual temperature compensation, has up to 6 calibration points with standard recognition. Features automatic electrode diagnosis with pH slope and offset display. With 7-inch color LCD display, provides easy data management and user-friendly interface. Equipped with large data storage and data analysis, it supports USB and RS232 interface for convenient data processing and analysis.

Specifications :

pH Range -2.00 to 20.00 pH
pH Resolution 0.1, 0.01, 0.001 pH
pH Accuracy ±0.002 pH
Calibration Points Up to 6
Standard Recognition NIST, GB, DIN, USA, MERK, JIS buffers
mV Range -2000 to 2000 mV
mV Resolution 0.1, 0.01 mV
mV Accuracy ±0.03% FS
Calibration Point (mV) 1 custom point
Temperature Range -10 to 135 ℃ (14 to 275 ℉)
Temperature Unit ℃, °F
Temperature Resolution 0.1
Temperature Accuracy ±0.1
Reading Mode Auto Read, Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temperature Compensation ATC, MTC
Data Storage 1000 groups
pH Electrode BNC (Q9)
Temperature Probe 4-pin aviation connectors
Backlight Yes
Auto Shutdown 1 to 60 min, off
Display LCD
Interface USB and RS232
IP Rating IP54
Power Supply AC Adapter, 100 to 240 V AC input, DC 24V output
Dimension (L × W × H) 220 × 195 × 68 mm
Weight 950 gm

Features :

  • Benchtop pH meter with multiple reading modes: Auto read, Timed, Continuous
  • Automatic and Manual temperature compensation to avoid fluctuations
  • Up to 6 calibration points with standard recognition and calibration reminder
  • Automatic electrode diagnosis with pH slope and offset display
  • 7-inch LCD color display for easy data management and user-friendly interface
  • Large data storage for up to 1000 group with data analysis function
  • Supports USB and RS232 interface for convenient data processing and analysis

Applications :

  • Benchtop pH Meter is widely used for determining pH of the solutions across academics, environmental protection, medicine, food, health, geological exploration, metallurgy, marine exploration, and other fields.

    • Accessories Optional :

    mV/ORP Electrode
