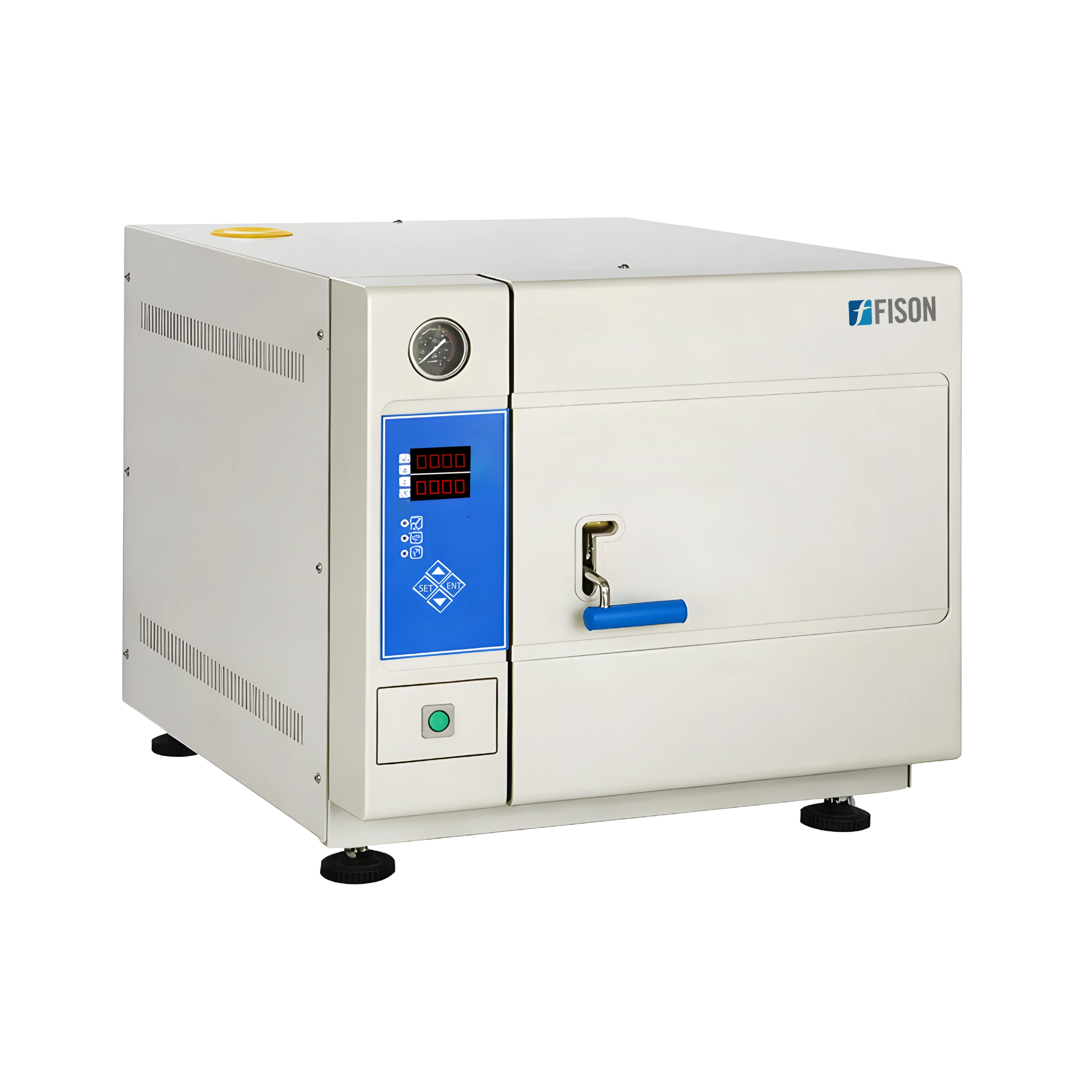

Benchtop Autoclave FM-BA-A101 Catalog

Description :

Benchtop Autoclave FM-BA-A101 is a fully automatic, microprocessor controlled unit with 50 L capacity, 134°C working temperature, and 0.22 MPa working pressure. Made up of stainless steel chamber, offers four stainless steel sterilizing plates. The process of water addition, temperature rise, sterilization, drying steam discharge are controlled automatically. Equipped with steam water inner circulation system, no steam discharge, keeps the surrounding environment clean and dry.

Features:

---

Specifications:

---

Chamber Capacity (Volume)	50 L
Chamber dimension	340 × 550 mm
Working pressure	0.22 MPa
Working temperature	134°C
Temperature adjustment range	105 to 134°C
Heating time	10 to 20 mins
Total sterilization time	40 mins (ready time + heating time + sterilization time)
Timer range	0 to 99 mins
Temperature accuracy	≤ ± 1°C
Sterilizing plate	4 pcs
Sterilizing plate dimension	500 × 250 × 30 mm
Dimension	770 × 600 × 540 mm
Packaging dimension	880 × 730 × 700 mm
Net weight	86 kg
Gross weight	105 kg
Power	2.7 kW
Power supply	AC 220 V, 50 Hz

Applications: Used for sterilization of surgical, dental, eye equipment, glassware, culture medium, biological dressing, food etc. across dental clinics, hospitals, school laboratories, scientific research labs, institutes.
