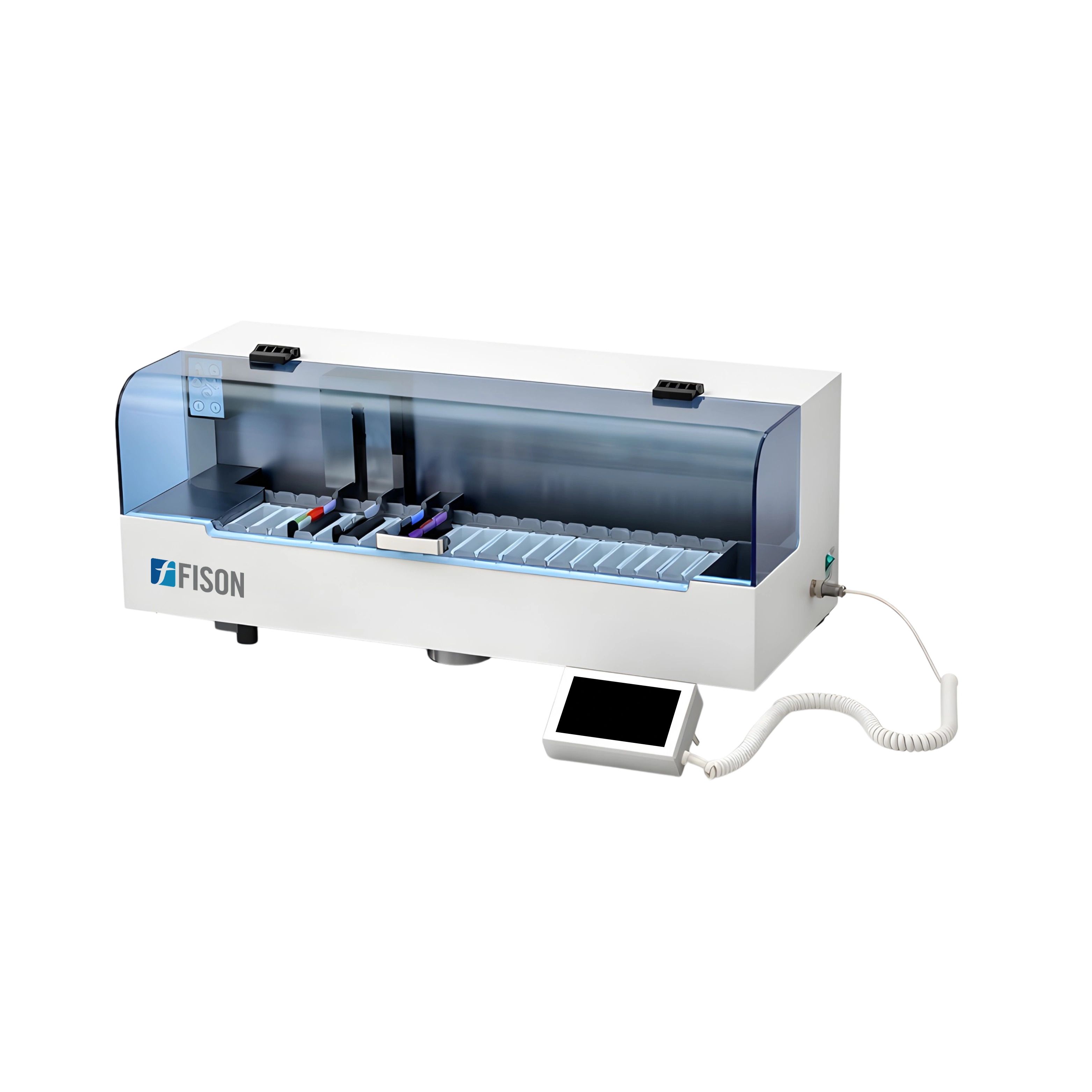

Automatic Tissue Slide Stainer FM-ATS-A102 Catalog

Description :

Automatic Tissue Slide Stainer FM-ATS-A102 is a fully automatic unit, comprised with 20 stations with 135 ml capacity each, can perform continuous staining with 6 slides in each holder. With LED touch operation system and water protection device, features automatic start/stop cleaning and adjustable water flow. Designed with optical plastic cover and air exhaustion device, has unique energy-efficient mechanical arm. Incorporated with 10 programs and adjustable time range of 0 to 59 mins/0 to 59 s, takes only 10 s for station changing, stay and liquid leaching and supports dynamic graph for staining work state.

Features:

---

Specifications:

---

Cup number	20 (Repeat station, Clean-bath can be set)
Cup capacity	135 ml
Cup processing time	0 to 59 min/0 to 59 s (Adjustable)
No. of slides processed	6 slides in each holder (continuous staining)
Dripping time	10 s
Display	LED touch screen
Storage	10 sets
Power supply	AC 220/110 V ± 10%, 50/60 Hz
Power	100 W
Dimension (W×D×H)	705×300×280 mm
Packaging dimension (W×D×H)	820×420×500 mm
Net weight	21 kg
Gross weight	38 kg

Applications: Automatic Tissue Slide Stainer is used to perform simultaneous process of different staining protocols, for continuous unload & reload without interrupting staining cycle, to automate the staining of peripheral blood and other hematologic smears to facilitate laboratory microscope differential counts etc. across biotechnology, microbiology, cytology, pathology and research etc.
