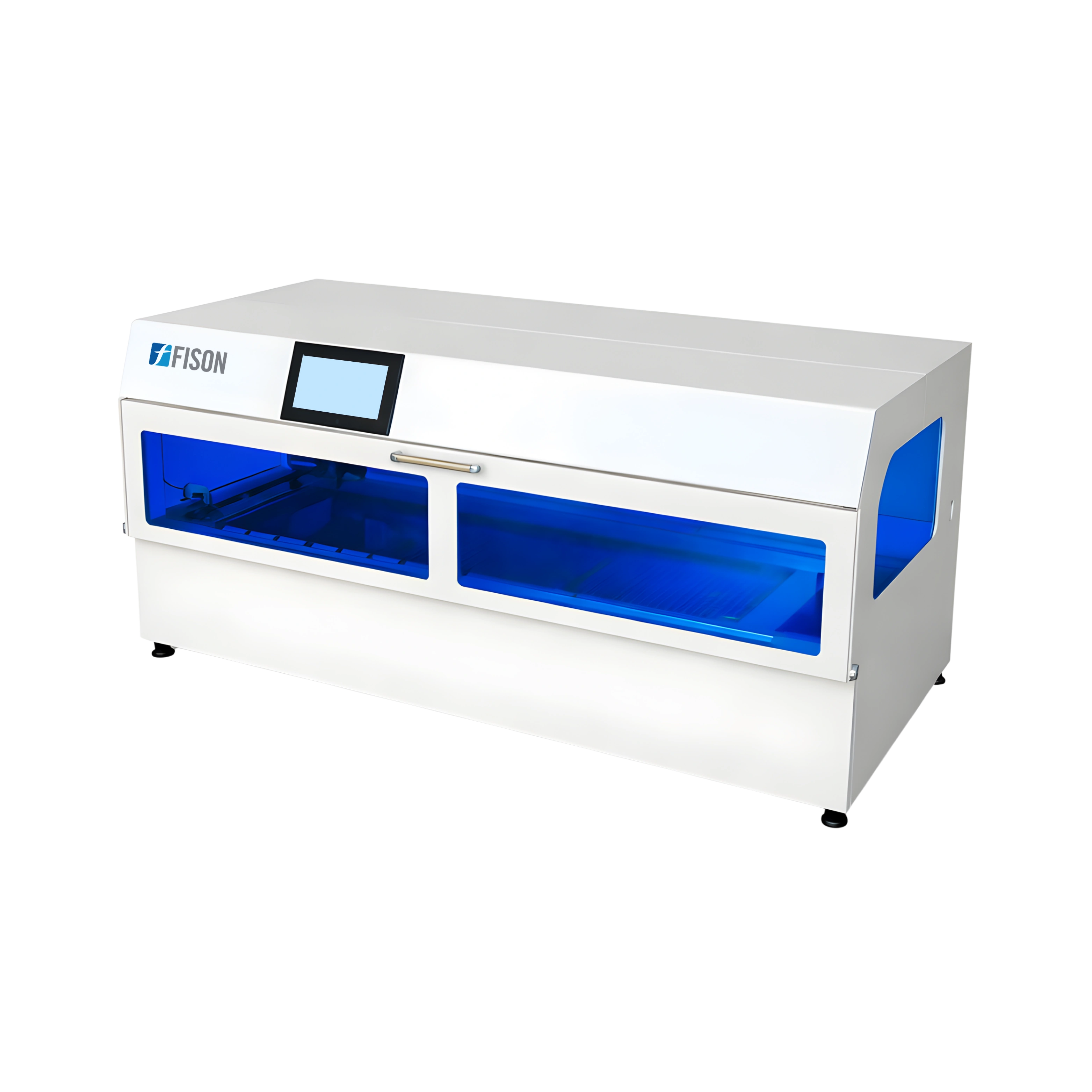

Automatic Tissue Slide Stainer FM-ATS-A101 Catalog

Description :

Automatic Tissue Slide Stainer FM-ATS-A101 is a fully automated unit, comprised with intelligent dynamic detection function, offers 18 cups capacity with 1000 ml each and 0 to 99 mins of processing time. With intelligent key function and self-detection function, features fully sealed internal circulation system with activated carbon filter and ionized decomposition of harmful gases. Designed with 7 inch color touch screen, programmable stepper motor driver with pump-free and sensor-free automatic drainage, has automatic flushing and any cylinder start/stop operation function. Incorporated with special drying cylinder, dyeing hanging back lateral transmission, and warm-up setting, supports automatic data storage with power failure, and more than 24 sets of programmable orders. Equipped with automatic water feeding and open dyeing steps, this unit offers consistency of technique by eliminating personal variation and provides reproducible, consistent high-quality staining.

Features:

---

Specifications:

---

Cup number	18 (1 for washing and 18 for drying)
Cup capacity	1000 ml
Cup processing time	0 to 99 min
No. of slides processed	75 slides
Jitter number	15 s/time
Dripping time	Adjustable
Display	7 inch color touch screen
Purification system	Fully sealed internal circulation system
Filter	Activated carbon filter
Drying function	Automatic
Water influx/efflux/drainage control system	Automatic
Data storage	Automatic
Motor drive	Programmable stepper motor driver
Programmable order	24
Power supply	AC 220 ± 10%, 50 ± 1 Hz
Power	≤ 500 W
Dimension (W×D×H)	1300×600×600 mm
Packaging dimension (W×D×H)	1380×680×740 mm
Net weight	83 kg
Gross weight	115 kg

Applications: Automatic Tissue Slide Stainer is used to perform simultaneous process of different staining protocols, for continuous unload & reload without interrupting staining cycle, to automate the staining of peripheral blood and other hematologic smears to facilitate laboratory microscope differential counts etc. across biotechnology, microbiology, cytology, pathology and research etc.
