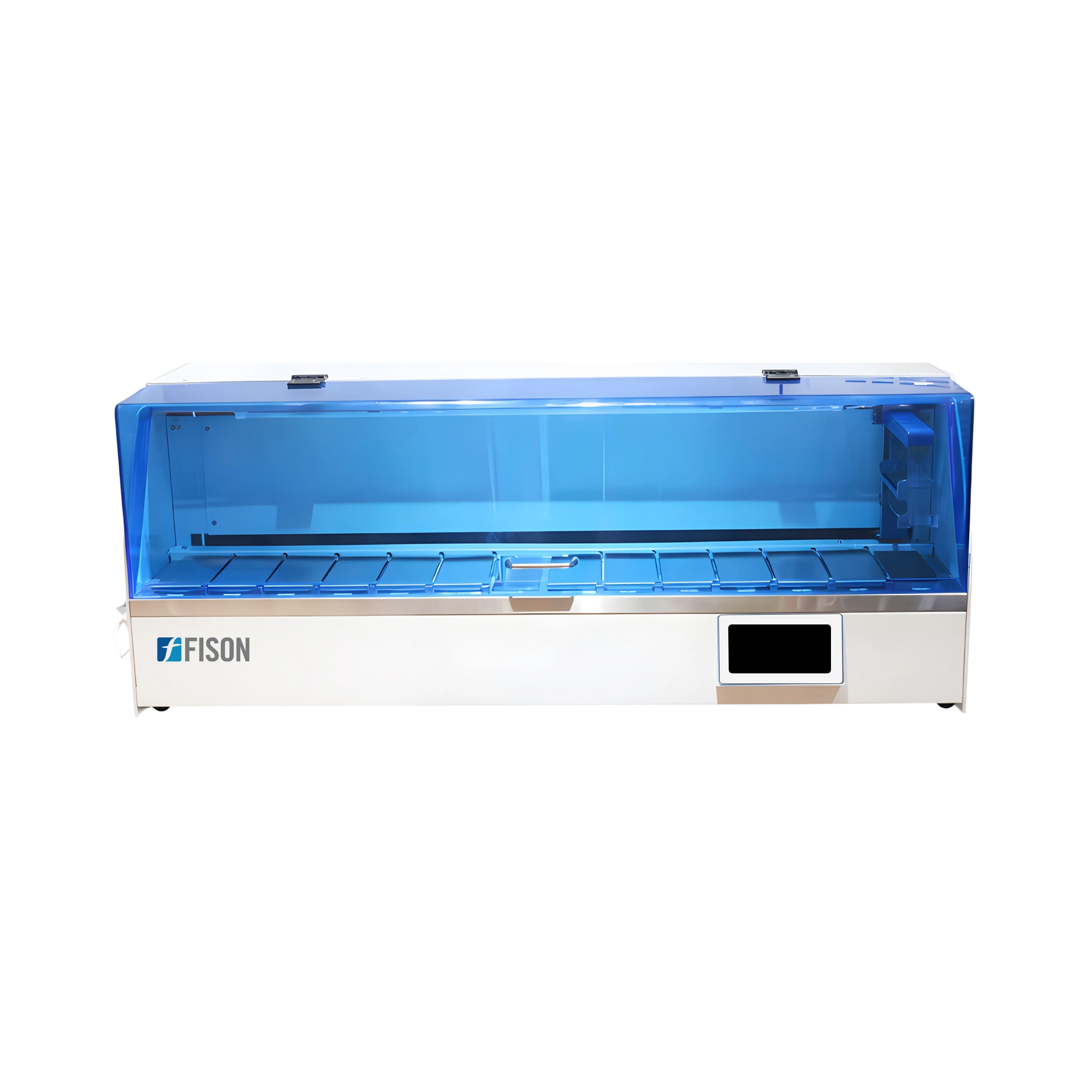

Automatic Tissue Slide Stainer FM-ATS-A100 Catalog

Description :

Automatic Tissue Slide Stainer FM-ATS-A100 is a fully automated slide stainer comprised with intelligent water inlet and outlet control system, offers 14 cups with 1200 ml capacity of each. With 0 to 59 min of processing time and 0 to 59 s of dripping time, features automatic drying function and intelligent control of hot air system with leaching function. Ergonomic design with 5.5-inch LCD touch screen, self-checking function and customizable dyeing treatment method, supports adjustable tank surface drainage time along with 8 programs storage capacity and 24 programmable orders. With real-time display of working parameters, environmentally friendly external exhaust air purification system, and fully enclosed structure, supports wrong function reminder along with automatic handling of abnormal situation.

Features:

---

Specifications:

---

Cup number	14 (station 1 for drying & station 8 for washing)
Cup capacity	1200 ml
Cup processing time	0 to 59 min
No. of slides processed	72 slides
Dripping time	0 to 50 s
Display	5.5-inch LCD touch screen
Purification system	External exhaust air purification system
Drying function	Automatic
Dyeing treatment method	Custom
Programmable order	24
Storage	8 sets
Reminder system	Wrong function
Power supply	AC 220/110 V ± 10%, 50/60 Hz
Power	≤ 1000 W
Dimension (W×D×H)	1200×480×450 mm
Packaging dimension (W×D×H)	1430×600×750 mm
Net weight	80 kg
Gross weight	100 kg

Applications: Automatic Tissue slide stainer is used to automate the staining of peripheral blood and other hematologic smears with identical or different staining protocols across cytology, histology, immunology, microbiology, biotechnology, fisheries, research & medical institutes, pharmaceuticals, etc.
