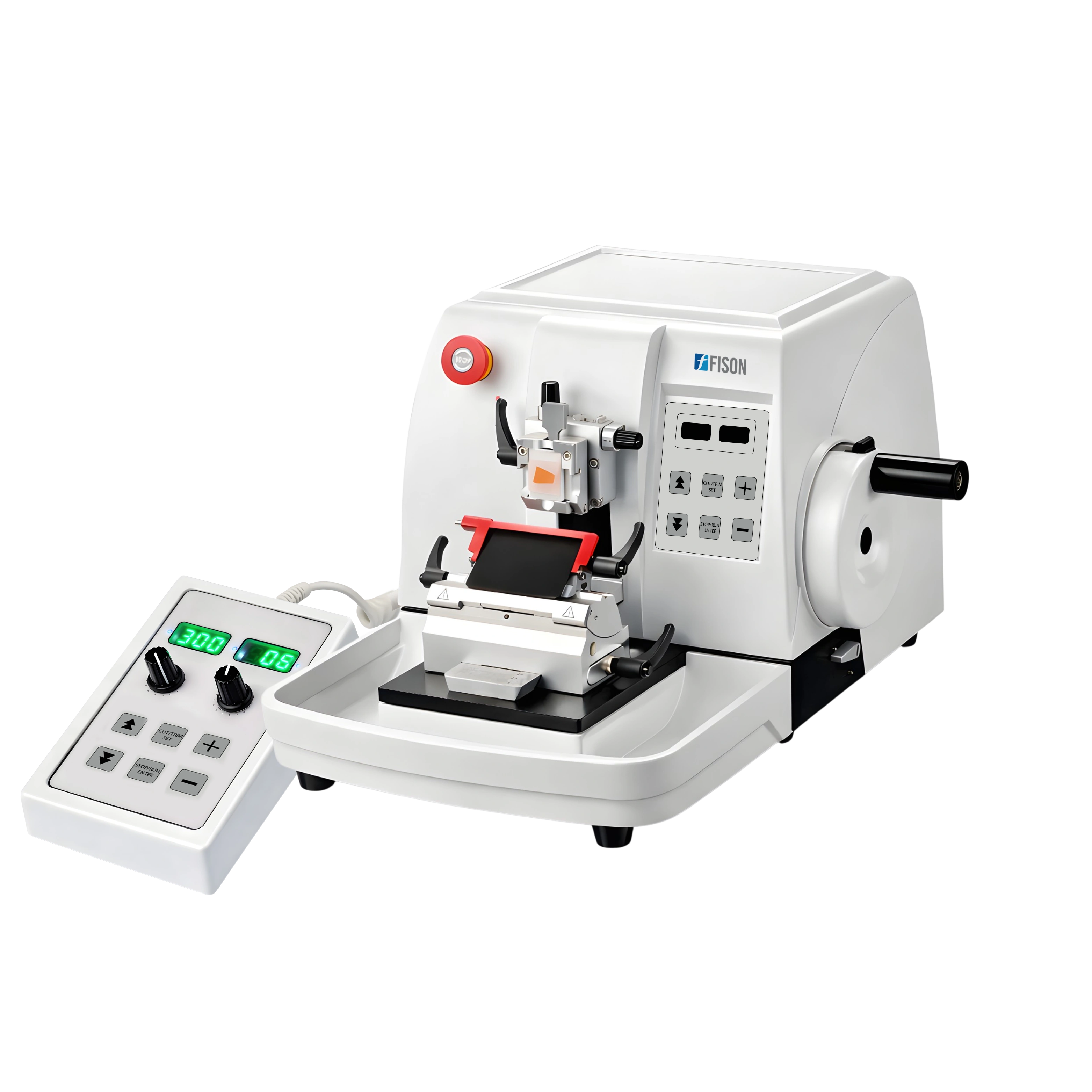

Automatic Microtome FM-MRT-C100 Catalog

Description :

Automatic Microtome FM-MRT-C100 is a fully-automated streamlined molded housing microtome, designed with smooth running hand wheel and stepping-motor advance technology for fine sectioning and trimming of specimen with selectable specimen retraction. LED display shows the sectioning and trimming thickness of paraffin block. Unit contains precise micro motion specimen feeding system and removable waste tray for specimen dismantling. Built-in safety alarm system for fault diagnosis and braking system. It is used for tissue sectioning in routine histology, biological and industrial needs.

Features:

---

Specifications:

---

Section thickness range	0.25 to 100 µm
Section setting values	From 0.5 to 2.5 µm,0.25 µm increments From 2.5 to 5 µm, 0.5 µm increments From 5.0 to 10 µm, 1 µm increments From 10 to 30 µm, 2 µm increments From 30 to 60 µm, 5 µm increments From 60 to 100 µm, 10 µm increments
Trimming section range	1 to 600 µm
Trimming setting values	From 1 to 10 µm, 1 µm increment From 10 to 20 µm, 2 µm increment From 20 to 50 µm, 5 µm increment From 50 to 150 µm, 10 µm increment From 150 to 600 µm, 50 µm increment
Minimum sectioning thickness	0.25 µm
Feed speed adjustment	1500 µm/s to 3500 µm/s
Horizontal specimen feed	25 mm
Vertical specimen stroke	70 mm
Specimen orientation	Horizontal: ± 8°, Vertical: ± 8°
Specimen retraction	0 to 50 μm（0, 5, 10, 15…..50 adjustable, 0 turn off the retraction)
Precision error	± 1%
Movement range of specimen holder base	65 mm
Movement range of blade press plate	± 20 mm
Specimen dimension	70 mm × 70 mm
Power	150 W
Power supply	AC 220 V ± 10% 50 Hz
Overall Dimension (W × D × H)	580 × 475 × 340 mm
Net weight	41 kg

Applications: Used in routine histology, biological and industrial analysis and also suitable for section paraffin and frozen sections in biological, botanical, and materials science applications.
