Description :

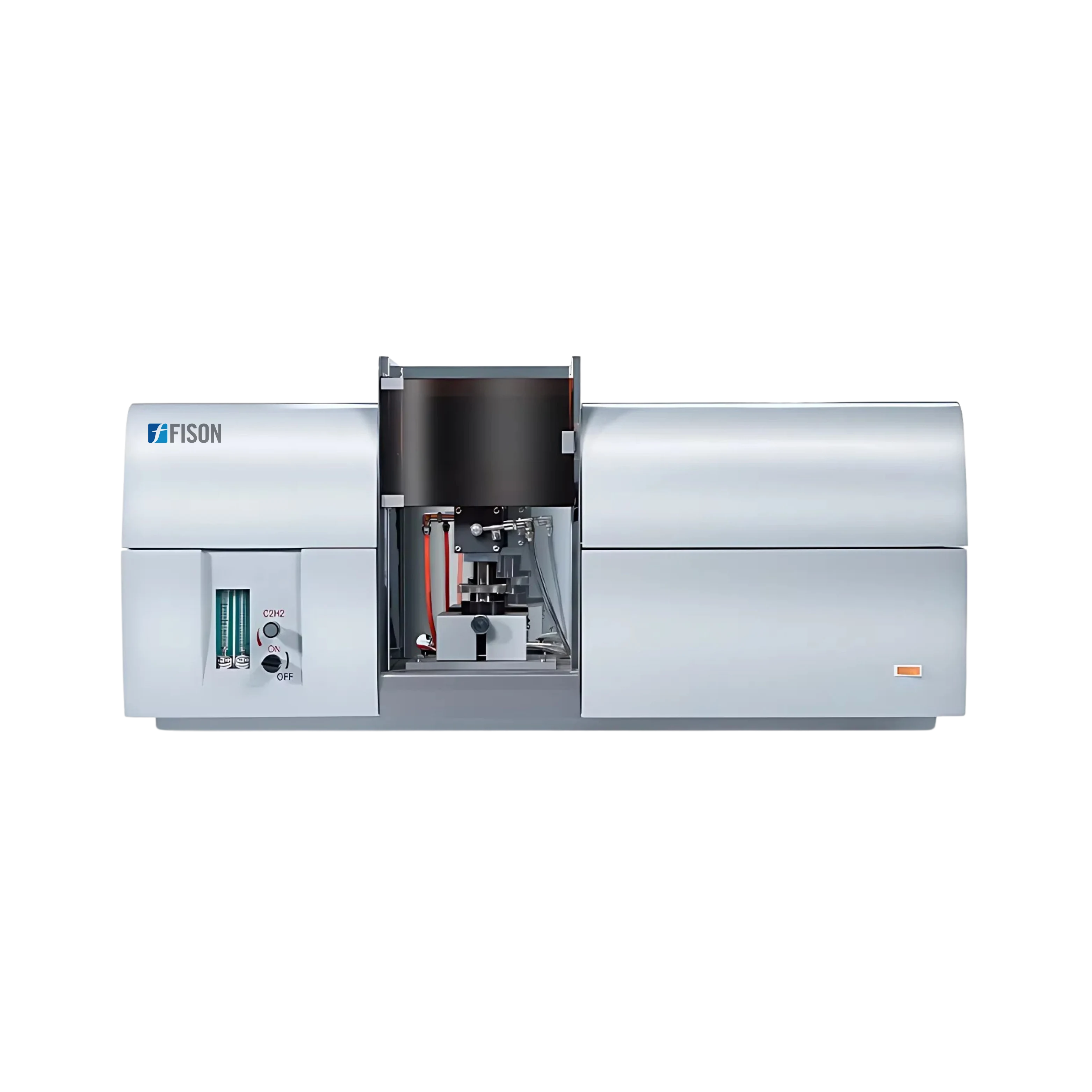

Atomic Absorption Spectrophotometer FM-AAS-A101 is a microprocessor controlled analyzer based on analysis of metal ions by flame and graphite furnace atomizer with absorption at 190 to 900 nm wavelength. Czerny-Turner monochromator 1800 line/mm grating optics and variance of bandwidth provides user flexibility. Provided with deuterium hollow cathode lamp, excludes interference of molecular absorption and Titanium Burner increases analysis, efficiency and precision of flame. Its double beam radiation sources enable good basic line stability. Graphic analysis system provides data on analysis of entire process i.e. measured value, temperature, procedures, time, etc.
Features:
- Integrated flame/graphite furnace atomization system, changeable with flame emission burner
-
Turret for 8 pre-aligned Hollow Cathode Lamps fitted with pre-heating, and individual pre-centered lamps
-
Spectral bandwidth of 0.1, 0.2, 0.4, 1.0 and 2.0 nm
-
Characteristic concentration of copper: 0.02 μg / ml / 1 %
-
Detection limit of copper: 0.004 μg / ml
-
PID and Dual curve mode light-controlled temperature control technique ensures fast heating and analytical sensitivity
-
Fully automated wavelength scanning and peak searching
-
Advance software for complete parameter settings
-
Reliable fully automatic graphite furnace analysis
-
Alarm feature to protect fuel gas leakage, abnormal flow, insufficient air pressure and abnormal flame extinction in flame system
-
Analysis of elements by flame absorption method and emission method
-
Strong database system which possesses more than 500 data self-storage
-
Results printed as parameter, data result and diagram
Specifications:
| Wavelength range |
190 to 900 nm |
| Wavelength accuracy |
± 0.15 nm |
| Wavelength repeatability |
≤ 0.04 nm |
| Spectrum bandwidth |
0.1, 0.2, 0.4, 1.0 and 2.0 nm |
| Base line stability |
≤ 0.002 Abs / 30 min |
| Grating |
1800 lines / mm |
| Inflamer |
All-metal titanium burner |
| Atomizer |
Efficient glass atomizer |
| Lamp |
Hollow cathode lamp |
| Lamp stand |
8 lamps automatic turret, automatic alignment |
| Characteristic concentration of copper |
0.02 μg / ml / 1 % |
| Detection limit of copper |
0.004 μg / ml |
| D2 Background calibration ability |
1 A ≤ 30 times correction ability |
| Measurement Repeatability |
0.005 |
| Flame system |
Air-acetylene flame system |
| Acetylene air burner |
100 mm |
| Ignition dynamic baseline drift |
≤ 0.006 Abs / 30 min |
| Characteristic viscosity |
≤ 0.025 μg / ml / 1 % |
| Standard deviation of the accuracy |
≤ 0.5 % (Cu, absorbance > 0.8 A) (detection limit Cu ≤ 0.008 μg / ml) |
| Protection system |
Can inevitably cut off gas if pressure is low, power cut-off, flame out and alteration of the burner |
| Power supply |
220 V ± 22 V AC |
| Dimension |
700 × 550 × 450 mm |
| Net weight |
75 kg |
Applications:
It is suitable to analyze trace amount of element from mixture, also in forensics and chemistry, biological science to detect toxic elements from blood and drug samples.
|
Accessories:
| Accessories no. |
Accessories name |
| 1 |
PC workstation |
| 2 |
Oil free Air compressor |
| 3 |
Acetylene reducing valve |
| 4 |
Cu - Hollow cathode lamp |
| 5 |
Air filter |
|
Accessories Optional:
| Graphite Furnace |
| Maximum temperature |
3000 ℃ |
| Temperature increasing speed |
≥ 2000 ℃ / S |
| Characteristic quantity |
(Cd) ≤ 0.5 × 10 -12 g , (Cu) ≤ 0.5 × 10 -11 g |
| Accuracy |
(Cu) ≤3 % , (Cd) ≤ 3 % |
| Dimension |
550 × 450 × 300 mm |
| Net weight |
65 kg |
| Safety system |
Protection for Overload current, reduced air pressure, low cooling water flow |
| Power supply |
220 V ± 22 V AC, 7000 W |
| Printer |
| Hydride generator |
| Graphite tubes |
| Acetylene Regulator |
|
