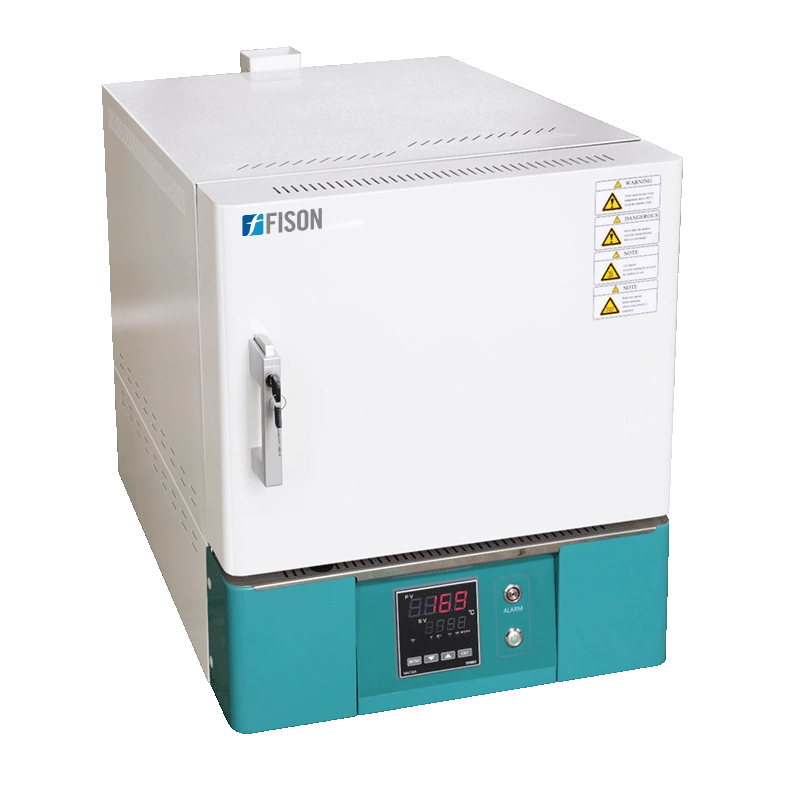

Muffle Furnace FM-MF-A201 Catalog

Description :

Muffle Furnace FM-MF-A201 offers excellent thermal insulation and minimizes heat loss. It can reach up to maximum temperature of 1200 ℃ with the capacity of 7 L. Exterior of the furnace is constructed with cold-rolled steel having anti-bacterial powder coating. This contributes to durability and resistance to environmental factors. PID Micro Digital Screen Controller has simplified the operation for the user. It provides precise temperature control, over-temperature alarm, and automatic shutdown for enhanced safety.

Features:

---

Specifications:

---

Capacity	7 L
Maximum Temperature	1200 °C
Temperature Rising Time	<30 minutes
Temperature Accuracy	±1 °C
Power Consumption	3 KW
Power Supply	220V±10%, 50/60Hz
Interior Dimensions (W × D × H)	300 × 200 × 120 mm
Exterior Dimensions (W × D × H)	530 × 785 × 640 mm
Packing Dimensions (W × D × H)	660 × 875 × 770 mm
Gross Weight	60 Kg

Applications: Muffle Furnace is widely used across metallurgy, ceramics, quality control testing, laboratory, and academic research.
