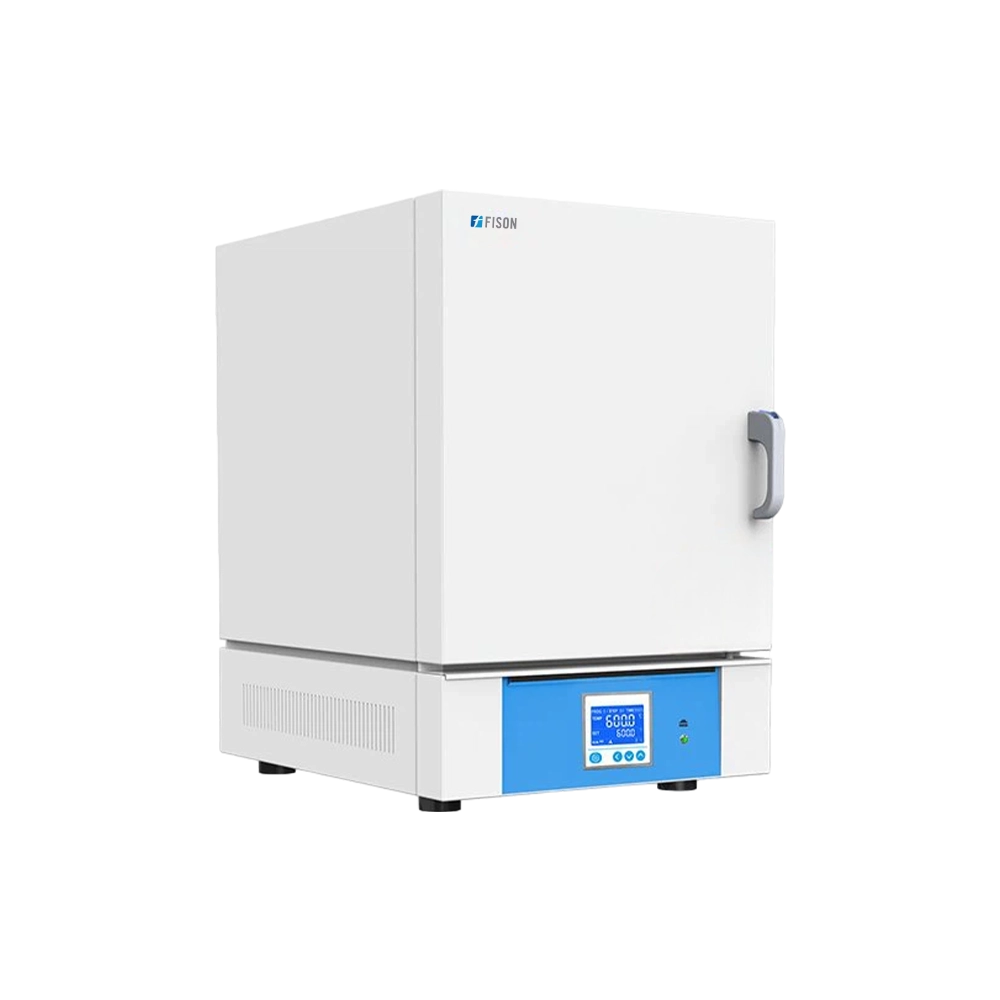

Muffle Furnace FM-MF-B104 Catalog

Description :

Muffle Furnace FM-MF-B104 features a temperature of 1100⁰C to ensure quicker reaction rates and shorter processing times. Its housing is made of cold-rolled steel sheets with a powder coating to enhance energy efficiency. This unit offers overcurrent prevention and anti-scalding to ensure safe operation and prevent accidents. Our muffle furnace with high-quality heating elements has a higher aging resistance and is a lightweight corrosion-resistant ceramic fiber furnace.

Features:

---

Specifications:

---

Capacity	7 L
Working Temperature	1000⁰C
Maximum Temperature	1100⁰C
Insulation Material	Alumina ceramic fiber
Heating Element	Fe-Cr-Al
Heating Time	35-65 Mins
Present start and off	Yes
Thermocouple type	K Type
Programmable Controller	Yes
Power Consumption	4 kW
Power Supply	220V 50/60HZ Single Phase
Interior Dimensions (W×D×H)	200×300×120 mm
External Dimensions (W×D×H)	460×650×674 mm

Applications: Muffle Furnaces are commonly used in quenching, annealing, and tempering small steel parts applied in industrial and mining enterprises, universities and research institutes. It can also be used as a pre-treatment for sintering, and ashing analysis of metal, stone, tools and ceramics.
