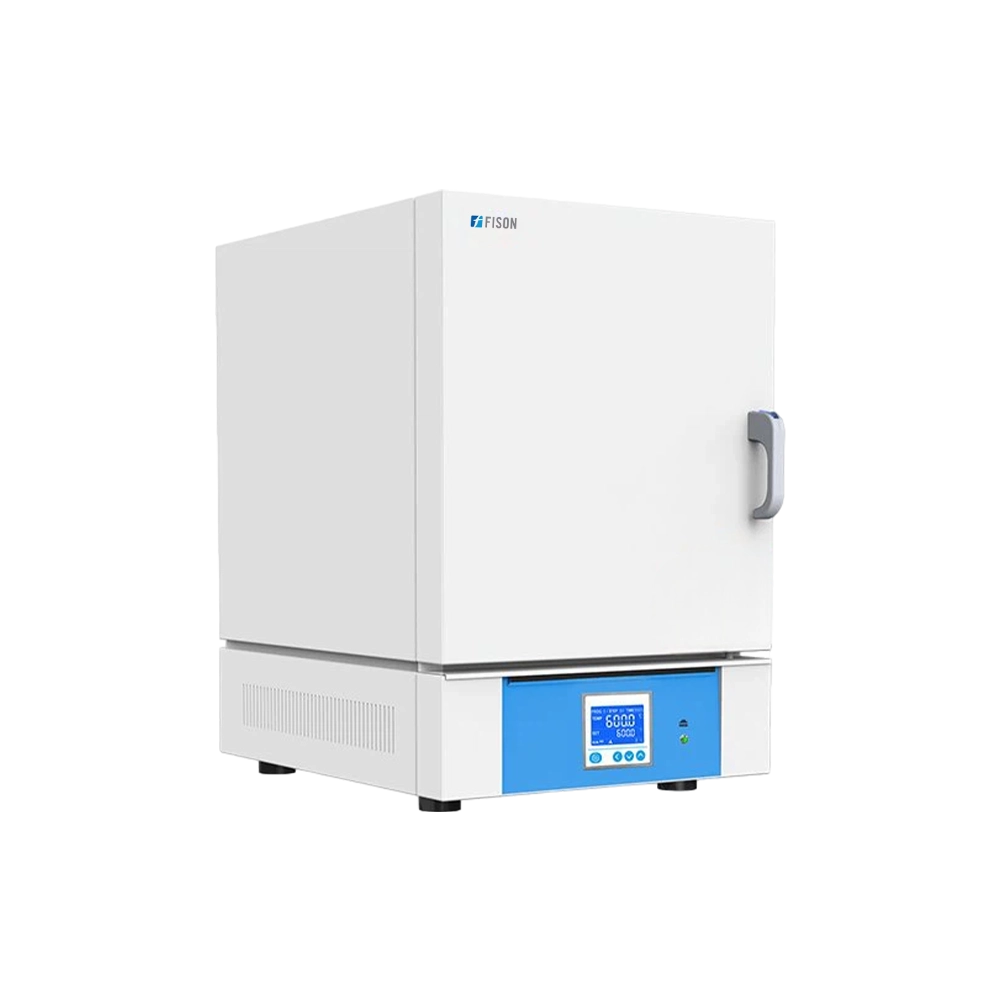

Muffle Furnace FM-MF-B103 Catalog

Description :

Muffle Furnace FM-MF-B103 features a temperature of 1100⁰C to ensure quicker reaction rates and shorter processing times. It has a safety switch that automatically shuts down when the door opens, ensuring the operator's safety. This unit offers overcurrent prevention and anti-scalding to ensure safe operation and prevent accidents. Our muffle furnace has a low temperature on the shell surface and an excellent insulating effect on the ceramic fiber.

Features:

---

Specifications:

---

Capacity	2 L
Working Temperature	1000⁰C
Maximum Temperature	1100⁰C
Insulation Material	Alumina ceramic fiber
Heating Element	Fe-Cr-Al
Heating Time	35-65 Mins
Present start and off	Yes
Thermocouple type	K Type
Programmable Controller	Yes
Power Consumption	2.5 kW
Power Supply	220V 50/60HZ Single Phase
Interior Dimensions (W×D×H)	120×200×80 mm
External Dimensions (W×D×H)	380×495×584 mm

Applications: Muffle Furnaces are commonly used in quenching, annealing, and tempering small steel parts applied in industrial and mining enterprises, universities and research institutes. It can also be used as a pre-treatment for sintering, and ashing analysis of metal, stone, tools and ceramics.
