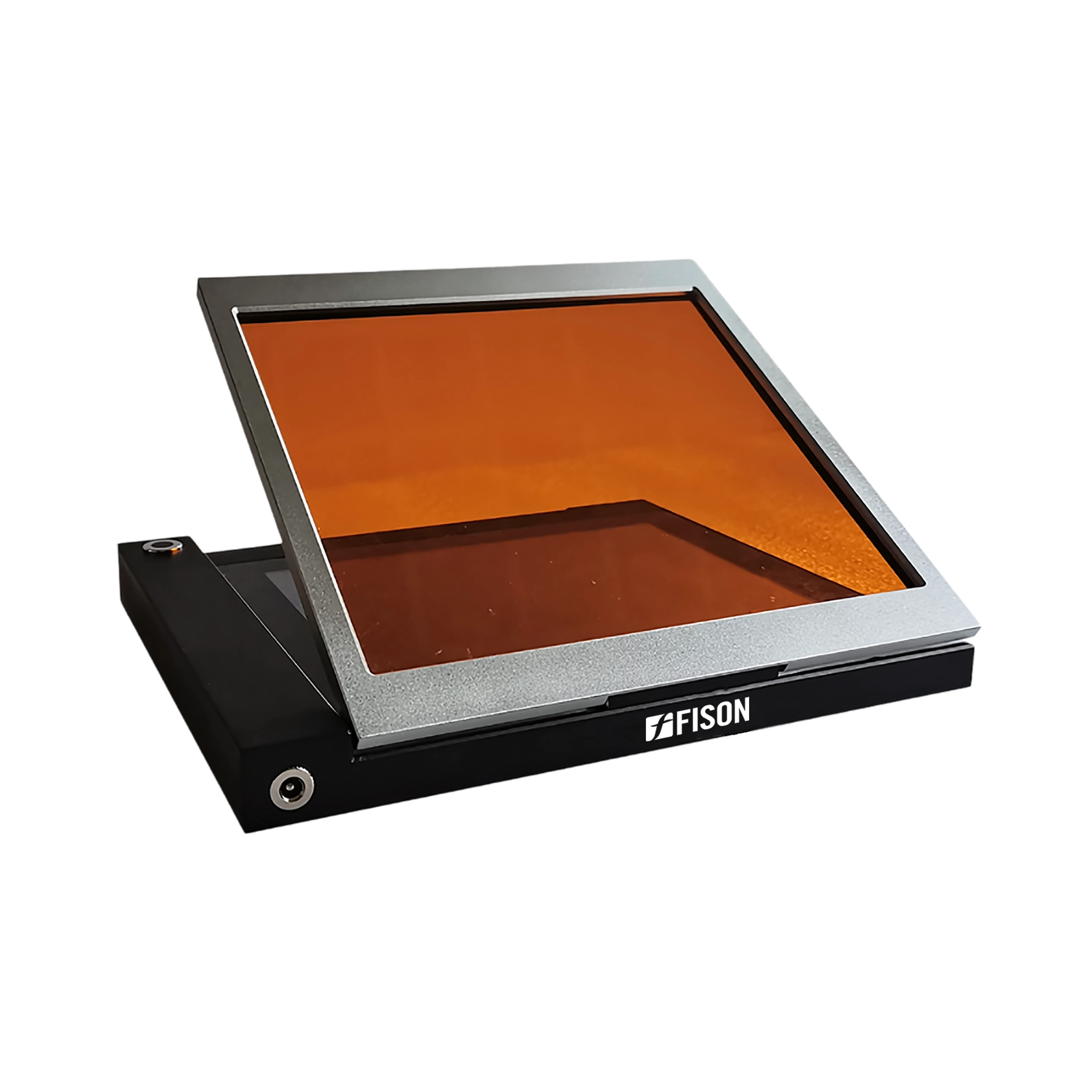

Blue Light Transilluminator FM-BLT-A100

Blue Light Transilluminator FM-BLT-A100

Blue Light Transilluminator FM-BLT-A100 emits a safe 470 nm blue LED wavelength, ideal for clear DNA and RNA gel visualization. It features a waterproof surface that blocks reagent penetration for enhanced durability. This uses a stainless-steel hinge and galvanized screws, ensuring long-lasting, rust-resistant, and secure operation. Our transilluminator is equipped with a clear acrylic cover for safe and easy sample viewing.

Specifications

Blue LED Wavelength 470nm
Image Area (L×W) 170 × 130mm
Filter Color Amber
LED Life About 10,000 Hours
Dimensions(L×W×H) 210×230×36mm
Weight 3kg

Features

  • Contact-free light sensor
  • Consistent LED illumination quality
  • Corrosion-resistant hardware design
  • Optimized for safe gel handling
  • Wide compatibility with fluorescent stains

Applications

  • Blue Light Transilluminator FM-BLT-A100 is used in molecular biology laboratories for safe and efficient visualization of DNA and RNA gels stained with fluorescent dyes. It is ideal for gel electrophoresis applications, particularly when using stains like SYBR Safe and GelGreen.

UV-Trans illuminator

Fison UV Trans illuminators comes with 04 light filters which ensures uniform light distribution during operations. They have an observation board and an adjustable UV blocking shield that aids in safe and user-friendly observation. The UV intensity is 20µW/cm2 when the sample is 20cm away, and they support real-time observation. These also come with a fixed camera port rack that makes it easier to take images of the gel. Our UV trans illuminators are more intuitive and safer for UV light examination across research institutes, molecular biology, medicine and tissue culture laboratories.

UV Trans-illuminator FM-UVT-A100

  • Transmission area (W×L) : 200×150 mm
  • Transmission UV Wavelength : (midrange wave)302 nm
  • Reflectance UV Wavelength : (short range wave) 254 nm, (long range wave) 365 nm
Catalog

UV Trans-illuminator FM-UVT-A101

  • Transmission Area : 215×265mm
  • Wavelength : Single wavelength: 302nm (peak)
  • Light Intensity : Adjustable
Catalog
UV Trans-illuminator FM-UVT-A102
  • Transmission Area : 215×265mm
  • Wavelength : Dual wavelength:302nm (peak),365nm or 254nm (peak)
  • Light Intensity : Adjustable
Catalog

Chemiluminescence Imager

Fison Chemiluminescence Imager is a specialized device used to detect and visualize chemiluminescent signals in various scientific applications. Their high-resolution imaging allows the imager to capture clear, detailed images with precise accuracy. They offer high sensitivity for low-light detection, enabling the capture of precise signals. The automated workflow ensures efficient, consistent results with minimal manual effort. Our imager is equipped with software for precise analysis and quantification of results.

Chemiluminescence Imager FM-CI-A100
  • Resolution : 9.0 Megapixels
  • Sensor : Back illuminated Cooled CMOS sensor
  • Dynamic Range : 4.8 OD
Catalog

Chemiluminescence Imager FM-CI-A101

  • Resolution : 6 Megapixels
  • Sensor : Front illuminated Cooled CCD sensor
  • Linear Range : 4.8 OD
Catalog

Multispectral Imager

Fison Multispectral Imager offers precise spectral calibration, ensuring accurate measurements across multiple wavelengths for reliable data analysis. Their customizable spectral range feature tailors the device to specific applications and captures a wide variety of wavelengths. They support real-time image processing, delivering immediate data analysis. The electronic lens of the imager provides precise, automated focus adjustments. Our imager supports unlimited software users, allowing efficient data access across multiple workstations.

Multispectral Imager FM-MI-A100

  • Resolution : 9.0 Megapixels
  • Sensor : Cooled Back-illuminated CMOS
  • Linear Range : 4.8 OD
Catalog
Multispectral Imager FM-MI-A101
  • Resolution : 6 Megapixels
  • Sensor : Front illuminated CCD
  • Linear Range : 4.8 OD
Catalog
Multispectral Imager FM-MI-A102
  • Resolution : 9.0 Megapixels
  • Sensor : Cooled Back-illuminated CMOS
  • Linear Range : 4.8 OD
Catalog

Gel Doc Imaging System

Fison Gel Doc Imaging System is used for capturing high-resolution images of gel-based experiments, such as electrophoresis. The system features a powerful camera that provides high-resolution images for accurate analysis. They have integrated software that allows for image analysis, data quantification, and easy documentation. Their ability to visualize gels under different light conditions enhances detection sensitivity. Our Gel Doc Imaging System has automated settings that ensure consistent and reproducible results with minimal user intervention.

Gel Doc Imaging System FM-GIS-A100

  • Resolution : 5 Megapixels (2592×1944)
  • Quantum Efficiency : 0.77
  • Linear Range : 4.8 OD
Catalog

Gel Doc Imaging System FM-GIS-A101

  • Resolution : 20 Megapixels (4800 × 4440)
  • Quantum Efficiency : 0.82
  • Linear Range : 4.8 OD
Catalog
Gel Doc Imaging System FM-GIS-A102
  • Resolution : 6.3 Megapixels (3072×2048)
  • Quantum Efficiency : 0.97
  • Linear Range : 4.8 OD
Catalog
