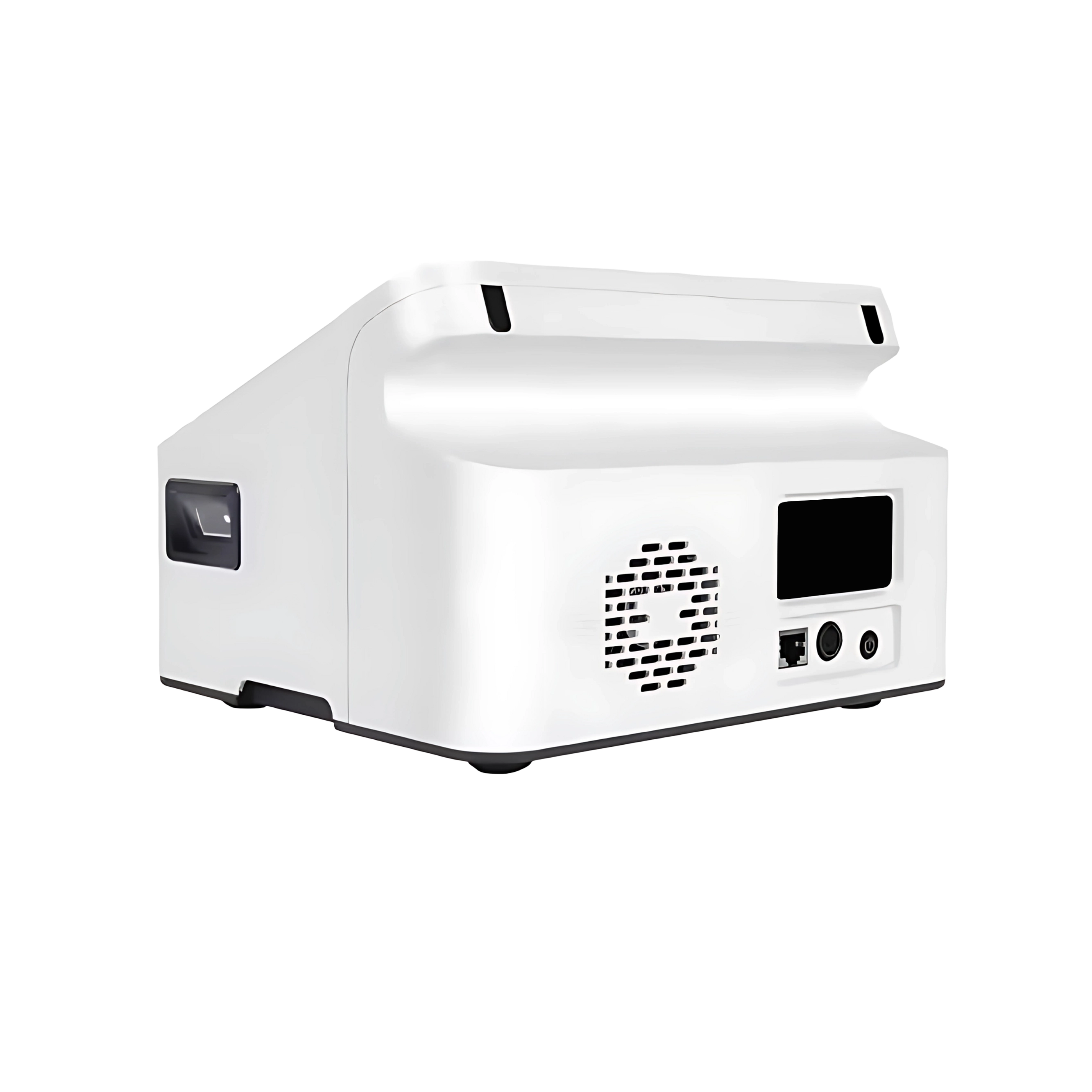

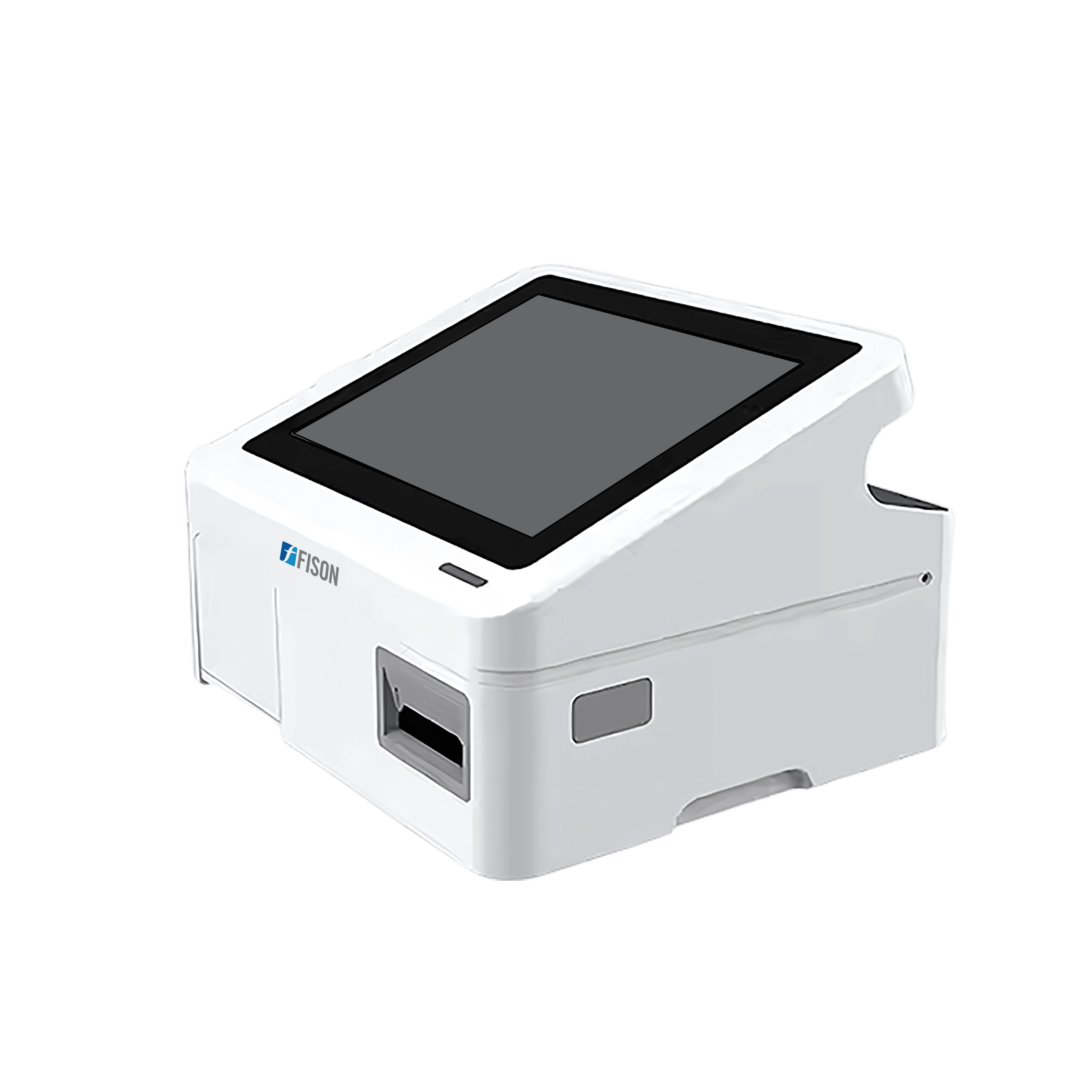

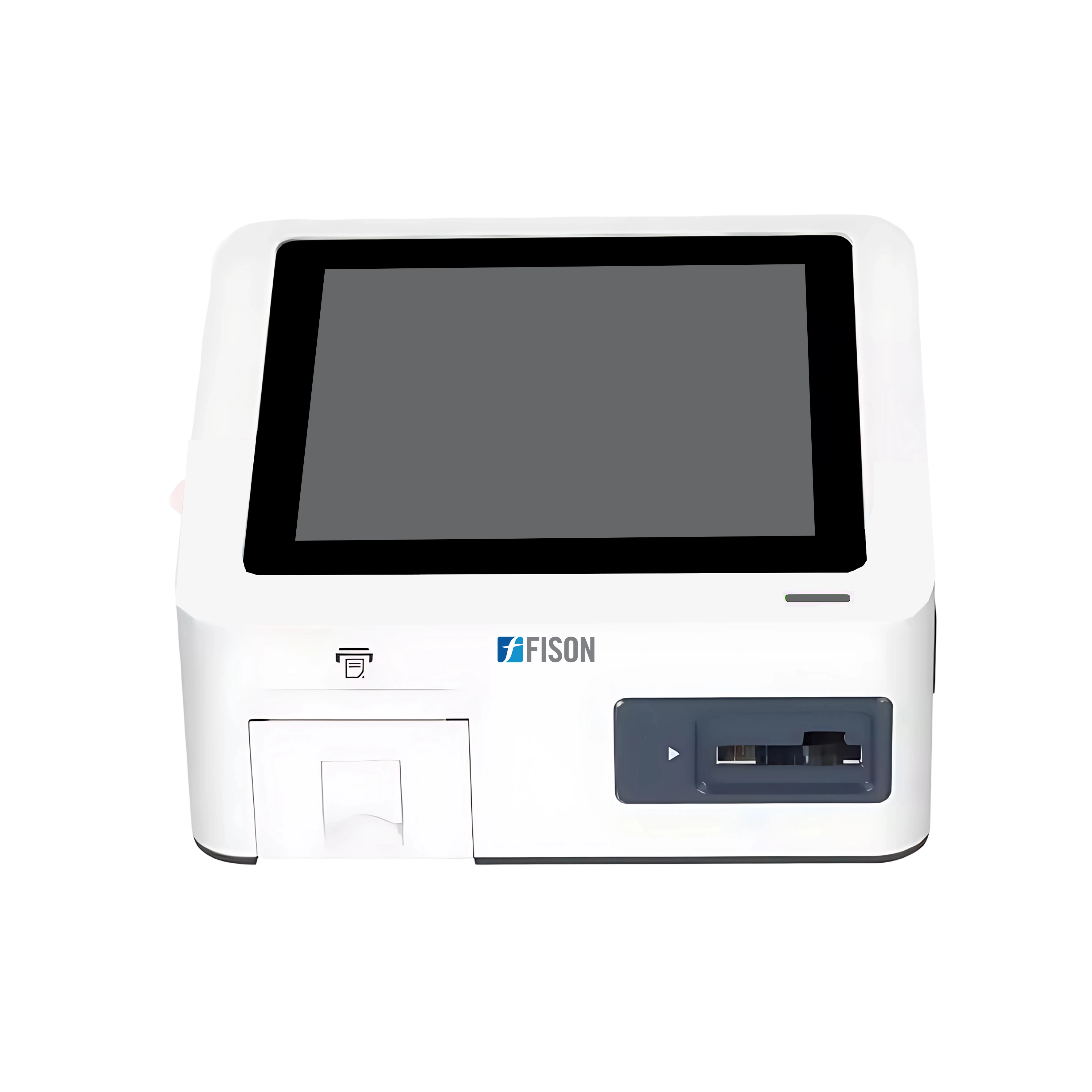

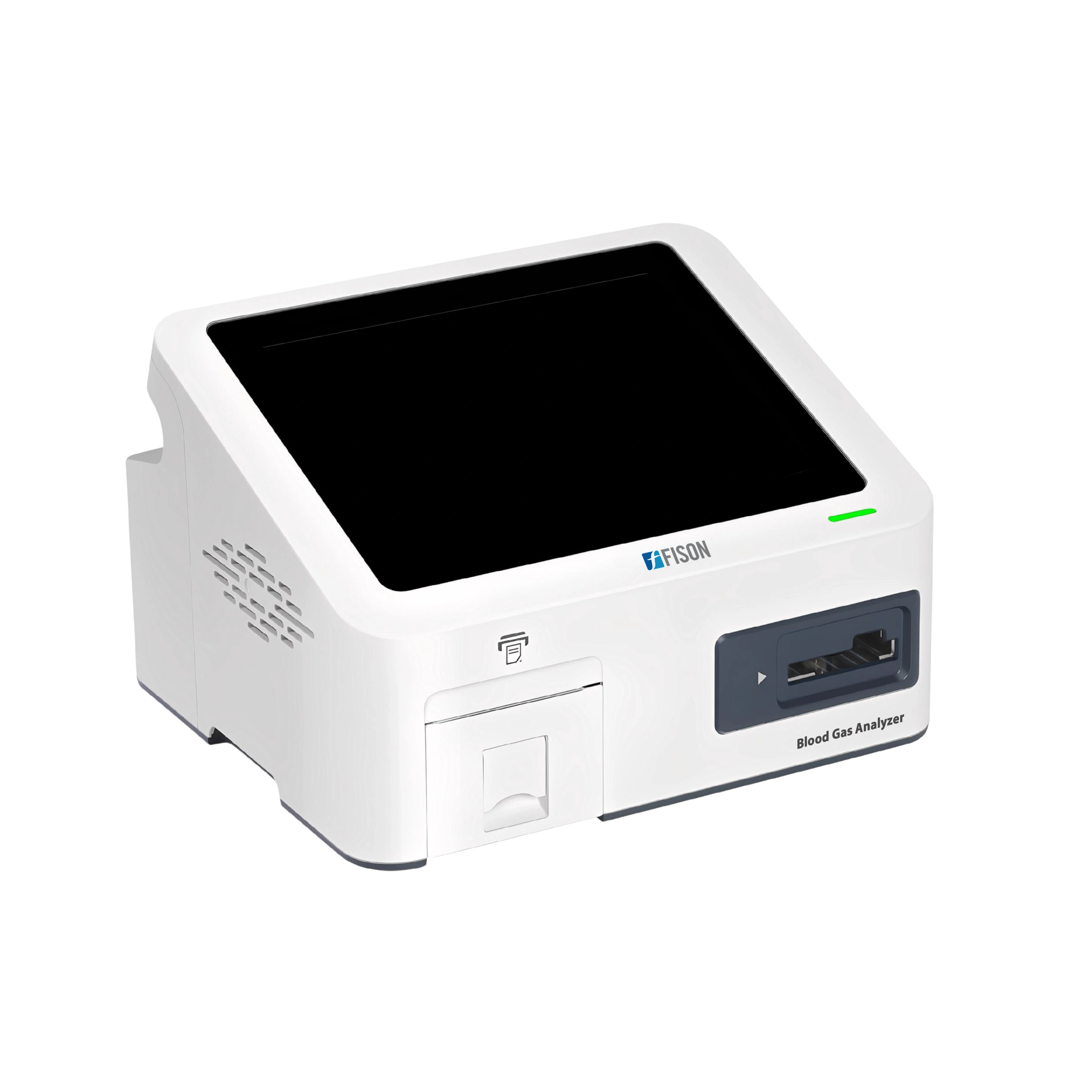

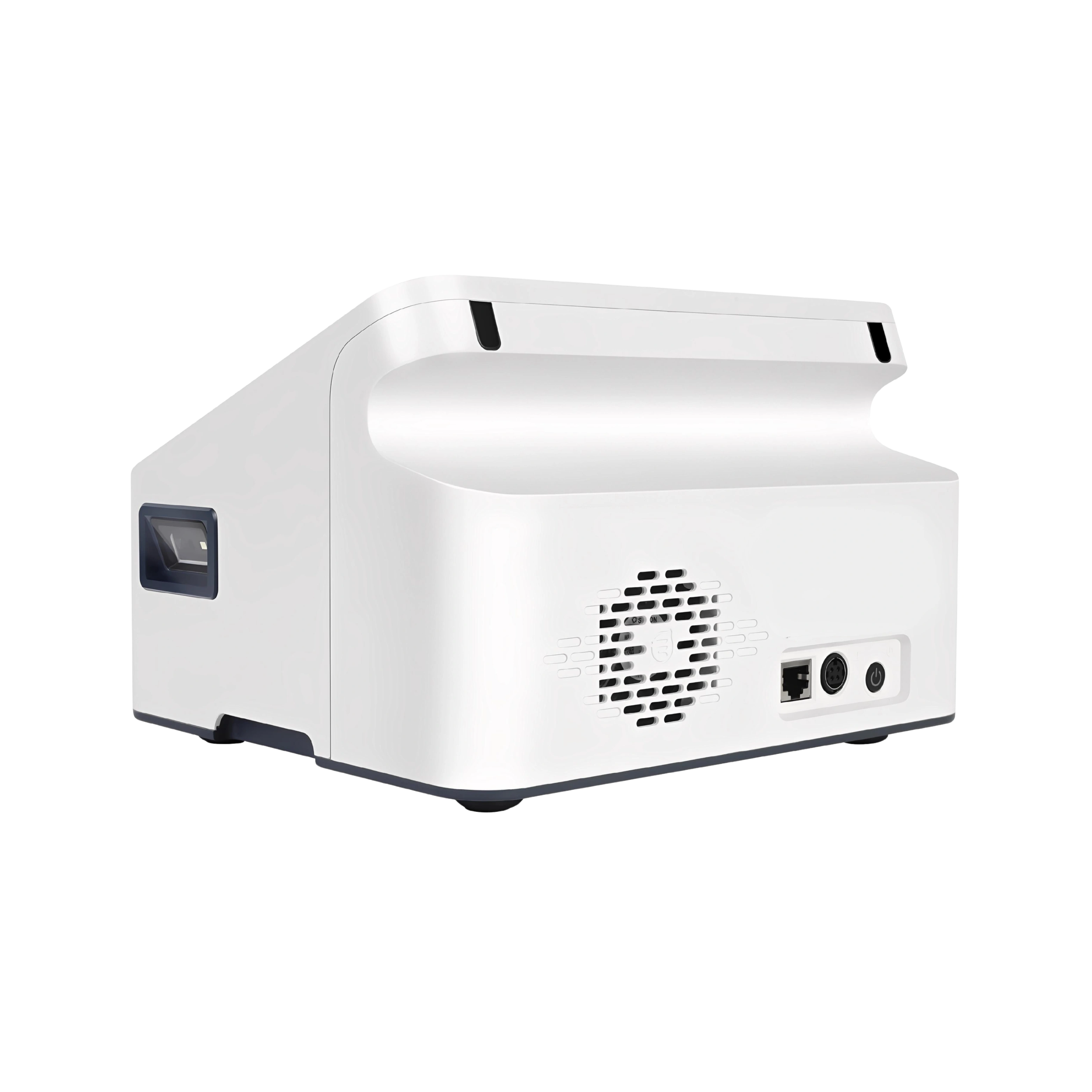

Blood Gas Analyzer FM-BGA-A200

Blood Gas Analyzer FM-BGA-A200 requires only 150μL of blood sample, ensuring efficient analysis with minimal patient discomfort. It includes an integrated calibration solution to ensure laboratory-level accuracy with every test. This microfluidic electrochemical technology ensures precise results while reducing sample volume and maintenance. Our Blood Gas Analyzer offers a thermal printer for instant result printing, ensuring quick access to reports.

Specifications

Blood Sample Volume 150μL
Principle Method Dry electrochemistry/microfluidic method
Sample Type Arterial and venous blood
Test Time 5 ± 1 min (including calibration)
Memory Capacity 100,000 test results and 10,000 quality control results
Operating Temperature 10 ℃ to 30 ℃
Cartridge Storage Condition Room temperature up to 8 months
Hematocrit Range Blood glucose test: HCT range 10% to 65%, Blood lactate test: HCT range 30% to 60%
Power Consumption Lithium battery (16.8V) or 19VDC
Power Supply 100V±10V to 240V±24V, 50/60Hz±1Hz
Product Dimension (L×W×H) 235 × 210 × 160 mm
Dimensions (L×W×H) 340 × 245 × 310 mm
Packaging Dimensions (L×W×H) 480 × 320 × 320 mm
Net Weight 6 kg
Gross Weight 7 kg

Features

  • Comprehensive parameter analysis
  • Integrated LIS/HIS connection
  • Battery-powered portable operation
  • Zero fluidic pathways design
  • Long cartridge shelf life

Applications

  • Blood Gas Analyzer FM-BGA-A200 applies to critical care, emergency departments, ICUs, and operating rooms, providing rapid blood gas, electrolyte, and metabolite analysis. It is also suitable for pediatric, neonatal, and bedside testing where fast, accurate results are essential.

Accessories

  • Name Quantity
    Power cable 1 pcs
    Power adaptor 1 pcs
    Electronic quality control card 1 pcs
    Printing paper 2 pcs

Alternative Models Of Blood gas analyzer

Fison Blood Gas Analyzers provide accurate measurements of the level of gases and other critical parameters in the blood. Blood gas analyzers offer quick, versatile testing of multiple parameters, delivering results in under 90 seconds and storing over 5,000 outcomes. They have a 50–120 µL sample volume, an integrated thermal printer, and an operating temperature range of 15°C to 30°C. Their high-definition touchscreen display and built-in thermal printer for immediate printout of results, enhancing user experience. Our blood gas analyzers are widely used for healthcare, biotechnology, veterinary medicine and sport science.

Blood gas analyzer FM-BGA-A100

  • Sample: Whole blood, Serum, Plasma, Dialysate, CSF
  • Sample Volume: 120 µl whole blood , 50 µl capillary blood
  • Analysis Time: < 90s
