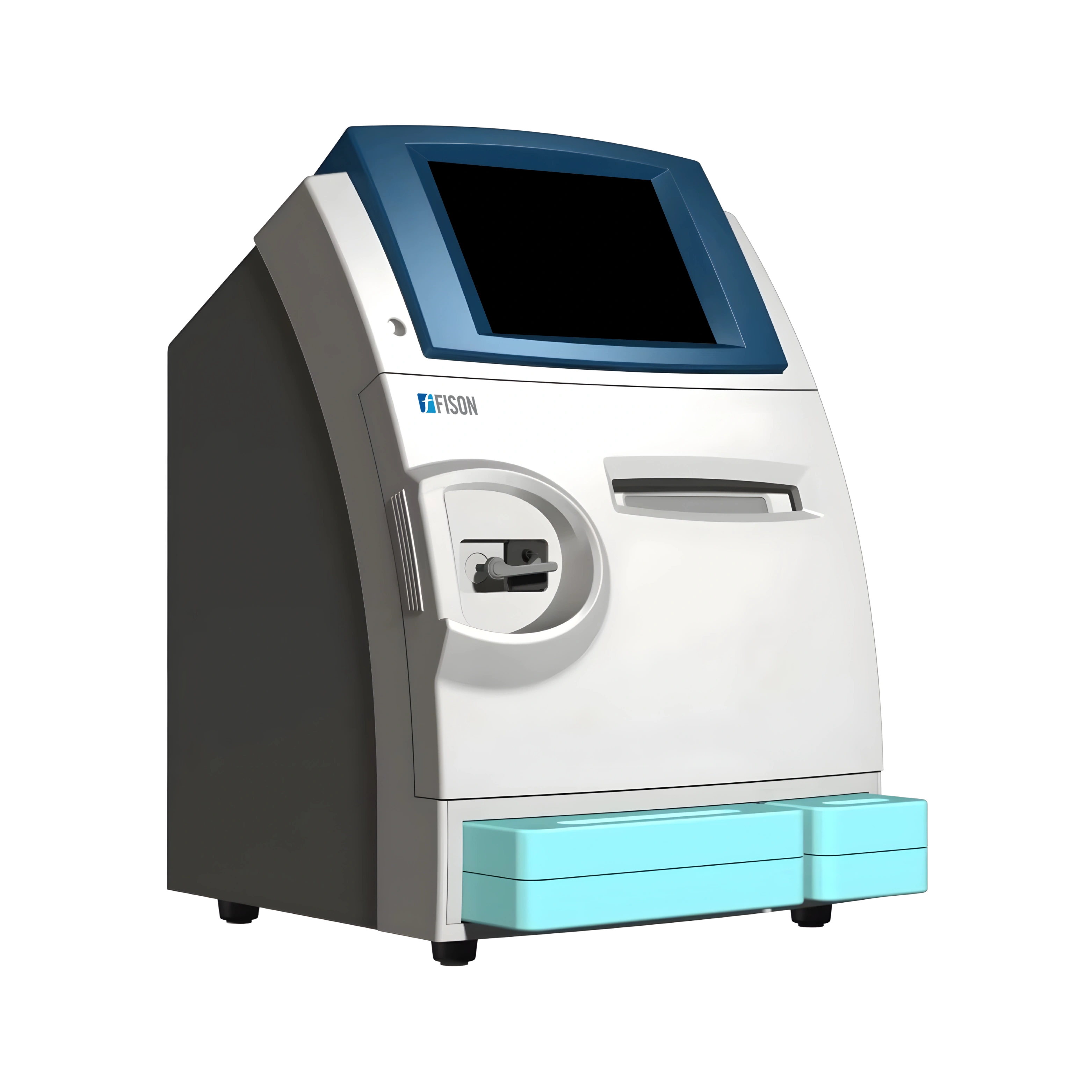

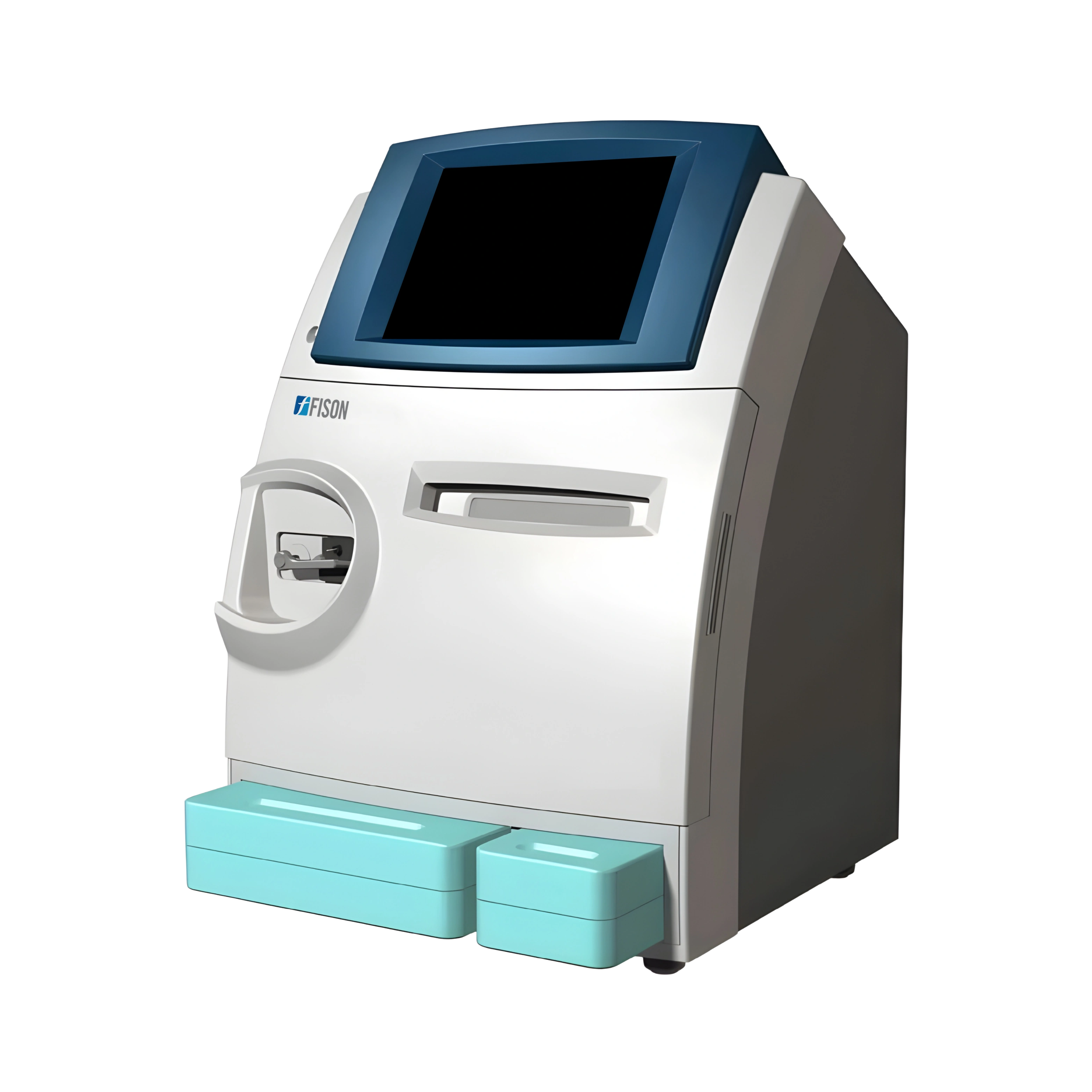

Blood gas analyzer FM-BGA-A100
Blood gas analyzer FM-BGA-A100 requires a sample volume of 120 µl for whole blood and 50 µl for capillary blood, ensuring flexibility in sample types. It supports multiple barcode types, enhancing versatility. Operating within a temperature range of 15° C to 30°C. Enhanced with a seamless data input and an infrared human detector. The built-in thermal printer provides immediate printouts of results.
Specifications
| Sample | Whole blood, Serum, Plasma, Dialysate, CSF |
| Sample Volume | 120 µl whole blood , 50 µl capillary blood |
| Analysis Time | < 90s |
| Test Parameter | pO2, pCO2, pH, K, HCT.B.P, Na+ , Cl- , Ca++ |
| Operating Temperature | 15 to 30°C |
| Storage Environment | 5 to 45°C |
| Input Variable | Patient temperature, Hemoglobin, FiO2 , Barometric Pressure |
| Measured Factor | Hydrogen ion activity (pH): 6.000 to 9.000 pH Partial pressure (pCO2): 1.607 to 26.67 Kpa, 8.0 to 200.0 mmHg (PO2): 0 to 106.7 kPa,0 to 800.0 mmHg Potassium ion (K): 0.5 to 15.0 mmol/L Sodium ion (Na+): 20.0 to 200.0 mmol/L Chloride ion (Cl-): 20.0 to 200.0 mmol/L Ionized calcium (Ca++) : 0.3 to 5.0 mmol/L Hct: 12.0 to 65.0% B.P. : 500 to 800 mmol/L |
| Derived Factors | pH (CH)pCO2 , pO2 , K , Na+ , Cl- , Ca++ , Hct , B.P |
| Calibration | Automatic, programmable 1-point and 2-point calibration |
| Data Storage | > 5000 result |
| Display | 10.4 inches TFT touch screen |
| Printer | Built-in thermal printer |
| Bar Code Reader | Multiple types barcode type |
| Interface | Serial line RS-232, TCP/IP interface, USB port, Integrated Bar-Code Reader |
| Battery | 24 Nickel-metal hydride battery, 3.0 Ah |
| Power Supply | 100 to 240 V, 50/60 Hz |
| Reagent Dimension (W × D × H ) | 586 × 460 × 380 mm |
| Packaging Dimension (W × D × H ) | 920 × 650 × 610 mm |
| Gross Weight ( Reagent ) | 9.7 kg |
| Gross Weight (Main Instrument ) | 52.8 kg |
Features
- Blood gas analyzer is a highly accurate instrument
- Analyses whole blood, serum, plasma, and more
- Results in under 90 seconds
- Stores over 5000 results
- Touchscreen display
- Automatic, programmable 1-point and 2-point calibration
- RS-232, TCP/IP interface, USB port, integrated barcode reader
- Multiple parameters can be tested
Applications
- Blood gas analyzer is ideal for healthcare, biotechnology, veterinary medicine, and sports science.
