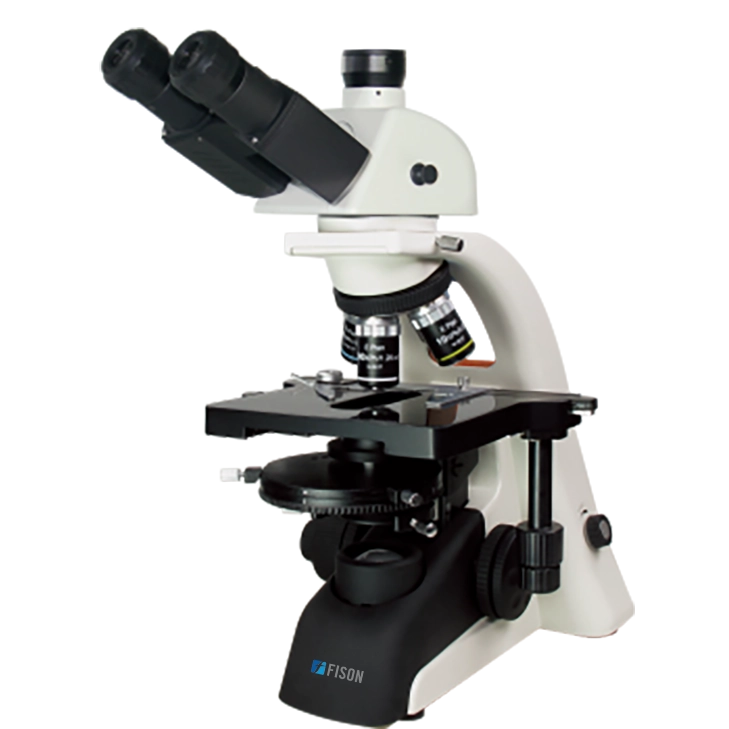

Biological Microscope FM-BM-D101

Biological Microscope FM-BM-D101

Biological Microscope FM-BM-D101 is a phase contrast biological microscope with Infinite optical system. It has Compensation trinocular head, 45° inclined, interpupillary distance 48 to75 mm viewing head. Designed with Infinite phase contrast condenser dial insert, with 10X, 40X, 100X phase contrast ring, light and dark field condenser. Equipped with LED lamp 3W, compound eye illumination, not chargeable and brightness adjustable. It offers coarse & fine coaxial focusing knob, with the hand wheel elastic regulation and random limit locking mechanism.

  •  Infinite optical system
  •  Infinite plan phase contrast objective
  •  4 Holes revolving nosepiece
  •  Magnification range from 100X to 1000X
  •  Double layer mechanical stage and LED lamp
  •  Wide Field WF10X/20 mm eyepiece

Optical system Infinite optical system
Viewing head Compensation trinocular head, 45° inclined, interpupillary distance 48 to75 mm
Nosepiece 4 Holes revolving nosepiece, inward
Objective Infinity Plan Phase Contrast Objectives
E Plan 10XPh/0.25
E Plan 20XPh/0.40
E Plan 40XPh/0.65(Spring)
E Plan 100XPh/1.25(Spring, oil)
Magnification 100X to 1000X
Eyepiece Wide Field WF10X/20 mm Centering telescope WF 10X
Phase contrast condenser Infinite phase contrast condenser dial insert, with 10X, 40X, 100X phase contrast ring, light and dark field condenser
Focusing system Coarse & fine coaxial focusing knob, with the hand wheel elastic regulation and random limit locking mechanism 0.002 mm coarse focusing range 22 mm,fine focusing graduation 0.002mm
Stage Double layer mechanical stage 160 × 142 mm, moving range 76 × 52 mm, can hold 2 slides
Lamp LED 3W, compound eye illumination, not chargeable, brightness adjustable
Power External voltage stabilized power supply adapter DC 6V/2A
Dimension 380 × 260 × 530 mm
Weight 12 kg

Biological Microscope is used in microbiology, cytobiology, cell and tissue culture, cell engineering and hybridoma technique and other modern biological research also used for dynamic observation of the crystal surface growth and micro topography.
