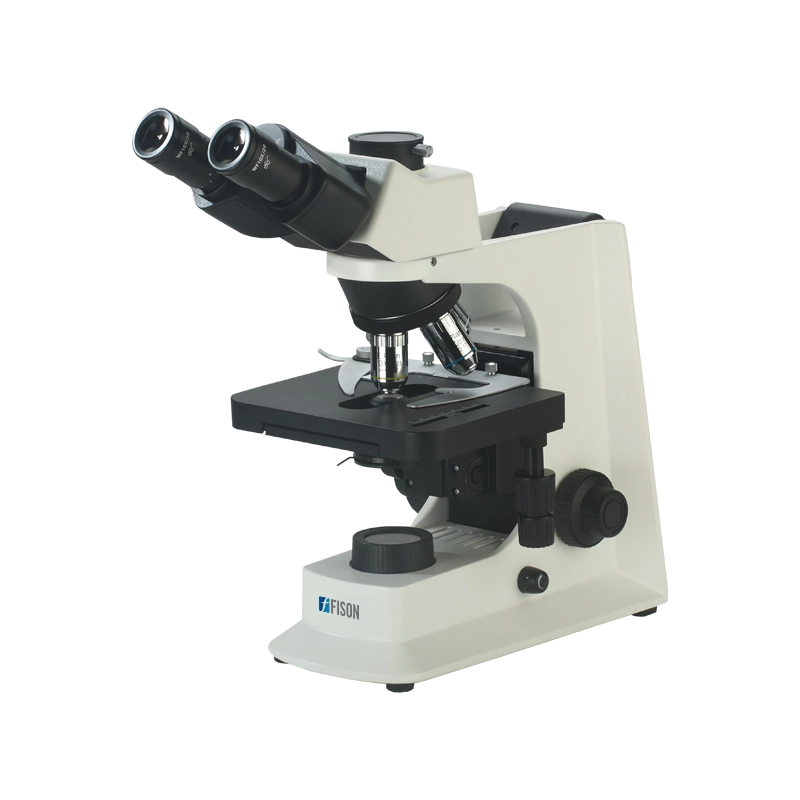

Biological Microscope FM-BM-C104

Biological Microscope FM-BM-C104

Biological Microscope FM-BM-C104 is a high-efficient microscope comes with high precision focusing system. Features 30° inclined and 360° rotatable seidentopf trinocular head with quadplex nosepiece. Equipped with superior objectives and wide mechanical stage with halogen lamp as illumination source, it has ergonomic design to provide convenient operation for user.

Specifications

Optical System Finite optical system
Viewing Head Siedentopf Trinocular Head, inter-pupillary distance 50 to 75 mm, 30° inclined, 360° rotatable
Eyepiece WF 10X/20 mm
Objective Plan Objective 4X, 10X, 40X (S), 100X / 1.25 (S, O)
Nosepiece Quadplex backward
Stage Stage size: 145×140 mm, Moving Range: 76×52 mm, Scale: 0.1 mm
Focusing Coaxial coarse and fine focusing knob, 26 mm moving range, Scale: 2 µm, 2-slide holder
Condenser ABBE NA = 1.25 with the Iris diaphragm
Filter Blue
Illumination 3 W LED, Adjustable
Packaging Dimension 420×450×275 mm
Net Weight 6.5 kg
Gross Weight 7.5 kg

Features

  • High precision focusing system with plan objectives
  • 30° inclined and 360° rotatable seidentopf trinocular head
  • Quadplex backward nosepiece ensure enough space for operator
  • Wide mechanical stage with 2 microslide specimen clamp
  • Halogen lamp as illumination source for better observation
  • Ergonomic design for easy handling of instrument

Applications

  • Biological Microscope is used to observe cells, tissues, and other biological specimens across biotechnology, microbiology, cytology, forensics, education, research etc.

Accessories Optional

  • Field diaphragm
    Dark field unit
