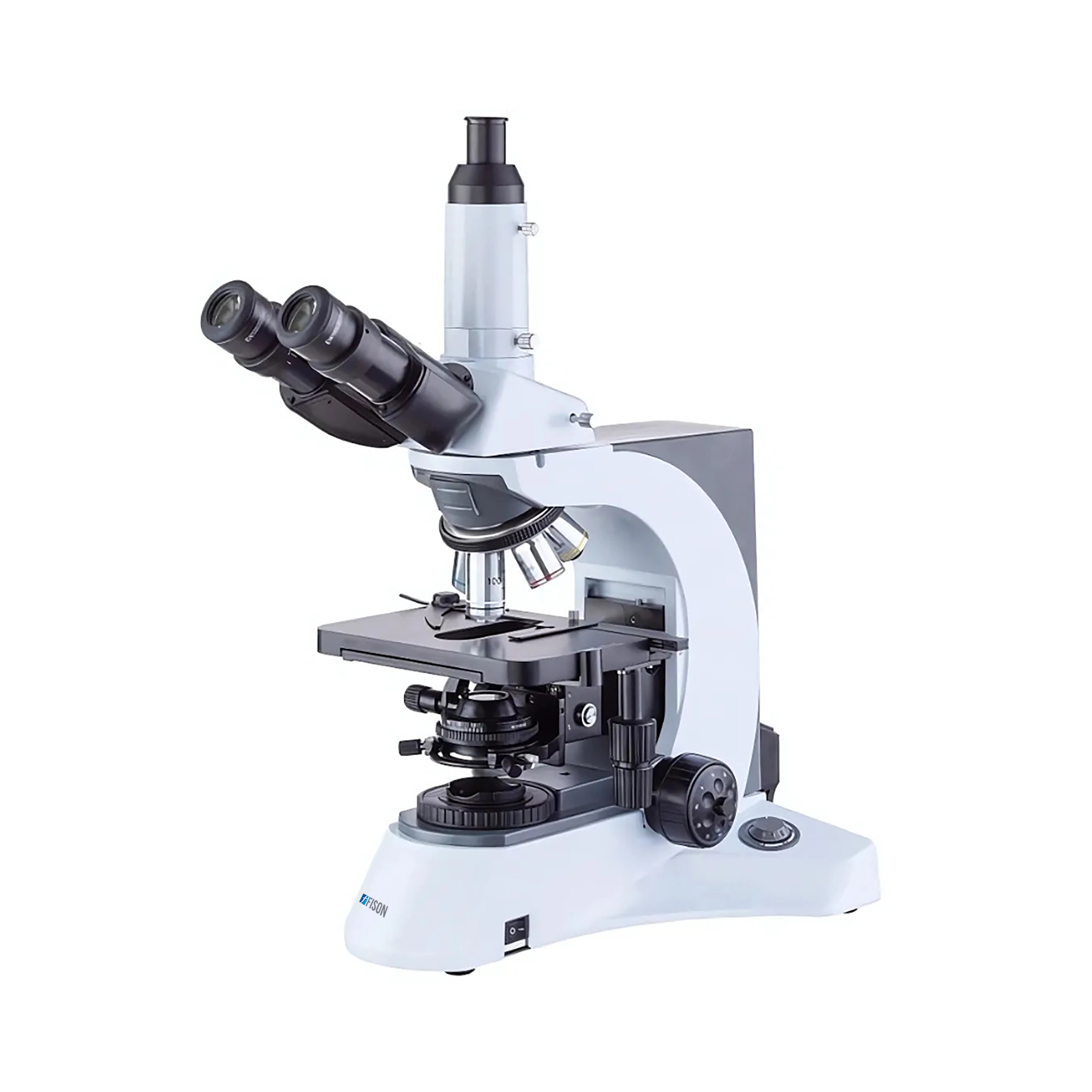

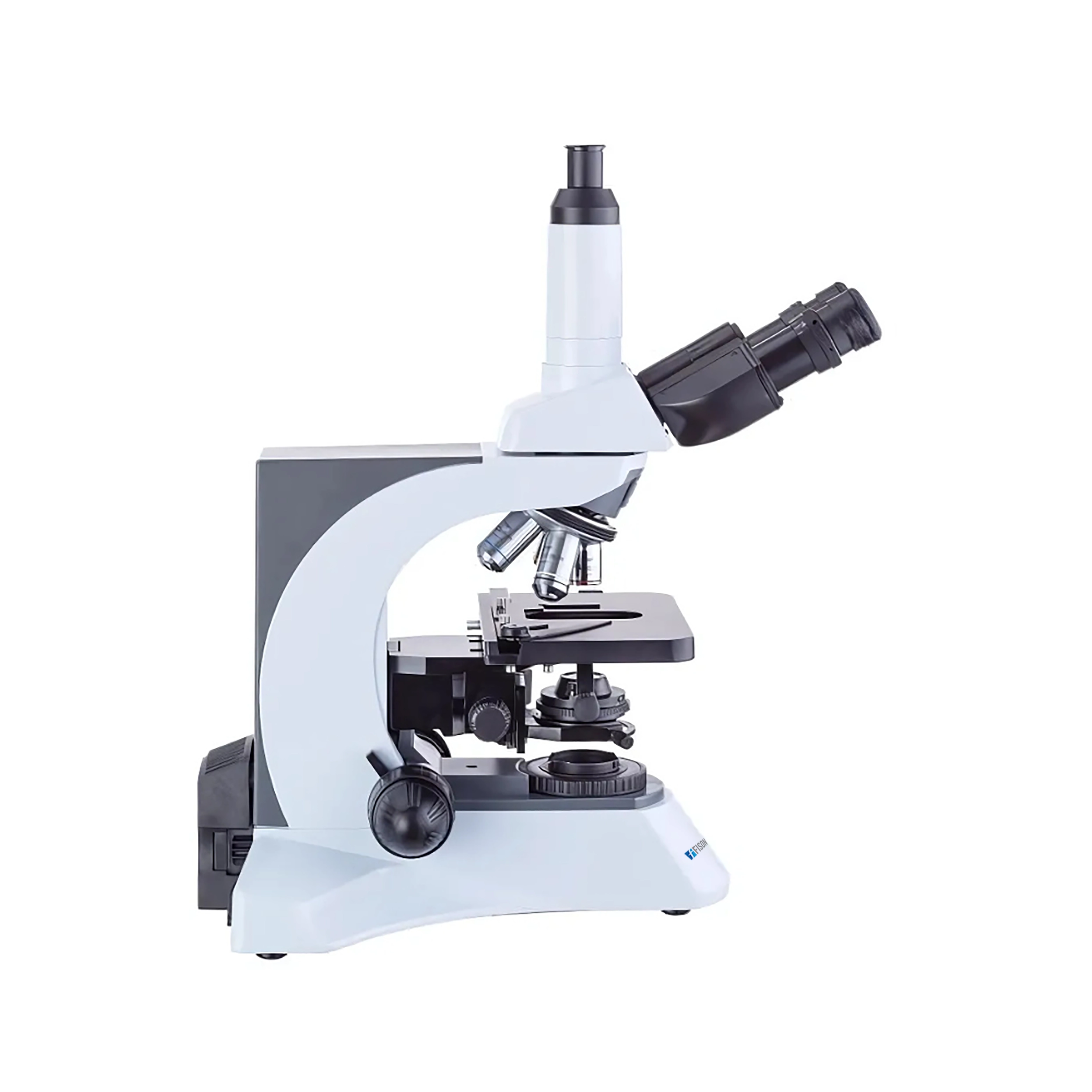

Biological Microscope FM-BM-A105 offers infinite optical system, features Trinocular viewing head which is 30° inclined, offers 360° rotation, and Interpupillary distance range of 48 to 75 mm, with dioptre adjustment ± 5, video adapter C munt 1X for Digital camera. Designed with Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil) and Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm to offer better observation.
Specifications
Optical System | Infinite Optical System |

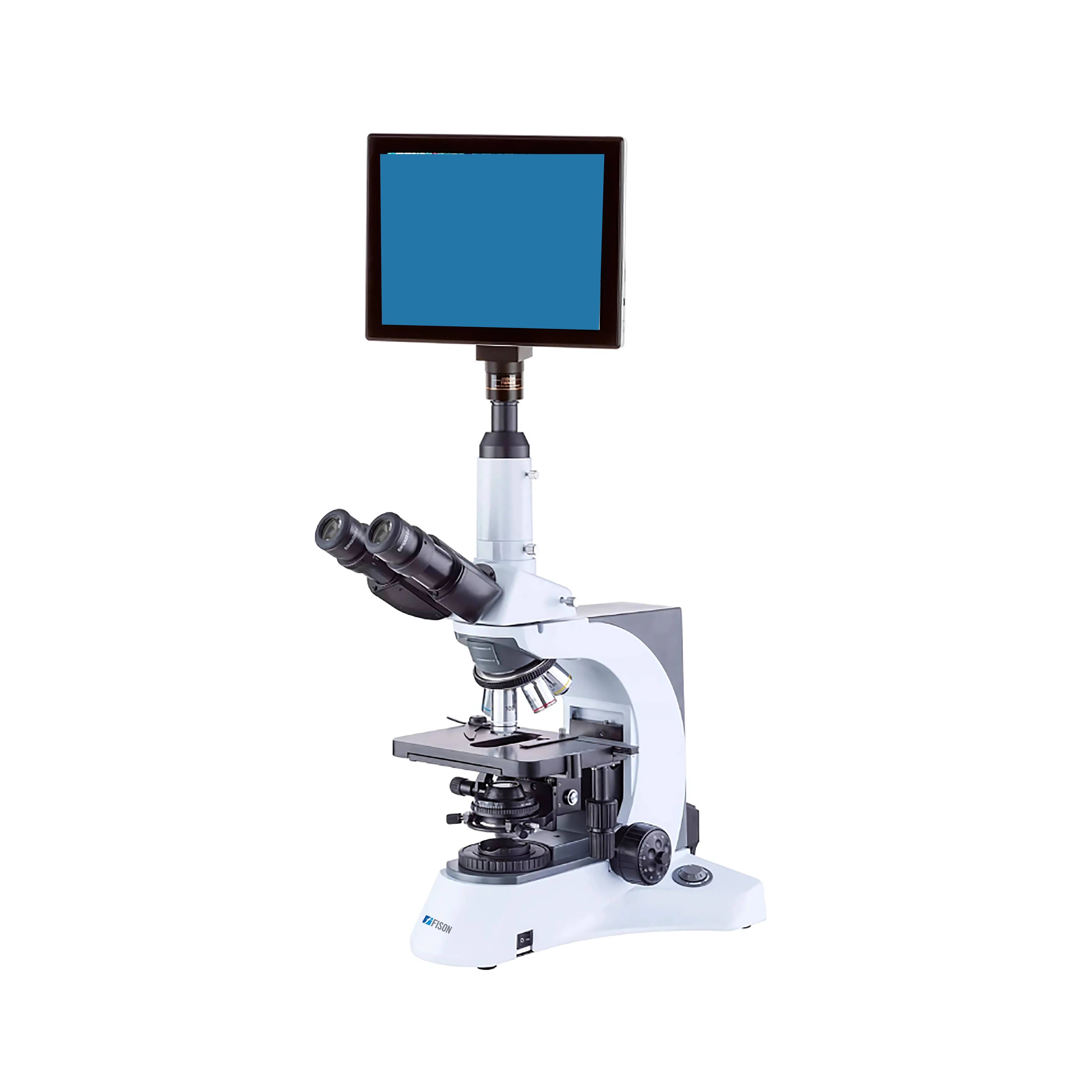

Viewing Head | Trinocular viewing head, 30° inclined, 360° rotation, Interpupillary distance 48 to 75 mm, dioptre adjustment ± 5, Video adapter C munt 1X for Digital camera |
Eyepiece | Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm |

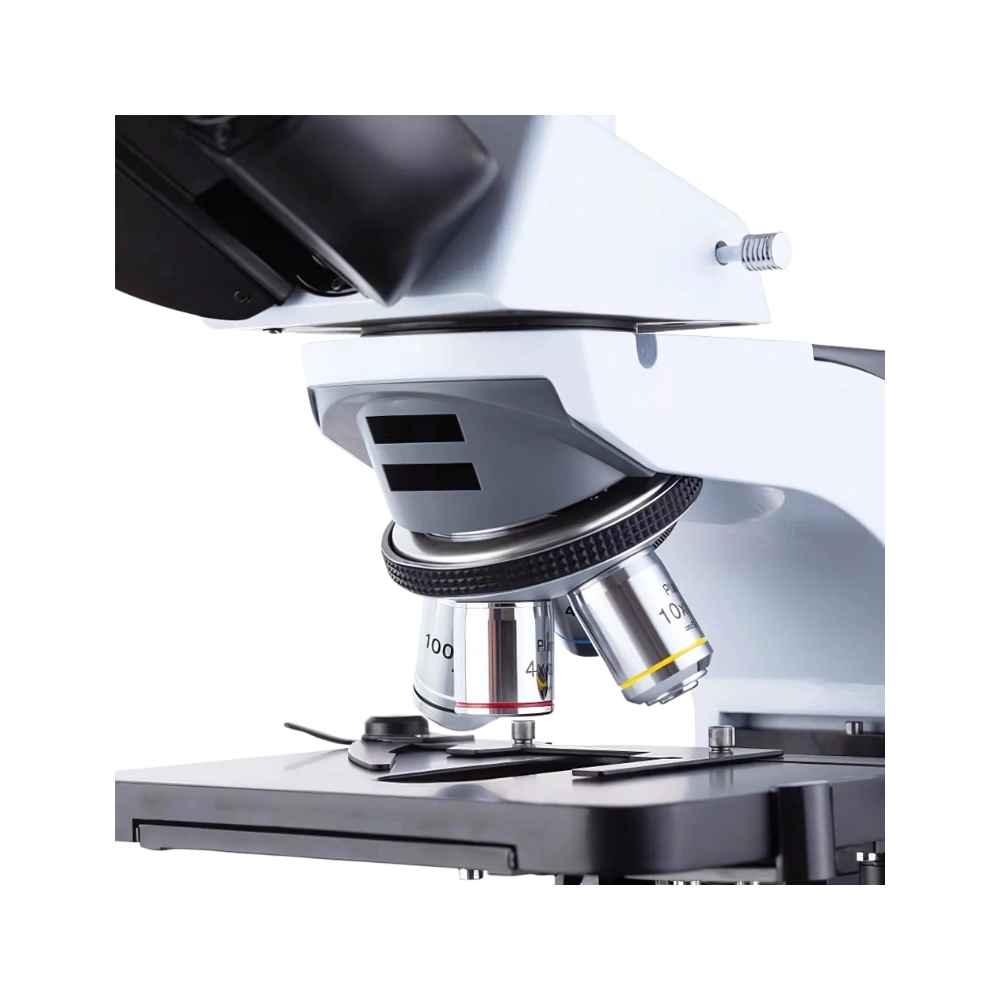

Objectives | Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil) |
Nosepiece | Backward Sextuple Nosepiece |
Focusing system | Coaxial coarse & fine focusing knob Fine division 0.001 mm, coarse stroke 37.7 mm per rotation Fine stroke 0.1 mm per rotation, moving range 24 mm |
Stage | Double layer mechanical stage size: 185 × 142 mm, range: 75 × 55 mm |

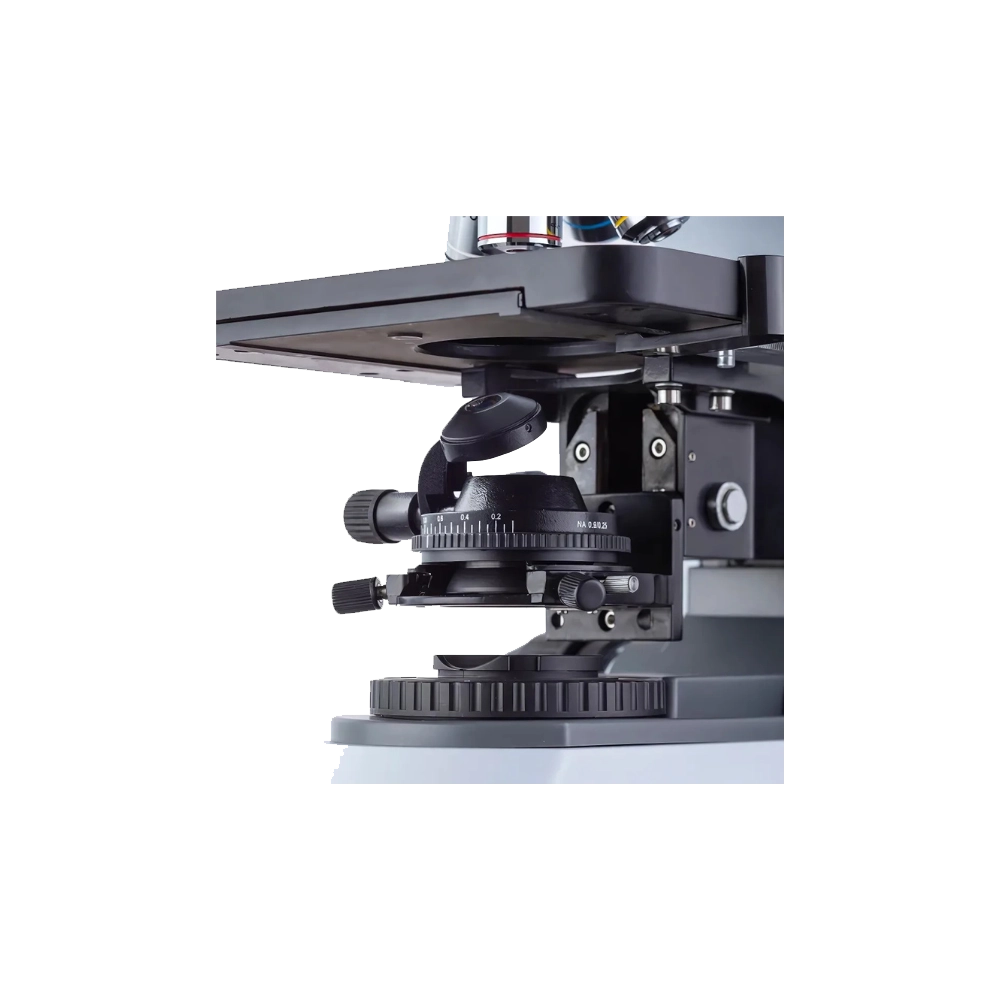

Condenser | Swing-out Achromatic Abbe Condenser N.A. 0.9 iris diaphragm |
Illumination | Transmitted kohler illumination, aspherical collector, halogen lamp 6V/30 W house |
Filter | Blue filter, Green filter |
Power supply | 220 to 240 V, 50 Hz |
Dimension (L×W×H) | 358×280×460 mm |
Weight | Approx. 15 kg |
