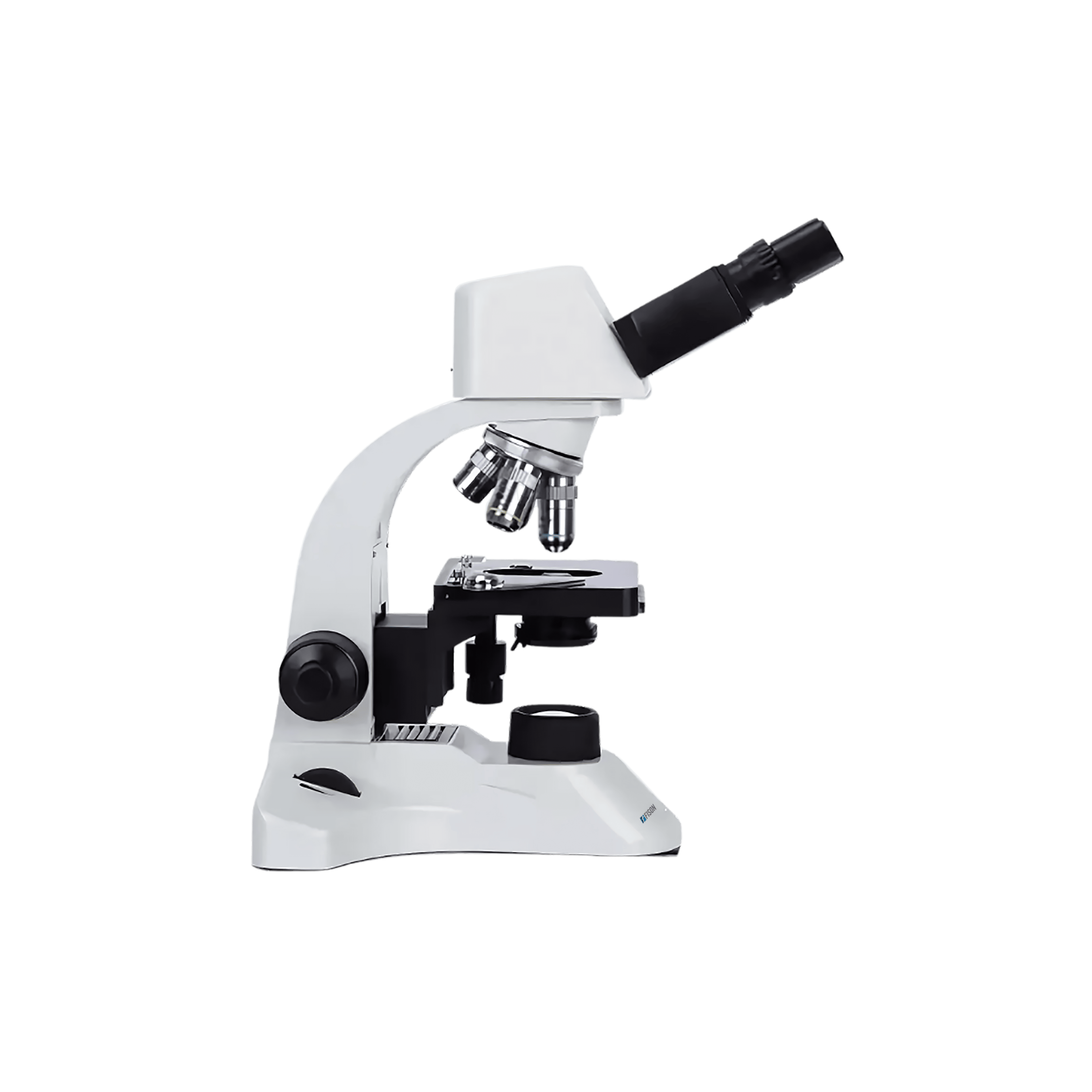

Biological Microscope FM-BM-A101 comes with binocular 30° inclined viewing head, 40 to 1600X zoom magnification range, for advance microscopic observation. With ergonomic design, high quality plan achromatic objectives are used to reduce strain on eyes during observation. It comes with a coaxial coarse and fine focusing knob with coarse focusing range 20 mm, and fine focusing graduation of 0.002 mm.
Specifications
Optical System | Finite Optical System |
Viewing Head | Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm |
Magnification | 40X to 1600X |
Objectives | Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) |
Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
Nosepiece | Inward, Quadruple revolving nosepiece |
Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
Illumination | 3W LED lamp, brightness adjustable |
Power | External power supply (adapter), AC 100V-240V, DC 5V/2A |
Voltage | 220 V, 50 Hz |
Weight | 12 kg |
Features
Applications
Fison Biological Microscopes are specifically constructed for observing biological specimens. Our routine range of microscopes have classroom-friendly utility as well as special design considerations for reduced strain on user’s eyes. They feature both finite and infinite ocular systems with a wide field of view. Equipped with dynamic lens system having different types of objectives (4X to 100X) and condenser types. We provide you with additional blue filter with our C series, phase contrast condenser with our D series, on demand digital cameras setups and much more.
Fison Digital Microscopes are engineered with built in camera and IPS/LCD touch screens for live specimen viewing. They are incorporated with zoom controls, auto-focus, intelligent illumination systems for enhanced clarity. Sophisticated software integration systems produce undistorted, high-resolution images. They feature advanced optical systems with binocular/trinocular heads for multi-angle visualization of specimens. Our digital scopes support Wi-Fi, Bluetooth, USB, HDMI and more, for real time documentation and analysis.
Fison’s suite of Fluorescence Microscopes are specially engineered to visualize specimens that emit fluorescence when exposed to monochromatic light. They are equipped with high quality filters to observe vast array of samples such as cultured tissue, plant and animal cells. Designed with infinite optical systems and binocular/trinocular viewing heads. They are capable of 3D, real time and time series analysis. We offer Fluorescence Microscopes that are highly sensitive, non-destructive with superior imaging facilities.
Fison Inverted Biological Microscopes offer non-invasive observation of live cells, tissues and organisms. Limited sample handling reduces risk of contamination. They feature greater working distances with high-resolution optical systems. Clear contrast renders distinct visualization of cells within 4X to 40X magnification. Our all-in-one Inverted Microscope come with phase contrast objectives, colour filters and optional fluorescent attachments.
Fison Metallurgical Microscopes employ dual transmitted and reflected light for sample illumination. They are equipped with multiple objective lenses with different magnification levels from 4x to 100x. Heavy base and robust frame for vibration-resistant observations. We offer you both upright and inverted designs suiting to your research needs. Our Metallurgical microscopes are versatile tools featuring brightfield, darkfield, phase contrast and polarisation to visualize microstructure of metals and alloys.
