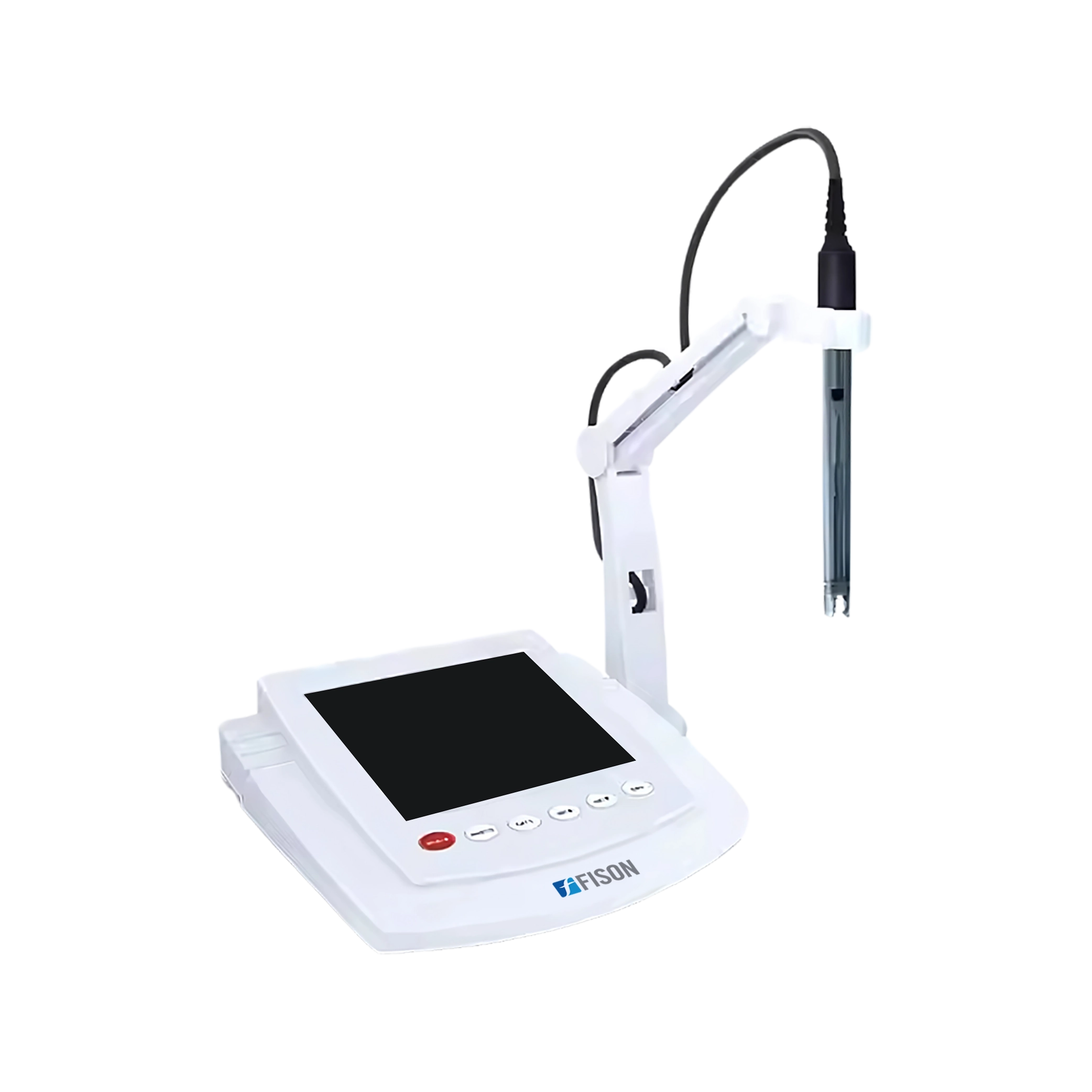

Benchtop Water Hardness Meter FM-BWM-A100
Benchtop Water Hardness Meter FM-BWM-A100 is a device used to measure the hardness of water. It has water hardness electrode with an ion-selective membrane and a reference electrode to detect and measure calcium and magnesium ions. Ionic strength adjuster ensures precise measurements by reducing interferences and stabilizing electrode responses. Calibrated with standard solution to ensure accurate readings.
Specifications
| Measurement range | 0.05 to 200 mmol/L, 0 to 1404⁰, 0 to 8020 mg/L (Ca2+), 0 to 19999 mg/L (CaCO3) |
| Measurement resolution | 0.001, 0.01, 0.1, 1 |
| Measurement accuracy | ± 1% F.S. |
| Calibration points | 2 to 5 points (0.01, 0.1, 1, 10, 100 mmol/L) |
| Temperature range | 0.0 to 105.0 ℃ |
| Temperature resolution | 0.1 ℃ |
| Temperature accuracy | ± 0.5 ℃ |
| Zero calibration | 0 to 50 ℃, manual or automatic |
| Stability conditions. | Low or high |
| Calibration alert | 1 to 31 days or off |
| Data storage | 500 data sets |
| Display | LCD (125 × 100 mm) |
| Connector | BNC, 3.5 mm jack socket |
| Power supply | DC 5 V power adapter |
| Dimension | 210 × 188 × 60 mm |
| Packaging dimension | 310 × 240 × 180 mm |
| Net weight | 1.5 Kg |
| Gross weight | 1.7 Kg |
Features
- 2 to 5 points calibration from higher to lower concentrations
- Selectable concentration units- mmol/L, mg/L
- Automatic temperature compensation ensures accurate reading
- Auto-sense function to sense and lock measurement endpoints
- Setup menu to set number of calibration and stability conditions
- Calibration due alarm alerts user to calibrate device regularly
- Data storage capacity of 500 data sets
- USB interface for easy communication
Applications
- Benchtop water hardness meter is used for precise measurement of mineral content in water samples for various industrial, environmental, and household purposes.
