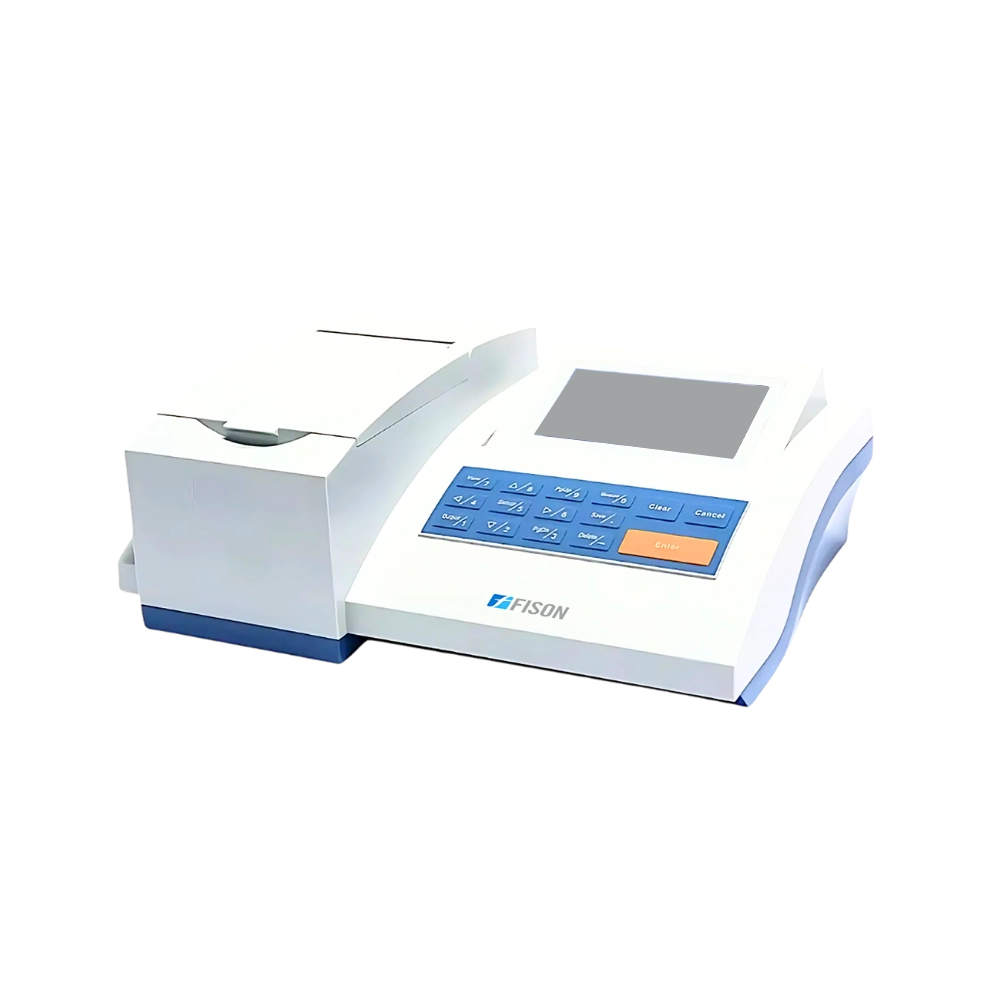

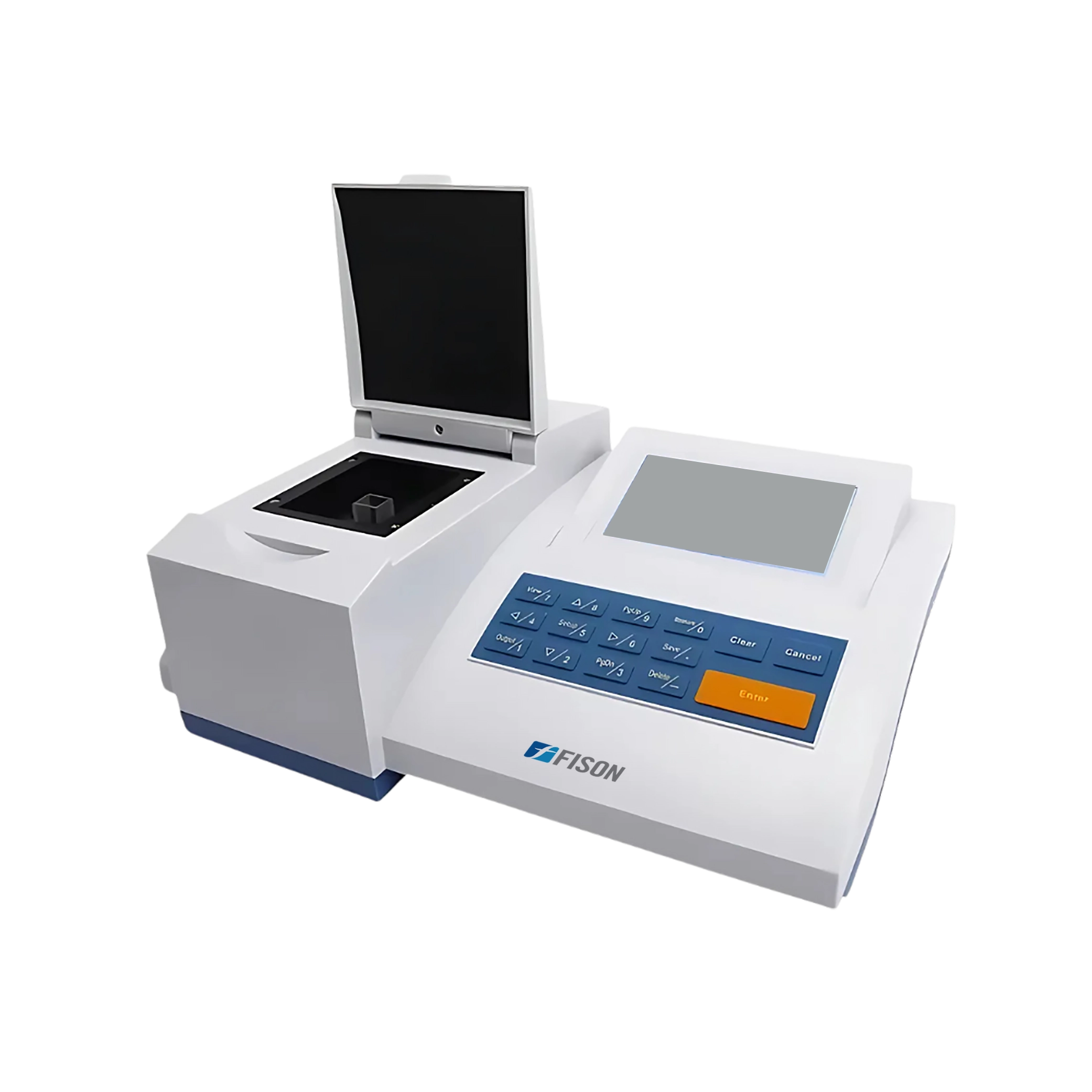

Benchtop Turbidity Meter FM-BTM-A100

Benchtop Turbidity Meter FM-BTM-A100

Benchtop Turbidity Meter FM-BTM-A100 operates on the Nephelometric principle with 90° detection. It measures turbidity across multiple ranges. The meter features a user-friendly interface with an easy-to-read display. The availability of different units makes this meter unique and highly valued in the market

Specifications

Measuring range (NTU) 0 to 20.00, 20.0 to 200.0 , 200 to 1000 NTU
Accuracy ± 2 % of value + 0.02 NTU
Repeatability ≤0.5%
Fluctuation ±0.5% FS/30min
Principle method 90° scattered light
Light source 850 nm LED Light source
Memory Stores up to 2000 sets data
Power Supply AC Adapter, 200-240 VAC input
Dimension 330 × 250 × 130 mm
Packing Dimension 370 × 305 × 330 mm
Weight 2.5 kg

Features

  • Benchtop turbidity meter with 2000 data set storage
  • Connectivity via USB or RS-232
  • LED light source
  • Selectable turbidity units such as NTU , FNU , and EBC
  • Customization of parameters
  • Supports adjustments for calibration points

Applications

  • Benchtop Turbidity Meter finds applications across diverse sectors such as water treatment, environmental monitoring, and quality control in various industries

Portable Turbidity Meter

Portable Turbidity Meter FM-PTM-A100

  • Measuring Range : 0 to 1000 NTU
  • Measurement Methods : Ratio Measurement Technology: 90-degree scattered light and transmitted light
  • Standards : Compliant with EPA Method 180.1, ISO Method 7027, and HJ 1075-2019
Catalog

Ratio Turbidity Meter

Fison Ratio Turbidity Meter ensures rapid turbidity settling, providing precise measurements for enhanced efficiency and clarity. Their presence of high-frequency electrical waves enhances signal precision and supports reliable data transmission. The single and continuous reading modes offer one-time or continuous measurement options. They offer built-in signal averaging control to improve measurement accuracy by reducing fluctuations. Our Ratio Turbidity Meter features an automatic calibration function for optimal measurement accuracy.

Ratio Turbidity Meter FM-RTM-A100

  • Measurement Range NTU : Auto Range Switchover (0.000-50.00; 50.01-200.0; 200.1-2000; 2001-4000)
  • Repeatability : ≤ 0.5%
  • Allowable Error of Indication : ≤ ± 6%
Catalog

Infrared Turbidity Meter

Fison Infrared Turbidity Meter offers direct data printing, enabling instant report users to print measurement data directly from the device, eliminating the need for external devices. The auto-adjustment measurement range is based on the turbidity levels of the sample. Their touch screen operation provides a user-friendly interface for effortless control. The multi-point calibration supports maintaining precision when switching between different sample types or standards. Our infrared turbidity meter has an automatic measurement switch that enhances efficiency by initiating the measurement process without requiring manual prompts.

Infrared Turbidity Meter FM-ITM-A100
  • Measuring Range : 0.000-2000 NTU, 0-500 EBC, 0-9999 ASBC
  • Resolution : 0.001
  • Repeatability : ≤ 0.3%
Catalog

Online Turbidity Meter

Fison’s Turbidity Meter use advanced optics and sensors for precise water quality analysis, accurately measuring turbidity across a wide range. Their self-cleaning mechanism prevents biofouling and contamination for accurate readings. Our Turbidity Meters are equipped with digital displays and communication interfaces, allowing seamless monitoring. These Turbidity Analysers are built with waterproof materials to withstand harsh environments, including waste water treatment facilities and industrial plants. They offer low maintenance and automatic calibration feature, reducing operational downtime and ensuring reliable performance.

Online Turbidity Meter FM-OTM-A100
  • Measurement Range : 0 to 4000 NTU
  • Accuracy : ±2%
  • Operation Temperature : 0 to 45 0C
Catalog
