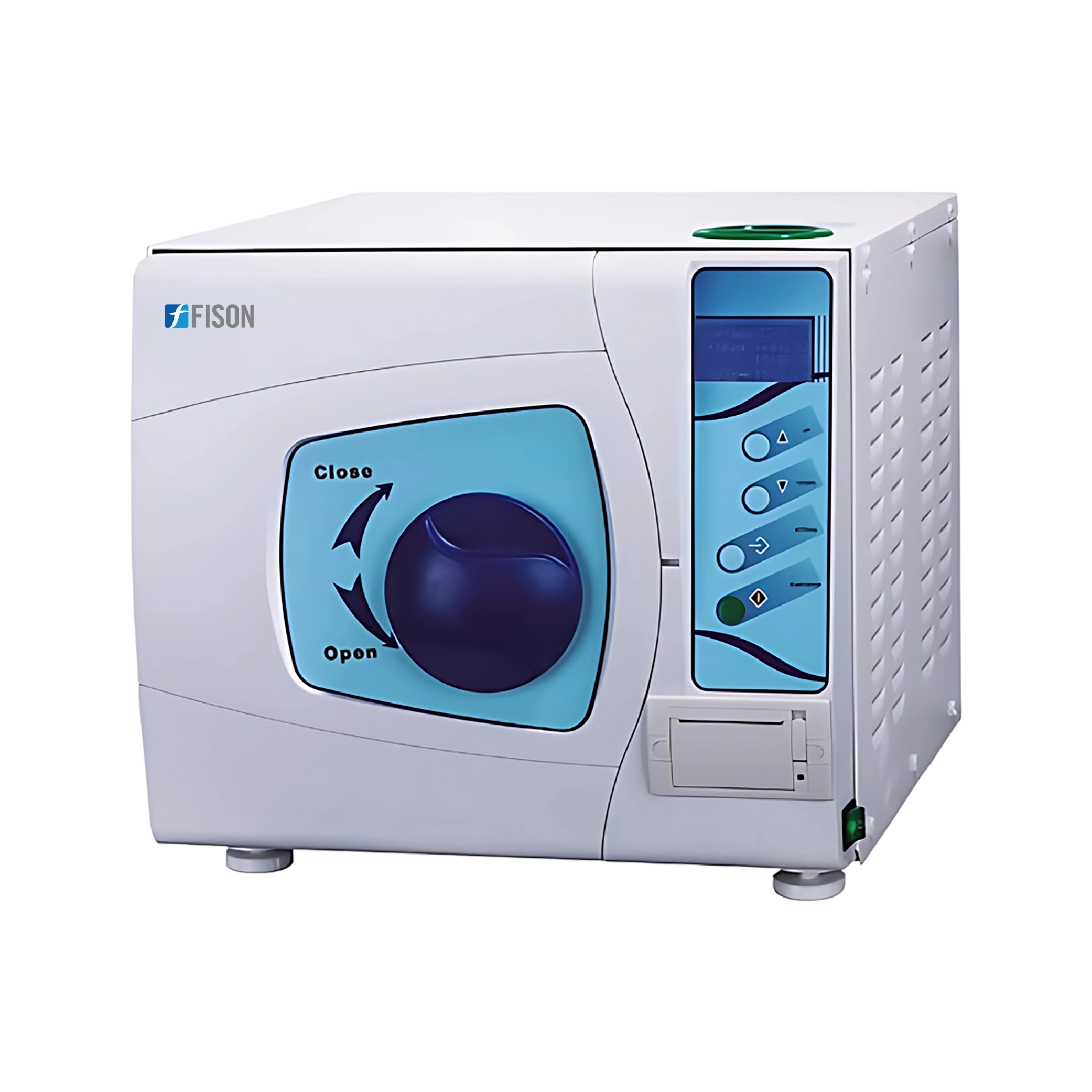

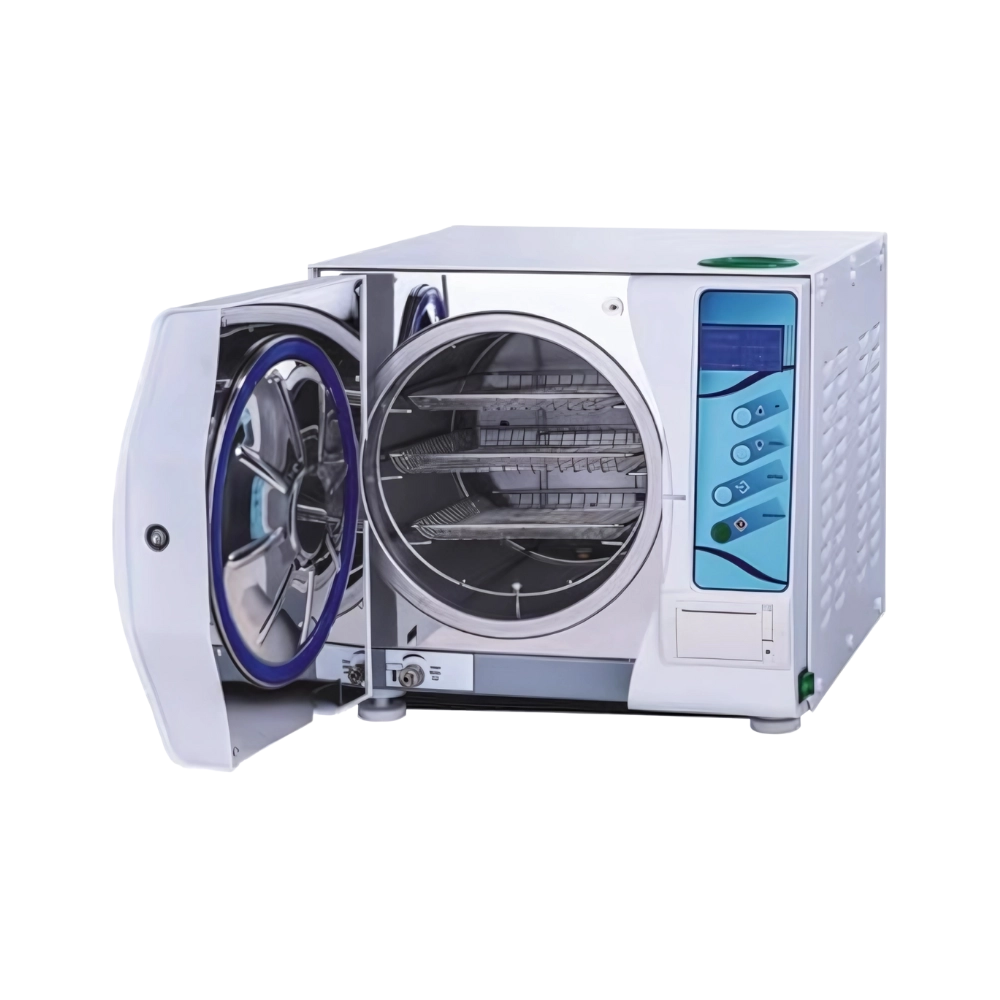

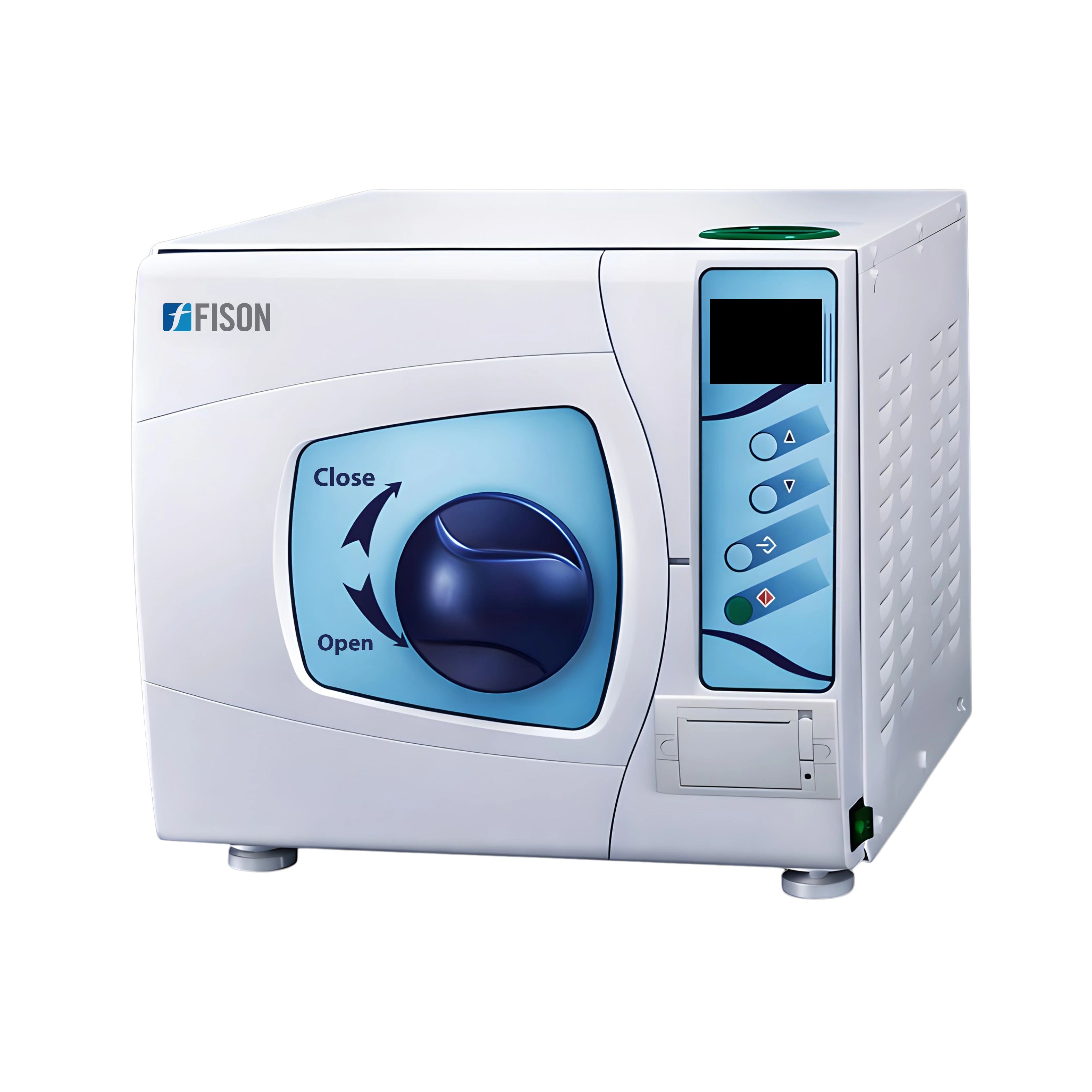

Benchtop Autoclave FM-BA-B103

Benchtop Autoclave FM-BA-B103

Benchtop Autoclave FM-BA-B103 is a class B benchtop autoclave, comprising 3 pulsating-vacuum, offers 12 L of capacity and vacuum up to 0.09 MPa. Features B&D test and vacuum test procedures to test the penetrability with double lock door system for safety during operation. Designed with 304 stainless steel chamber, it has jet type of steam generator, ensures the efficient sterilizing. Equipped with imported & advanced 16-bit microprocessor, LCD display, and advanced self-test system, this autoclave has alarm system for waste water tank. With Optional built-in mini-printer or USB connector, it can also record the sterilizing process data.

  •  Class B benchtop autoclave, comprising 3 pulsating-vacuum
  •  B&D test and vacuum test procedures to test the penetrability
  •  Double lock door system for safety during operation
  •  304 stainless steel chamber with jet type of steam generator
  •  Imported & advanced 16-bit microprocessor, easy to operate
  •  LCD display and advanced self-test system
  •  Alarm system for waste water tank, avoids waste water entrance into sterilizing circulation
  •  Optional inbuilt mini-printer or USB connector for recording the sterilizing process
  •  Suitable to sterilizing wrap, unwrap, solid, porous, hollow device
  •  High-efficient, convenient and easy-to-use

Capacity 12 L
Temperature Range 134 °C /121 °C
Type Class B benchtop autoclave
Recording Accuracy ±0.5℃
Sensor accuracy 0.01℃
Display accuracy ±0.5℃
Vacuum up to 0.09 MPa
Residual Humidity <0.2 RH
Pulsating vacuum 3
Test procedures B&D test and vacuum test procedures
Controller 16-bit microprocessor
Alarm system Yes, for Waste water tank
Display LCD
Door lock Double lock door system
Printer Built-in mini printer (optional)
Interface USB
Chamber material 304 stainless steel
Insulation 2.5 mm
Steam-generator Jet type
Power supply AC220V/110V, 50/60 Hz
Power 1800 W
Internal dimension Φ200×360 mm
External dimension (W×D×H) 445×550×395 mm
Packaging dimension (W×D×H) 670×550×500 mm
Gross weight 46 kg

Benchtop autoclave is used for sterilization of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc. across dental clinics, hospitals, school lab, scientific research institutions and laboratory.
