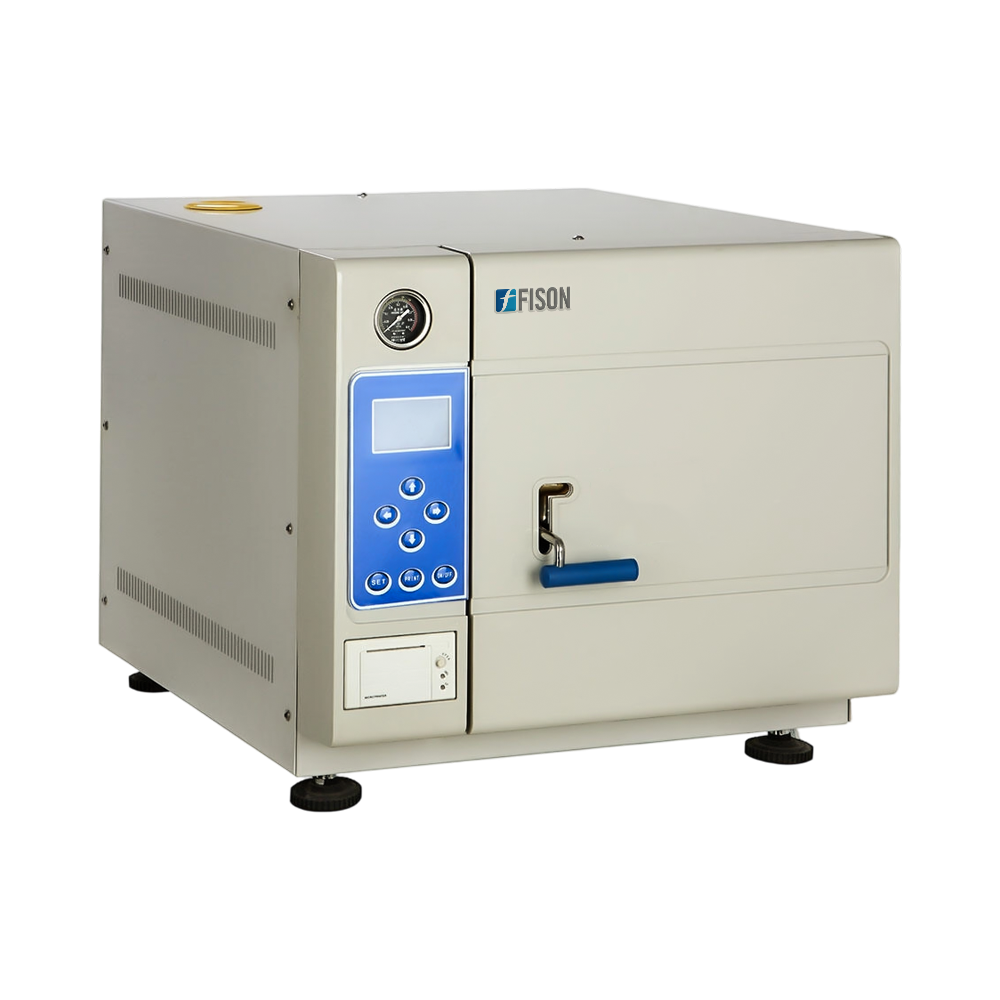

Benchtop Autoclave FM-BA-A101 is a fully automatic, microprocessor controlled unit with 50 L capacity, 134°C working temperature, and 0.22 MPa working pressure. Made up of stainless steel chamber, offers four stainless steel sterilizing plates. The process of water addition, temperature rise, sterilization, drying steam discharge are controlled automatically. Equipped with steam water inner circulation system, no steam discharge, keeps the surrounding environment clean and dry.
Specifications
Chamber Capacity (Volume) | 50 L |
Chamber dimension | 340 × 550 mm |
Working pressure | 0.22 MPa |
Working temperature | 134°C |
Temperature adjustment range | 105 to 134°C |
Heating time | 10 to 20 mins |
Total sterilization time | 40 mins (ready time + heating time + sterilization time) |
Timer range | 0 to 99 mins |
Temperature accuracy | ≤ ± 1°C |
Sterilizing plate | 4 pcs |
Sterilizing plate dimension | 500 × 250 × 30 mm |
Dimension | 770 × 600 × 540 mm |
Packaging dimension | 880 × 730 × 700 mm |
Net weight | 86 kg |
Gross weight | 105 kg |
Power | 2.7 kW |
Power supply | AC 220 V, 50 Hz |
Features
Applications
Fison Benchtop Autoclaves are compact, low wattage steam sterilizers. They operate at effective working conditions of 134°C and 0.22 MPa. They feature thermo-pressure controllers, automatic safety locks, alarm system and digital display. They are certified with successful vacuum and B&D test procedures to ensure cost-effective yet streamline performance. We offer space saving Benchtop autoclaves appropriate for small labs and dental clinics.
Fison Horizontal Autoclave has larger load capacity of up to 600 L. They operate in temperature range of 134°C to 150°C for rapid sterilization. Our front-loading autoclaves come in cylindrical and rectangular orientation. They are durable and built of corrosion resistant stainless steel. They feature innovative safety systems with warning buzzers, thermo-pressure controllers and automatic water cut off. Our advanced horizontal autoclaves are equipped with intuitive digital interface for automatic operation.
Fison Vertical Autoclave line features top loading steam sterilizers with different capacities of 35 L to 150 L. Designed with larger chamber volumes to achieve effective sterilization within space-restricted labs. They operate at 134°C and 0.22 MPa for quick autoclaving within few minutes. We offer versatile functions like semiautomatic control, warning buzzer systems, additional bacteria filters, customizable programs and multiple pulse vacuum drying. Our CE certified top loading sterilizers come with advanced safety mechanisms to ensure user-friendly operation.
Fison Portable Autoclaves are compact and lightweight steam sterilizers. They feature both electric and LPG type heating to facilitate versatile operation. Adjustable thermostat, auto shut off, pressure gauges and safety valves ensure effective sterilization. Our space-efficient autoclaves are appropriate for medical, dental, laboratory, and field settings. We offer Portable Autoclaves working at 126? and 0.16 MPa with loading capacities of 18 L- 24 L.
Fison Hydrothermal Autoclaves are constructed with corrosion-resistant material to facilitate unconventional chemical reactions. They feature inert internal liners to prevent interactions between the solution and vessel walls. Equipped with thermo-pressure regulators for process monitoring. Reliable seepage-proof design along with rupture discs ensure additional safety. Our high-pressure reactors enable you to conduct advanced hydrothermal applications such as nanomaterial synthesis, crystal growth, chemical transformations and more.
Fison Vacuum autoclave features a rectangular cross-section with a European ring-type jacket and reinforcing ribs, ensuring operational stability. They are constructed with stainless steel for steam-contact surfaces, ensuring durability for up to various sterilization cycles. The jacket is crafted from high-quality carbon steel, ensuring safety for pressure vessel applications. Their double pulsation process effectively removes interior air, improving drying performance. Our Vacuum Autoclave features a variety of safety and alarming systems, ensuring reliable protection in critical situations.
