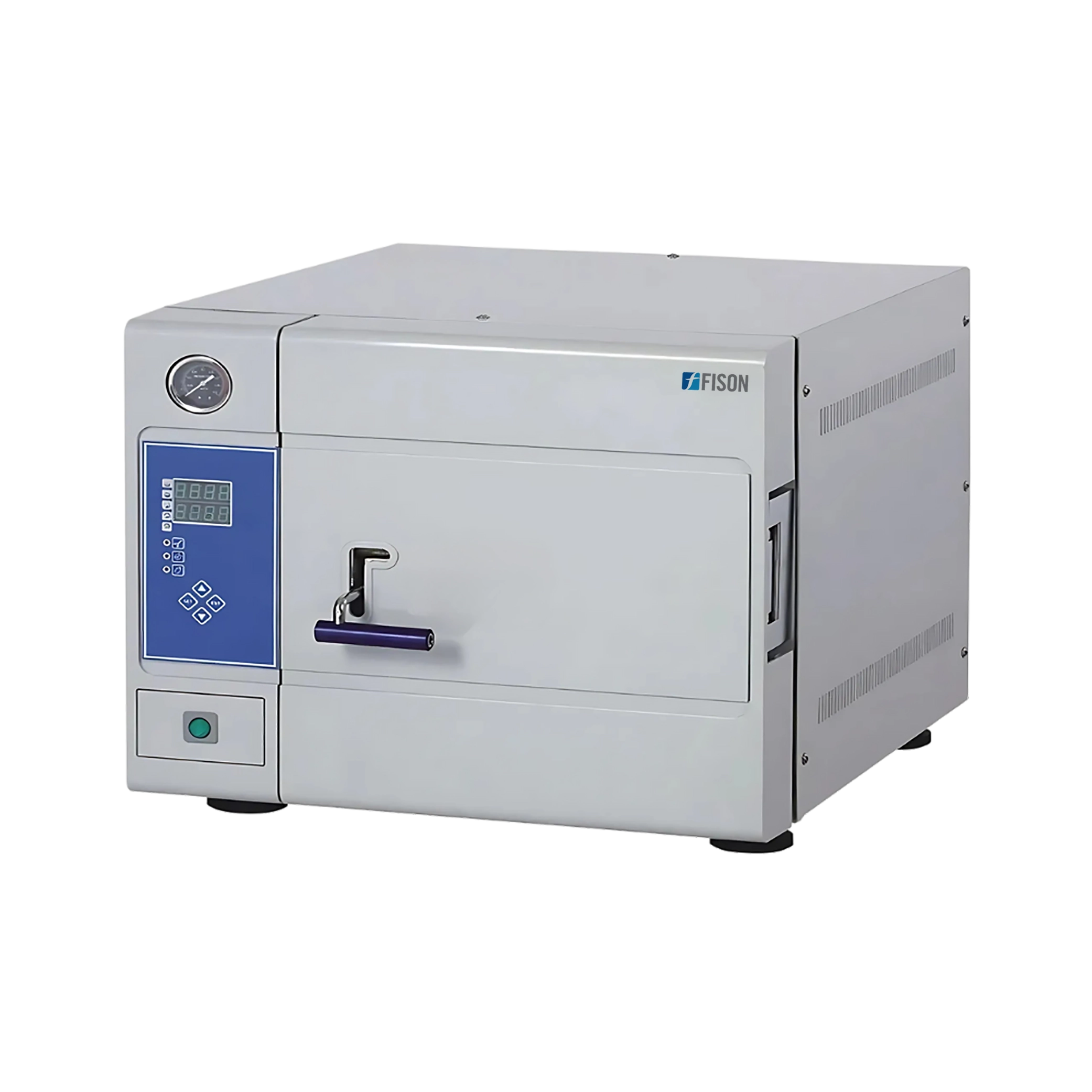

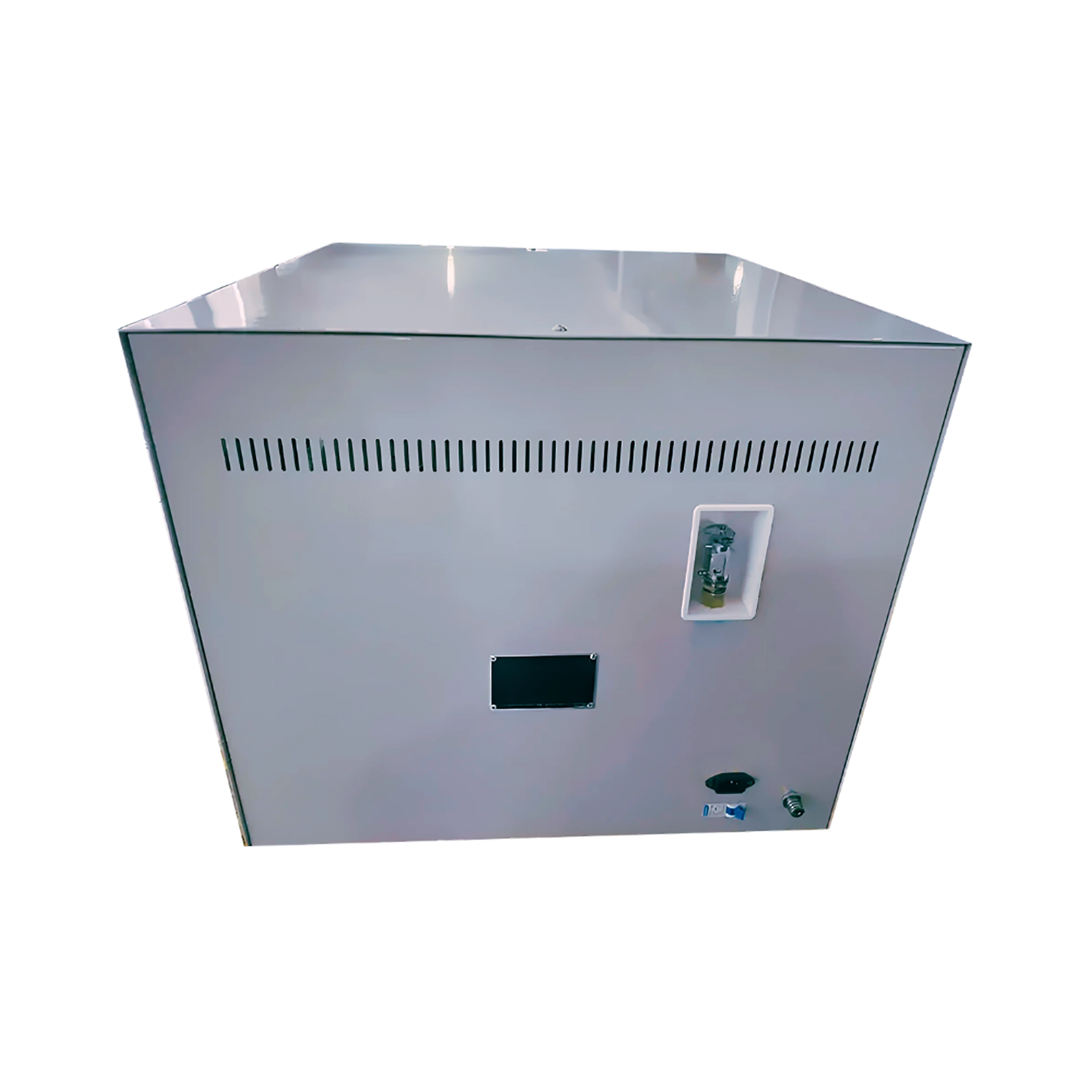

Benchtop Autoclave FM-BA-A100

Benchtop Autoclave FM-BA-A100

Benchtop Autoclave FM-BA-A100 is a fully automatic, microprocessor controlled unit with 35 L capacity, 134°C working temperature, and 0.22 MPa working pressure. Made up of stainless steel chamber, offers four stainless steel sterilizing plates. The process of water addition, temperature rise, sterilization, drying steam discharge are controlled automatically. Equipped with steam water inner circulation system, no steam discharge, keeps the surrounding environment clean and dry.

  •  Digital LCD display shows working status of autoclave
  •  Touch type key control panel
  •  3 fixed cycles sterilization program, can be adjusted by user
  •  Automatic controlled processes: water addition, temperature rise, sterilization, drying the steam discharge
  •  Automatic shut off with beep reminder after completion of sterilization process
  •  Safety protection against water lacking
  •  Door safety lock system (hand pull up type handle)
  •  Four stainless steel sterilizing plates
  •  Automatically exhausts cool air

Chamber Capacity (Volume) 35 L
Chamber dimension 300 × 500 mm
Working pressure 0.22 MPa
Working temperature 134°C
Temperature adjustment range 105 to 134°C
Heating time 10 to 20 mins
Total sterilization time 40 mins (ready time + heating time + sterilization time)
Timer range 0 to 99 mins
Temperature accuracy ≤ ± 1°C
Sterilizing plate 4 pcs
Sterilizing plate dimension 400 × 200 × 30 mm
Dimension 730 × 550 × 510 mm
Packaging dimension 810 × 680 × 650 mm
Net weight 73 kg
Gross weight 90 kg
Power 2.7 kW
Power supply AC 220 V, 50 Hz

Used for sterilization of surgical, dental, eye equipment, glassware, culture medium, biological dressing, food etc. across dental clinics, hospitals, school laboratories, scientific research labs, institutes.
