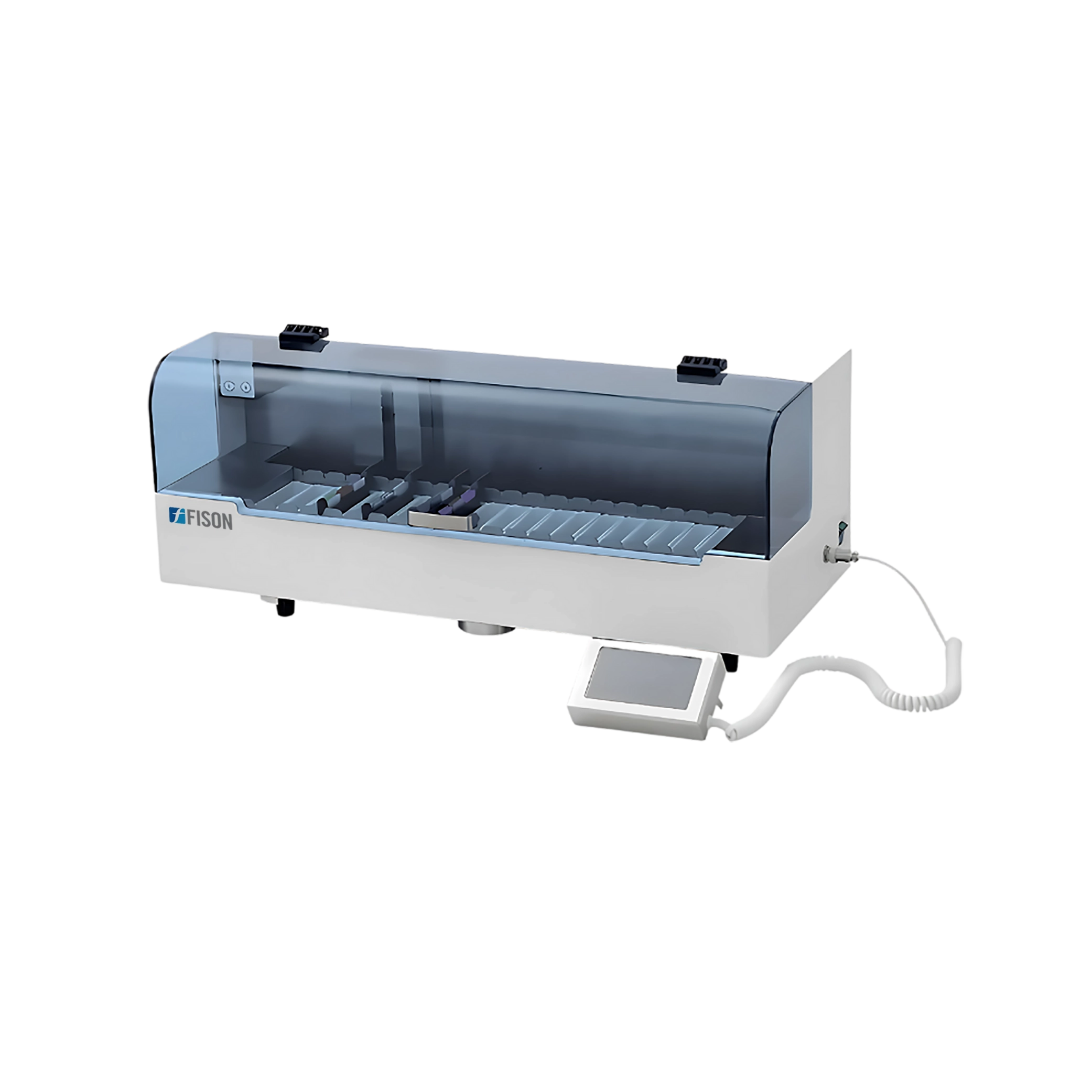

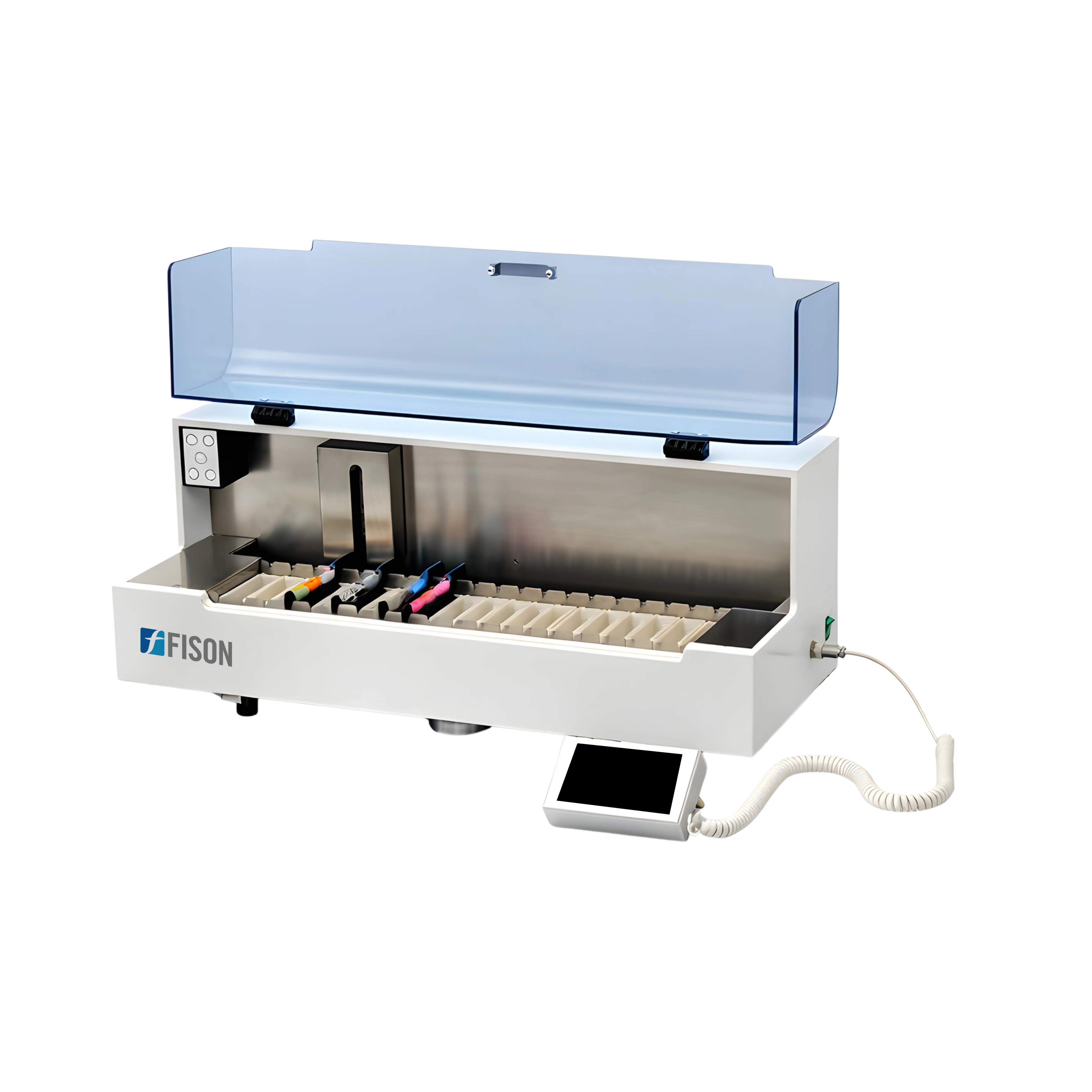

Automatic Tissue Slide Stainer FM-ATS-A102 is a fully automatic unit, comprised with 20 stations with 135 ml capacity each, can perform continuous staining with 6 slides in each holder. With LED touch operation system and water protection device, features automatic start/stop cleaning and adjustable water flow. Designed with optical plastic cover and air exhaustion device, has unique energy-efficient mechanical arm. Incorporated with 10 programs and adjustable time range of 0 to 59 mins/0 to 59 s, takes only 10 s for station changing, stay and liquid leaching and supports dynamic graph for staining work state.
| Cup number | 20 (Repeat station, Clean-bath can be set) |
| Cup capacity | 135 ml |
| Cup processing time | 0 to 59 min/0 to 59 s (Adjustable) |
| No. of slides processed | 6 slides in each holder (continuous staining) |
| Dripping time | 10 s |
| Display | LED touch screen |
| Storage | 10 sets |
| Power supply | AC 220/110 V ± 10%, 50/60 Hz |
| Power | 100 W |
| Dimension (W×D×H) | 705×300×280 mm |
| Packaging dimension (W×D×H) | 820×420×500 mm |
| Net weight | 21 kg |
| Gross weight | 38 kg |
Automatic Tissue Slide Stainer is used to perform simultaneous process of different staining protocols, for continuous unload & reload without interrupting staining cycle, to automate the staining of peripheral blood and other hematologic smears to facilitate laboratory microscope differential counts etc. across biotechnology, microbiology, cytology, pathology and research etc.
