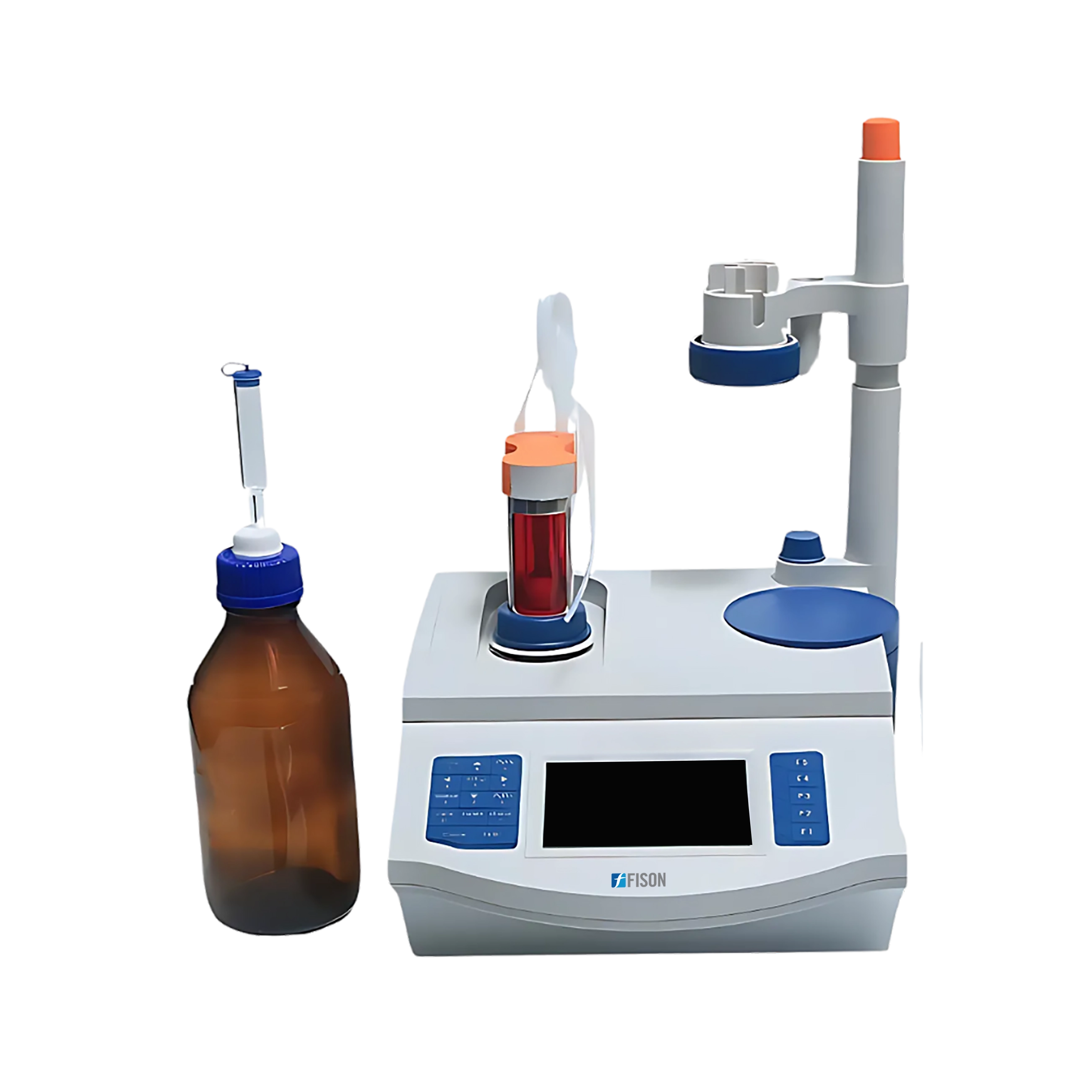

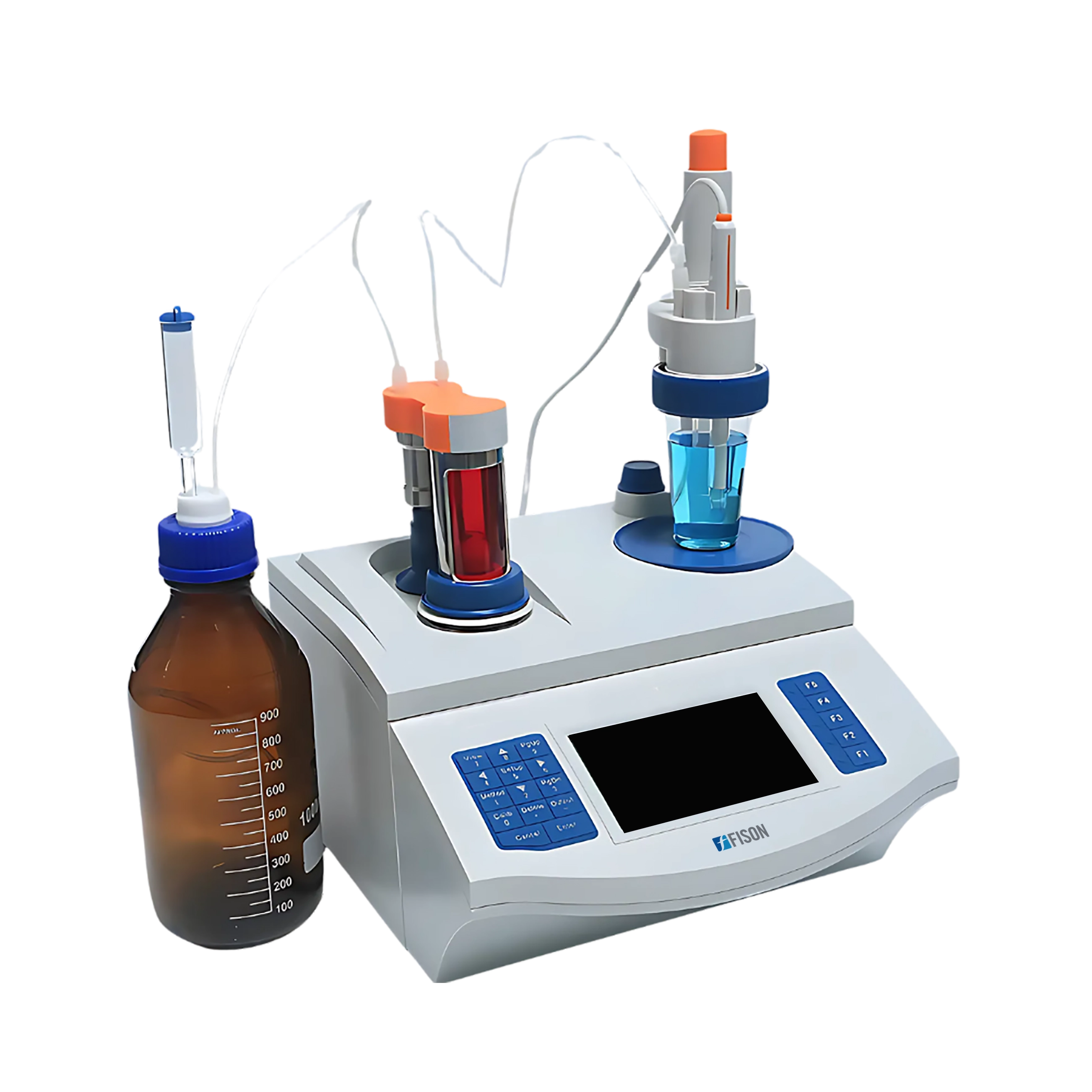

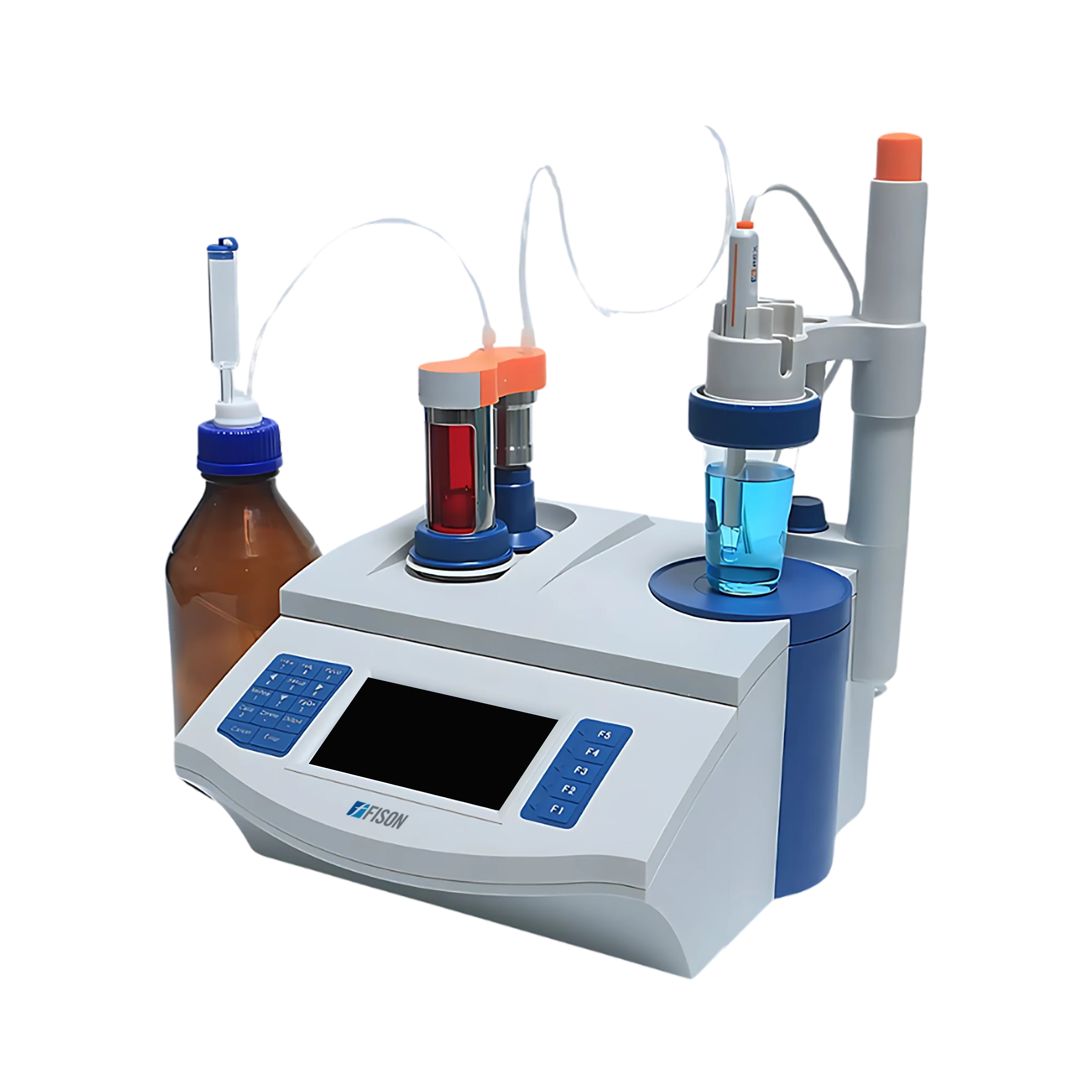

Automatic Potentiometric Titrator FM-APT-A300
Automatic Potentiometric Titrator FM-APT-A300 is adopted with burette valve integrated design, to avoid mutual interference of different titrimetric solutions. Stirring system adopted with PWM technology, for adjusting the stirring speed during operation. Titrator performs automatic identification of pH standard solutions, also supports manual identification. LCD screen displays real time values test values, titration curve, and measurement results.
Specifications
| Titration Modes | Pre-titrations, Preset end point titration, Blank titrations, Manual titrations, Macro titration, Micro titration, Volume setting titrations, Stored titration |
| Analysis Methods | Acid-base Titration, Oxidation-reduction titration, Precipitation titration, Complexometric, Non-aqueous titration |
| Measurement Range (pH Value) | 0.00 to 14.00 pH |
| Measurement Range (mV Value) | -1800.0 to 1800.0 mV |
| Measurement Range (Temperature Value) | -5.0 to 105.0 °C |
| Resolution (pH Value) | 0.01 pH |
| Resolution (mV Value) | 0.1 mV |
| Resolution (Temperature Value) | 0.1°C |
| Accuracy (pH Value) | ± 0.01 pH |
| Accuracy (mV Value) | ± 0.03 % mV |
| Accuracy (Temperature Value) | ± 0.3°C |
| Burette Volume Accuracy (10 ml Burette) | ± 0.025 ml |
| Burette Volume Accuracy (20 ml Burette) | ± 0.035 ml |
| Burette Filling Solution Speed | 55 ± 10 s (when burette is in full scale) |
| Reproducibility of Titration Analysis | 0.002 |
| Relative Reproducibility | ≤ 0.2 mV |
| Relative Stability | ± 0.3 mV |
| Sensitivity of Controlling Titration | ± 2 mV |
| Environment Temperature | 5 to 35°C |
| Relative Humidity | ≤ 80% |
| Power Supply | AC 220V, 50 Hz |
| Electromagnetic Disturbance | No disturbance of electromagnetic field |
| Dimension (L × W × H) | 500 × 540 × 490 mm |
| Weight | 11 kg |
Features
- Burette valve integrated design
- Microprocessor controlled technology
- Titration endpoint reminder
- System supports setting system time, operation id, burette factor, stirring speed
- Advanced transmission system reduces noise during operation
- Complied with GLP norms
- Stores 200 sets of titration results and one set of titration curve
- Auto power-off protection
- Supports restore factor setting
- PC (to view, edit titration curve and statistical data)can be connected via the USB interface
Applications
- Used in environmental and water testing industry, food additives and production industry, pharmaceutical, petrochemical fields for quality testing and research institutes.
Test Material
Sr. No. Titration Type Applications 1 Acid-base Titration Drugs in Amino acids , benzo thiazide oil of total acid TBN 2 Redox Titration Iodine value in food, peroxide value, vitamin C, water treatment, COD measurements 3 Precipitation Titration Chlorine titration 4 Complexometric Titration Calcium, Zinc ion titration, formaldehyde titration 5 Non-aqueous Titration Per chloric acid titrations 6 pH value/ mV measurement H+ pH/ mV , Reminding ions mV
Accessories
Reference electrode × 1PC
platinum electrode × 1PC
silver electrode × 1PC
reference electrode × 1PC
pH glass electrode × 1PC
temperature electrodes × 1PC
Dropping tube × 4 PCs
Solution cups × 3PCs
Solution cups × 3PCs
Ejector tool × 1PC
Burette valve device 10ml × 1PC
Stir beads (small) × 3pcs
Electrode holder device × 1PC
Sealing ring × 3 pcs
Φ3.2 × 0.5Infusion tube (fluorine plastic) × 2pcs
Inverted conical washer × 3pcs
Plastic liquid storage bottle (500ml) × 1PC
Φ5 × 20 (1A)Fuse × 2pcs
Universal power supply cable × 1PC
Serial printer cable × 1PC
USB communication cable × 1PC
Titration Software 1PC
