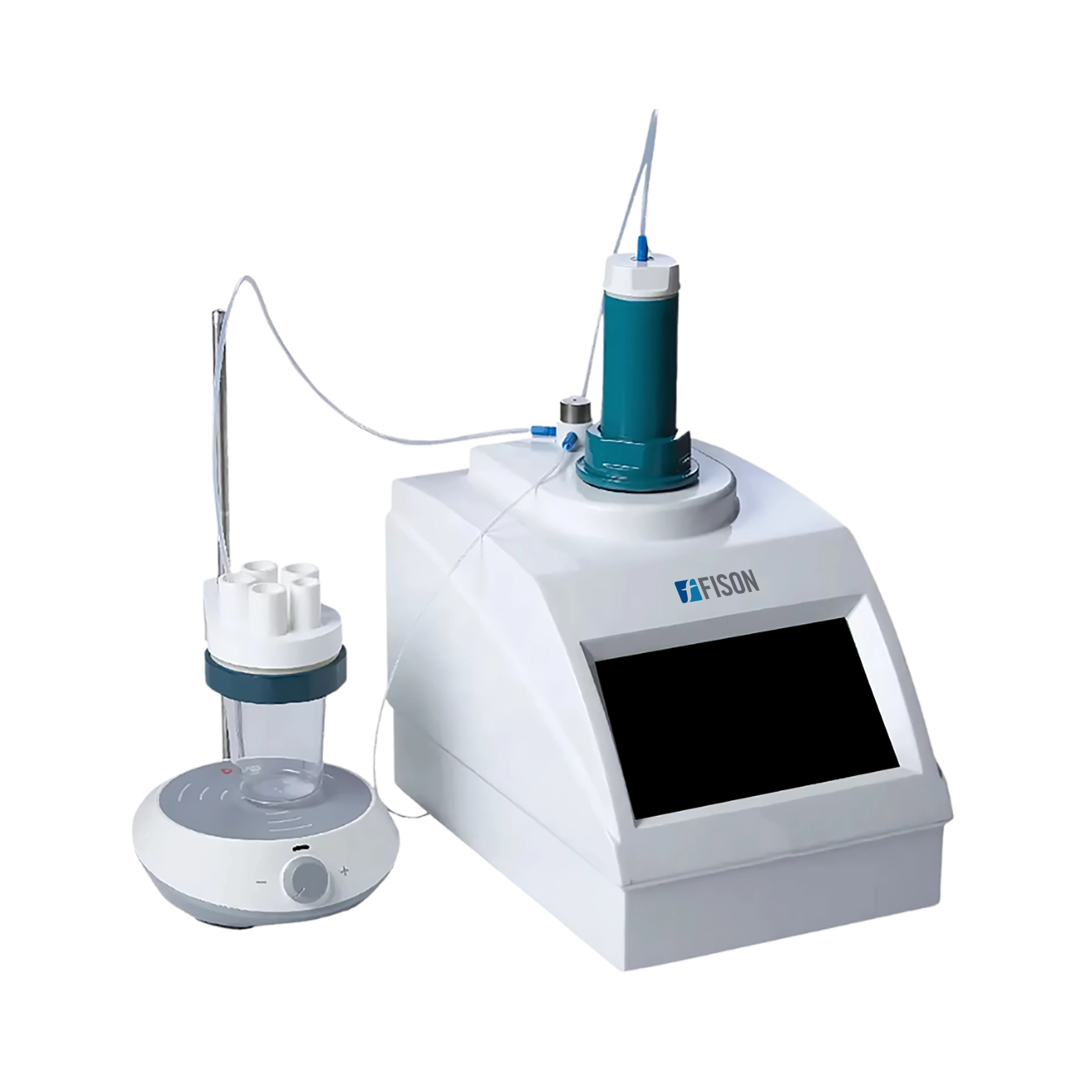

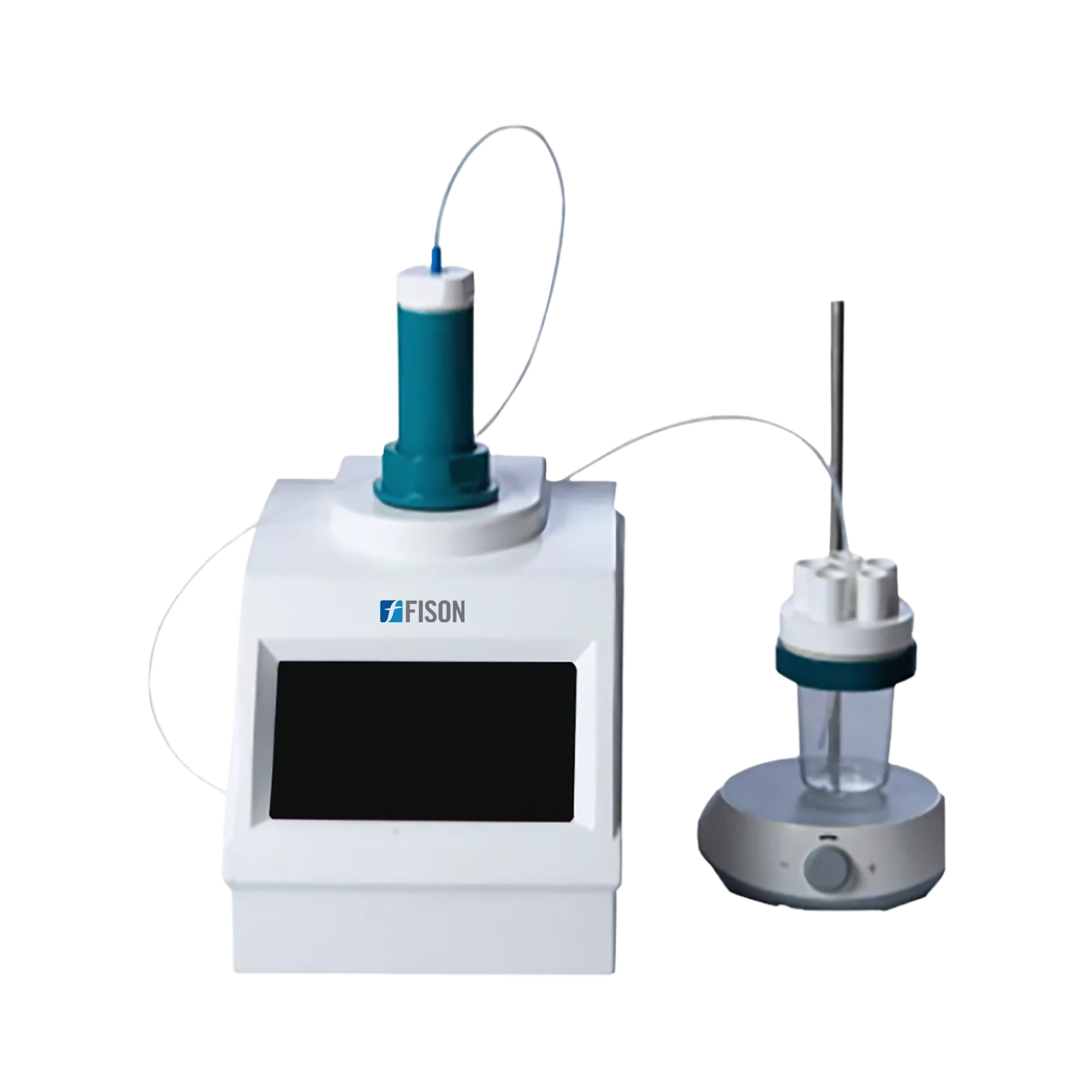

Automatic Potentiometric Titrator FM-APT-A201
Automatic potentiometric titrator FM-APT-A201 is a high-precision electrochemical analysis instrument having measuring range of - 2000.0MV to +2000.0 MV and - 20.000PH to +20.000P H. Designed to carry out acid-base titration, REDOX, precipitation and complexation titration for obtaining systematic and reliable study outcomes. Equipped with constant titration, micro titration, end-point setting titration, volume setting titration and mode titration for the convenience of the user.
Specifications
| Titration mode | Acid-base titration, Redox titration, Precipitation titration, Complexometric titration, non-aqueous |
| Temperature Measurement Range | - 5 to 120 °C |
| Temperature measurement accuracy | ± 0.1 ℃ |
| Measuring range | pH value: -20.000 PH to +20.000 PH mV value: -2000.0 MV to +2000.0 MV |
| Resolution | pH value: 0.001 pH mV value: 0.1 mV |
| Precision | pH value: 0.02 pH mV value: 0.1 mV |
| Titration cup | 250 ml |
| Communication port | USB, 232serial port, Ethernet |
| Dosing unit | Built-in dosing unit |
| Expandable number of dosing channels | 8 |
| Burette specification | 1ml, 5ml, 10ml, 25ml, 50ml (10ml Standard) |
| Burette resolution | 1/48,000 |
| Burette filling | 10 seconds (100% filling speed) |
Features
- Measuring range of - 2000.0 MV to + 2000.0 MV and - 20.000 PH to + 20.000 PH
- Channel liquid feeding module with rotating disc automatic samplers for 16/18/20 stations
- Has the ability to drive numerous feeders, burettes, and pipelines that are resistant to corrosion, acid, and alkali
- Imports high-powered mixing platforms, corrosion-resistant PTFE rotary valves, corrosion-resistant PTFE burettes, and magnetic stirring coils
- Burette filling resolution is 1 L, and burette accuracy is up to 0.003 mm
- High precision closed loop control to assure precise titration
- Titration curve and measurement results are shown in real-time, making for easy operation
- Entire pipeline is entirely sealed, making replacement quick and simple
- Supports acid-base titration, REDOX titration, precipitation titration, complex titration, non-aqueous titration, and other titration methods
- Comply with GMP standard, and the titration results meet GLP requirements
- Automatic sample loading and automatic pipeline cleaning for ease of the user
- Automatic measurement, automatic recording for and drawing of titration pH-titration volume real-time change curve
Applications
- Automatic potentiometric titrator is used for electrochemical analysis in food, drug testing, petroleum, chemical, marine, electric power, environmental protection, academic institutions, scientific research.
