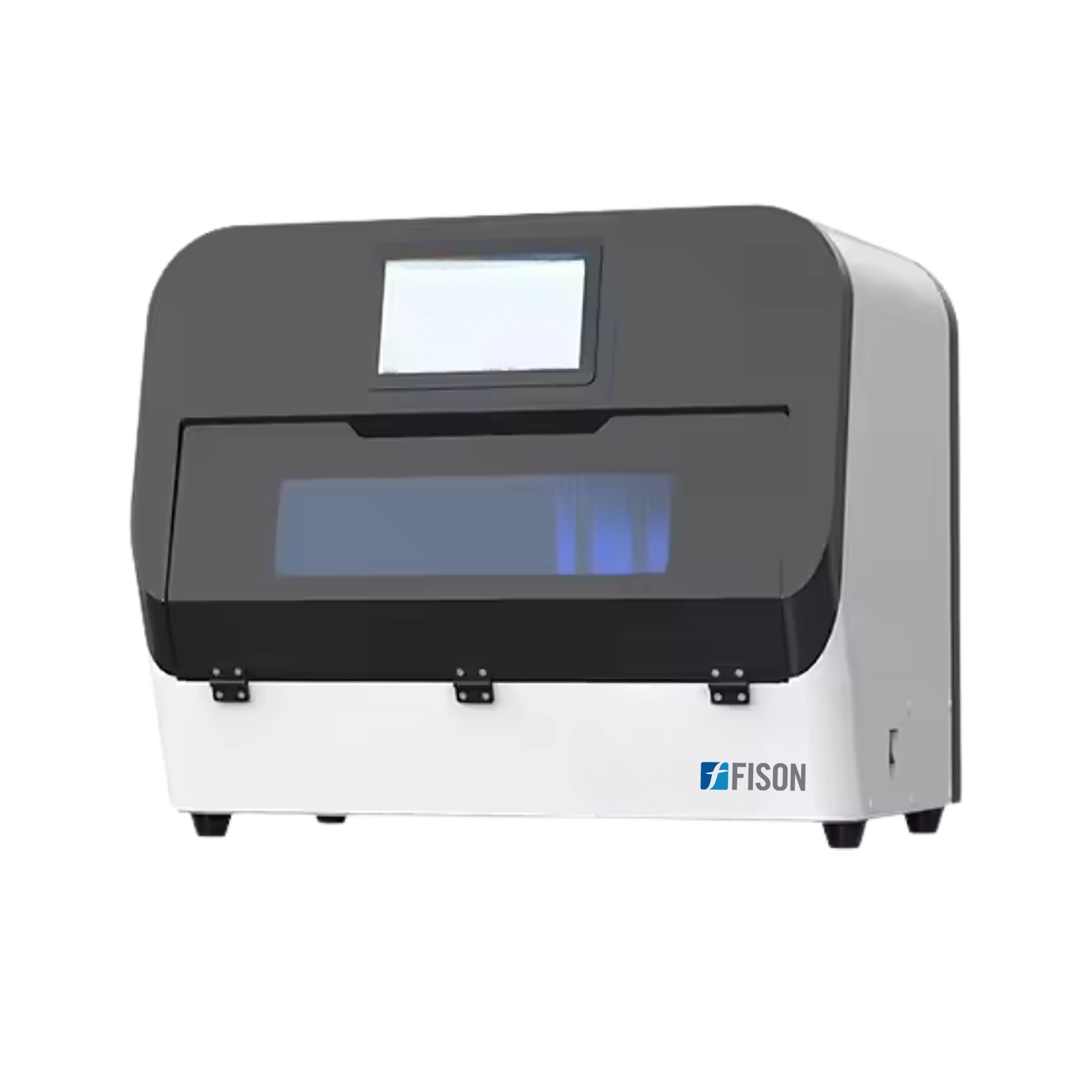

- ✔ Automatic Nucleic Acid Extraction System saves extraction time
- ✔ Intuitive touchscreen display for simple navigation
- ✔ Automated operation ensures user friendly experience
- ✔ High sensitivity results for effective experimentation
- ✔ Effortless reduction of room temperature according to requirements
- ✔ Safety door protection function prevents aerosol pollution
| Nucleic Acid Extraction Method |
Paramagnetic particle method |
| Sample Capacity |
96 well |
| Sample Volume |
20 to 1000 μL |
| Extraction Time |
11 min to 60 min |
| Magnetic Bead Recovery |
≥ 98% |
| Magnetic Flux of Bar |
≥ 4500 Gs |
| Operating Temperature |
RT to 105 ℃ |
| Temperature Accuracy |
0.1 ℃ |
| Safety features |
Power on self-check, Power off protection, High-temperature alarm, Over-temperature protection |
| Disinfection Method |
UV Light |
| Operating System |
Windows system |
| Storage |
>1000 sets |
| Interface |
USB |
| Power Supply |
AC100 to 240 V 50 Hz/60 Hz |
| Package Size (W×D×H) |
940 × 710 × 910 mm |
| Gross Weight |
110 Kg |
Automatic Nucleic Acid Extraction System plays an important role across clinical diagnostic research and development, pharmaceutical research, biotechnology, agricultural biotechnology, food safety and quality control, environmental monitoring, forensic science, personalized medicine, veterinary medicine.
