Automatic Microtome FM-MRT-C100

Automatic Microtome FM-MRT-C100

Automatic Microtome FM-MRT-C100 is a fully-automated streamlined molded housing microtome, designed with smooth running hand wheel and stepping-motor advance technology for fine sectioning and trimming of specimen with selectable specimen retraction. LED display shows the sectioning and trimming thickness of paraffin block. Unit contains precise micro motion specimen feeding system and removable waste tray for specimen dismantling. Built-in safety alarm system for fault diagnosis and braking system. It is used for tissue sectioning in routine histology, biological and industrial needs.

Specifications

Section thickness range 0.25 to 100 µm
Section setting values From 0.5 to 2.5 µm,0.25 µm increments
From 2.5 to 5 µm, 0.5 µm increments
From 5.0 to 10 µm, 1 µm increments
From 10 to 30 µm, 2 µm increments
From 30 to 60 µm, 5 µm increments
From 60 to 100 µm, 10 µm increments
Trimming section range 1 to 600 µm
Trimming setting values From 1 to 10 µm, 1 µm increment
From 10 to 20 µm, 2 µm increment
From 20 to 50 µm, 5 µm increment
From 50 to 150 µm, 10 µm increment
From 150 to 600 µm, 50 µm increment
Minimum sectioning thickness 0.25 µm
Feed speed adjustment 1500 µm/s to 3500 µm/s
Horizontal specimen feed 25 mm
Vertical specimen stroke 70 mm
Specimen orientation Horizontal: ± 8°, Vertical: ± 8°
Specimen retraction 0 to 50 μm(0, 5, 10, 15…..50 adjustable, 0 turn off the retraction)
Precision error ± 1%
Movement range of specimen holder base 65 mm
Movement range of blade press plate ± 20 mm
Specimen dimension 70 mm × 70 mm
Power 150 W
Power supply AC 220 V ± 10% 50 Hz
Overall Dimension (W × D × H) 580 × 475 × 340 mm
Net weight 41 kg

Features

  • Quick switching between manual or automated sectioning mode
  • Adjustable automatic slicing speed
  • Multiple functional drive: sectioning, trimming, fast forward, fast backward and quick mode conversion
  • Screw motion mechanism for precise sectioning

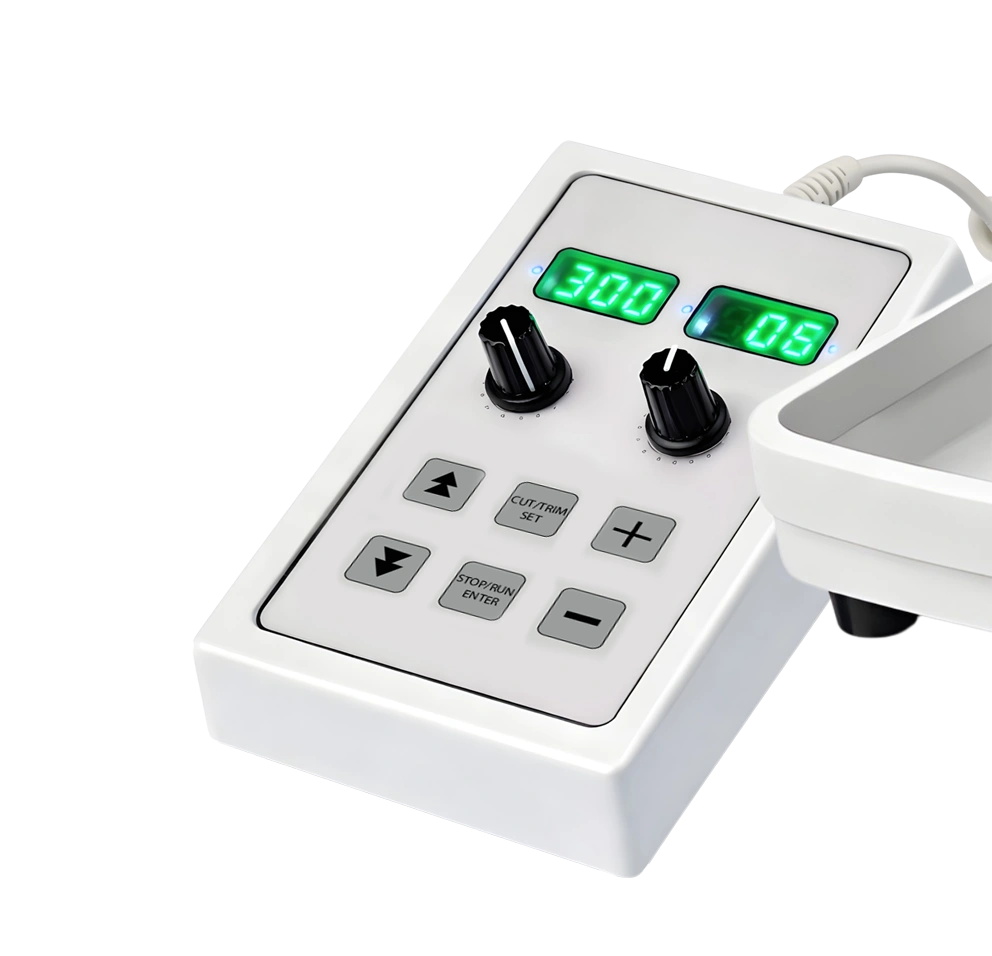

  • Digital display shows slice thickness, trimming thickness, slice count and slice speed
  • Convenient switching between different specimen clamps
  • Emergency brake system, security alarm, driver overload protection and auto over sleep protection
  • Lockable hand wheel at any position
  • Blade holder with lateral movement
  • Protection guard to cover the cutting edge
  • Easy dismantling of magnetically fixed large waste tray

Applications

  • Used in routine histology, biological and industrial analysis and also suitable for section paraffin and frozen sections in biological, botanical, and materials science applications.

Rotary (Manual) Microtome

Rotary (Manual) Microtome FM-MRT-A100

  • Section thickness range : 0 to 60 µm
  • Section setting values : From 0 to 20 µm,1 µm increments
    From 20 to 60 µm, 5 µm increments
  • Trimming section range : 15 µm and 35 µm
Catalog

Rotary (Manual) Microtome FM-MRT-A101

  • Section thickness range : 0 to 60 µm
  • Section setting values : From 0 to 10 µm,1 µm increments
    From 10 to 20 µm, 2 µm increments
    From 20 to 60 µm, 5 µm increments
  • Trimming section range : -
Catalog
Rotary (Manual) Microtome FM-MRT-A102
  • Section thickness range : 0 to 60 µm
  • Section setting values : From 0 to 2 µm, 0.5 µm increment
    From 2 to 10 µm, 1 µm increment
    From 10 to 20μm, 2 µm increment
    From 20 to 60μm, 5 µm increment
  • Trimming section range : 1 µm to 60 µm
Catalog

Semi-Automatic Microtome

Semi-Automatic Microtome FM-MRT-B100
  • Section thickness range : 0.25 to 100 µm
  • Section setting values : From 0.25 to 2.5 µm, increment 0.25 µm From 2.5 to 5 µm, increment 0.5 µm From 5 to 10 µm, increment 1 µm From 10 to 30 µm, increment 2 µm From 30 to 60 µm, increment 5 µm From 60 to 100, increment 10 µm
  • Trimming section range : 1 to 600 µm
Catalog

Semi-Automatic Microtome FM-MRT-B101

  • Section thickness range : 0 to 60 µm
  • Section setting values : From 0 to 1 µm, increment 0.25μm From 1 to 10 µm, increment 1μm From 10 to 20 µm, increment 2 µm From 20 to 60 µm, increment 5 µm
  • Trimming section range : 0 to 100 µm
Catalog
