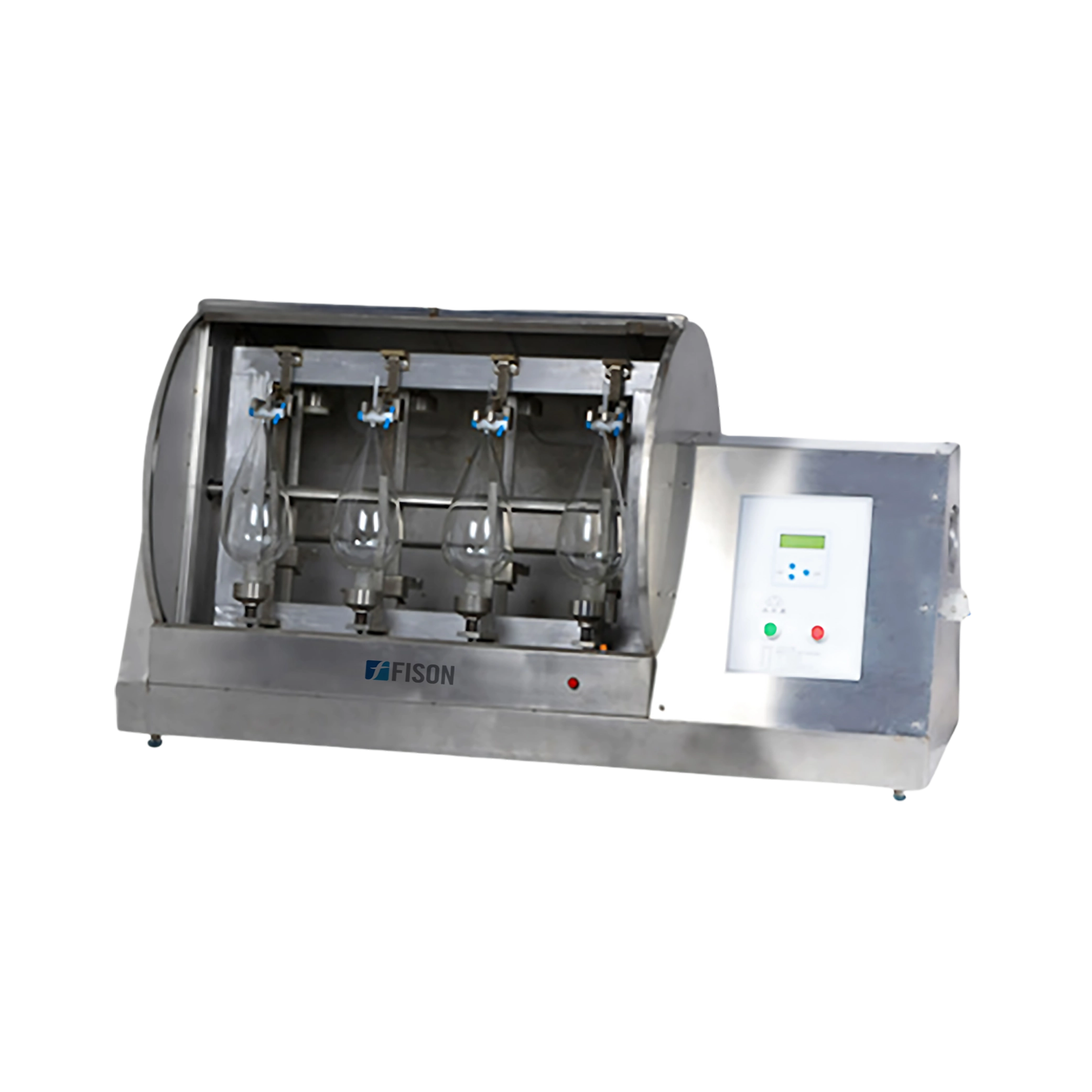

Automatic Liquid Extraction Rotary Agitator FM-ARA-B100
Automatic Liquid Extraction Rotary Agitator FM-ARA-B100 is a microprocessor controlled, sample agitating device with 8 pcs separating funnel and 15 to 40 rpm adjustable speed. Designed with active sliding door for easy loading and unloading of separation funnel. Device features electricity insulated flip cover, electricity leakage protection and overload protection for safety of the user. Used during liquid-liquid extraction procedure in environment protection industry and disease control and research labs.
Specifications
| Vessel (Funnel) loaded | 8 pcs |
| Separating funnel capacity | 500, 1000 and 2000 ml |
| Separating funnel type | Glass |
| Rotation method | (Positive 360° over turn rotations for 2 min and stop for 5 seconds) (Reverse for 3 min and stop for 5 seconds) |
| Rotation speed | Adjustable, 15 to 45 rpm |
| Rotation accuracy | ± 1 rpm |
| Display | LCD display |
| Time setting | Minute/hour setting, 1-24 hour for alternative, accuracy to minute |
| Continous working time | 18 hours |
| Temperature | RT to 65°C |
| Temperature accuracy | ± 0.5 °C |
| Power supply | AC 220 V, 50 Hz |
| Pacakging dimension | 1120 × 420 × 620 mm |
| Net weight | 47 kg |
| Gross weight | 59 kg |
Features
- Vessel quantity of 8 pcs separation funnel
- High quality stainless steel design, long service life
- Organic glass window to observe funnel rotation
- LCD display to view test parameters
- 15 to 40 rpm, adjustable rotation speed
- Upside and downside buckles to perfectly fix sample separating funnel
- Rotation types: - Positive rotation, reverse rotation and continuous positive rotation
Applications
- Used during liquid-liquid extraction procedure in environment protection industry and disease control and research labs.
