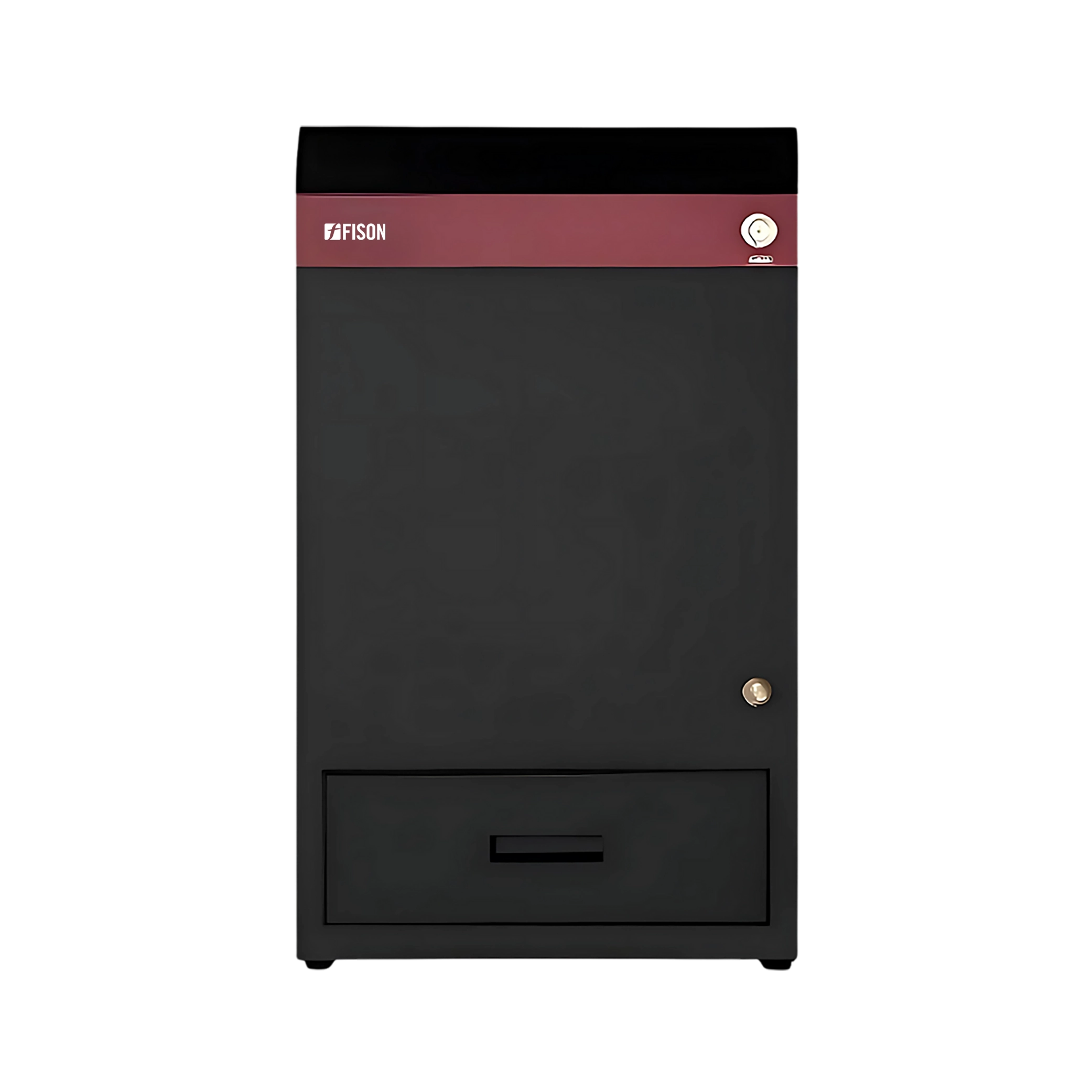

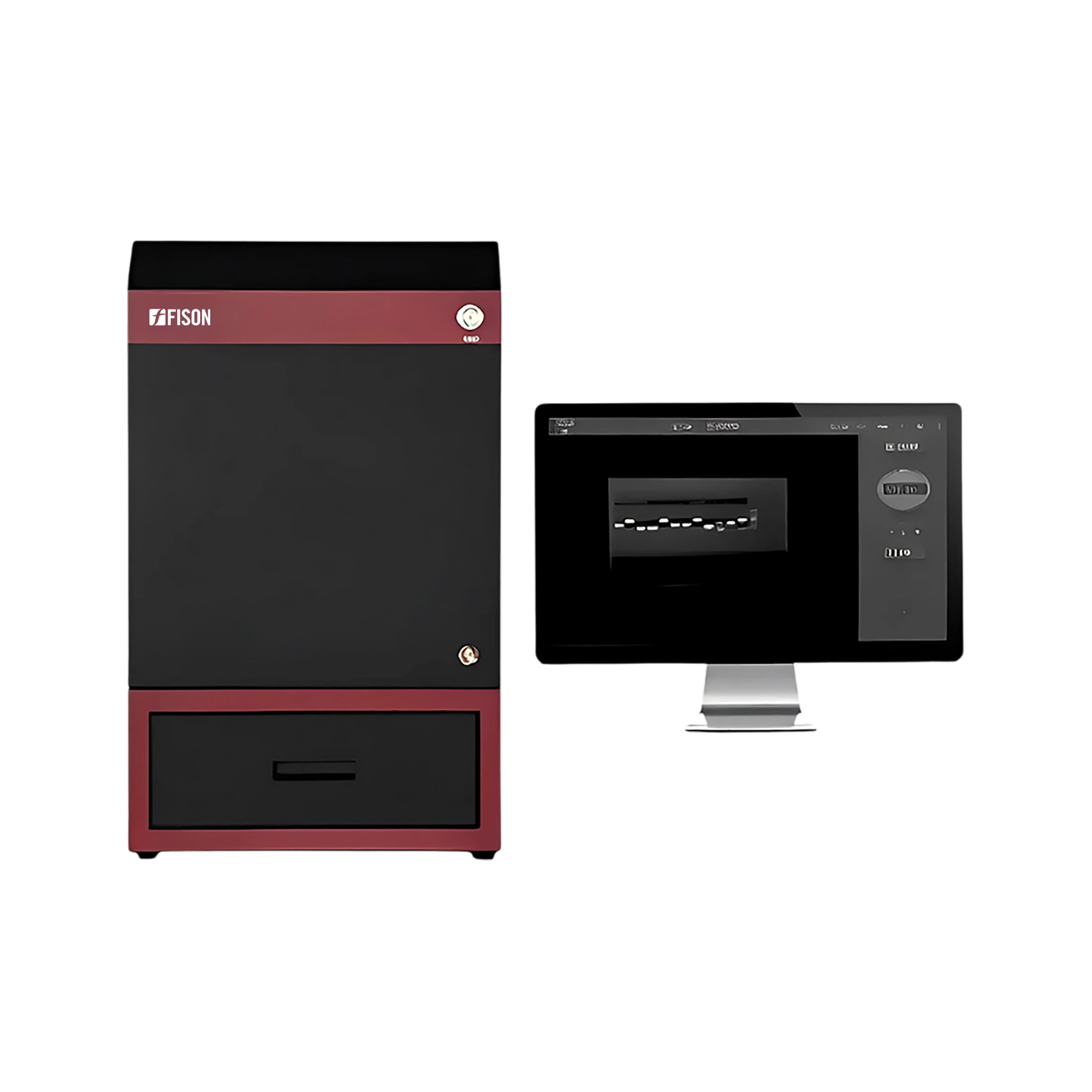

Automatic Gel Documentation System FM-AGD-A100 is a fully automated solution for gel imaging. With its high-sensitivity, high-resolution CMOS camera, it captures clear and detailed images. The device operates seamlessly under both light and dark conditions, offering exceptional flexibility. By eliminating the need for manual and tedious debugging, this system is the ideal choice for enhancing your laboratory's efficiency and accuracy.
| Camera Pixel | 2592 × 1944 (5.03 MP) |
| OD | > 4.8 OD |

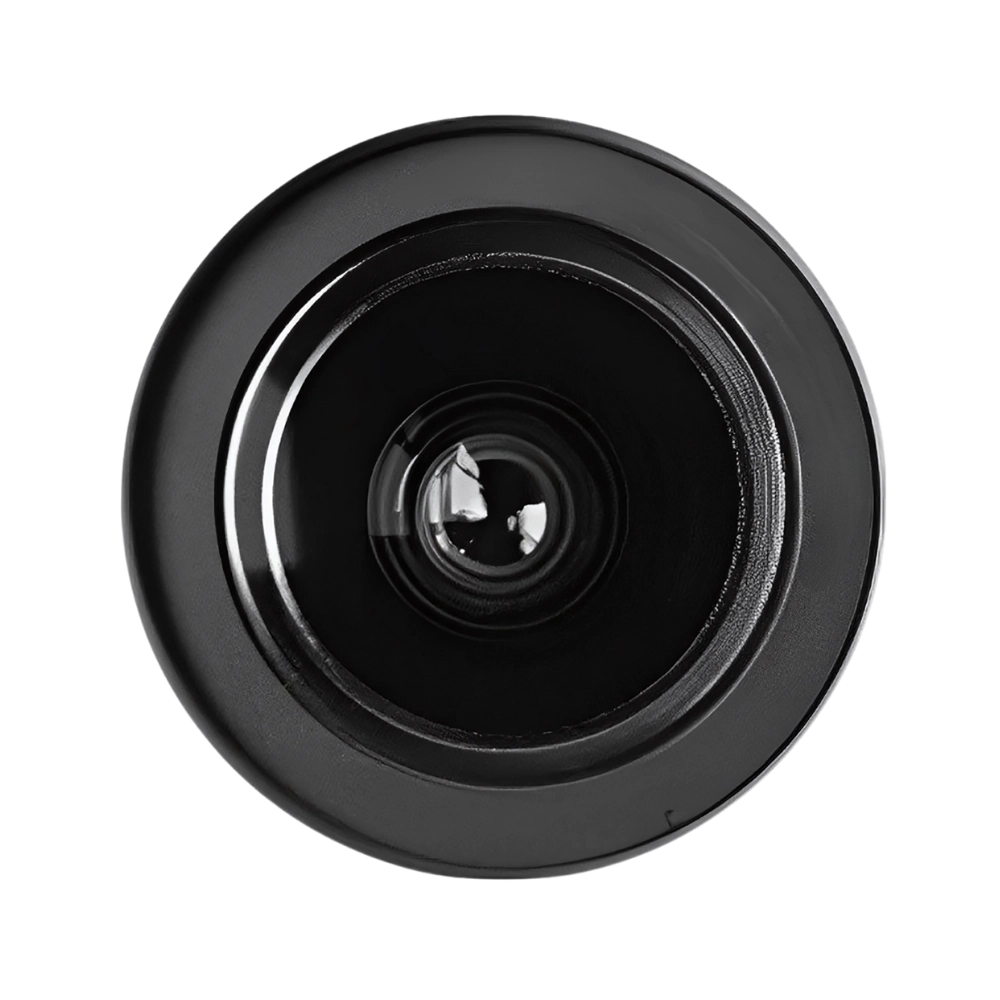

| Lens | Motorized 8 to 48 mm, F1.2 |
| Trans-UV | 302 nm |
| Epi-White | LED |
| Trans-White | UV to white sample plate |
| Epi-UV | 254 nm, 302 nm, 365 nm |
| Filters | 590 nm, others for option |
| UV Area | 21 × 21 cm |
| Timing Off | 1 to 60 mins |
| Exposure Time | 1 ms to 3000 ms |
| QE Value | High QE: >65% |
| Binning | 1 × 1 |
| Bit Depth | 16 bit (0 to 65535) |
| Power Supply | 100 to 240 V, 50/60 Hz |
| Dimension | 360 × 375 × 605 mm |
| Packaging Dimension | 460 × 475 × 725 mm |
| Net weight | 28 Kg |
| Gross Weight | 31 Kg |
Automatic Gel Documentation System is used across various industries such as biotechnology, pharmaceuticals, forensic science, clinical diagnostics, the food and beverage industry, agriculture, environmental science, and academic research.
