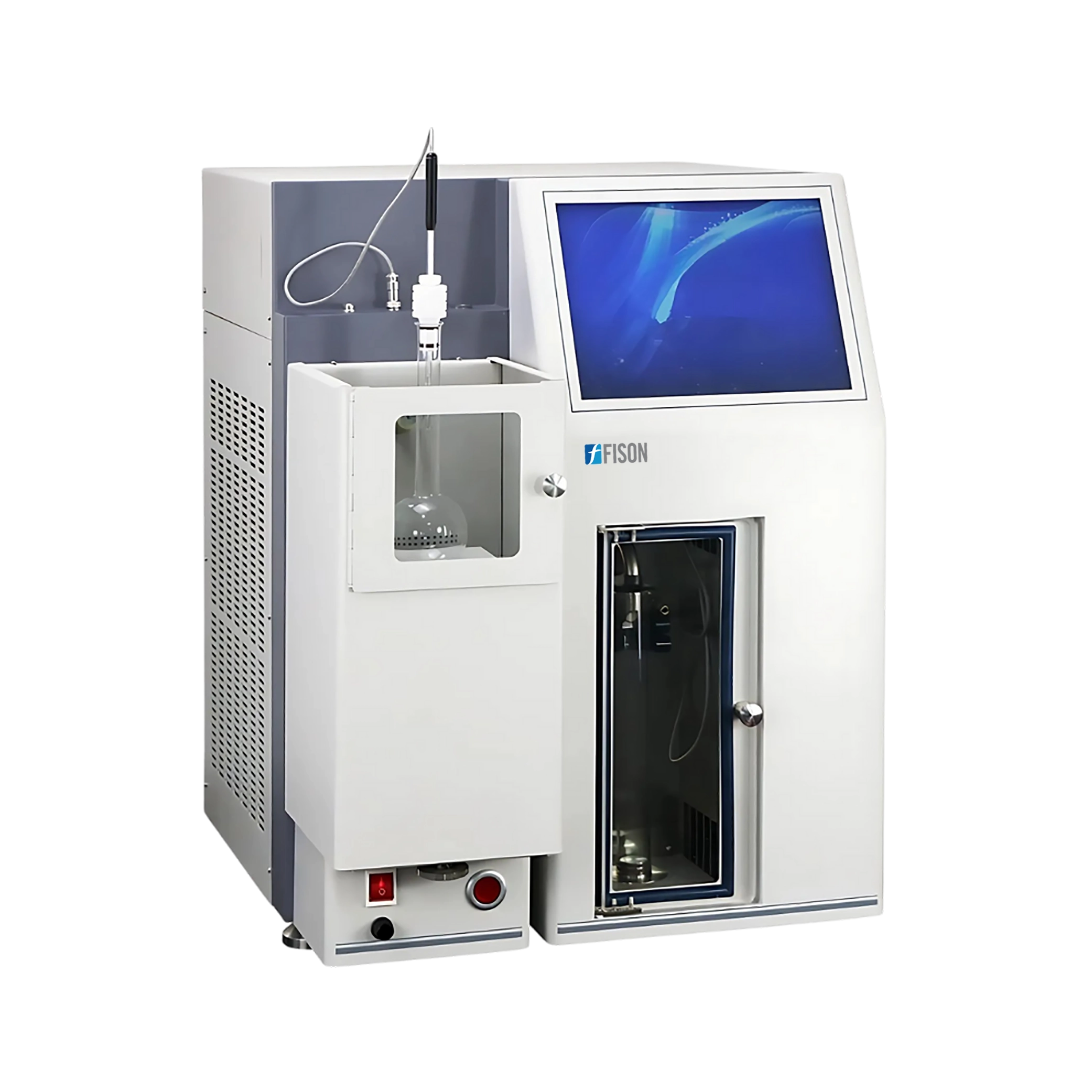

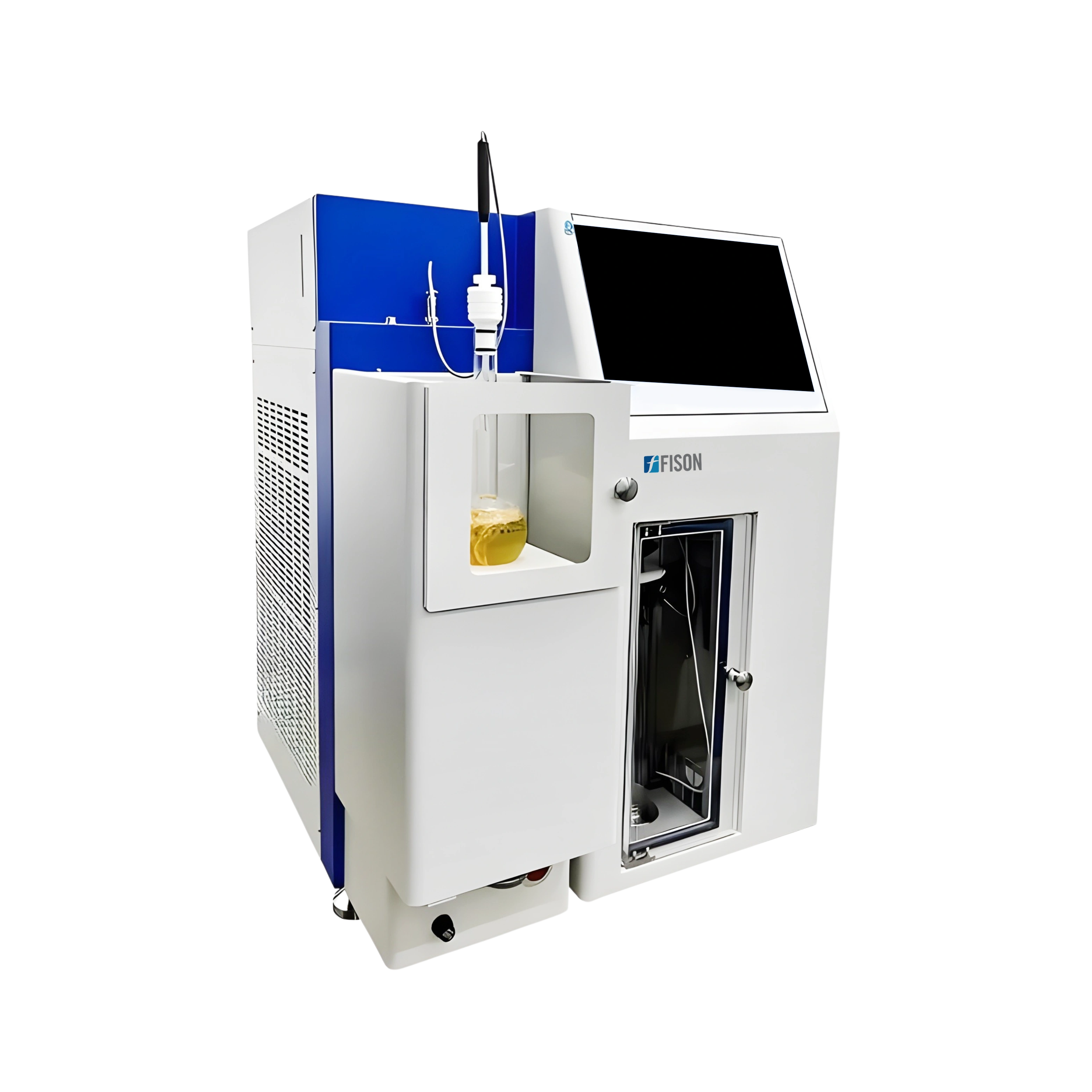

Automatic Distillation Unit FM-ADU-B100
Automatic Distillation Unit FM-ADU-B100 offers a temperature range of 0 to 60°C, providing accurate temperature control. It features an advanced microcomputer control system for efficient operation. This unit is equipped with intelligent SCM control to automatically regulate different parameters. It comes with a 12.1-inch LCD touch display, providing easy operation and real-time monitoring. It includes automatic liquid level detection for precise measurement.
Specifications
| Temperature range of bath | 0 to 60℃ |
| Temperature control precision of bath | ±0.5℃ |
| Temperature control precision of receiving chamber | ±1℃ |
| Distillate liquid detection | 0 to100 ml Resolution 0.01ml |
| Distillate liquid detection precision | ≤ 0.1ml |
| Ambient Temperature | 10 to 35℃ |
| Relative Humidity | ≤ 80% |
| Distillation heater | 1000W, 24V |
| Power consumption | 2500W |
| Power supply | AC (220 ±10%) V, 50Hz |
| Dimension | 500 × 530 × 660 mm |
| Net weight | 85kg |
Features
- Automatic functions
- Temperature control precision
- Barometric pressure correction
- Fire-extinguishing safety system
- Wide temperature range
- Reliable results
Applications
- Automatic Distillation Unit FM-ADU-B100 is essential for precise distillation of various liquids, ensuring accurate and reliable results, making it ideal for quality control, laboratories and research facilities.
