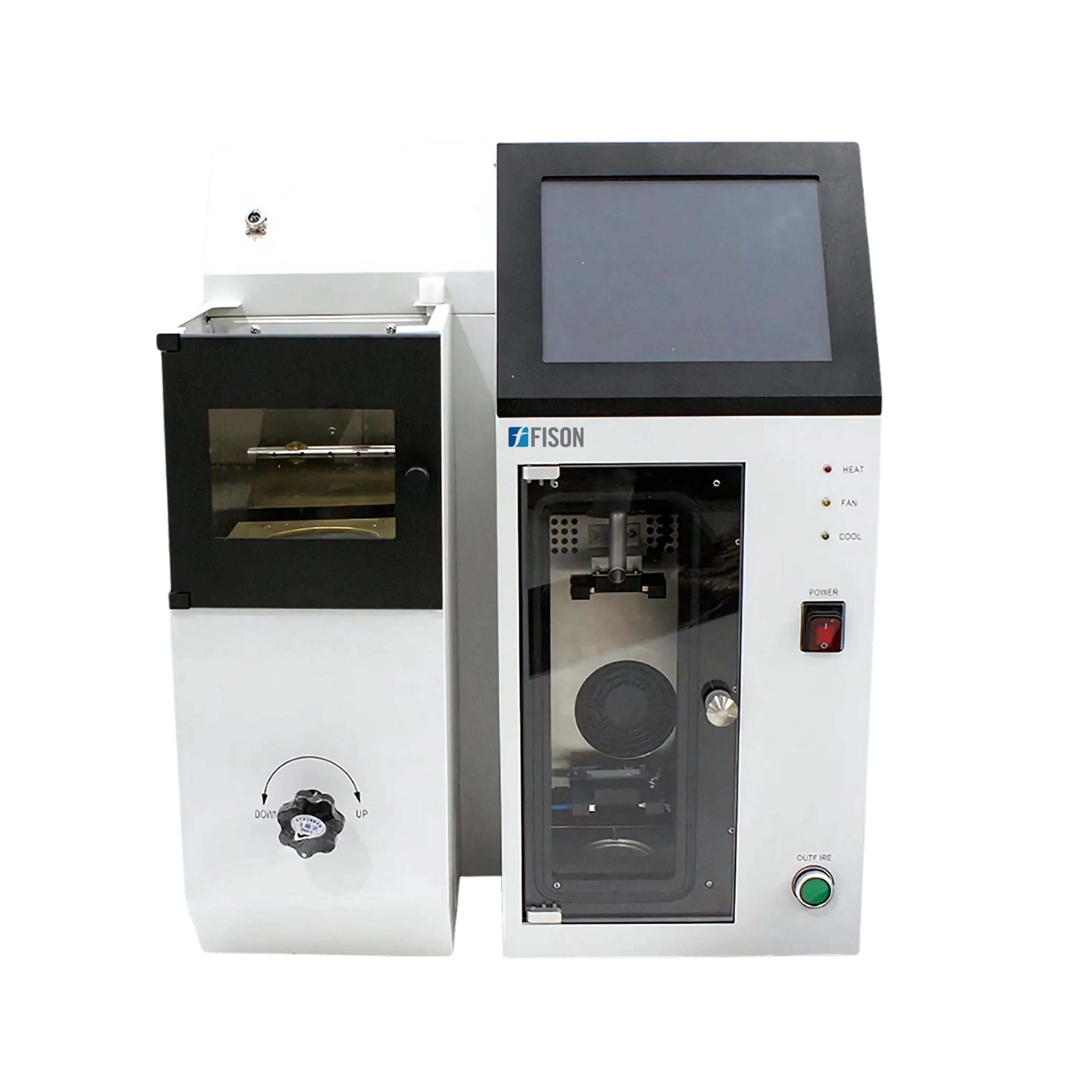

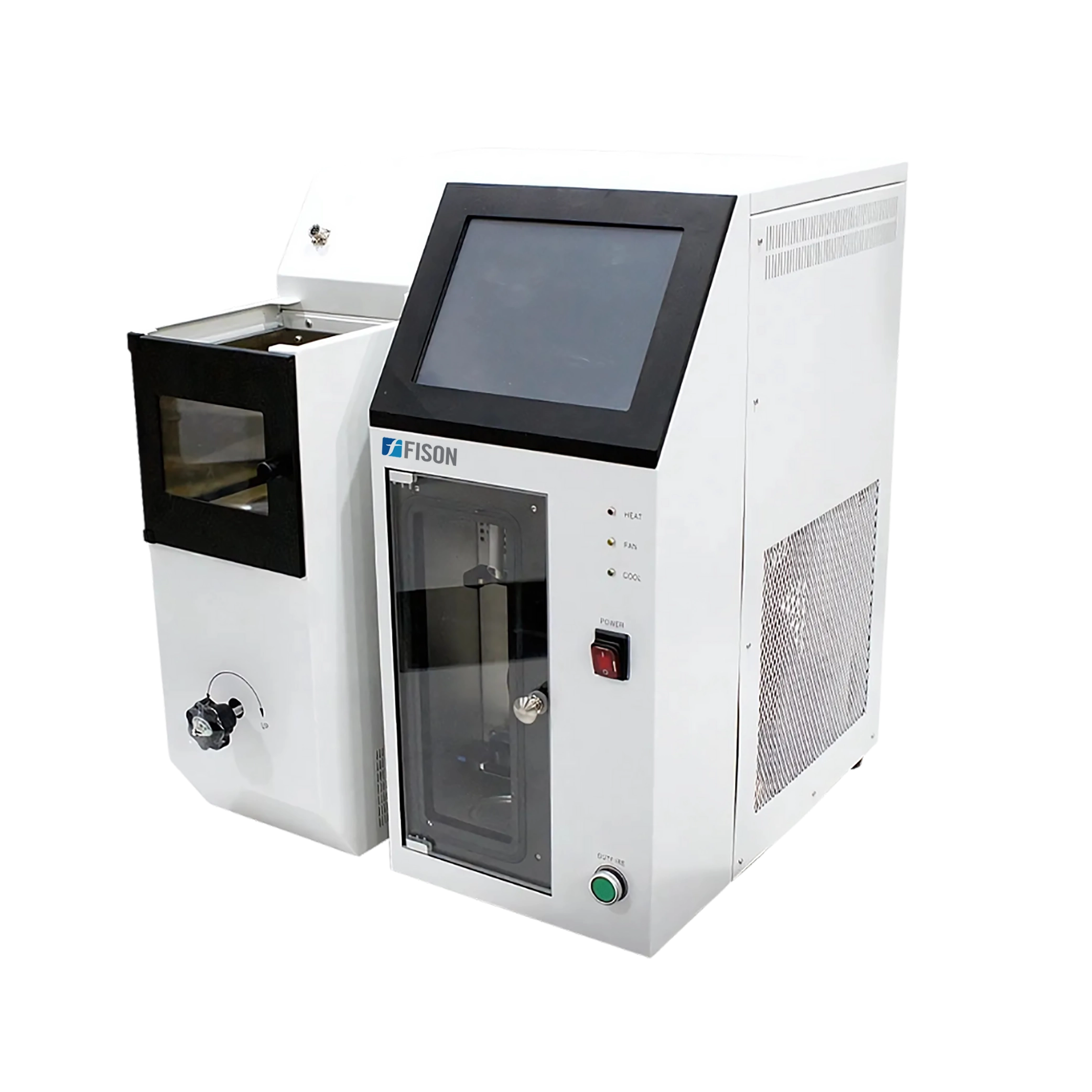

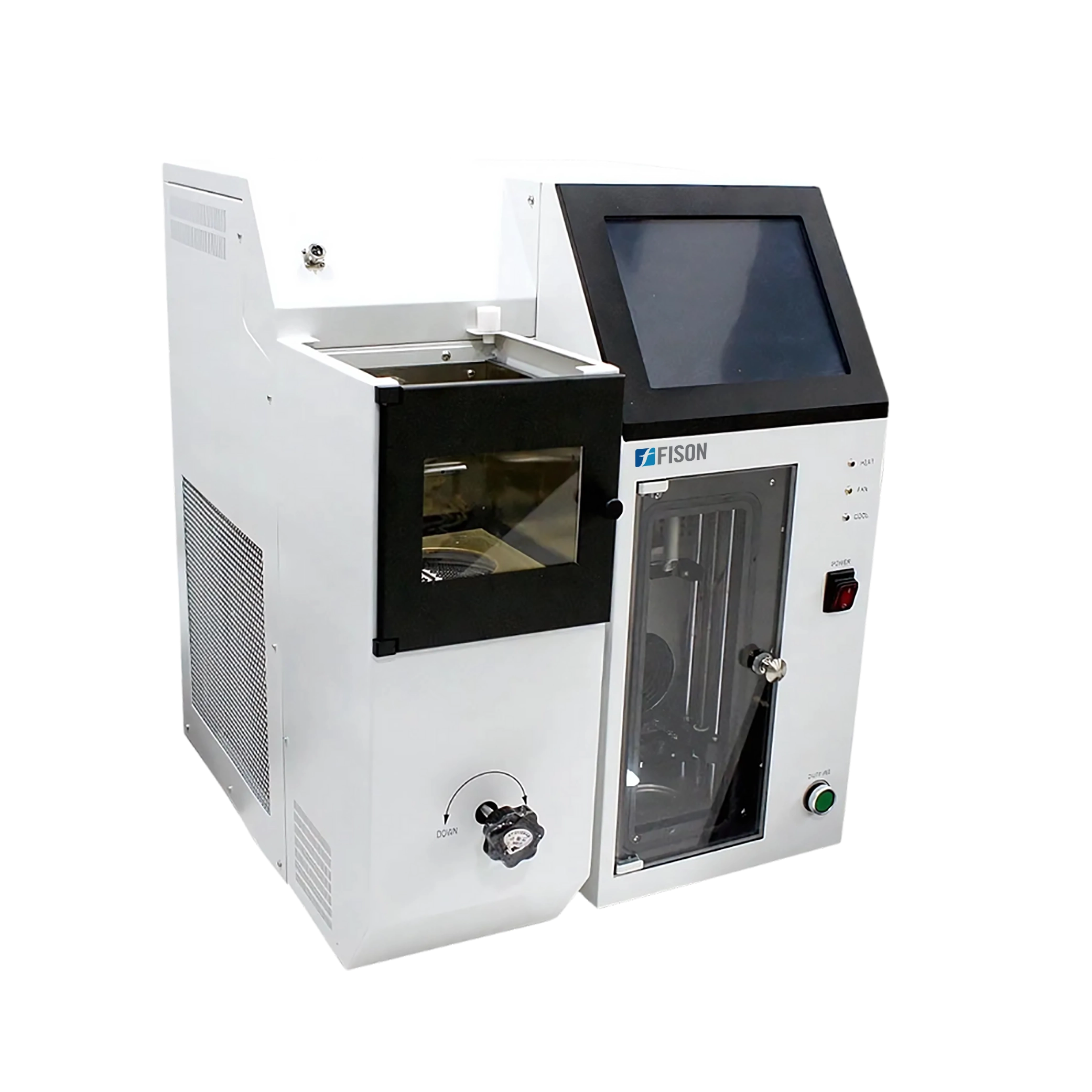

Automatic Distillation Unit FM-ADU-A100

Automatic Distillation Unit FM-ADU-A100

Automatic Distillation Unit FM-ADU-A100 determines boiling characteristics of petroleum products within 400℃. Incorporated with powerful heater and Freon compressor for accurate detection. Features fully automated operation from sample loading to endpoint determination. Designed with liquid level identification system to measure distillation volume. Our product has advanced Fuzzy logic controllers for adaptive thermo-regulation.

Specifications

Heating Power 2 kW
Cooling Power 0.5 kW
Steam Temperature Range 0 to 400℃
Oven Temperature Range 0 to 500℃
Refrigeration Temperature Range 0 to 100℃
Refrigeration Control Accuracy ± 1℃
Temperature Measurement Accuracy ± 0.1℃
Volume Accuracy ± 0.1 mL
Type of Fire Alarm System Nitrogen fire
Power Supply AC 220V ± 10%, 60 Hz
Dimensions 680 × 580 × 750 mm
Weight 84 kg

Features

  • LCD Display
  • Real-time feedback
  • Fire-safety system
  • Automatic bath temperature regulation
  • Auto barometric pressure correction

Applications

  • Automatic Distillation Unit examines boiling profile of stable light hydrocarbons like natural gasoline, automotive gasoline, aviation gasoline, jet fuel, kerosene, diesel, special boiling point solvents and similar petroleum products.

Alternative Models Of Automatic Distillation Unit

Fison Automatic Distillation Units employ fully automated evaluation of fluid boiling characteristics. They facilitate real-time monitoring of distillation parameters, such as temperature and pressure. They are incorporated with advanced AI algorithms for operational regulation. Their safety mechanisms include overheat protection, fire detection and thermal cut-off. We offer Automatic Distillation Units with barometric pressure corrected sensors and modern compressors.

Automatic Distillation Unit FM-ADU-B100

  • Temperature range of bath: 0 to 60℃
  • Temperature control precision of bath: ±0.5℃
  • Temperature control precision of receiving chamber: ±1℃
Catalog

Water Distillation Unit

Water Distillation Unit FM-WDU-A100

  • Distillation Capacity : 5 L/H
  • Conductivity at 20℃ : 2.72 µs/cm
  • Storage Tank : About 4.8 L
Catalog

Water Distillation Unit FM-WDU-A101

  • Capacity : 10 L
  • Voltage : 380
  • Output power (L/H) : ≥10 (L/H)
Catalog
Water Distillation Unit FM-WDU-A102
  • Capacity : 20 L
  • Output : ≥ 20 L/H
  • Power Supply : 380 V
