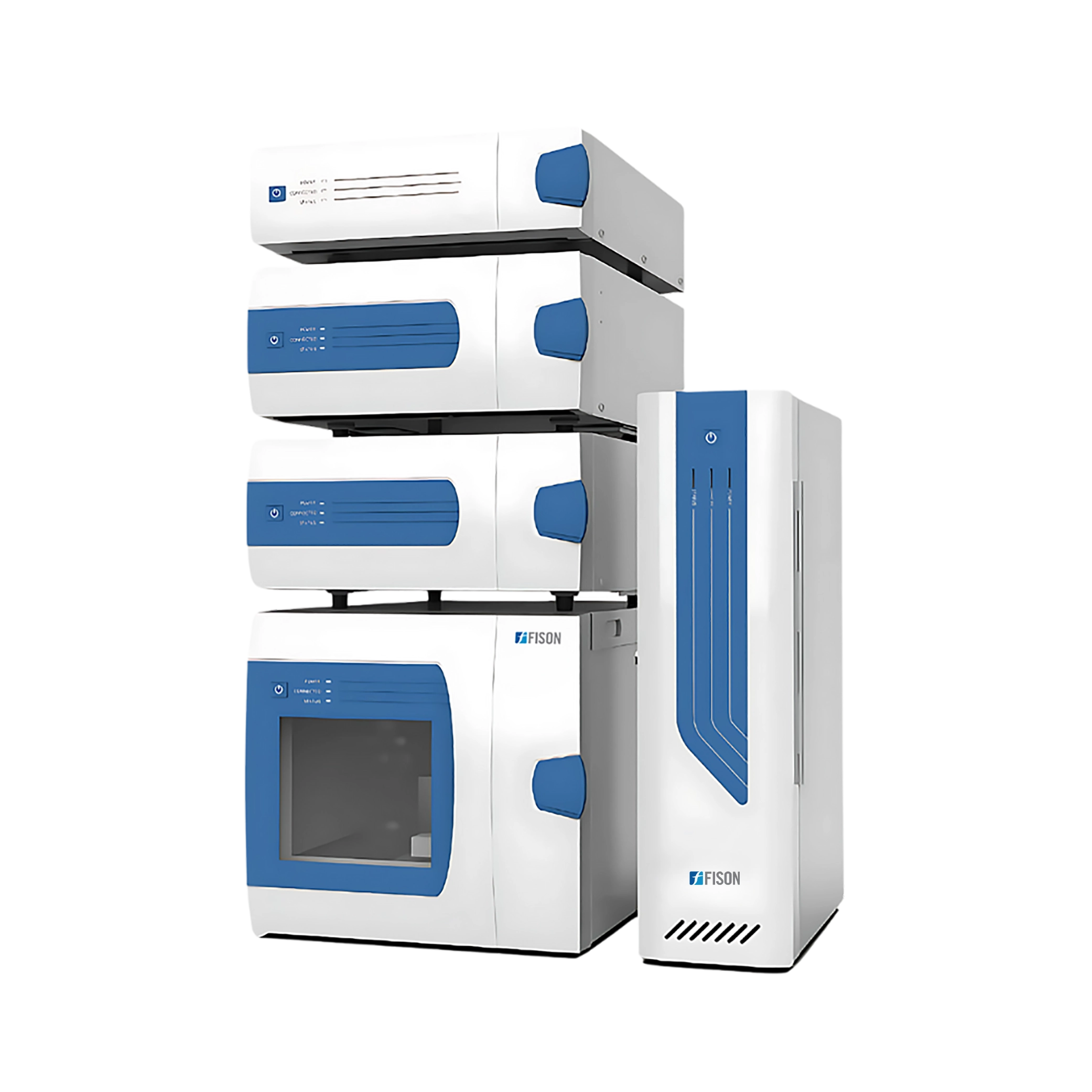

Analytical HPLC System FM-AHS-B100 Analytical HPLC System FM-AHS-B100

Analytical HPLC System FM-AHS-B100

Analytical HPLC System FM-AHS-B100 offers an adjustable flow rate setting range from 0.001 to 10.000 mL/min, allowing precise control over sample flow. It provides a user-friendly interface to enhance operational productivity. This unit features a mainstream split pump design with a custom one-piece check valve for improved flow accuracy. It delivers dynamic flow compensation to maintain accurate flow stability. Our HPLC system supports dual wavelength detection and FPGA valve control for reliable analysis.

Download Catalog

Specifications

System Qualitative Repeatability less than or equal to.0.2%
System Quantitative Repeatability less than or equal to. 0.4%
Flow Pump Flow Rate Setting Range 0.001 to 10.000 mL/min
Flow Pump Setting Step 0.001 mL/min
Flow Pump Pressure Range 0 to 45 Mpa
Flow Pump Pressure Pulsation 0.1 MPa (10 MPa, C18, methanol 1 mL/min)
Flow Pump Flow Rate Set Error ±0.2%
Flow Pump Flow Rate Stability RSD less than or equal to 0.06%
Flow Pump Gradient Error ±1%
Flow Pump Plunger Cleaning Standard equipped with active online plunger cleaning module
Column Oven Temperature Control Range 4 to 90 °C
Column Oven Temperature Stability ±0.02 °C
Column Oven Temperature Setting Resolution 0.1 °C
Column Oven Preheat Built-in 1-way preheat module cooling module minimum temperature
Column Oven Preheat Room Temperature –10 °C
Autosampler Injection Volume Repeatability less than 0.5% RSD
Autosampler Linearity greater than 0.9999
Autosampler Cross Contamination less than 0.002%
Autosampler Injected Volume Accuracy Error ±1%
Autosampler Number of Samples 120 (2×60, 2 mL)
Autosampler Syringe Specifications Standard: 500 μL Optional: 250 μL, 1000 μL, 2500 μL
Autosampler Quantification Loop Standard: 100 μL Optional: 10 μL, 20 μL, 50 μL, 200 μL
Autosampler Minimum Sample Refrigeration Temperature 4 °C
Autosampler Controlled Sample Refrigeration Temperature Range 4 to 30 °C
Autosampler Injection Needle Cleaning Internal and external needle cleaning and blowing dry
Autosampler Working Mode XYZ positioning, with puncture function
Autosampler Injection Volume 1 to 100 μL
Working Power Supply 220V, 50HZ
Ambient Temperature 10 to 40℃
Relative Humidity 20 to 85%
Power Supply 110V to220V, 50Hz/60Hz AC
Pump Dimension 620 × 525 × 465 mm
Column Oven Dimension 770 × 620 × 640 mm
Autosampler Dimension 770 × 620 × 640 mm
Pump Weight 25.2 kg
Column Oven Weight 34 kg
Autosampler Weight 46 kg

Features

  • Efficient automated management
  • Secure, reliable data system
  • Continuous 24/7 operation
  • Active plunger flushing

Applications

  • Analytical HPLC System FM-AHS-B100 is used to analyze complex samples with high precision. It is widely used in research laboratories, quality control, and pharmaceutical industries.

Accessories

  • Quaternary pump
    Autosampler
    Column oven
    C18 & NH2 column
    Sample tray
    Ultrasonic cleaner

Accessories Optional

  • PDA detector
    RID detector
