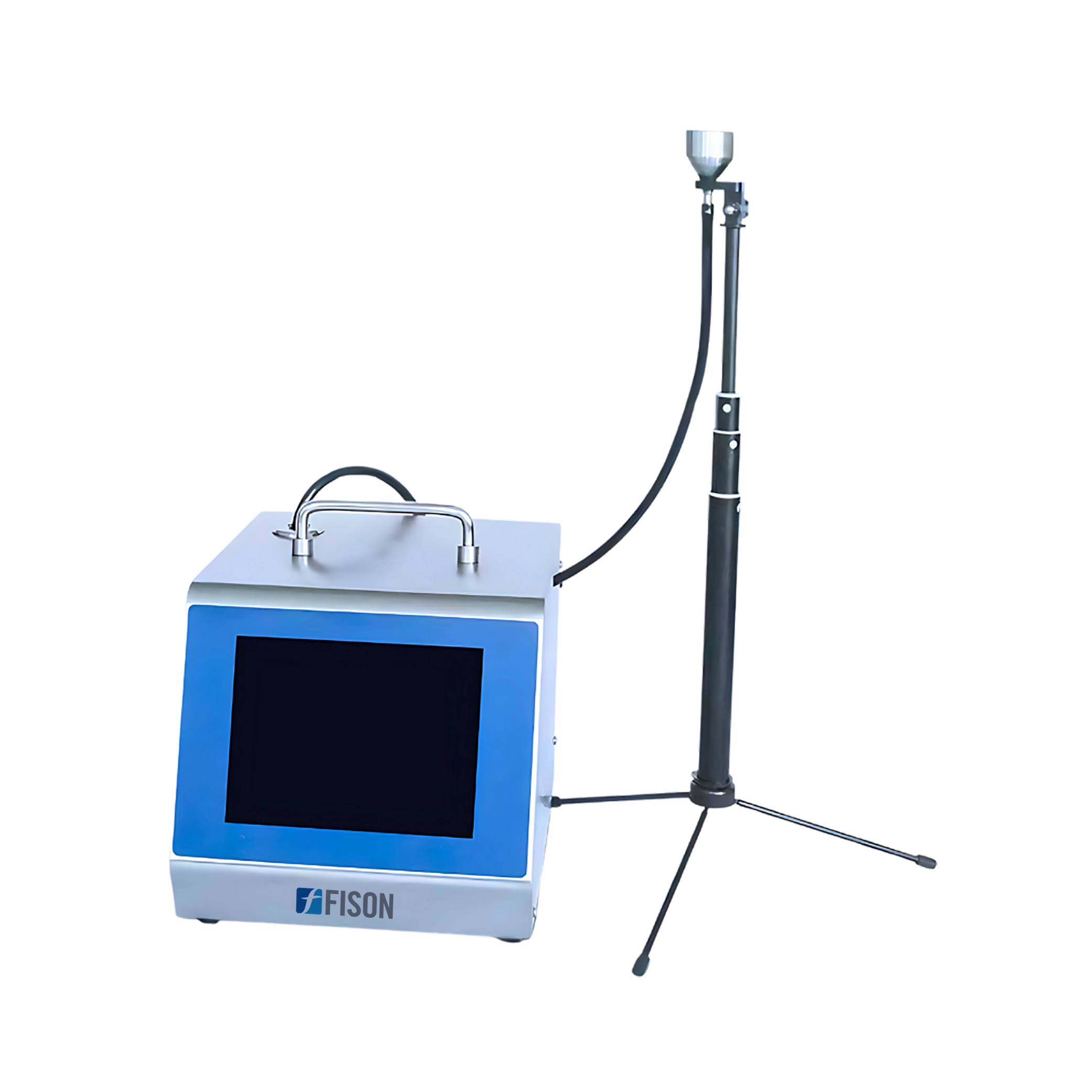

Portable Airborne Particle Counter FM-PPC-A101
Portable Airborne Particle Counter FM-PPC-A101 offers precise 28.3L/min airflow sampling for particles ranging from 0.3μm to 10μm. It features a laser diode with a 10-year lifespan, ensuring long-term reliability. It includes customizable sampling intervals for flexible monitoring. Built-in thermal printer and LCD screen simplify real-time data recording and analysis. It is a versatile tool for maintaining stringent cleanliness protocols.
Specifications
| Sampling Airflow | 28.3 L/min ±5% |
| Particle | 0.3, 0.5, 1, 3, 5, 10 μm |
| Laser | Laser Diode, 10 years’ service life |
| Standard | GB/T6167-2007, JJF1190-2008 |
| Repeatability | <±10% |
| Particle distribution tolerance | <±30% |
| Maximum Sampling | 35000/L |
| Self-clean Time | ≤10 min |
| Sampling Period | Customizable, 5 to 9999 s |
| Sampling Interval | 1 to 1800s Customizable, 1 to 100 s |
| UCL Sampling | 2 to 50 |
| Working Environment | 0 to 40℃ RH 10 to 90% |
| Storage Environment | -30℃ to 45℃ RH 0 to 90% |
| Storage | 1 to 5000 records |
| Screen | 8-inch Colourful Touch Screen |
| Printer | Built-in Thermal Printer |
| Battery | 16.8V 18Ah DC Li-ion |
| Adaptor | Input 100-240V 50Hz |
| Charging Hours | 6 Hours |
| Cleanliness Standard | ISO14644-1/GMP |
| COM Port | USB |
| Material | SUS304 |
| Power supply | 220V/50HZ AC |
| Dimension (L x B x H) | 315×260×230 mm |
| Weight | 8.1 kg |
Features
- Self-clean filter
- UCL sampling capability
- Li-ion battery powered
- Data export via USB
Applications
- Our Airborne Particle Counter is ideal for microelectronics, pharmaceuticals, biotechnology and aerospace industries to ensure real-time monitoring of cleanrooms, HVAC systems, and air filtration efficiency.
Accessories
Sampling Rack -1
Isokinetic Sampling Head -1
Sampling Pipe -1
Self Clean Filter -1
Printing Paper -2
Flash Drive -1
USB Cable -1
Adapter -1
