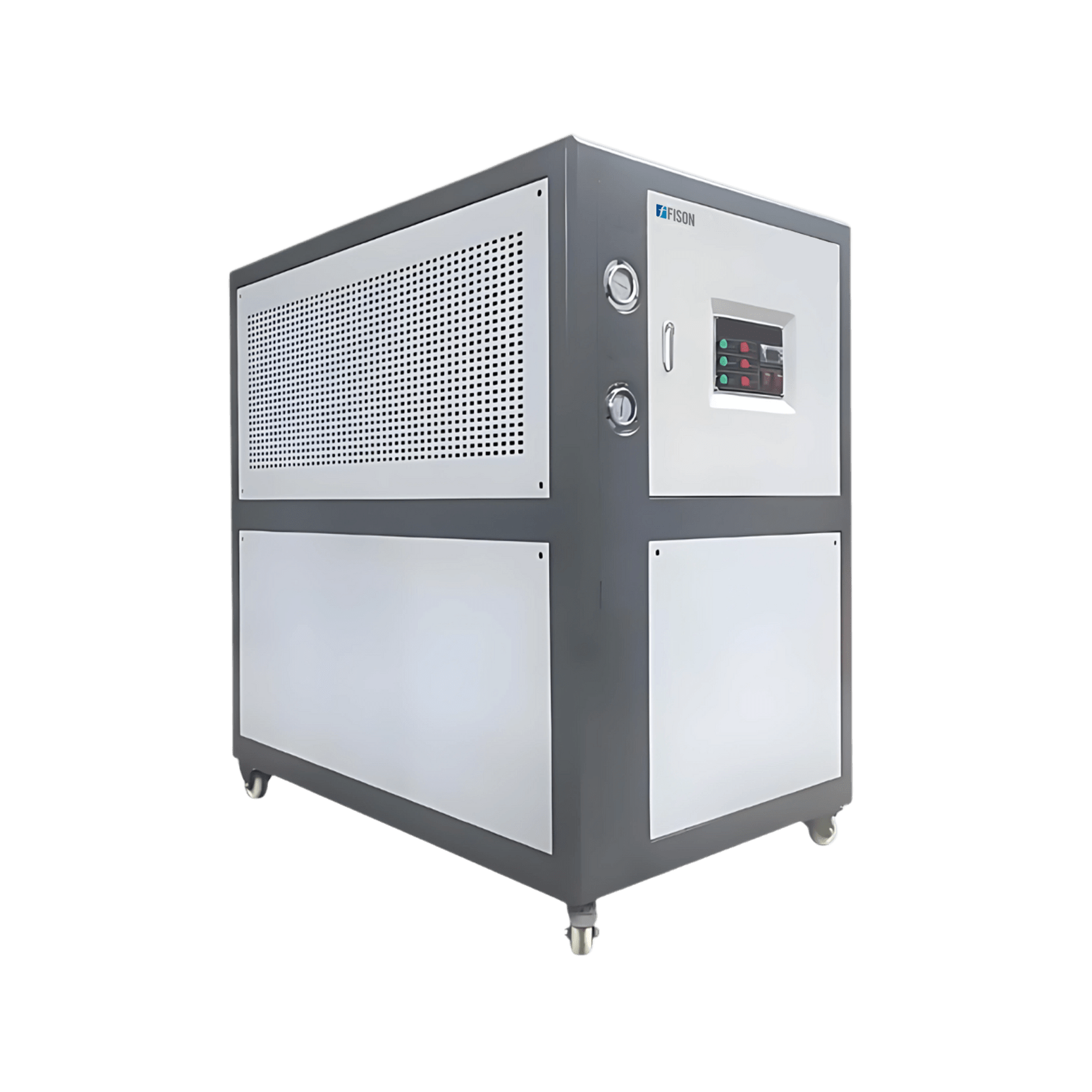

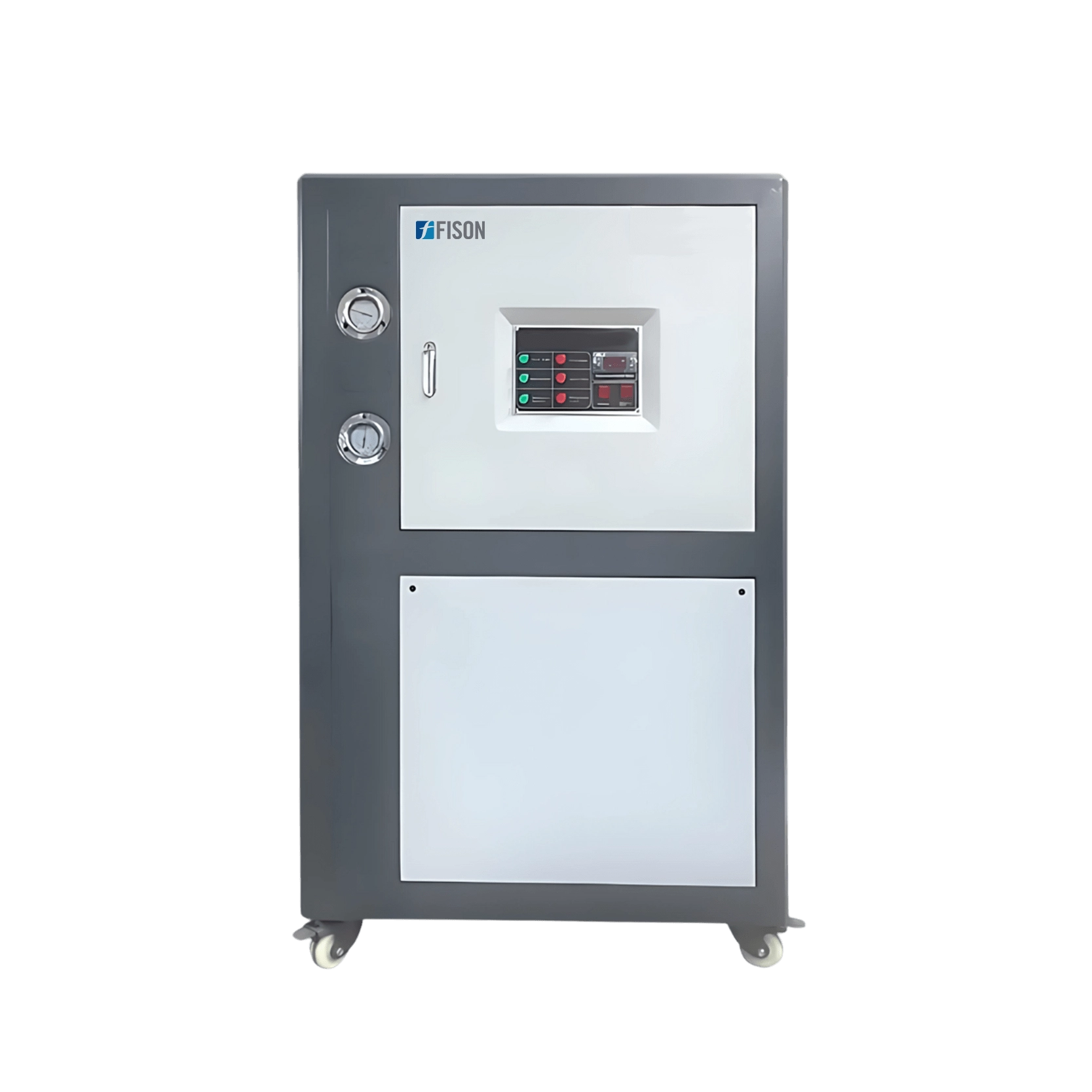

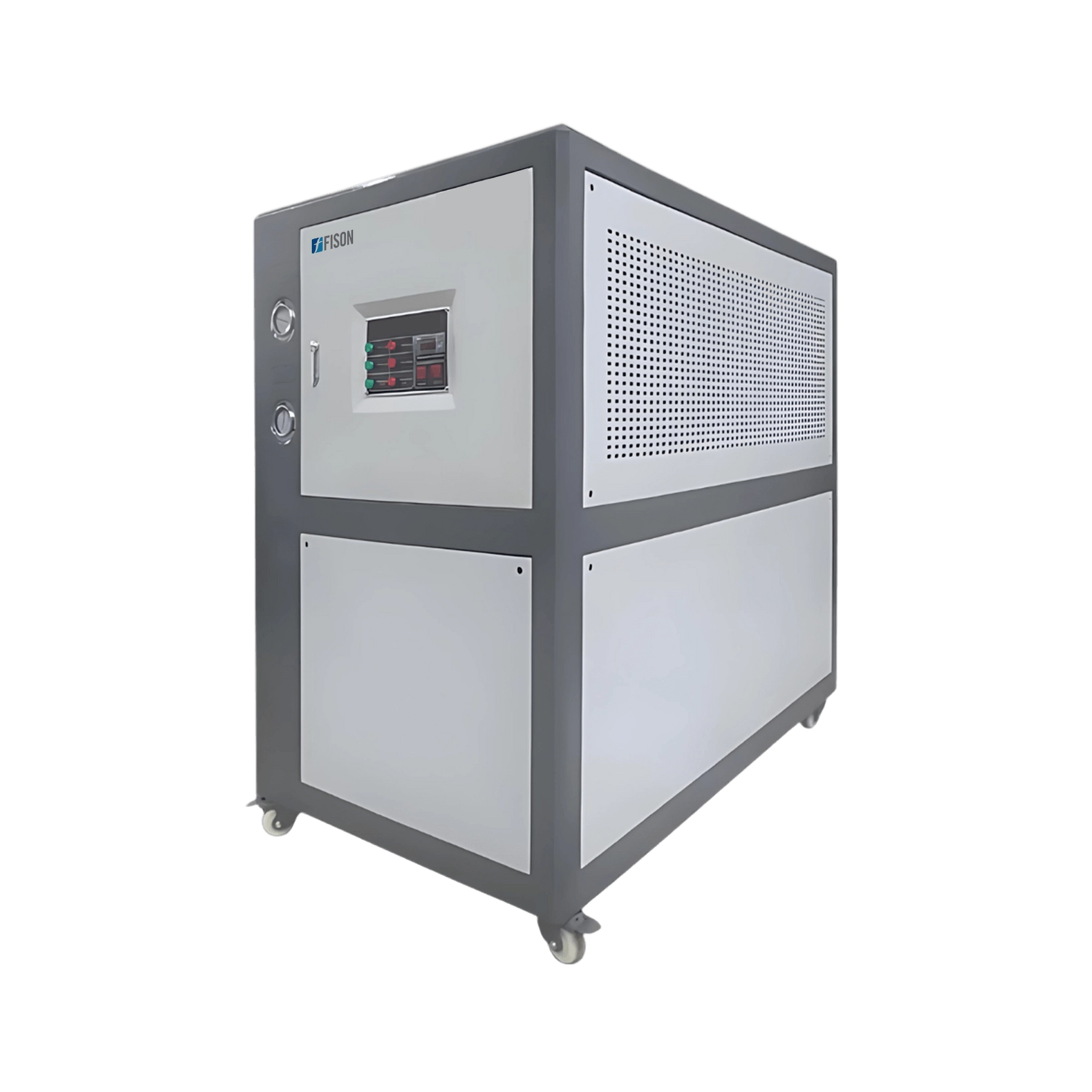

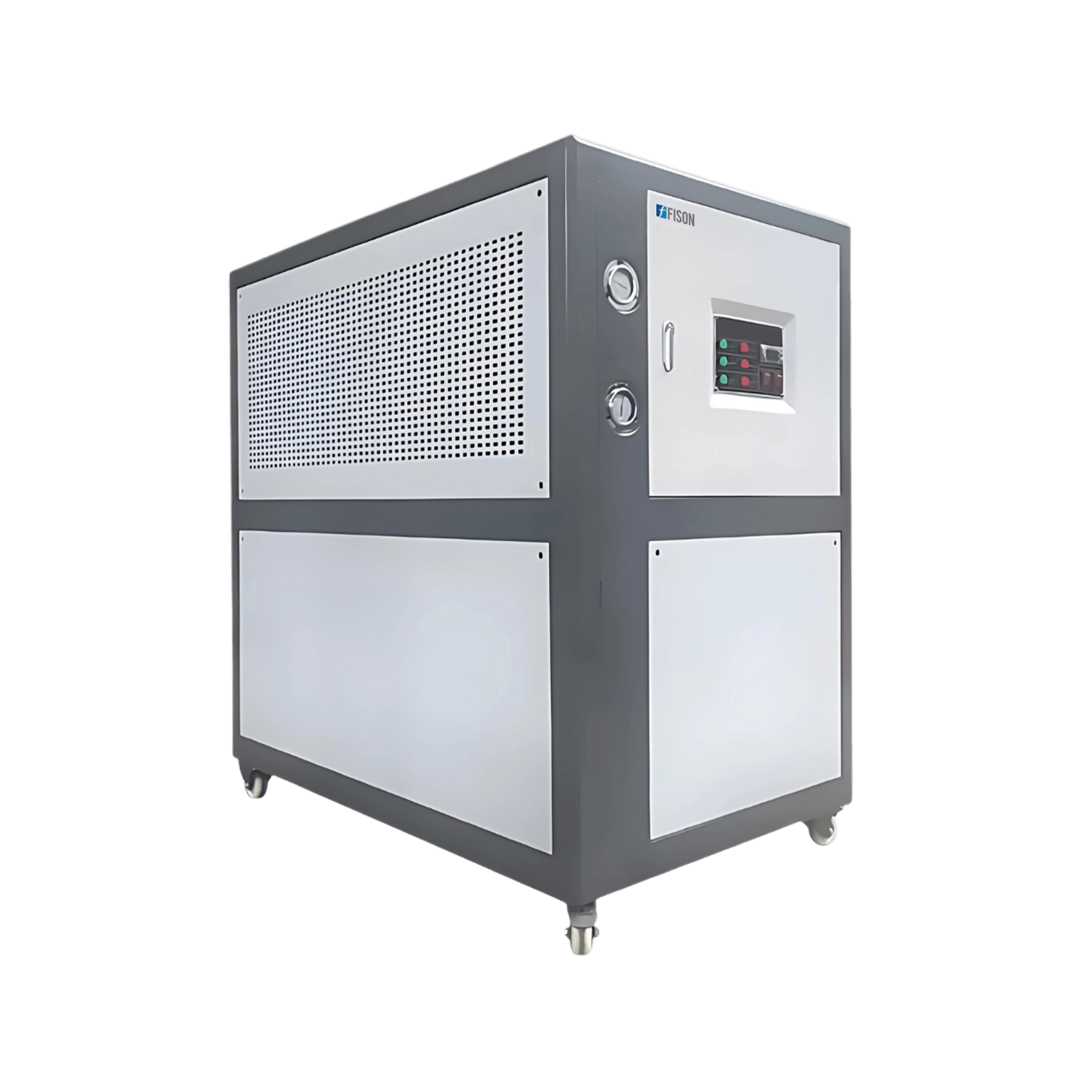

Air Cooled Chiller FM-AC-A104
Air Cooled Chiller FM-AC-A104 delivering a high cooling output of 25KW, excels in thermal regulation. It operates with R404a refrigerants using precise expansion valve control. Integrated hermetic scroll compressor ensures reliability and efficiency. It is designed with a low-noise threshold under 60 Db and advanced copper-aluminium condenser fins. It is built to offer durable performance and smart cooling under all conditions.
Specifications
| Cooling capacity | 25 KW, 21500 Kcal/h |
| Compressor type | Hermetic scroll |
| Operation power | 9 kw |
| Ambient temperature | Greater than 45°C |
| Refrigerant species | R404a |
| Refrigerant control mode | Expansion valve |
| Flow of refrigerated water | 4.3 m3/h |
| Pipe size | DN40 |
| Condenser | High performance copper cover aluminium fin |
| Evaporator type | Expansion valve |
| Noise lever | 60Db |
| protector | Anto-phase protection, no water protection, overload protection, compressor over temperature protection, high and low pressure protection |
| Power supply | 380V/50Hz |
| Dimension (L×B×H) | 1450×850×1450 mm |
| Weight | 265 kg |
Features
- Strong frame structure
- Quick start operation
- Enhanced internal shielding
- Simplified maintenance design
Applications
- Air Cooled Chiller FM-AC-A104 is ideal for use in industrial processes such as plastics manufacturing, food processing lines, chemical cooling, and laboratories requiring stable, high-capacity refrigeration.
