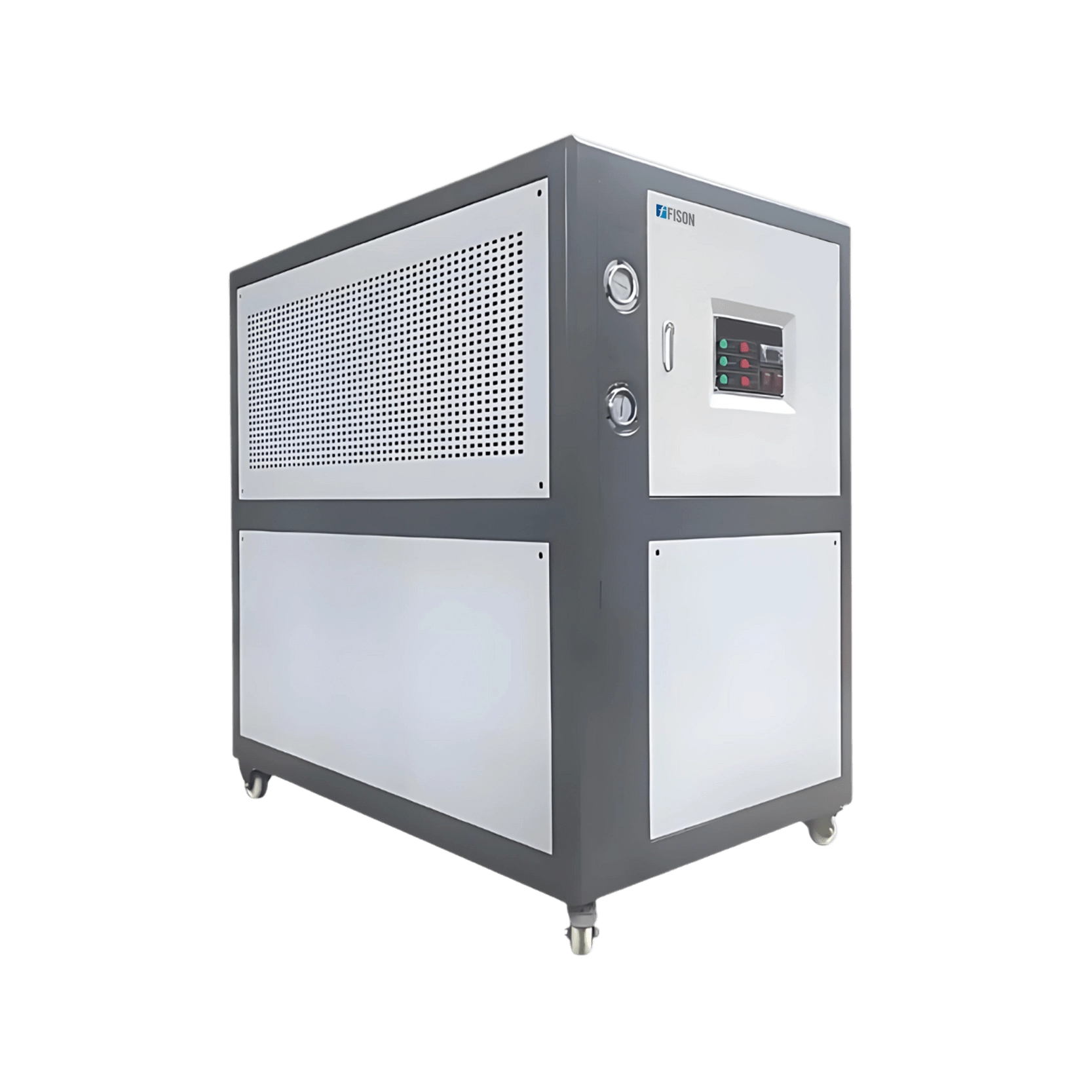

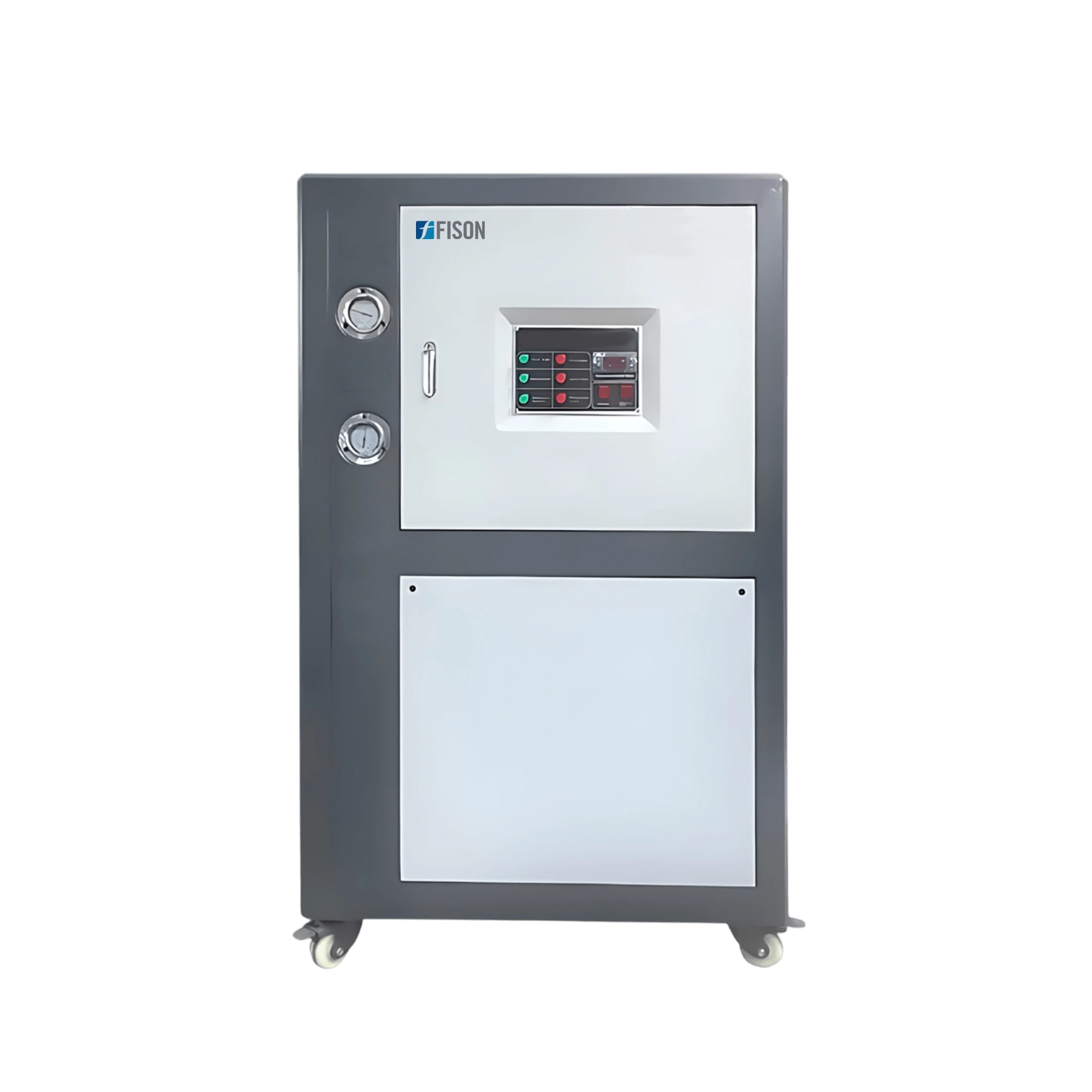

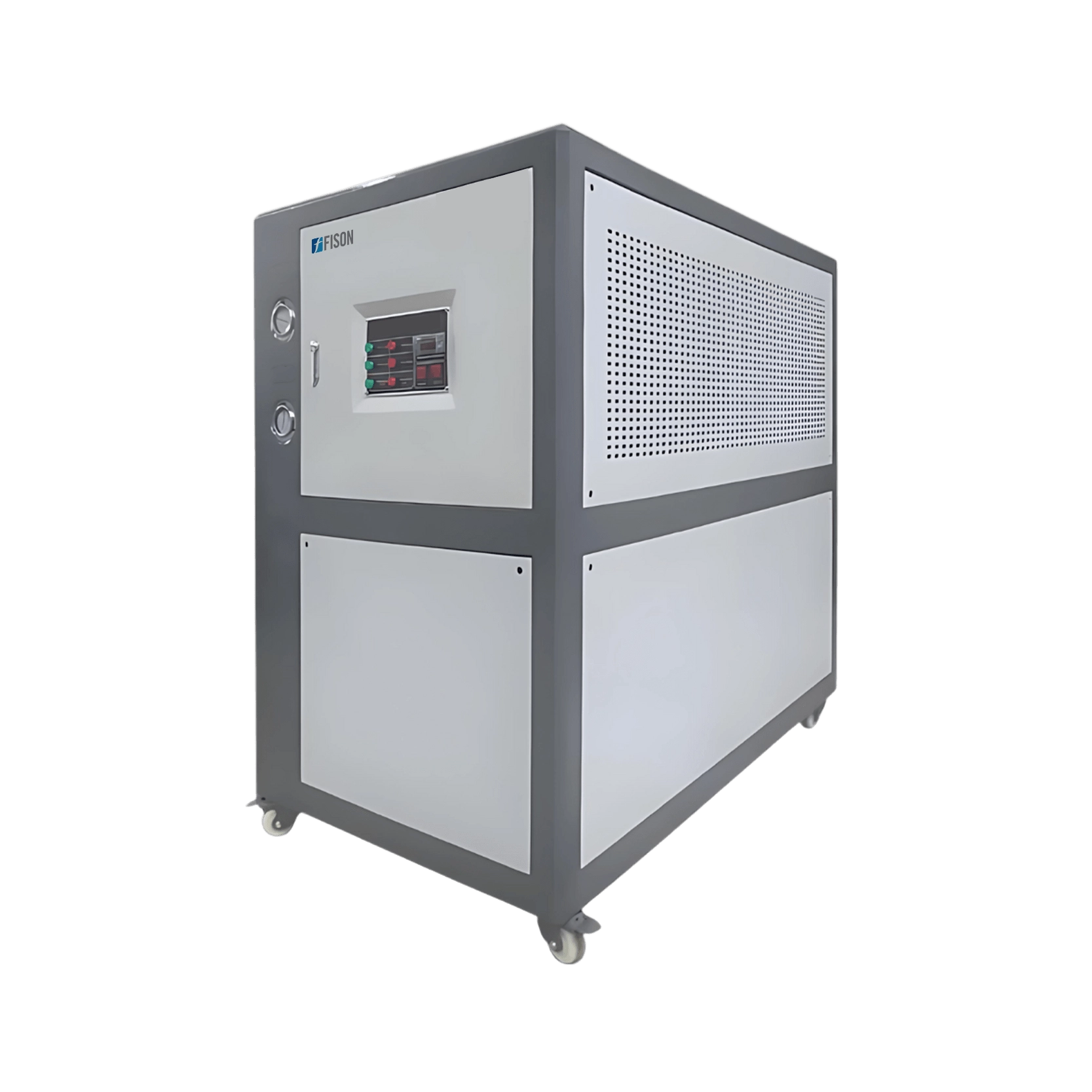

Air Cooled Chiller FM-AC-A101
Air Cooled Chiller FM-AC-A101 built with a high-efficiency 7.5KW cooling system to ensures robust and durable performance. Utilizes R404a refrigerants and fine-tuned control through expansion valve. It is engineered with a hermetic scroll compressor for consistent temperature stability. It supports demanding industrial refrigeration needs with reliable power efficiency.
Specifications
| Cooling capacity | 7.5 KW, 6450 Kcal/h |
| Compressor type | Hermetic scroll |
| Operation power | 2.87 kw |
| Ambient temperature | Greater than 45°C |
| Refrigerant species | R404a |
| Refrigerant control mode | Expansion valve |
| Condenser | High performance copper cover aluminium fin |
| Evaporator type | Expansion valve |
| Noise lever | 60 Db |
| Protector | Anti-phase protection, no water protection, overload protection, compressor over temperature protection, high and low pressure protection |
| Power supply | 380V/50Hz |
| Dimension (L×B×H) | 910×710×1200 mm |
| Weight | 140 kg |
Features
- Overload safety design
- Over temperature protection
- Heavy duty build
- High- and low-pressure protection
Applications
- Air Cooled Chiller FM-AC-A101 is ideal for precise cooling in process industries, laboratories, and controlled environments demanding consistent thermal management and reliable refrigeration cycles.
