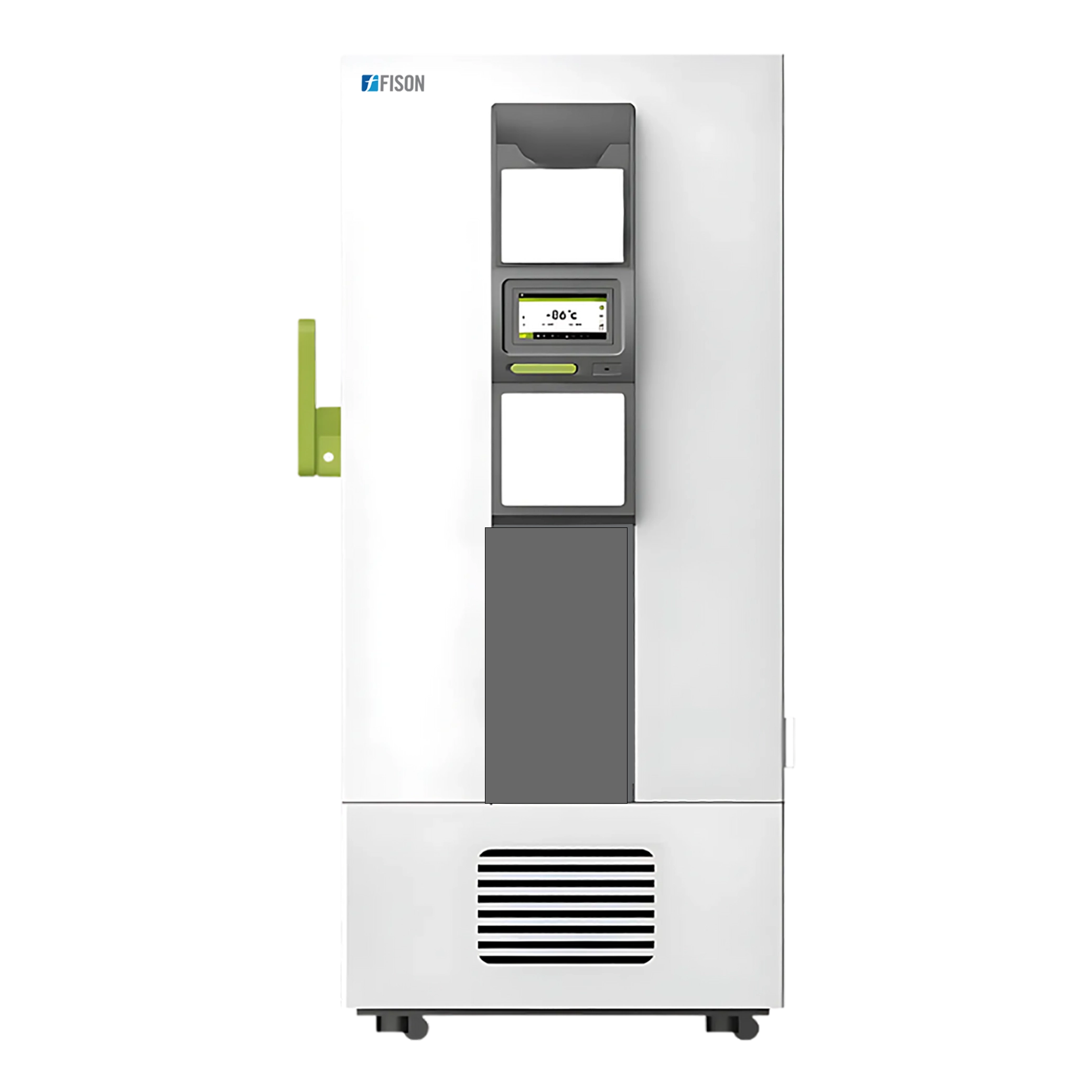

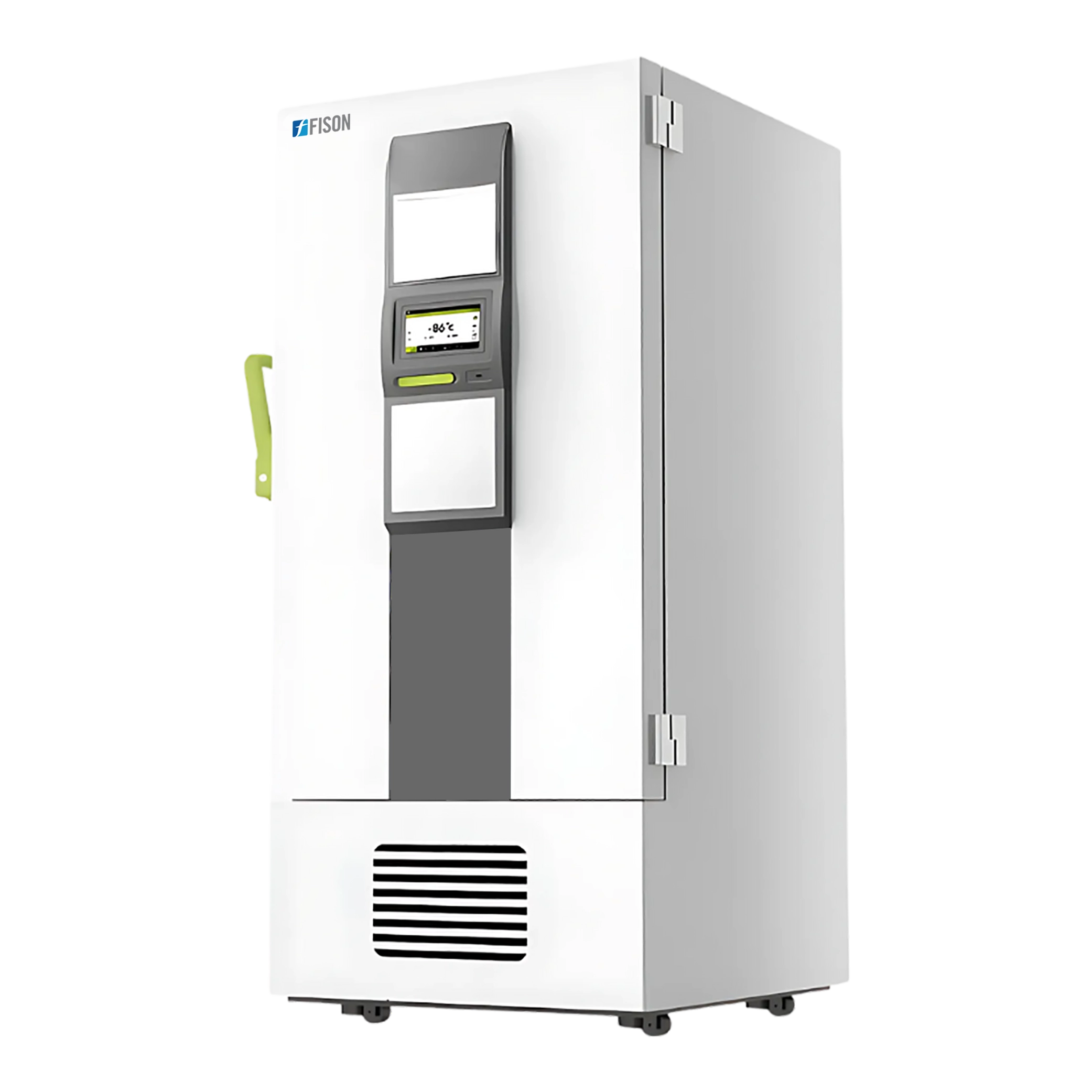

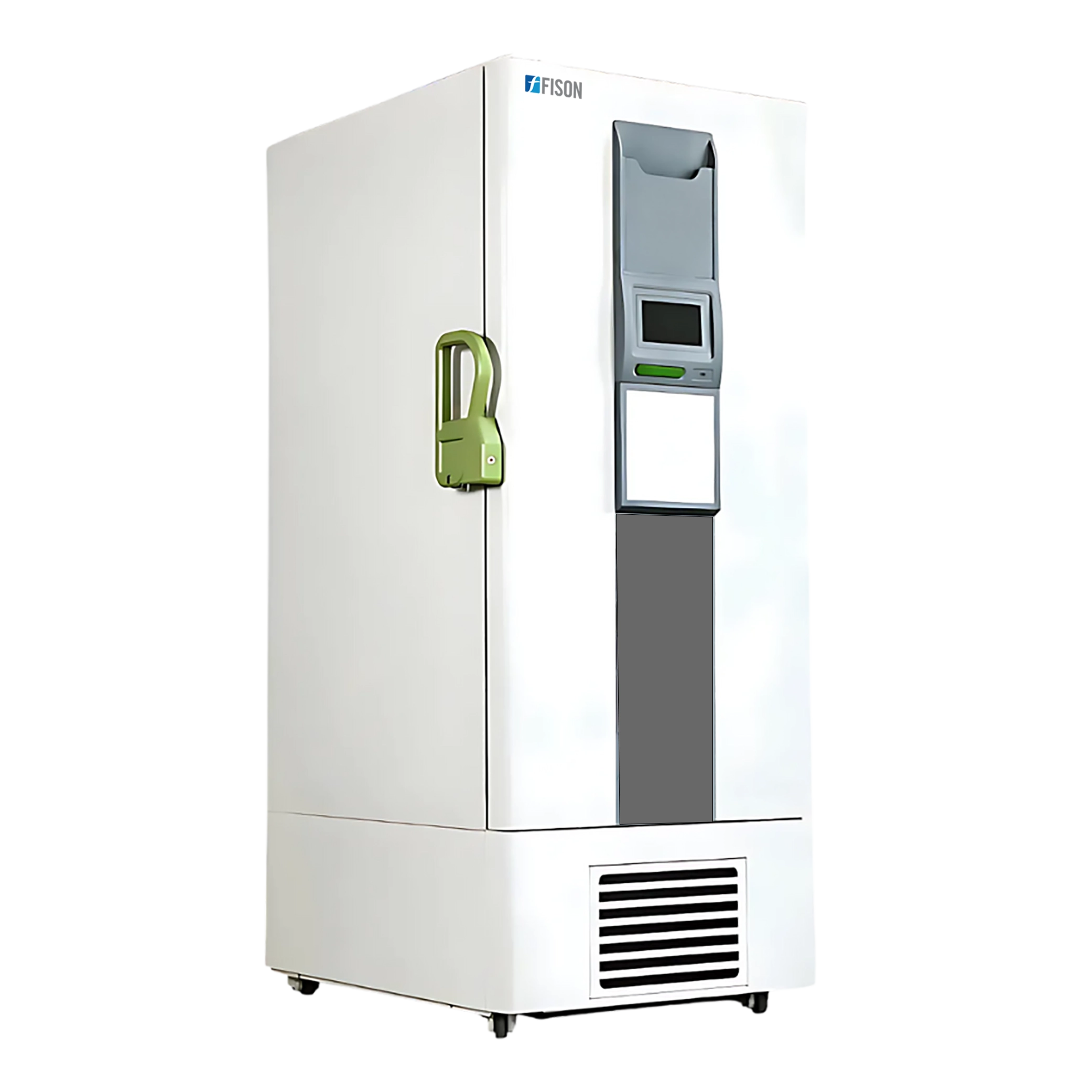

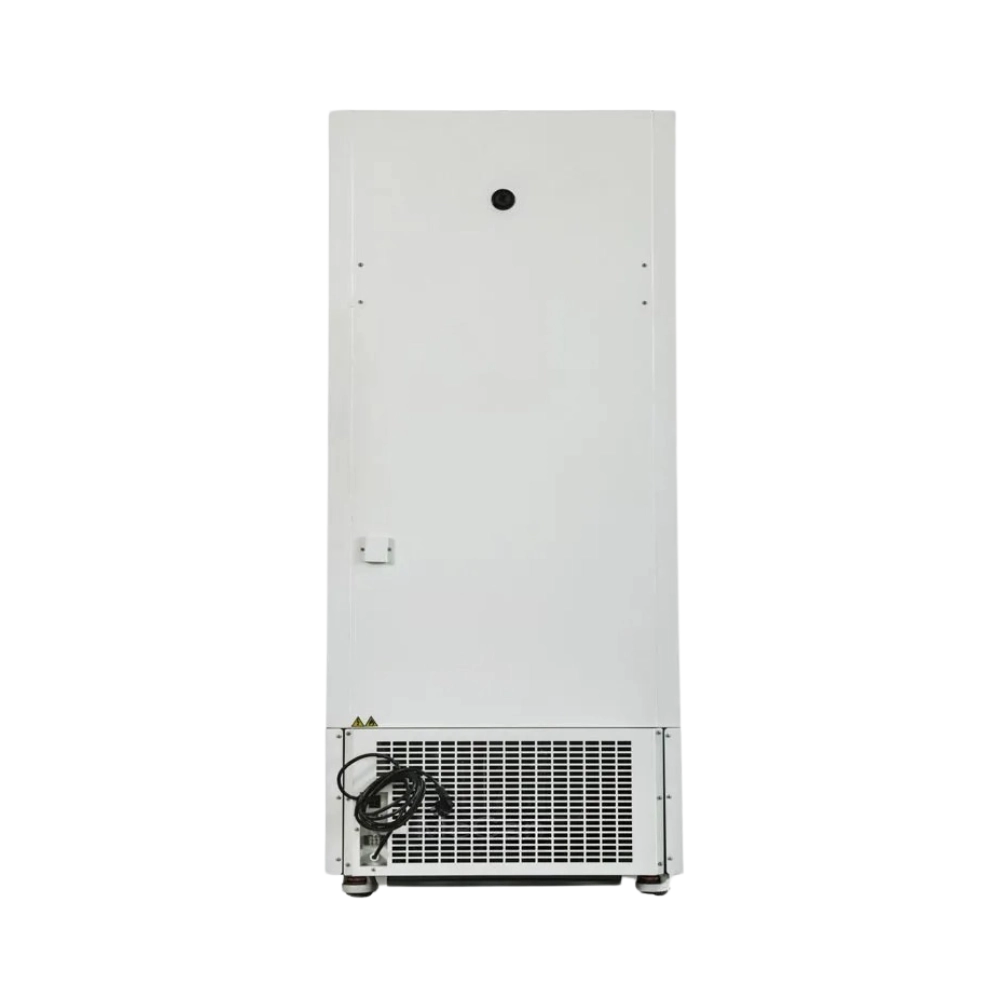

-86°C Upright Freezer FM-UF-D204
-86°C Upright Freezer FM-UF-D204 is an upright type freezer comes with 838 L capacity and offers temperature range -60 to -86˚C and -86˚C cooling performance. Features with microprocessor controlled system with interior digital temperature display to show various parameters simultaneously. Designed with direct cooling system and manual defrost mode, equipped with eco- friendly refrigerant HC, Built-in high-precision microcomputer temperature control system and platinum resistor temperature sensors. It adopts LCD display. It offers alarm system for high/low temperature, power failure, abnormal voltage alarm, sensor error, condenser failure, door ajar, low battery and high ambient temperature alarm.
Specifications
| Cabinet type | Upright |
| Capacity | 838 L |
| Temperature range | -60 to -86˚C |
| Ambient temperature | 10 to 32˚C |
| Cooling performance | -86˚C |
| Refrigeration system | Cascade system |
| Refrigerant | HC |
| Defrost Mode | Manual |
| Cooling method | Direct cooling |
| Controller | Microprocessor |
| Display | LCD display |
| Climate class | SN/N type |
| Insulation | PURF |
| Compressor | 2 pcs |
| Alarm system | High and low temperature, high ambient temperature |
| External material | Color sprayed steel |
| Inner material | Stainless steel |
| Shelf | 03 pcs |
| Noise | 53 dB |
| Racks | 24(5×5) |
| Boxes (2 inches) | 600 |
| Samples (2ml) | 60000 |
| Test hole | Yes |
| USB port | Yes |
| Door ajar | Yes |
| Inside door | 2 |
| Chat record | No |
| Casters | Yes |
| Backup Battery | Yes |
| Rated power | 890 W |
| Rated current | 7A |
| Power consumption | 15 kWh/24h |
| Power supply | 220 V /50 Hz |
| Internal dimension | 894 × 718 × 1310 mm |
| External dimension | 1179 × 1135 × 1995 mm |
| Package size | 1212 × 1098 × 2185 mm |
| Net weight | 397 kg |
| Gross weight | 430 kg |
Features
- Designed with high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
- Temperature ranges from -60 to -86˚C
- It adopts LCD display
- Offers cascade refrigeration system for high efficient refrigeration effect
- Designed with microprocessor control system
- EBM fan are powerful, energy-saving and highly efficient
- The cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent
- The rotating handle facilitates door opening
- Universal wheels easy for movement and fixation
- Two-layer heat insulating foamed door with airbag-typed outer seal and the insulation
- Forced air circulation system
- Highly effective condenser and expansive evaporator to provide quick freezing
- Upright type, Exterior and inside body all made from stainless steel
- Design with safety door lock, ensure sample storage is more secure
- The perfect audible & visual alarm system high/low temperature, sensor failure, door open, and power failure etc
Applications
- Upright Freezers is used in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. and Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.
