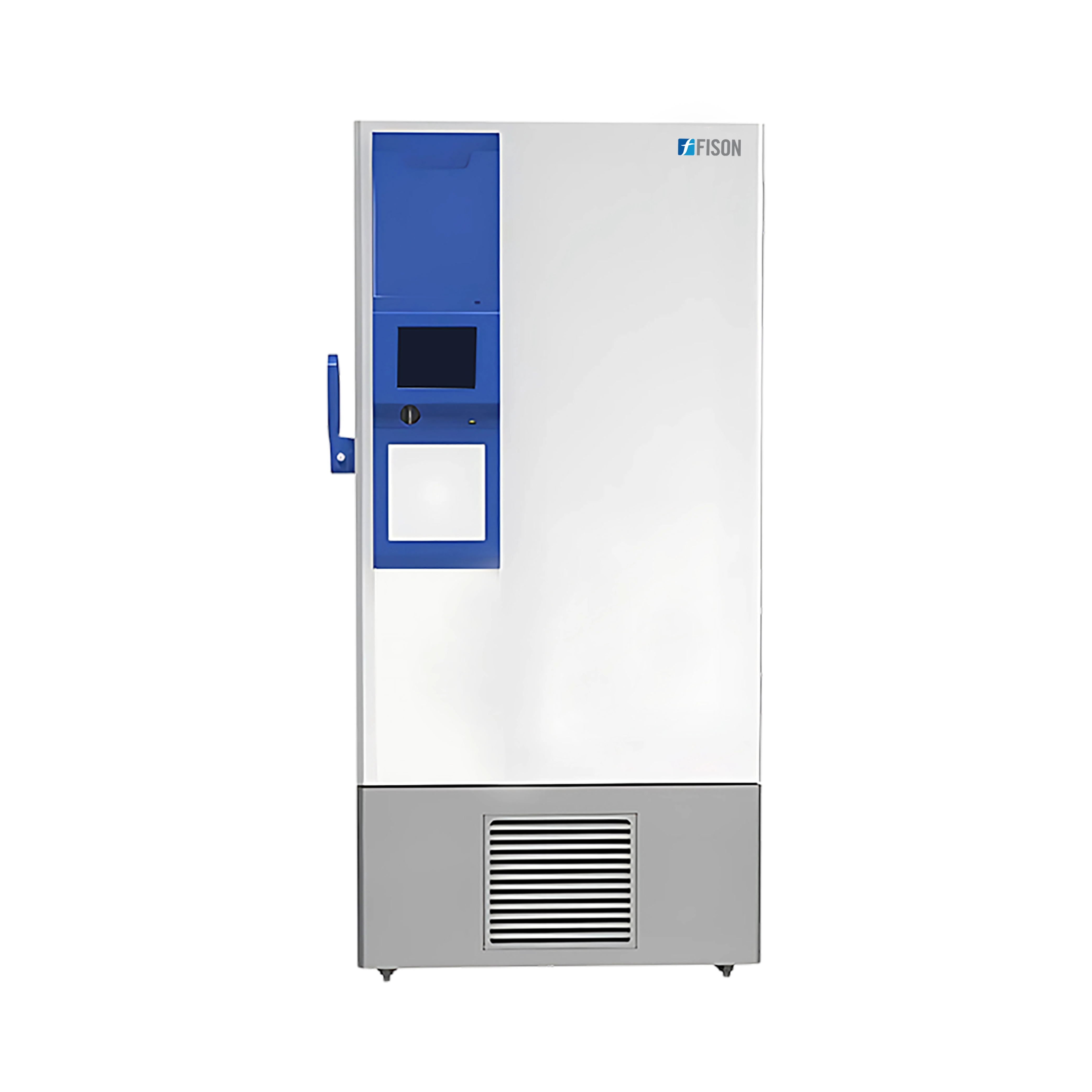

-86°C Upright Freezer FM-UF-D201
-86°C Upright Freezer FM-UF-D201 is designed for exceptional performance and efficiency. It offers spacious capacity of 418 liters. The device maintains ultra-low temperatures with high reliability due to its advanced insulation technology. Additionally, it also helps in conserving energy. Advanced temperature control system offers precise monitoring and easy parameter adjustments. This freezer is ideal for safeguarding biological samples, ensuring consistent performance, efficiency, and security.
Specifications
| Cabinet type | Upright |
| Capacity | 418 L |
| Temperature Range | -40 ℃ to -86 ℃ |
| Ambient Temperature | 10 to 32 ℃ |

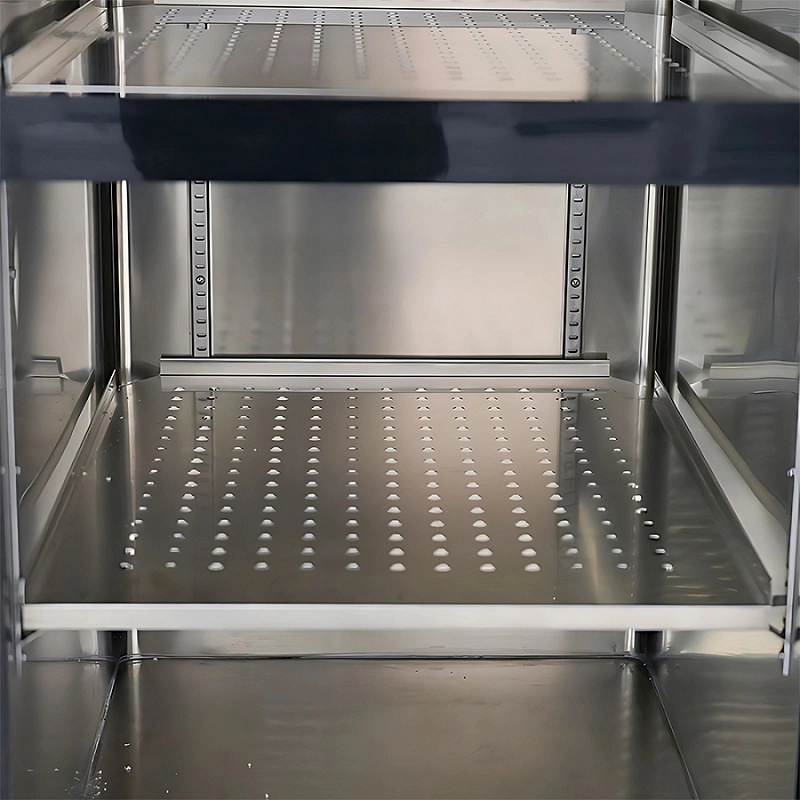

| Shelf | 3 pcs |
| Refrigeration Type | Direct refrigeration |
| Defrosting Type | Manual |
| Refrigerant | Mixed refrigerant |
| Noise | 55 dB(A) |
| Evaporator | Built-in coil, copper pipe |
| Condenser | Copper tube and aluminum fin |
| Sensor | PTC |
| Thermostat | Electronic thermostat |
| Display | LCD |
| Power Supply | 110/220 V, 50/60 Hz |
| Power | 1870 VA |
| Current | 4.86 A |
| Internal Material | Stainless Steel 304 |
| External Material | Sprayed cold-rolled steel |
| Lagging | Foamed polyurethane cyclopentane |
| Audible/Visual Alarm | High/low temperature alarm, Power fault alarm, Thermostat fault alarm, Door ajar alarm |
| Interface | RS485 |

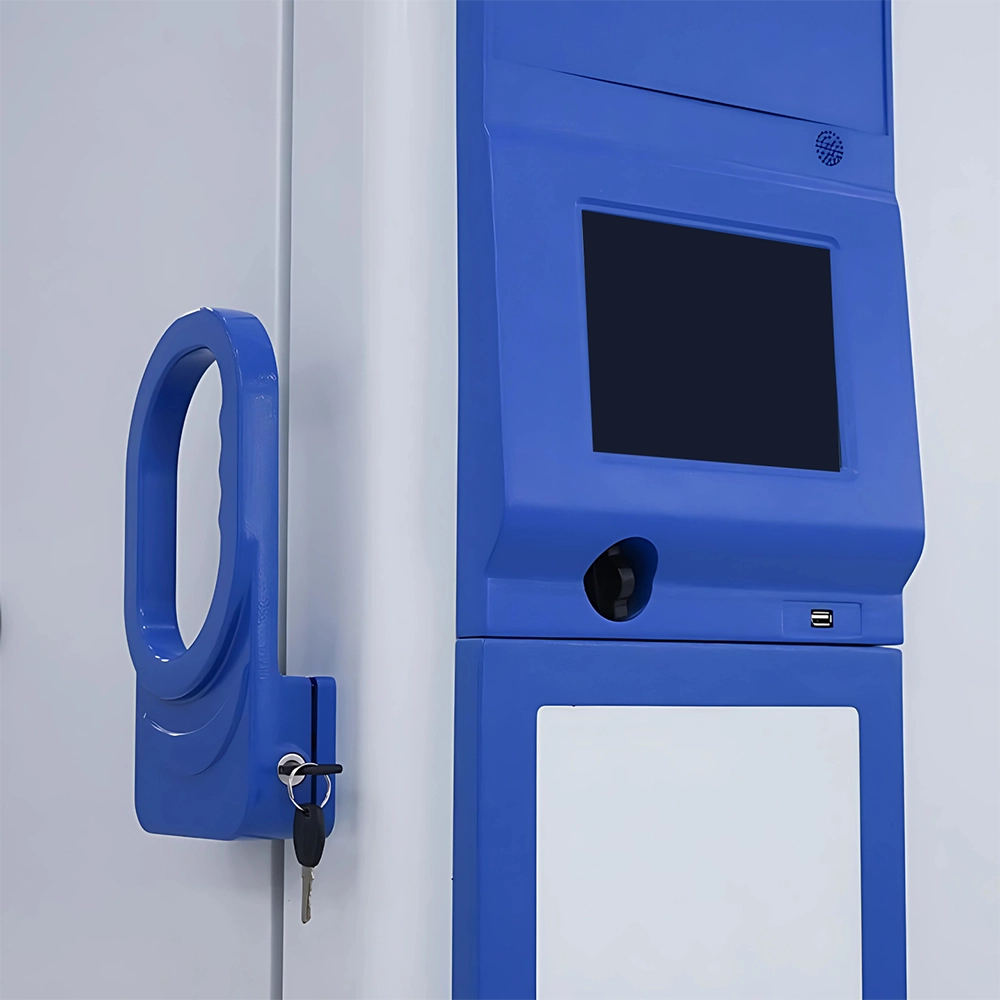

| Door | Lockable outer door, 3 inner doors |
| Temperature Test Port | 1, φ30 mm |
| Interior dimension (W × D × H) | 600 × 612 × 1150 mm |
| Exterior dimension (W × D × H) | 980 × 988 × 1945 mm |
| Packing dimension (W × D × H) | 1130 × 1170 × 2150 mm |
| Net Weight | 315 Kg |
| Gross Weight | 345 Kg |
Features
- -86°C Upright Freezer has storage flexibility
- Eliminates temperature fluctuations
- LCD for visualization of parameters
- Low maintenance device
Applications
- -86℃ Upright Freezer FM-UF-D201 is ideal for laboratories, research facilities, biobanks, and industrial applications where long-term storage of sensitive materials is essential.
