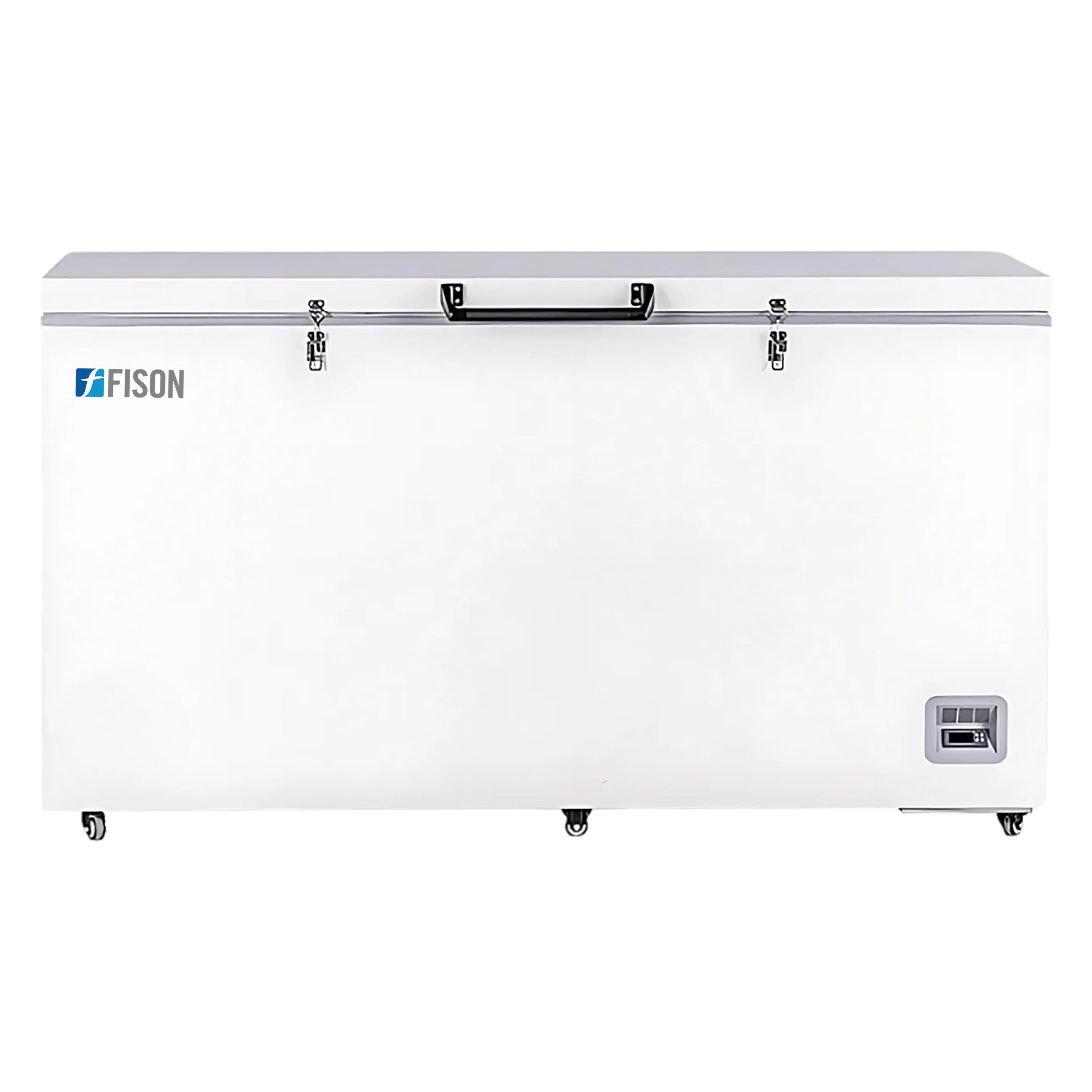

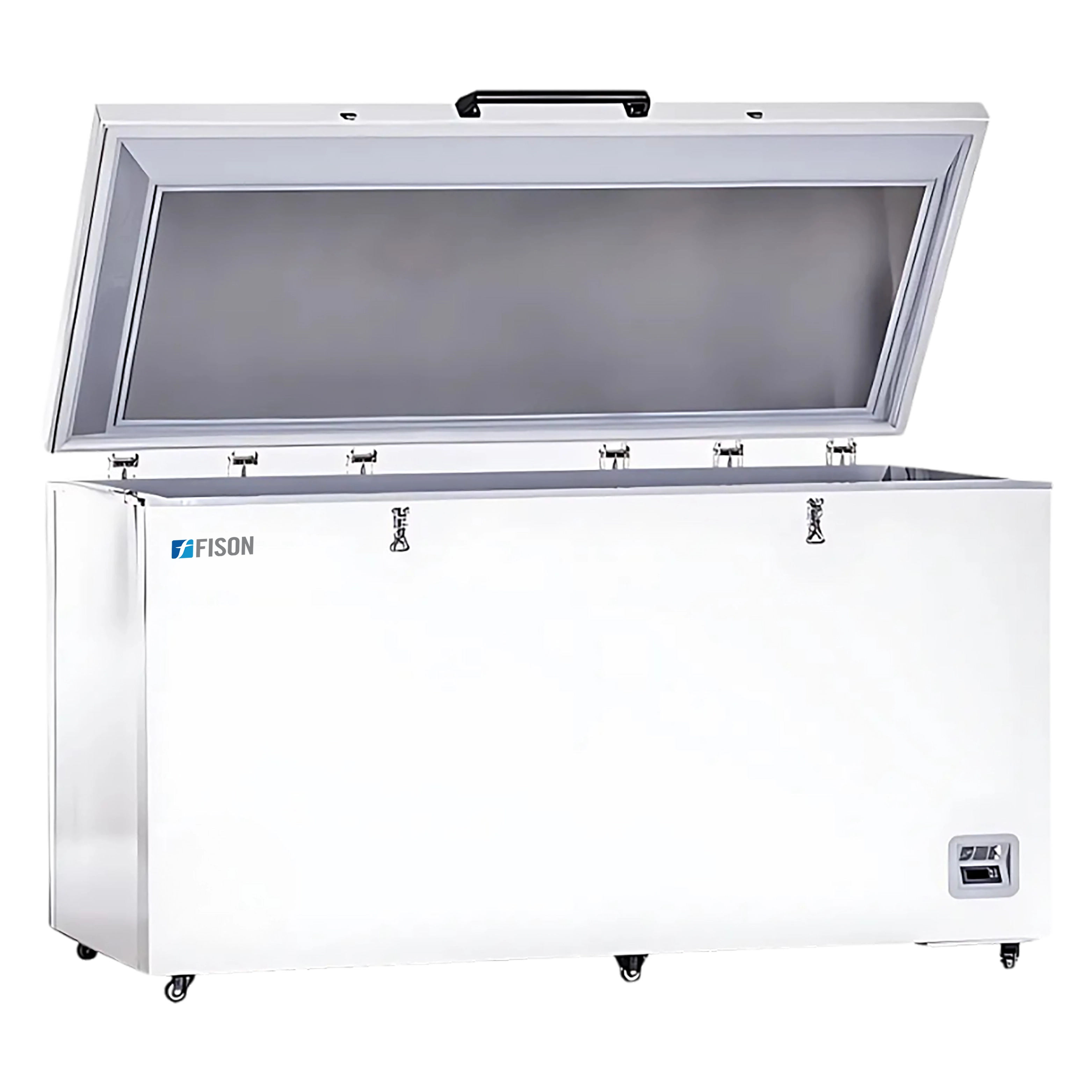

-86°C Chest Freezer FM-CF-D101
-86°C Chest Freezer FM-CF-D101 is a 485 L unit designed for long term storage of various biological products. Features Microprocessor controller and an adjustable temperature range of -40°C to -86°C with parameters being displayed on a large LED screen. The unit has a high density CFC-free urethane foam insulation and high efficiency hydrocarbon refrigerant ensuring operators and samples safety. Equipped with multiple function alarms to detect high and low temperatures, sensor errors, power failures and controller malfunction, it offers -86°C of cooling performance.
Specifications
| Capacity | 485 L |
| Cabinet Type | Chest |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | Mixed gas |
| Cooling Performance | -80°C |
| Ambient Range | 10°C to 32°C |
| Temperature Range | -40°C to -86°C |
| Compressor | 1 piece |
| Temperature Controller | Microprocessor |
| Display | Digital display |
| Interior Material | Stainless steel |
| Exterior Material | Color sprayed steel |
| Insulation Material | PURF |
| Power | 670 W |
| Power Supply | 220 V, 50 Hz |
| Interior Dimensions (W×D×H) | 1455.5 × 525.2 × 674 mm |
| Exterior Dimensions (W×D×H) | 1700 × 830 × 980 mm |
| Package Dimensions (W×D×H) | 1780 × 910 × 1080 mm |
| Net Weight | 127 Kg |
| Gross Weight | 152.5 Kg |
Features
- High density CFC-free urethane foam insulation
- Large screen for easy observation of technical parameters
- Adjustable temperature range of -40°C to -86°C, convenient operation
- Multiple malfunction alarms: high and low temperature alarms, over temperature alarms etc.
- Audio and digital flashing alarm with Protection function: start-up delay, shutdown interval
- Ergonomic design with safety door lock to avoid abnormal door opening
- Double inner door design to reduce loss of cold air during door opening
- Pressure balanced valve design, easy to open door
- Simple condenser filter design, convenient for maintenance and washing
- Optimized cascade refrigeration technology, effective refrigeration
- Equipped with storage baskets, organized and convenient storage of different samples
- V.I.P insulation panels to improve insulation performance
- High-efficient, stable and reliable unit with heavy duty casters and low noise operation
Applications
- -86° Chest Freezer is used to store various biological products across medical institutions, bold banks, hospitals, epidemic prevention centers, research institutes and other laboratories for electronic and chemical plants and biological engineering institutes etc.
