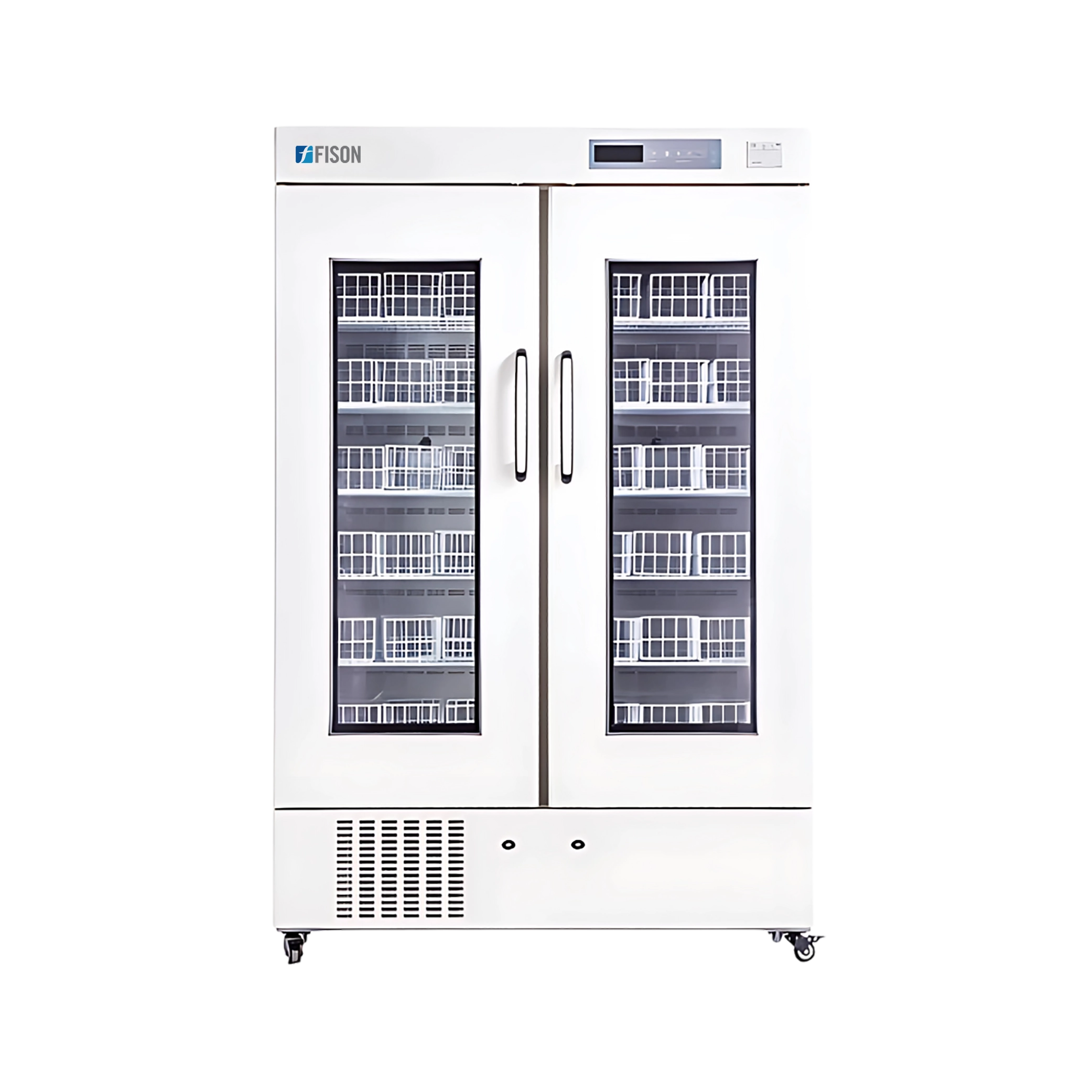

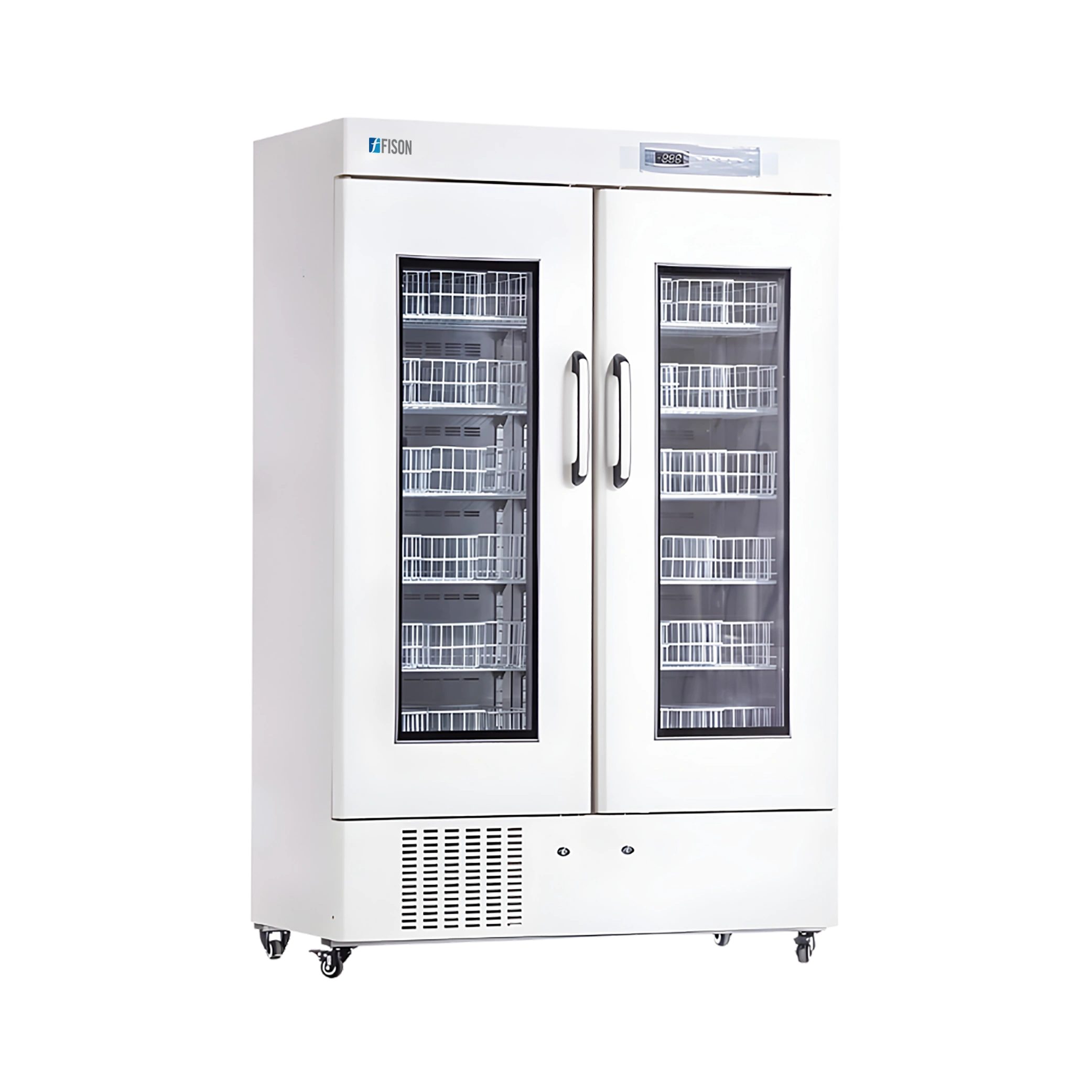

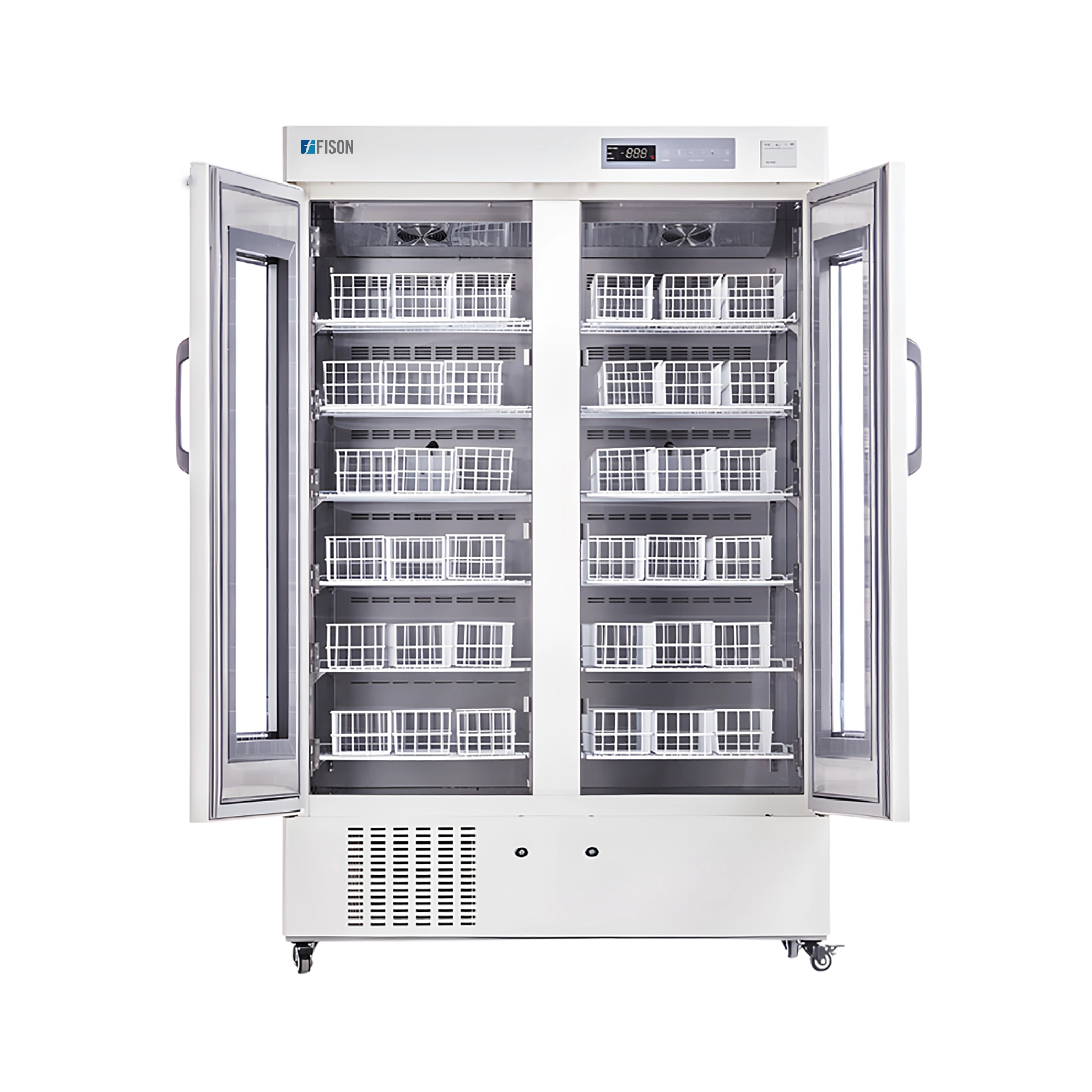

4°C Blood Bank Refrigerator FM-BRF-B105
4°C Blood Bank Refrigerator FM-BRF-B105 is vertical type cabinet with 650 L overall capacity specifically designed for storage of 360 pcs blood bags each with 450 ml volume. Full-extension 36 pcs stainless steel shelves and carrying baskets provide full access to fit diverse blood components. Built-in LED display and microprocessor controller maintaining temperature of 4±1°C throughout chamber. Features high efficient fan system, forced air circulation for large airflow, ducts to maintain temperature consistency, auto defrost, CFC-Free refrigerant R134a and overall situ polyurethane foaming insulation. Offers alarm test functions and is reliable, field-verified refrigeration system.
Specifications
| Capacity | 650 L |
| Temperature range | 4±1°C |
| Temperature accuracy | 0.1°C |
| Cooling temperature setting | 4°C Factory Setting |
| Cabinet Type | Vertical type Refrigerator |
| Climate Class | Class SN/N |
| Defrost mode | Auto defrost |
| Refrigeration type | Forced air refrigeration system |
| Refrigerant | R134a, CFC free |
| Compressor | International famous compressor |
| Condenser & Evaporator | High efficiency air cooled condenser, made of copper |
| Insulation | Polyurethane insulation material |
| Controller | Microprocessor control |
| Display | LED Display |
| Illumination | LED lamp |
| Shelves/Drawers | 12 Shelves |
| Baskets | 36 pcs |
| Blood Bags (450 ml) | 360 pcs |
| Door | Double layer transparent glass door with lock, Heating film preventing frosting, Sealing joint strip with magnetic force Transparent plastic inner door |
| Door lock | Yes |
| Casters | 4 Casters |
| Structure | Unibody design & Mono assembly foaming (Right polyurethane insulation material) |
| Interior material | Stainless steel |
| Exterior material | Cold rolled steel coated with anti-bacterial powder |
| Alarm | Audible and visual alarm for high and low temperature, door ajar, power failure alarm, sensor failure, Low battery alarm |
| Standard Accessory | Temperature printer, probe access port, door key |
| Power consumption | 364 W |
| Power supply | AC 110/220 V ±10%, 50/60 Hz |
| Internal dimension | 1100 × 454 × 1325 mm |
| External dimension | 1220 × 648 × 1885 mm |
| Packaging dimension | 1300 × 735 × 2110 mm |
| Gross weight | 257 kg |
Features
- Designed with multiple sensor to make sure the precise monitoring and programing
- Double layer transparent glass door, easy to observe, also keep better cooling temperature
- Working temperature pre-set at 4±1°C
- Inner LED lighting and five sensors to display or control the temperature
- Forced air refrigeration system
- Auto temperature control and defrost mode
- Designed with large screen LED Display
- Equipped with audio and visual alarm for high/low temperature, door open and system failure
- CFC free R134a refrigerant
- Designed with four casters for easy handling and lockable door prevents unauthorized access
- Offers adjustable shelves, improve space utilization and blood storage baskets can be classified
Applications
- Blood Bank Refrigerator suitable for blood (whole blood) storage application, which has been used in medical industries as well as cold storage of pharmaceuticals, biological products, vaccine, and so forth. It is suitable for hospitals, blood banks and sanitation and anti-epidemic stations.
