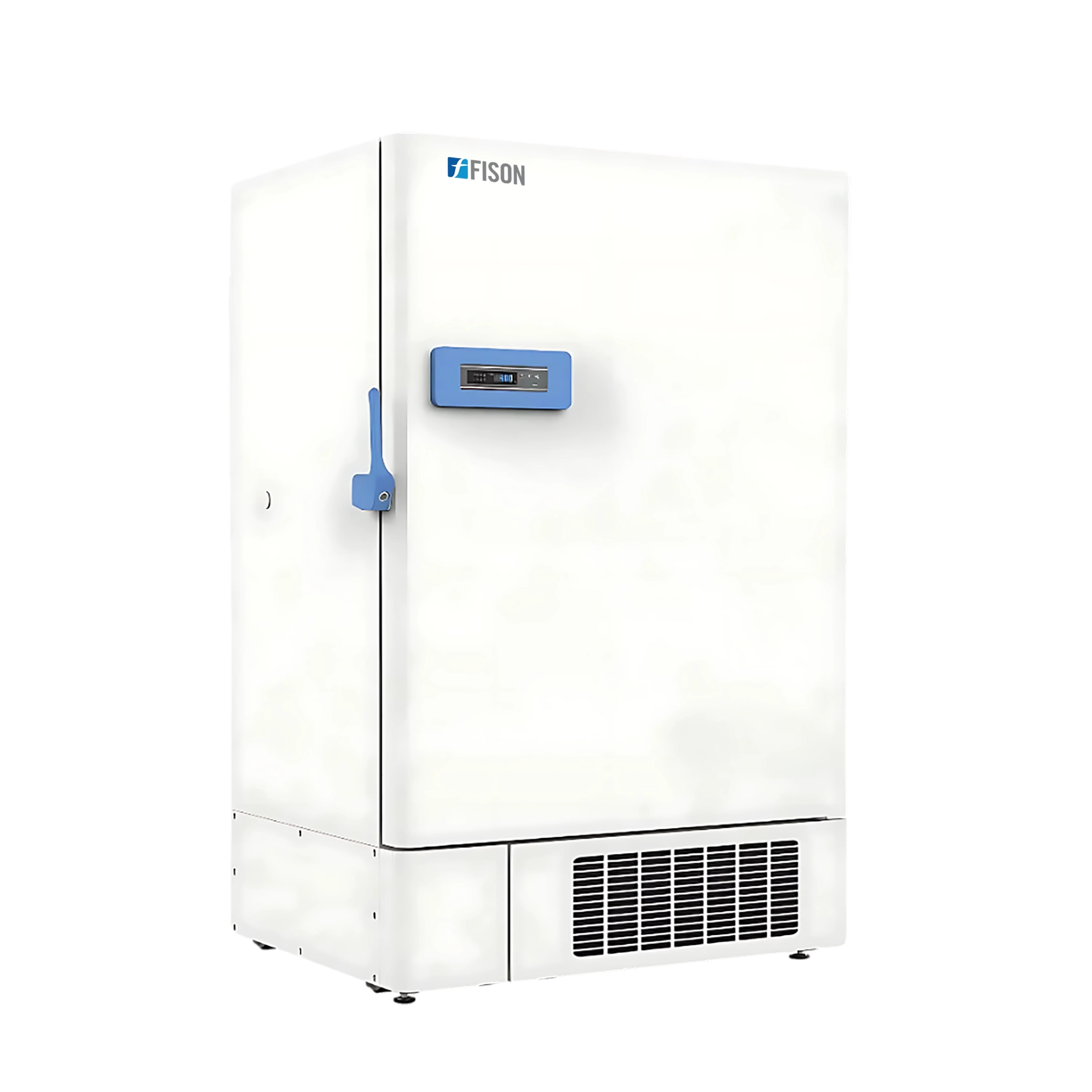

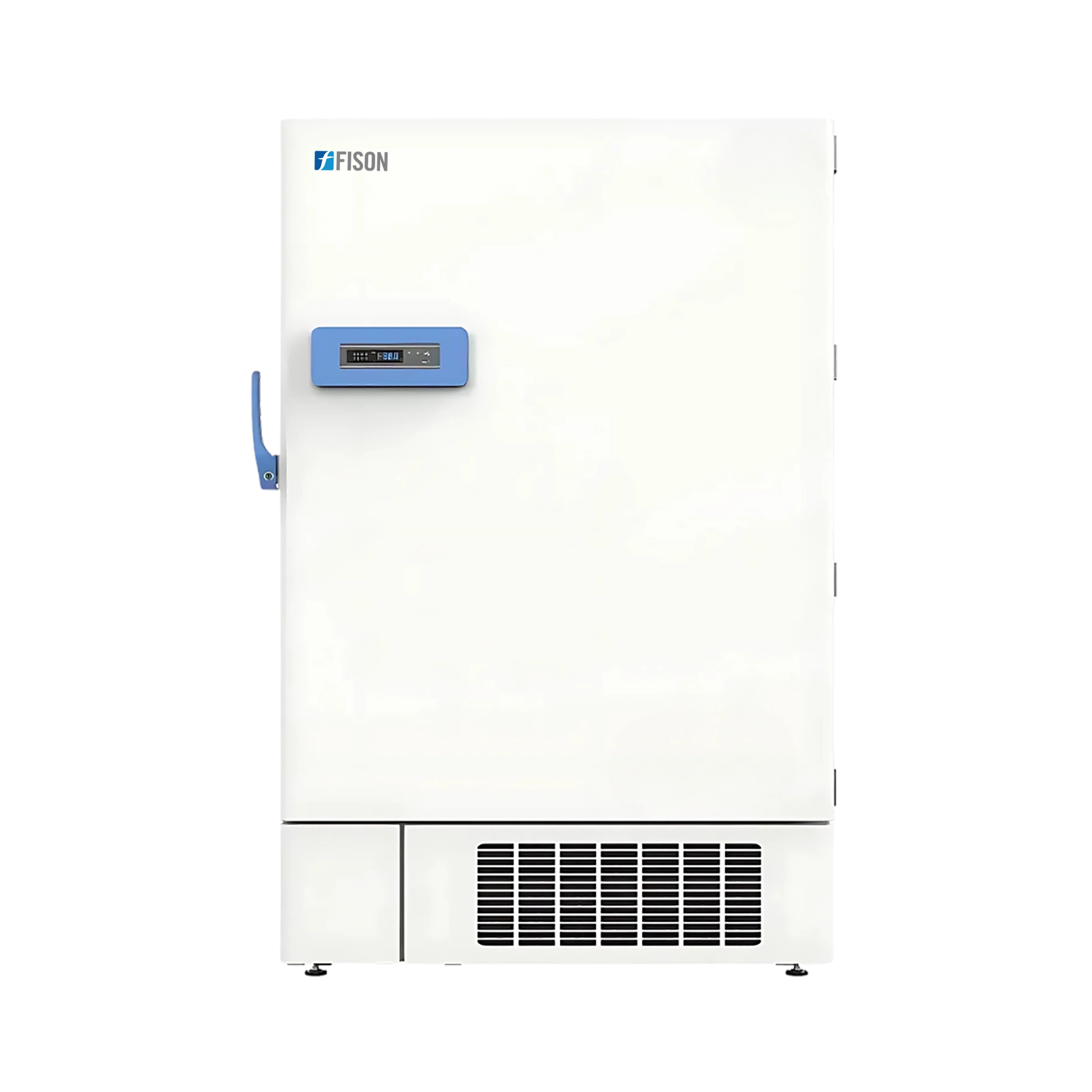

-40°C Upright Freezer FM-UF-C102
-40°C Upright Freezer FM-UF-C102 is a direct cooling, microprocessor-controlled upright type freezer that offers 1008 L of capacity with -40°C cooling performance and -20°C to -40°C temperature control range. With manual defrost mode and R290 refrigerant, it features a high-efficient EBM fan and compressor. Designed with powder-coated materialized housing, with two-layer thermal-insulating foamed door, and a sprayed aluminum-plated interior with 3 adjustable shelves. Equipped with a digital display and advanced alarm system, also has a keyboard lock function and a door lock for assured safe storage of samples
Specifications
| Capacity | 1008 L | ||||||
| Temperature range | -20 to -40°C | ||||||
| Ambient temperature | 16 to 32°C | ||||||
| Climate class | N | ||||||
| Controller | Microprocessor | ||||||
| Display | Digital display | ||||||
| Compressor | 2 pcs | ||||||
| Cooling method | Direct cooling | ||||||
| Defrost mode | Manual | ||||||
| Refrigerant | R290 | ||||||
| Insulation thickness | 130 | ||||||
| External material | High Quality Steel plates with spraying | ||||||
| Inner material | Galvanized steel sheet | ||||||

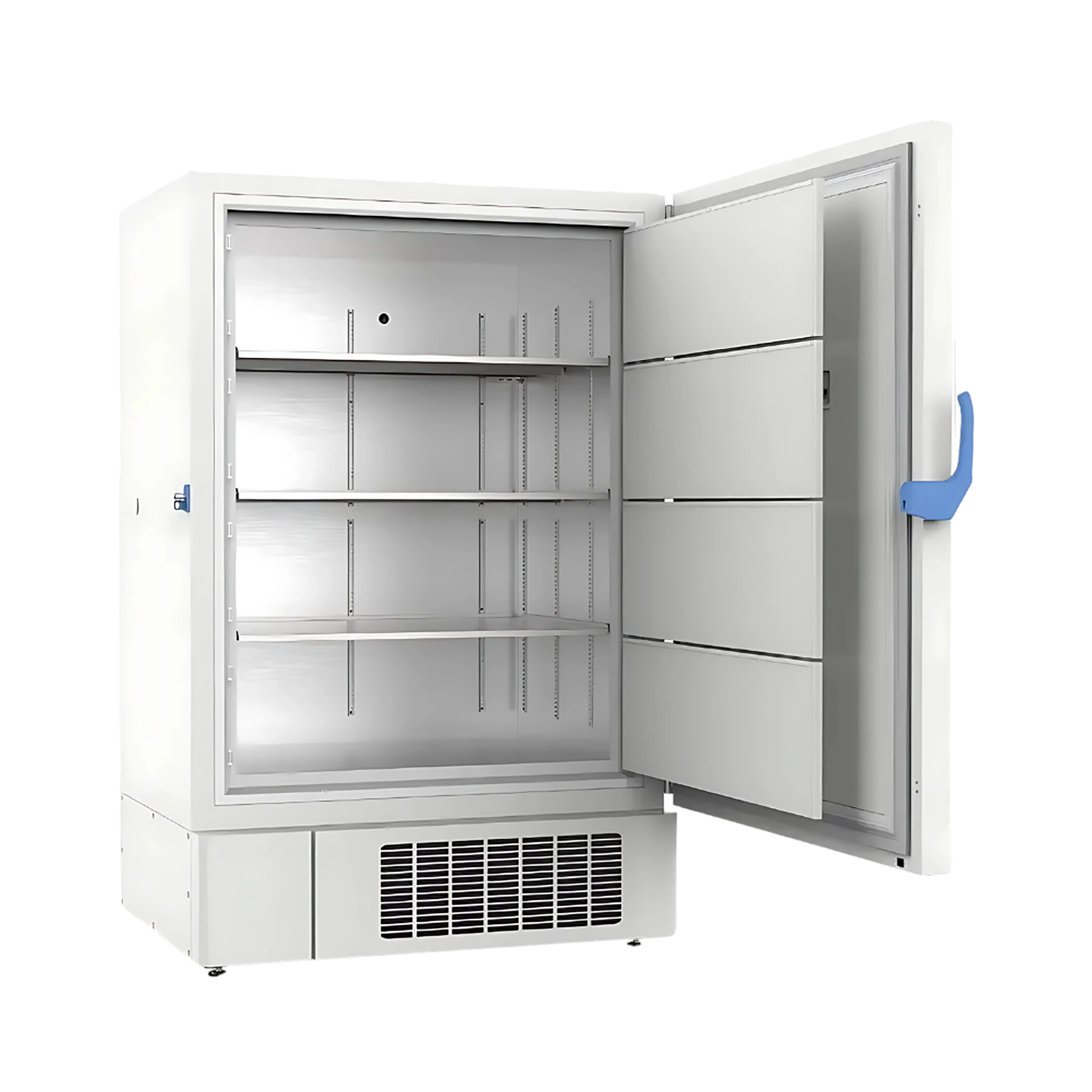

| Shelves | 3 (stainless steel) | ||||||
| Door lock with key | Yes | ||||||
| Access Port | 3pc. Ø 25 mm | ||||||
| Casters | 4 (2 leveling feet) | ||||||
| Backup battery | Yes | ||||||
| Power supply | 220 - 240 V/50 Hz | ||||||
| Power | 650 W | ||||||
| Power consumption | 8.99 | ||||||
| Alarm |
|
||||||
| Rated current | 8.5 A | ||||||
| Internal dimension (W×D×H) | 1022 × 696 × 1378 mm | ||||||
| External dimension (W×D×H) | 1360 × 1006 × 1980 mm | ||||||
| Net weight | 320 kg | ||||||
| Gross weight | 440 kg |
Features
- A direct cooling comprised microprocessor controlled upright type unit
- 1008 L of capacity with -40°C of cooling performance and -20 to -40°C of temperature control range
- Manual defrost mode and freon-free R290 refrigerant, energy-efficient and environment-friendly

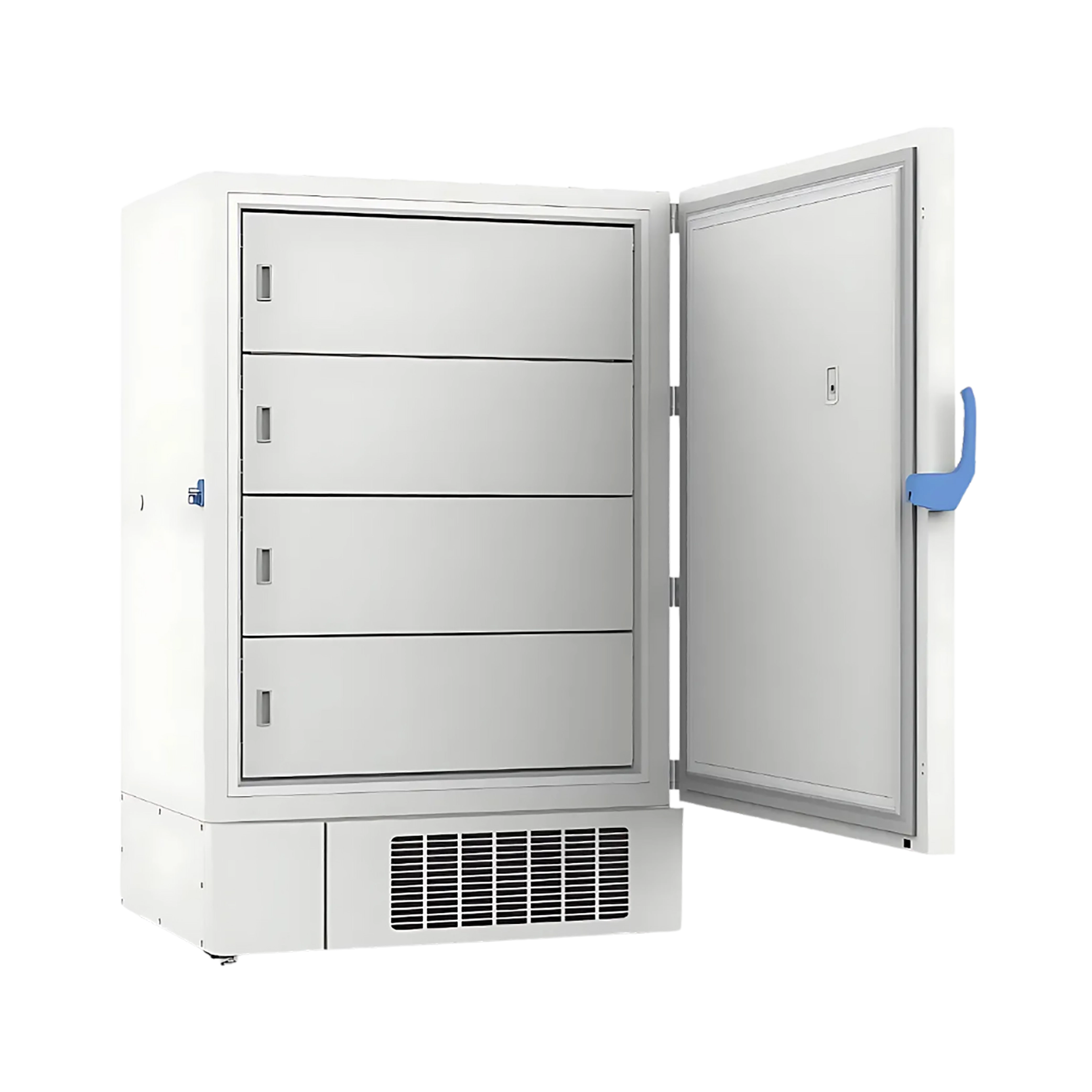

- The insulated foamed outer door with seal design prevents loss of cooling capacity effectively
- High-efficient EBM fan and compressor, ensures efficient and even temperature
- High-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
- High-quality steel plate structure with phosphate coating, Galvanized steel liner and low noise design can create a comfortable environment
- Powder coated materialized housing with two-layer thermal insulating foamed door
- Digital display, allows to control and monitor the temperature range
- Keyboard lock function and door lock for assured safe storage of samples
- High-efficient, stable, and reliable multigrade unit for different sample storage
- Advanced alarm system, provides precise and safe operation
- Startup delay and stop interval protection function to ensure reliable operation
Applications
- -40°C Upright Freezers are used for scientific research, cryogenic test, blood plasma cryopreservation, low temperature resistance across the research institutes, electronic industry, chemical industry, hospitals, health & disease prevention system, colleges & universities, military enterprises, etc
Accessories
- RS485
Remote alarm control
Accessories Optional
- Printer
Chart recorder
