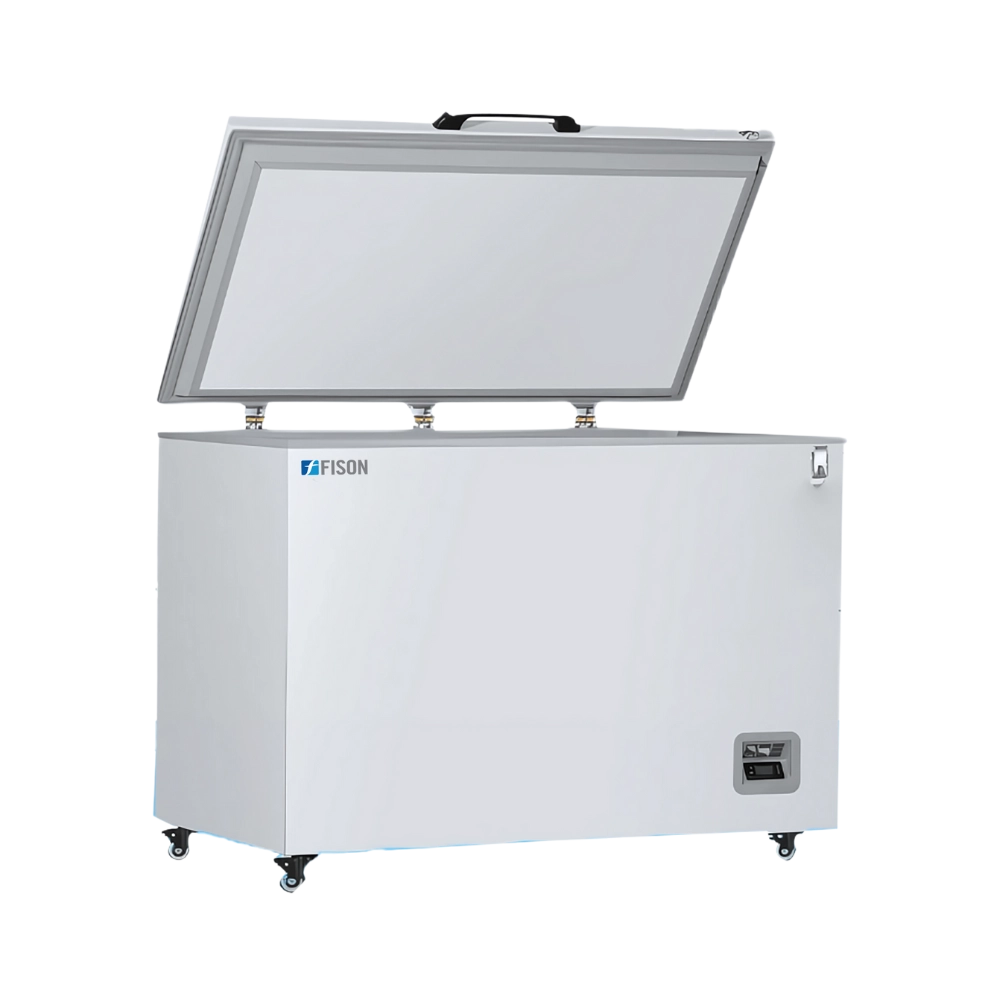

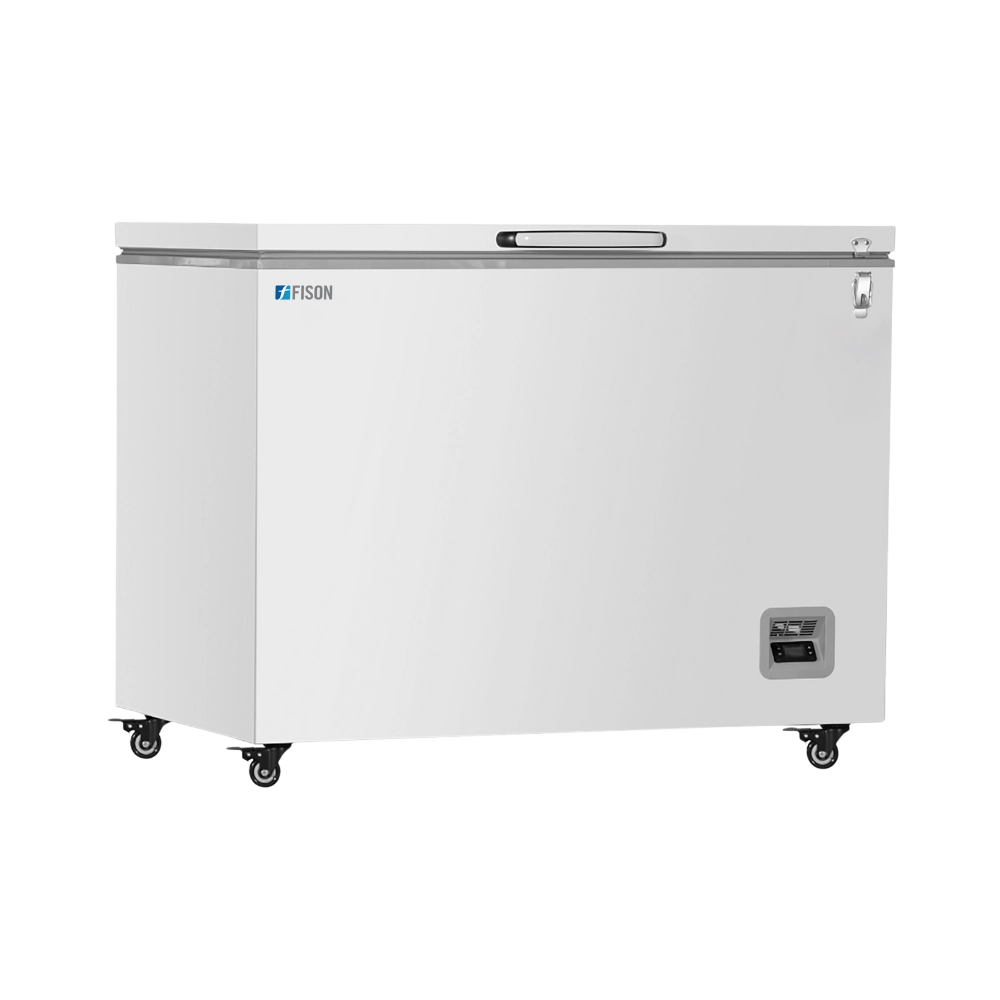

-25°C Chest Freezer FM-CF-A200
-25°C Chest Freezer FM-CF-A200 is a 305 L capacity comprised microprocessor-controlled unit, comes with -10 to -25°C of temperature range and R134a as refrigerant. Features direct cooling method and manual defrost mode with NTC sensor and PURF insulation. Designed with color sprayed steel interior and exterior, have digital display with 0.1°C of increment. Equipped with multiple malfunction alarms and power failure backup system, has standard 25 mm test hole and optional datalogger to record and monitor temperature changes.
Specifications
| Type | Chest |
| Capacity | 305 L |
| Temperature range | -10 to -25°C |
| Ambient temperature | 10 to 32˚C |
| Compressor | 1 pc |
| Cooling method | Direct cooling |
| Defrost mode | Manual |
| Refrigerant | R134a |
| Display | Digital display |
| Alarm system | High and low temperature, controller failure, sensor malfunction, power failure |
| External material | Color sprayed steel |
| Internal material | Color sprayed steel |
| Insulation | PURF |
| Power supply | 220 V 50 Hz |
| Rated current | 0.92 A |
| Power | 1.6 W |
| Internal dimension (W×D×H) | 1000×520×665 mm |
| External dimension (W×D×H) | 1135×725×890 mm |
| Package size (W×D×H) | 1223×777×1005 mm |
| Net weight | 74.2 kg |
| Gross weight | 87 kg |
Features
- 305 L capacity comprised microprocessor-controlled unit
- -10 to -25°C of temperature range and CFC-free refrigerant
- Direct cooling method and manual defrost mode, stable performance
- NTC sensor and PURF insulation, effective refrigeration and insulation
- Color sprayed steel exterior and interior, low maintenance and easy-to-clean
- Digital display with 0.1°C of increment and better observation
- Multiple malfunction alarms with 2 types of indications
- Power failure backup system with 12 H time and alarm
- Standard 25 mm test hole and optional datalogger for temperature monitoring
- High-efficient, stable and reliable unit with targeted refrigeration
Applications
- -25° Chest Freezer is used to store biological materials, vaccine, blood plasma, electronic devices etc. across blood bank, hospitals, electronic, chemicals, scientific research institutes etc.
Accessories Optional
- Data logger
