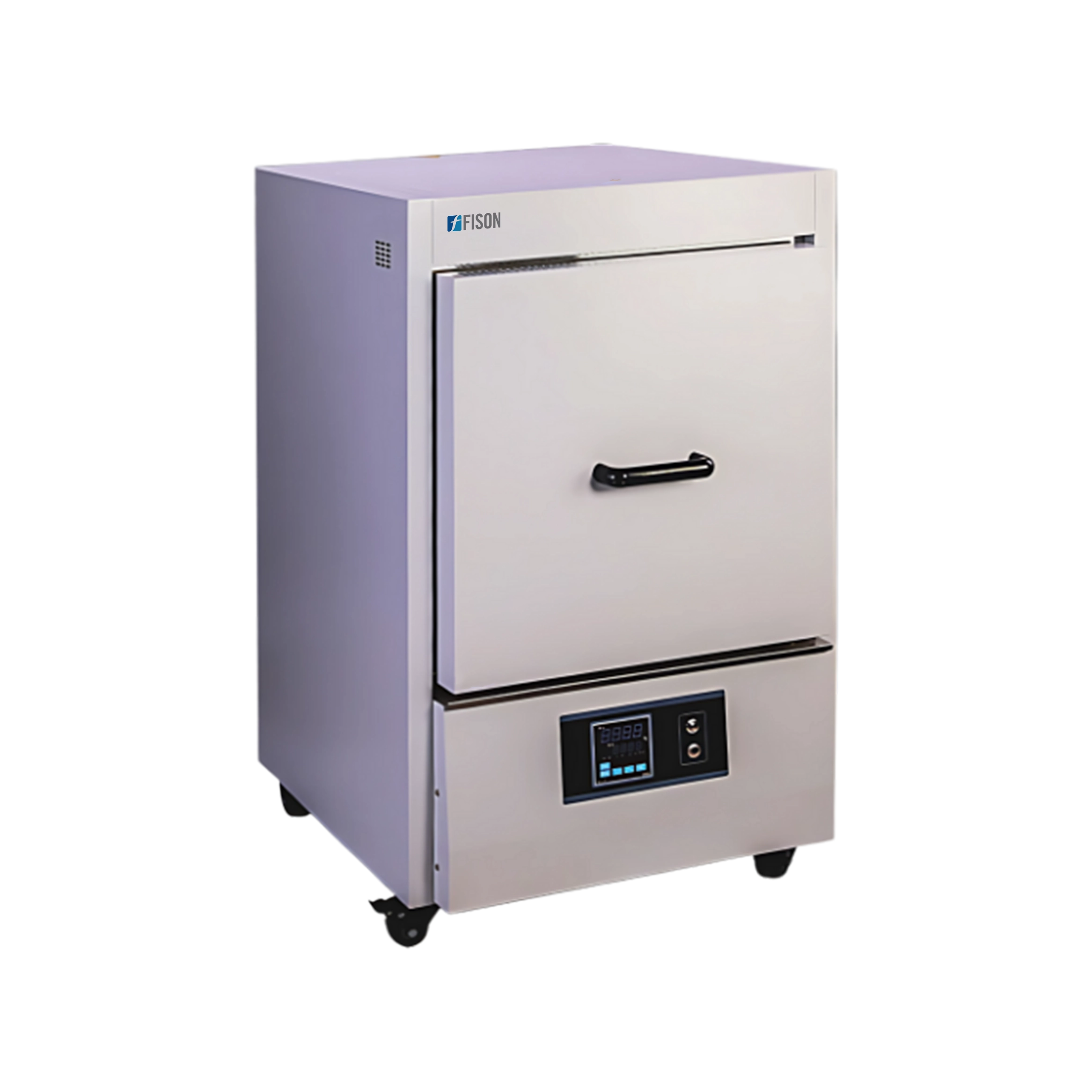

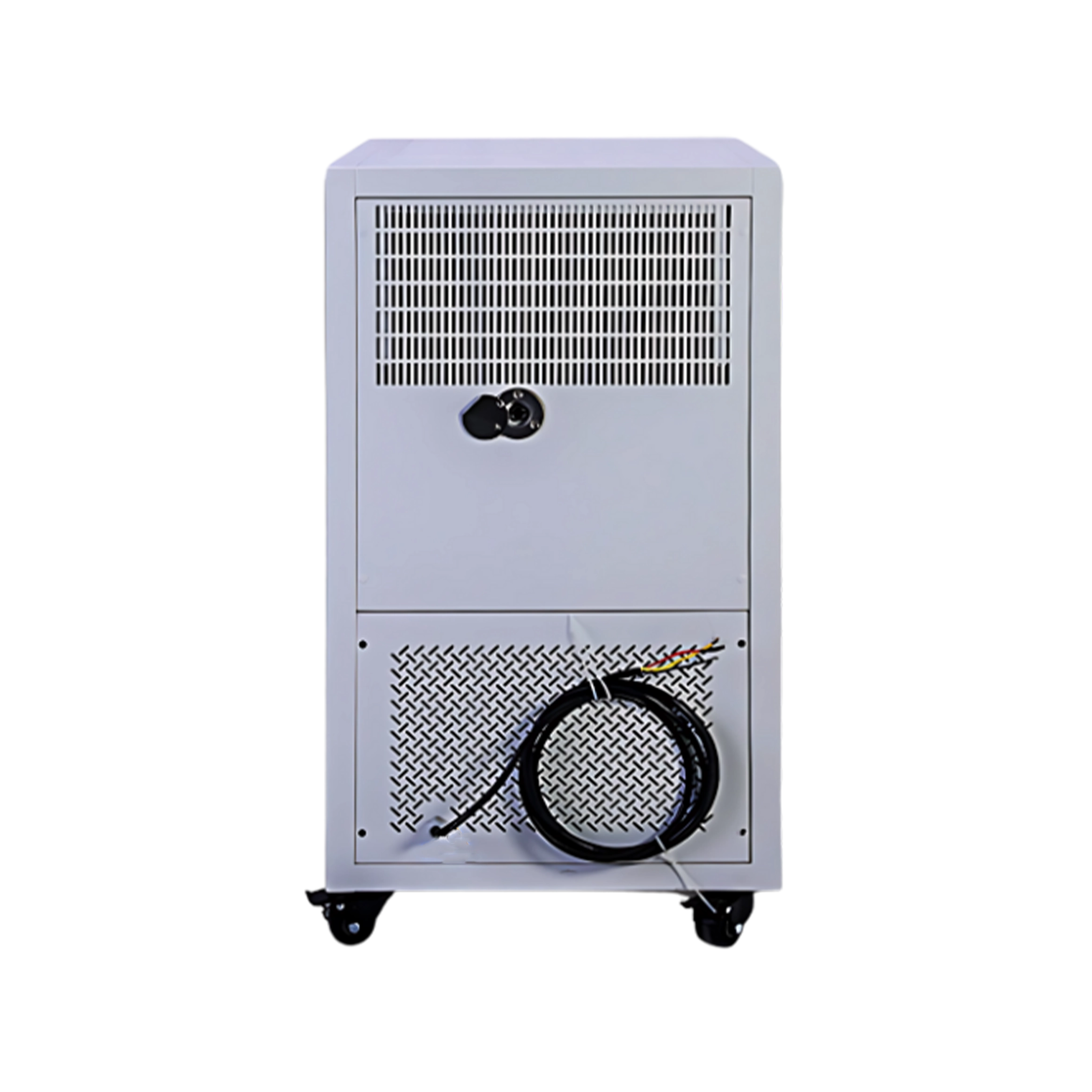

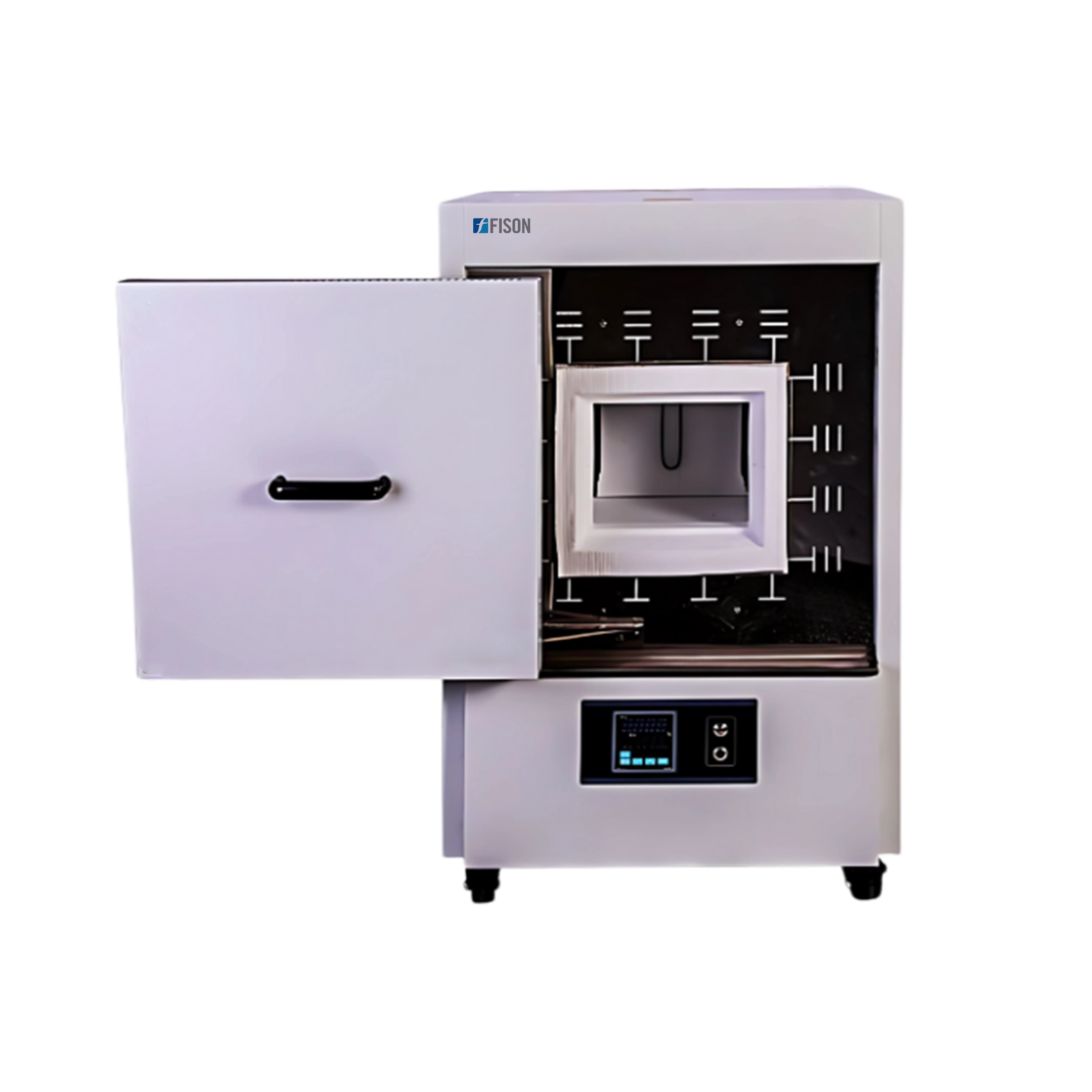

Muffle Furnace FM-MF-C100 offers a temperature range of 300 to 1800℃, providing precise heating for various laboratory and industrial applications. This includes a vacuum-formed polycrystalline mullite fiber chamber that provides heat preservation and uniform heating. It features a PID temperature control system for stable temperature management. Our Muffle furnace has a built-in exhaust device for efficient ashing and a clean working environment.
| Temperature Range | 300 to 1800℃ |
| Resolution | 1℃ |
| Volatility | ±1℃ |
| Heating Time | ≤60min |
| Capacity | 12 L |
| Sensor | B thermocouple |
| Muffle | Ceramic fiber |
| Heater | Silicon molybdenum rod |
| Timer | 0 to 999.9 hours |
| Frequency | 50 Hz |
| Power Consumption | 12,000W |
| Power Supply | AC380V |
| Packing Dimensions (W×D×H) | 840 × 985 × 1390 mm |
| Dimensions (W×D×H) | 680 × 858 × 1182 mm |
| Net Weight | 150 kg |
| Gross Weight | 170 kg |
Muffle Furnace FM-MF-C100 is used for ashing biological samples, processing tissue samples, and conducting material analysis in research laboratories. It ensures accurate high-temperature treatment, essential for studies in biochemistry, molecular biology, and environmental sciences.
Silicon molybdenum rod
Fison 1100⁰C Muffle Furnace have a combustion chimney system that safely expels gases or fumes from high-temperature operations. They have cold-rolled steel sheets with a powder coating to enhance energy efficiency. The high-quality heating element is equipped to ensure quicker reaction rates and shorter processing times. These have incorporated power failure memory to store and recall its operating settings. Our 1100⁰C muffle furnaces have low shell surface temperature providing an insulating effect on the ceramic fiber.
Fison 1200⁰C Muffle Furnace features a maximum temperature is 1200⁰C to ensure quicker reaction rates and shorter processing times. They have high-quality heating elements to ensure quicker reaction rates and shorter processing times. Their combustion chimney system safely expels gases, fumes, or byproducts from high-temperature operations. The furnaces feature a microcomputer PID controller for convenience use. Our muffle furnaces incorporated Power failure memory to store and recall its operating settings.
