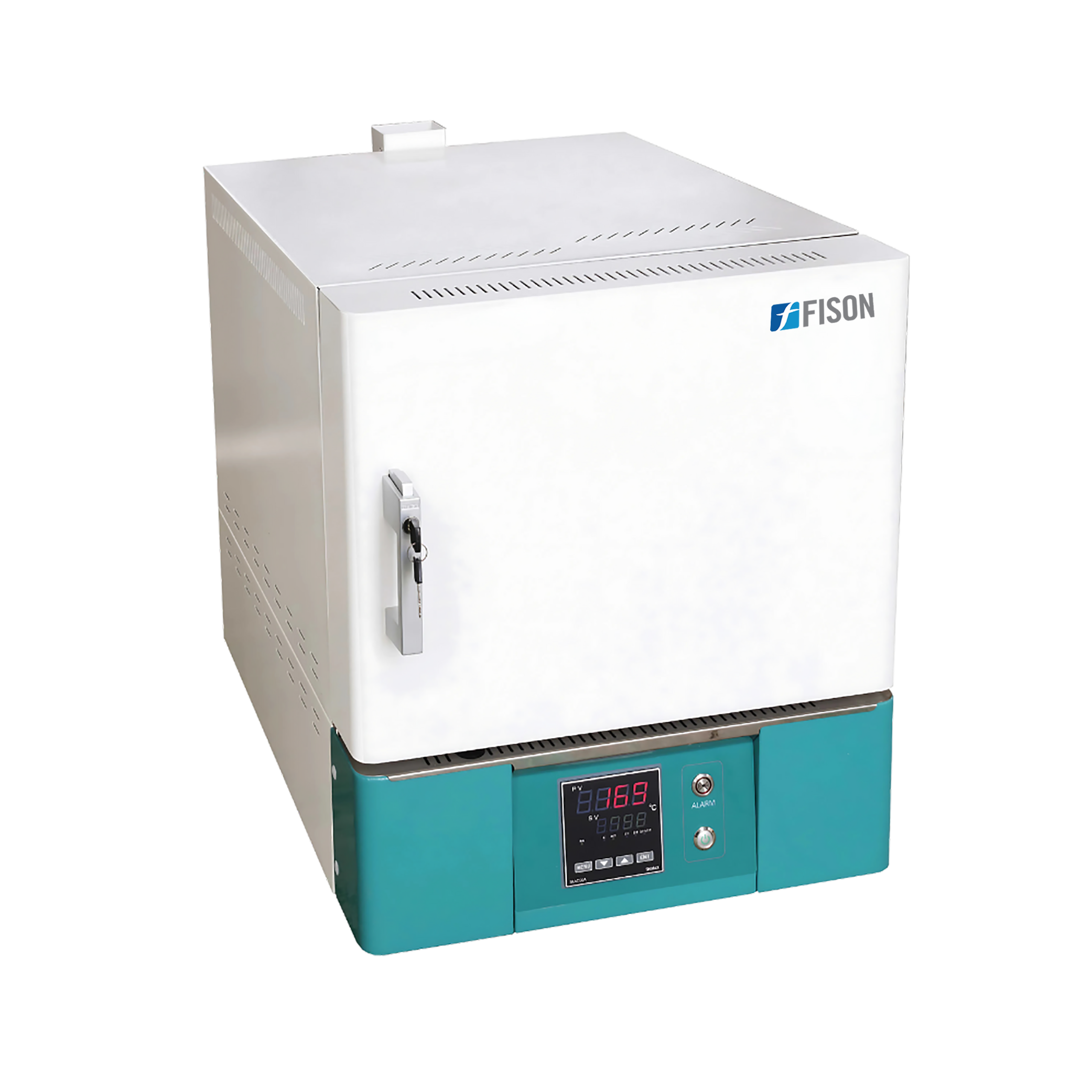

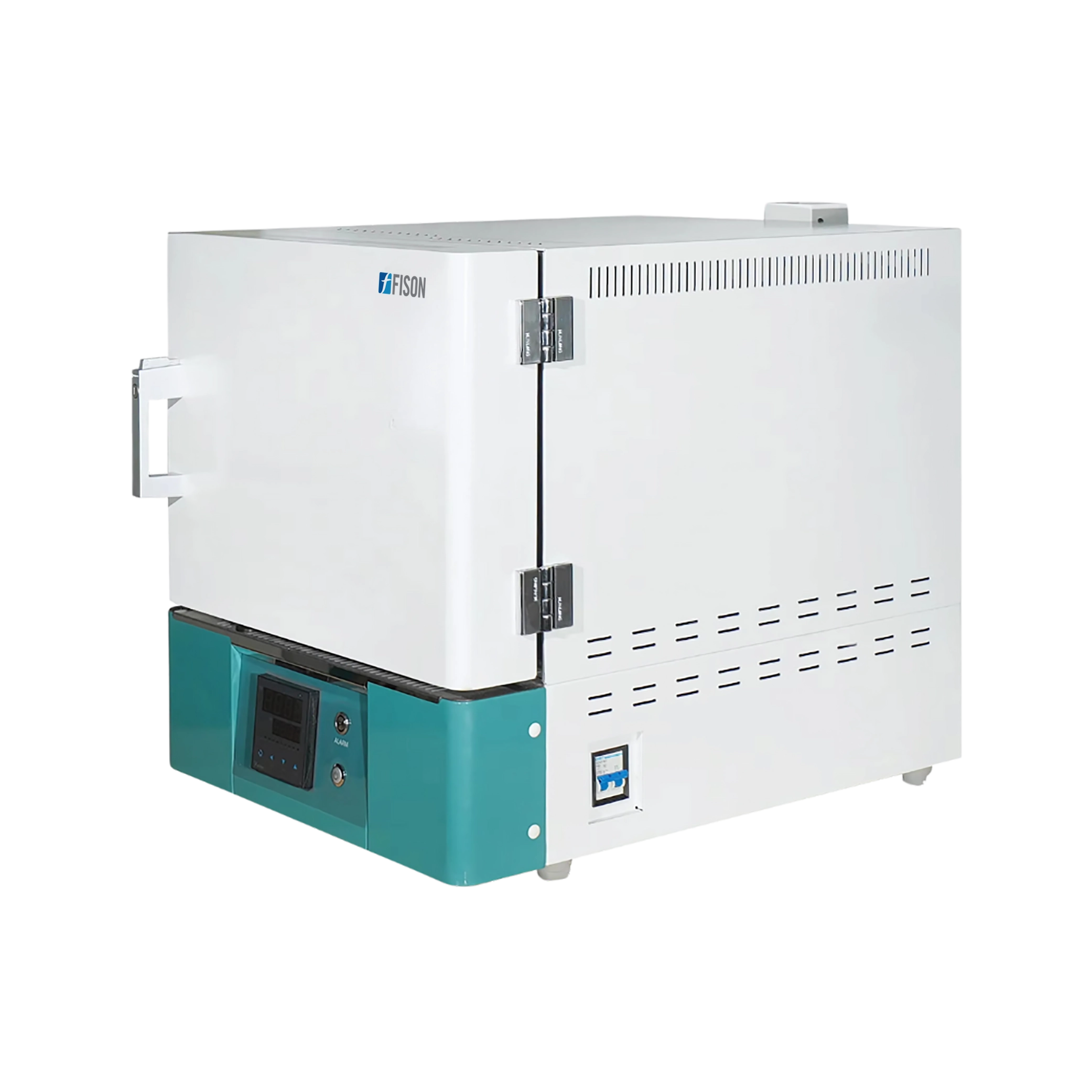

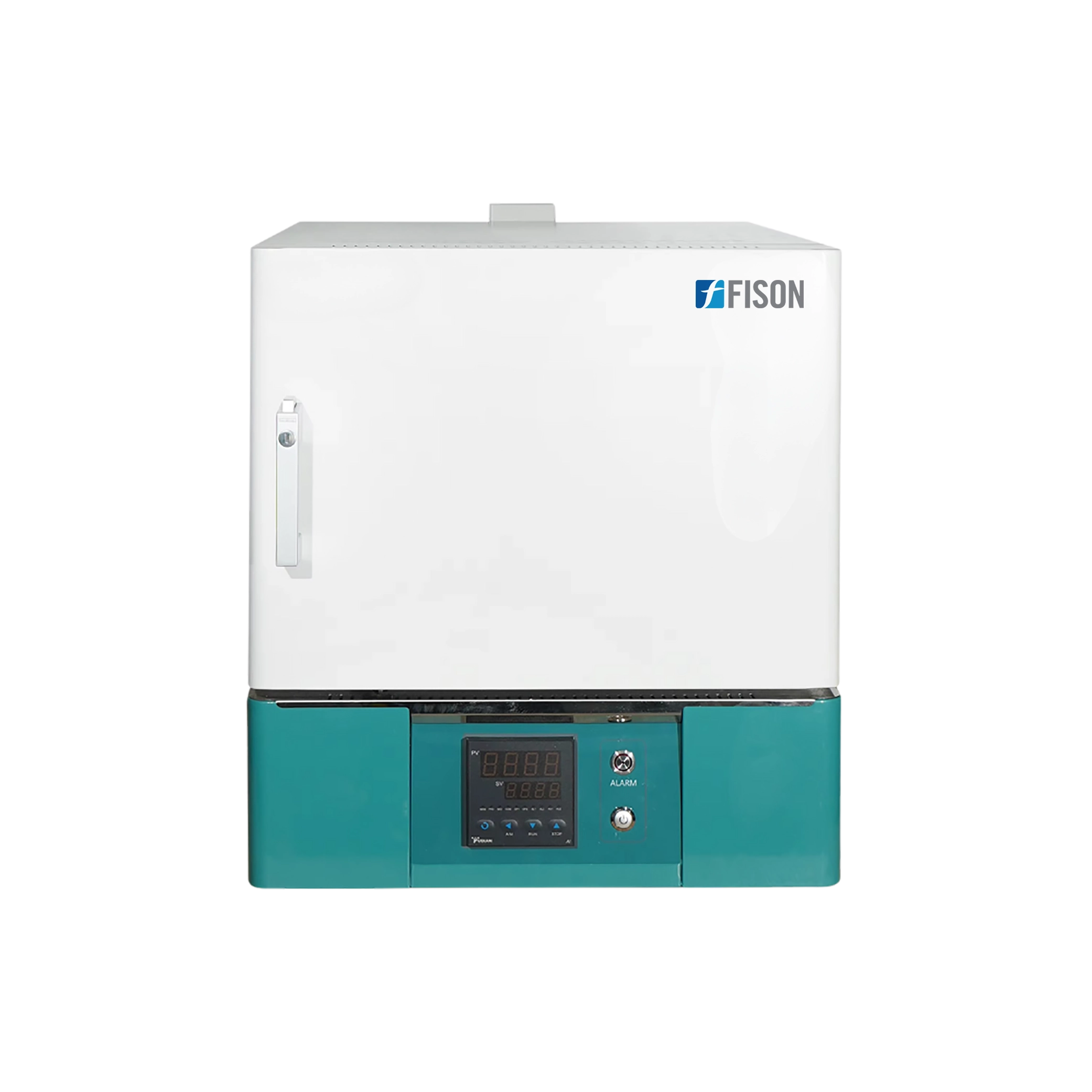

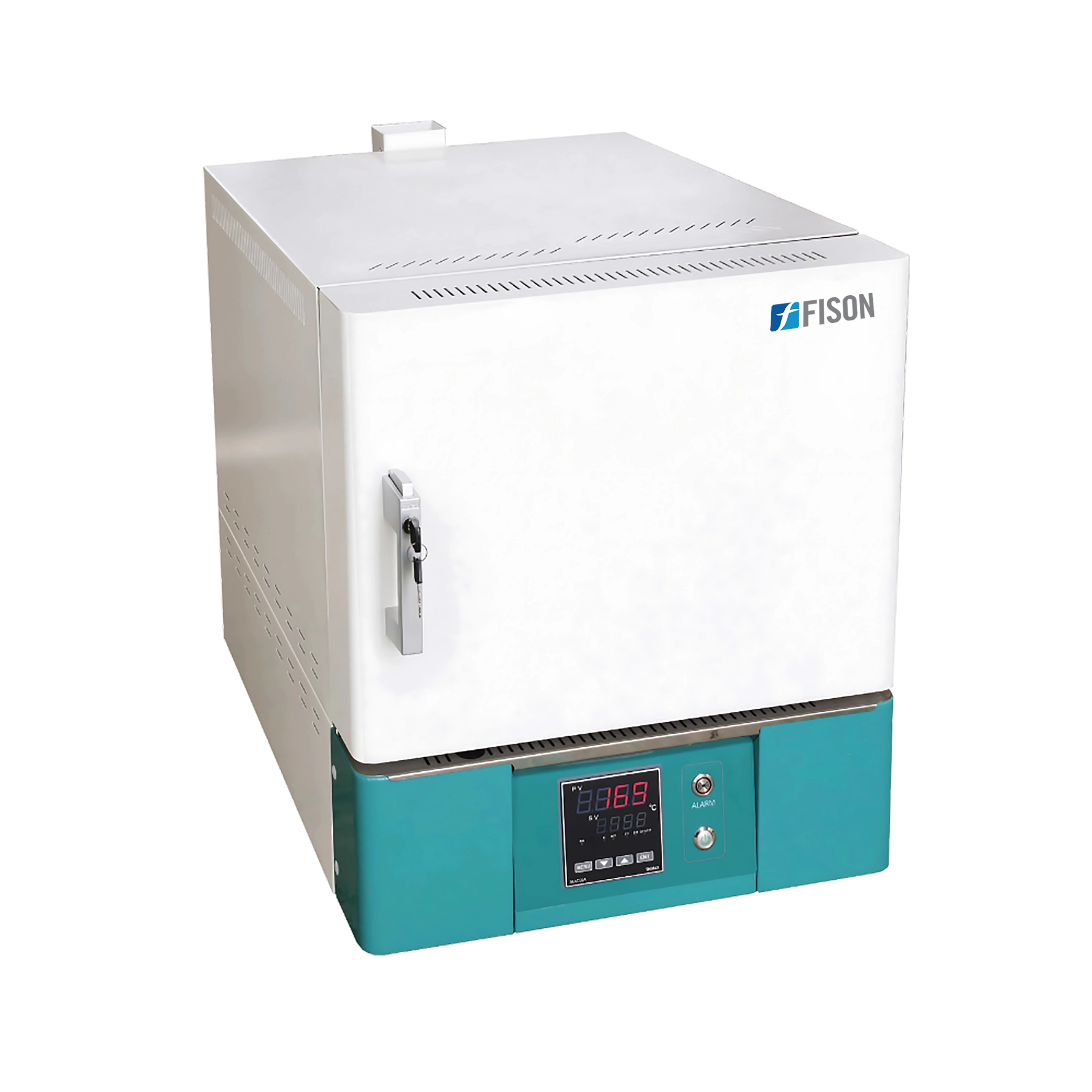

Muffle Furnace FM-MF-A201 offers excellent thermal insulation and minimizes heat loss. It can reach up to maximum temperature of 1200 ℃ with the capacity of 7 L. Exterior of the furnace is constructed with cold-rolled steel having anti-bacterial powder coating. This contributes to durability and resistance to environmental factors. PID Micro Digital Screen Controller has simplified the operation for the user. It provides precise temperature control, over-temperature alarm, and automatic shutdown for enhanced safety.
| Capacity | 7 L |
| Maximum Temperature | 1200 °C |
| Temperature Rising Time | <30 minutes |
| Temperature Accuracy | ±1 °C |
| Power Consumption | 3 KW |
| Power Supply | 220V±10%, 50/60Hz |
| Interior Dimensions (W × D × H) | 300 × 200 × 120 mm |
| Exterior Dimensions (W × D × H) | 530 × 785 × 640 mm |
| Packing Dimensions (W × D × H) | 660 × 875 × 770 mm |
| Gross Weight | 60 Kg |
Muffle Furnace is widely used across metallurgy, ceramics, quality control testing, laboratory, and academic research.
Fison 1100⁰C Muffle Furnace have a combustion chimney system that safely expels gases or fumes from high-temperature operations. They have cold-rolled steel sheets with a powder coating to enhance energy efficiency. The high-quality heating element is equipped to ensure quicker reaction rates and shorter processing times. These have incorporated power failure memory to store and recall its operating settings. Our 1100⁰C muffle furnaces have low shell surface temperature providing an insulating effect on the ceramic fiber.
