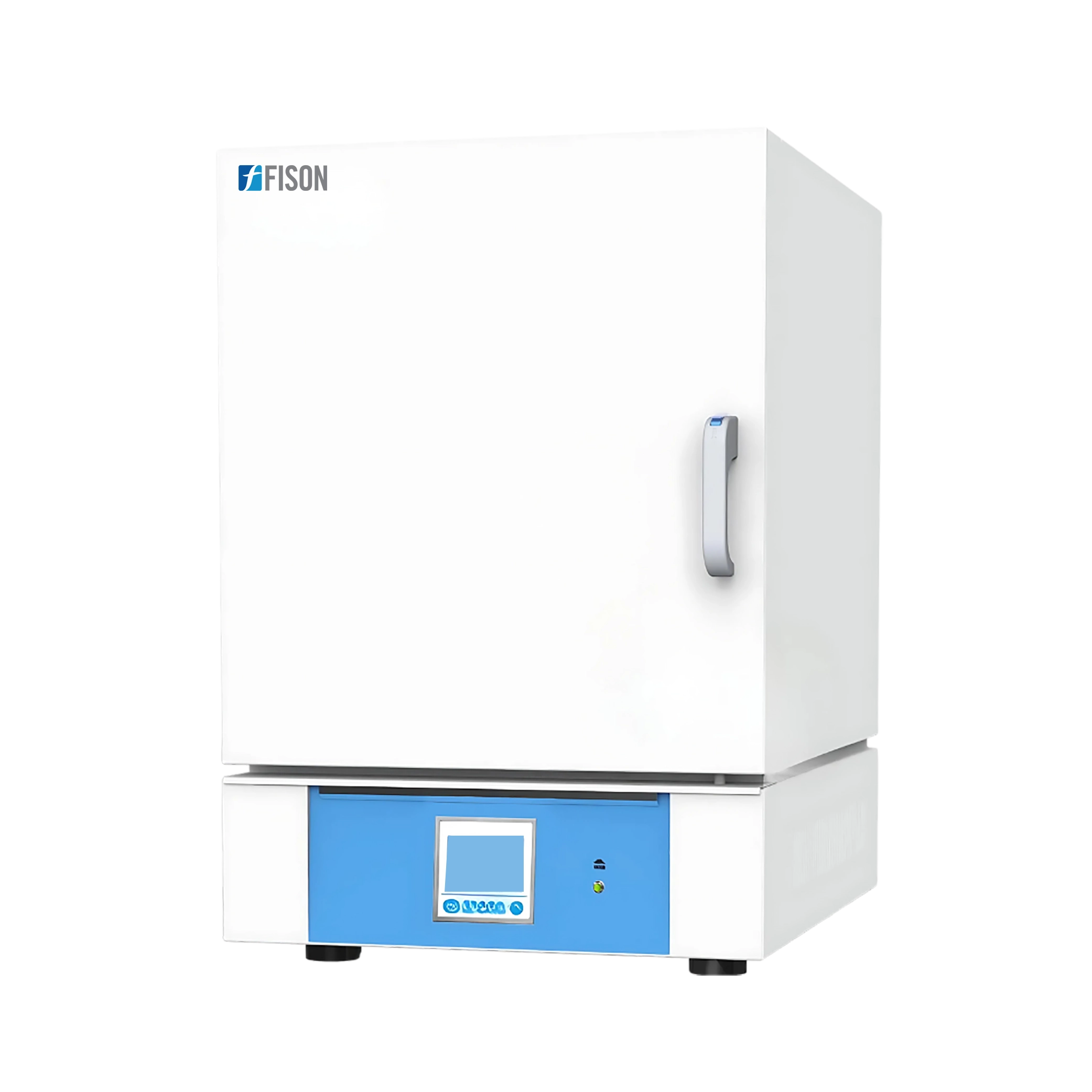

Muffle Furnace FM-MF-B105 features a temperature of 1100⁰C to ensure quicker reaction rates and shorter processing times. This unit offers overcurrent prevention and anti-scalding to ensure safe operation and prevent accidents. Its housing is made of cold-rolled steel sheets with a powder coating to enhance energy efficiency. Our muffle furnace with high-quality electric furnace wire fiber for efficient insulation and reliable high-temperature heat treatment.
| Capacity | 12 L |
| Working Temperature | 1000⁰C |
| Maximum Temperature | 1100⁰C |

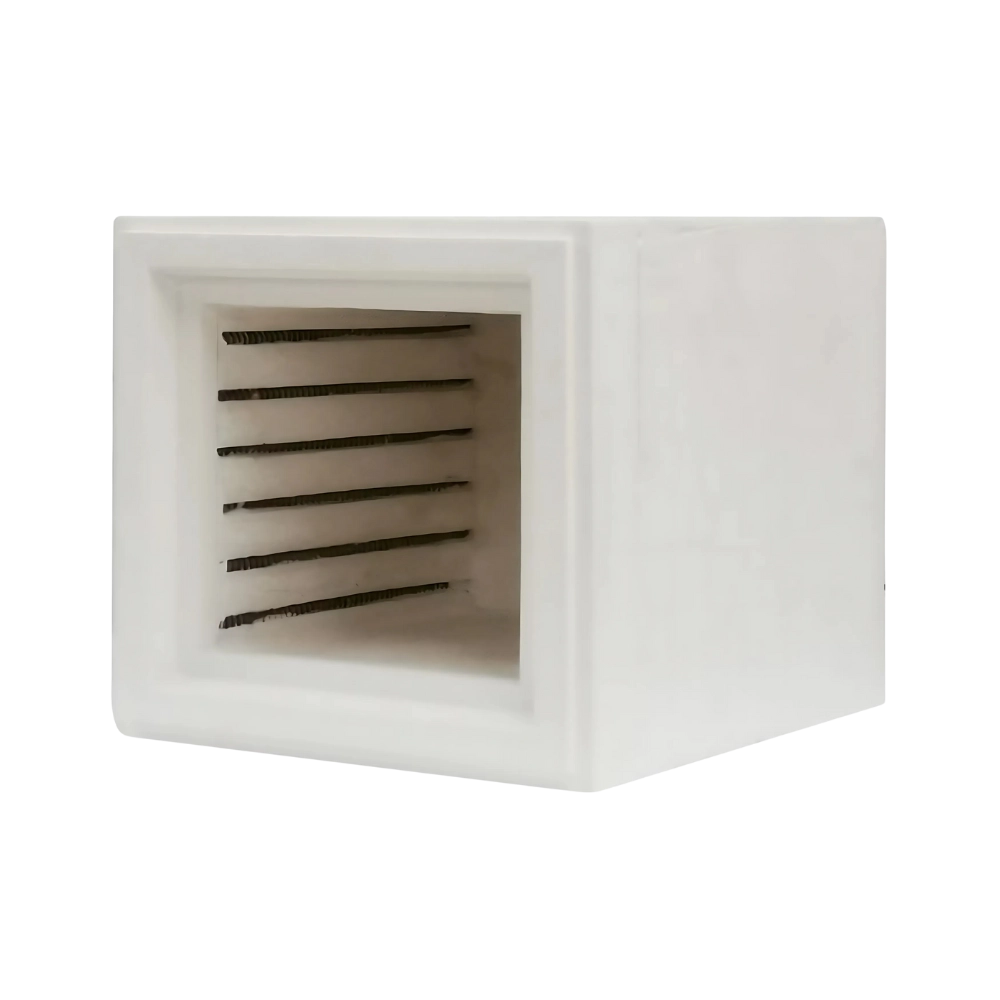

| Insulation Material | Alumina ceramic fiber |
| Heating Element | Fe-Cr-Al |
| Heating Time | 35-65 Mins |
| Present start and off | Yes |
| Thermocouple type | K Type |
| Programmable Controller | Yes |
| Power Consumption | 5 kW |
| Power Supply | 380V 50/60HZ Three Phase |
| Interior Dimensions (W×D×H) | 300×200×200 mm |
| External Dimensions (W×D×H) | 490×690×730 mm |
Muffle Furnaces are commonly used in quenching, annealing, and tempering small steel parts applied in industrial and mining enterprises, universities and research institutes. It can also be used as a pre-treatment for sintering, and ashing analysis of metal, stone, tools and ceramics.

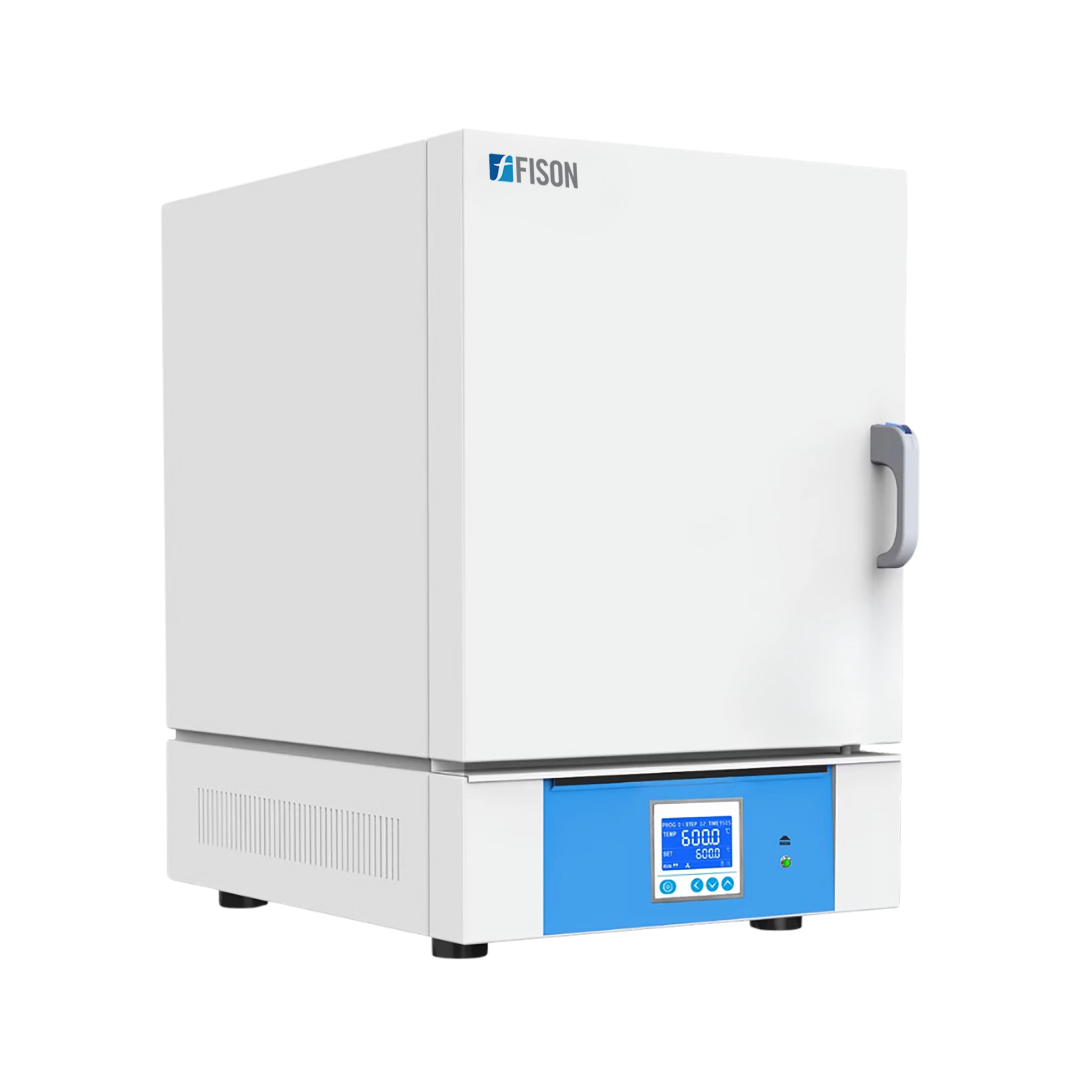

Fison 1200⁰C Muffle Furnace features a maximum temperature is 1200⁰C to ensure quicker reaction rates and shorter processing times. They have high-quality heating elements to ensure quicker reaction rates and shorter processing times. Their combustion chimney system safely expels gases, fumes, or byproducts from high-temperature operations. The furnaces feature a microcomputer PID controller for convenience use. Our muffle furnaces incorporated Power failure memory to store and recall its operating settings.
